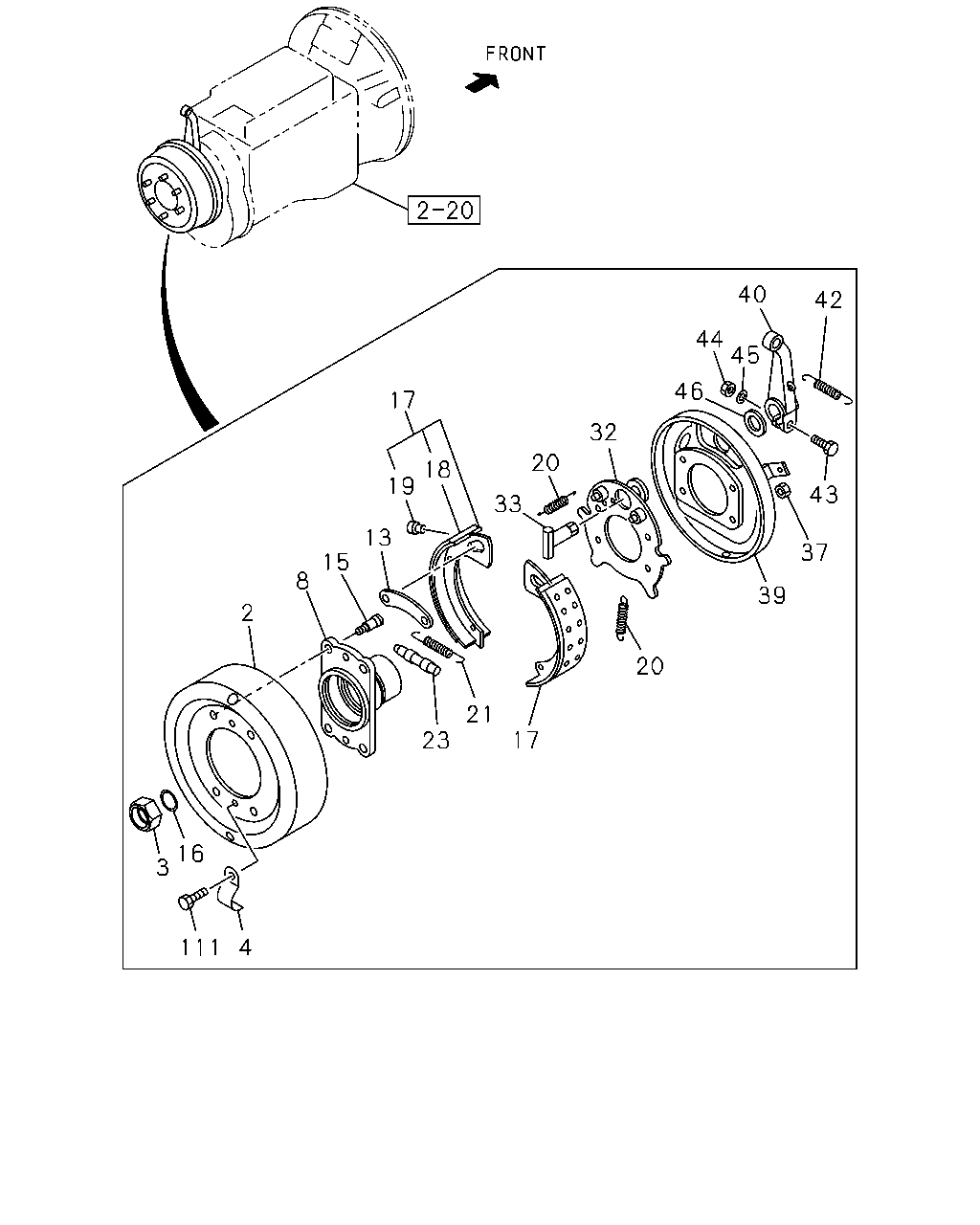

3-08 — PARKING BRAKE
(#26255) — 29 parça
40
42
44
45
46
17
32
20
18
19
43
33
13
37
15
8
39
2
20
21
17
23
16
3
111
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-019-0
01
1
0711-
3
NUT; LK
M36 FLANGE
1-09449-063-0
01
1
0711-0805
3
NUT; LK
M36 FLANGE
8-98014-140-0
01
1
0806-
4
COVER; ADJ HOLE
1-46219-030-0
02
1
0711-
8
FLANGE; PARKING BRK
1-37243-235-0
01
1
0711-1002
8
FLANGE; PARKING BRK
8-98153-193-0
01
1
1003-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
0711-
15
BOLT; FLANGE
M16X55
8-98023-172-0
04
1
0711-
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5
1-09623-380-0
01
1
0711-
17
SHOE; PARKING BRK
1-46220-022-1
02
1
0711-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
0711-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
0711-0807
19
RIVET; LINING,PARKING BRK
1-09732-058-0
32
1
0808-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
0711-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
0711-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
0711-
32
PLATE; SUPPORT,PARKING BRK
1-46213-039-0
01
1
0711-
33
SHAFT; CAM,PARKING BRK
1-46251-010-0
01
1
0711-
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
0711-
39
COVER; DUST,PARKING BRK
1-46213-038-0
01
1
0711-
40
LEVER; CM/SHF,PARKING BRK
1-46252-046-0
01
1
0711-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
0711-
43
BOLT; LEVER TO CM/SHF
8-98061-595-0
01
1
0711-
44
NUT; LEVER TO CM/SHF
M10
0-91111-510-0
01
1
0711-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
0-91510-510-0
01
1
0711-
46
WASHER; LEVER
9-09855-362-0
01
1
0711-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
0711-0906
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50540-820-0
02
1
0907-1009
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50740-820-0
02
1
1010-
