Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#26250) — 19 parça
◀

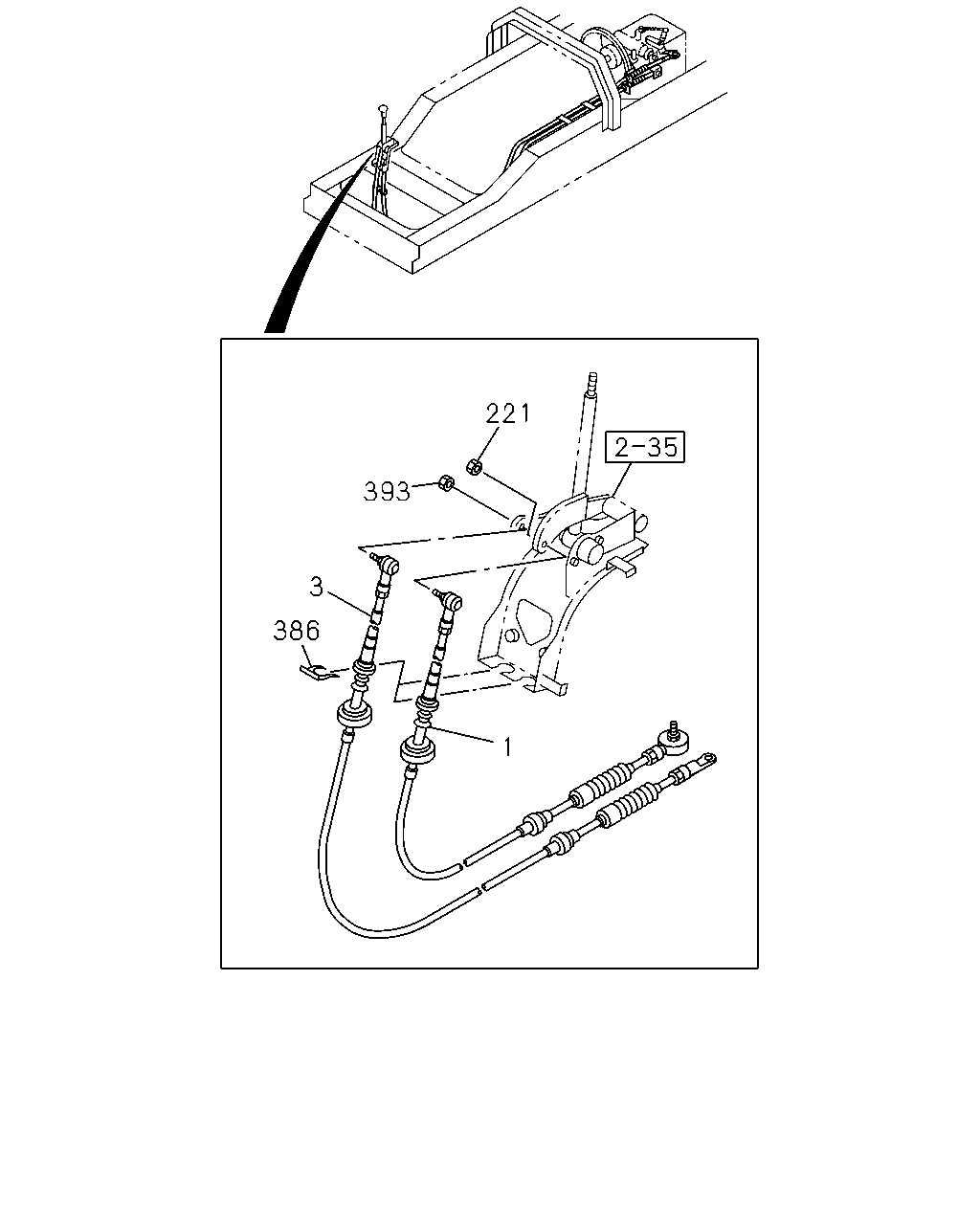

[236A] NO.1 (8 parça)

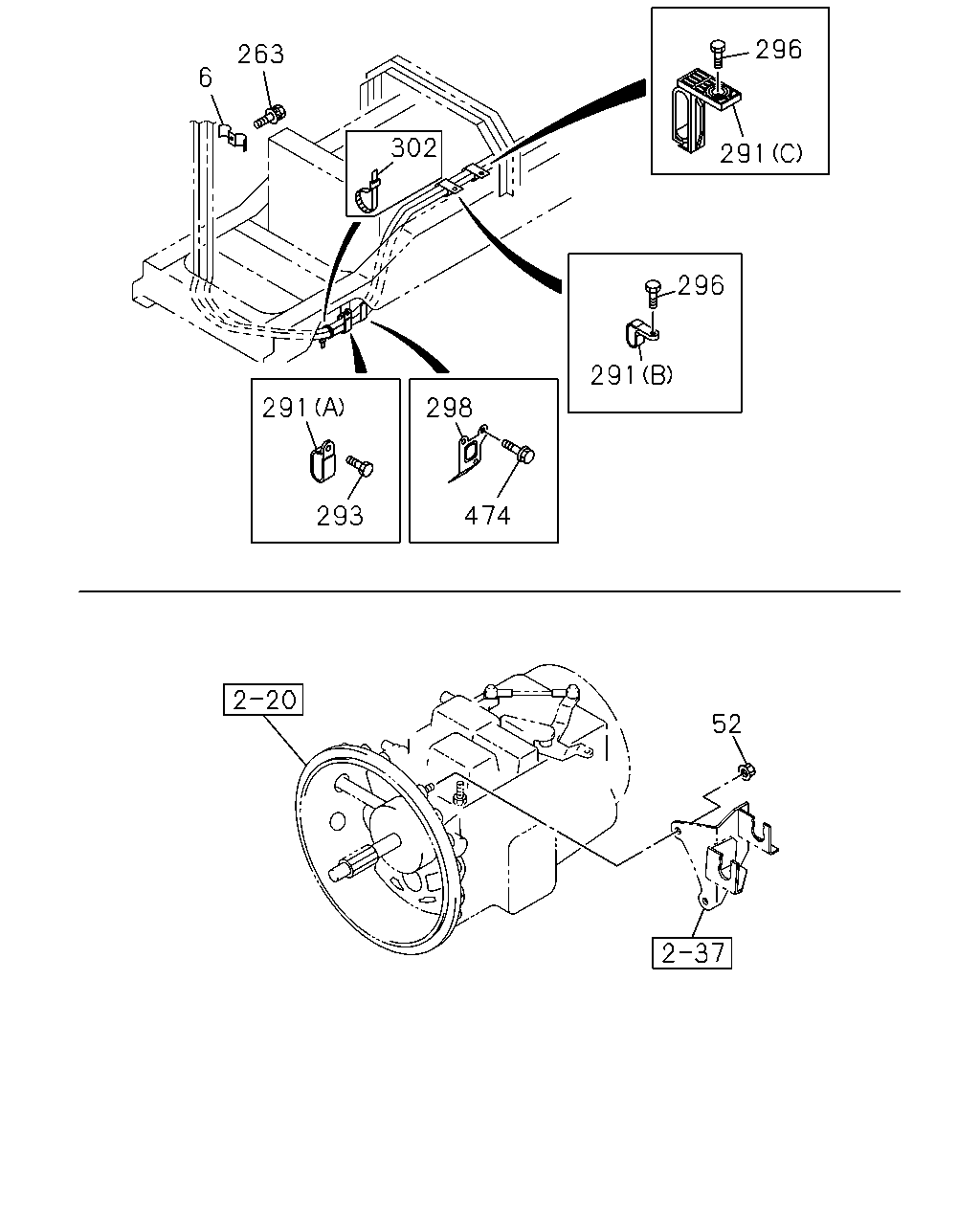

[236A] NO.2 (11 parça)
▶
221
393
3
386
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3565
1-33671-144-0
01
1
0711-
3
CABLE; SELECT,TRANS CONT
L=3660
1-33671-151-0
01
1
0711-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
0711-1011
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1012-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0711-
386
CLIP; CONT CABLE & TUBE
L=140 IDN
5-09707-031-1
01
1
0711-
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-049-0
01
1
0711-1011
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-062-1
01
1
1012-
296
263
6
302
291
296
291
291
298
293
474
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
0711-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0711-
263
BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0711-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
01
1
0711-
291
CLIP; SHIFT TO SELECT,FRAME
(C)
1-09701-307-2
01
1
0711-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-312-0
01
1
0711-
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28050-816-0
01
1
0711-
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28050-820-0
02
1
0711-
298
BRACKET
1-82659-149-0
01
1
0711-
302
CLIP; BAND
L=300
1-09707-001-1
01
1
0711-
474
BOLT; BRKT
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0711-
