Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#26239) — 48 parça
◀

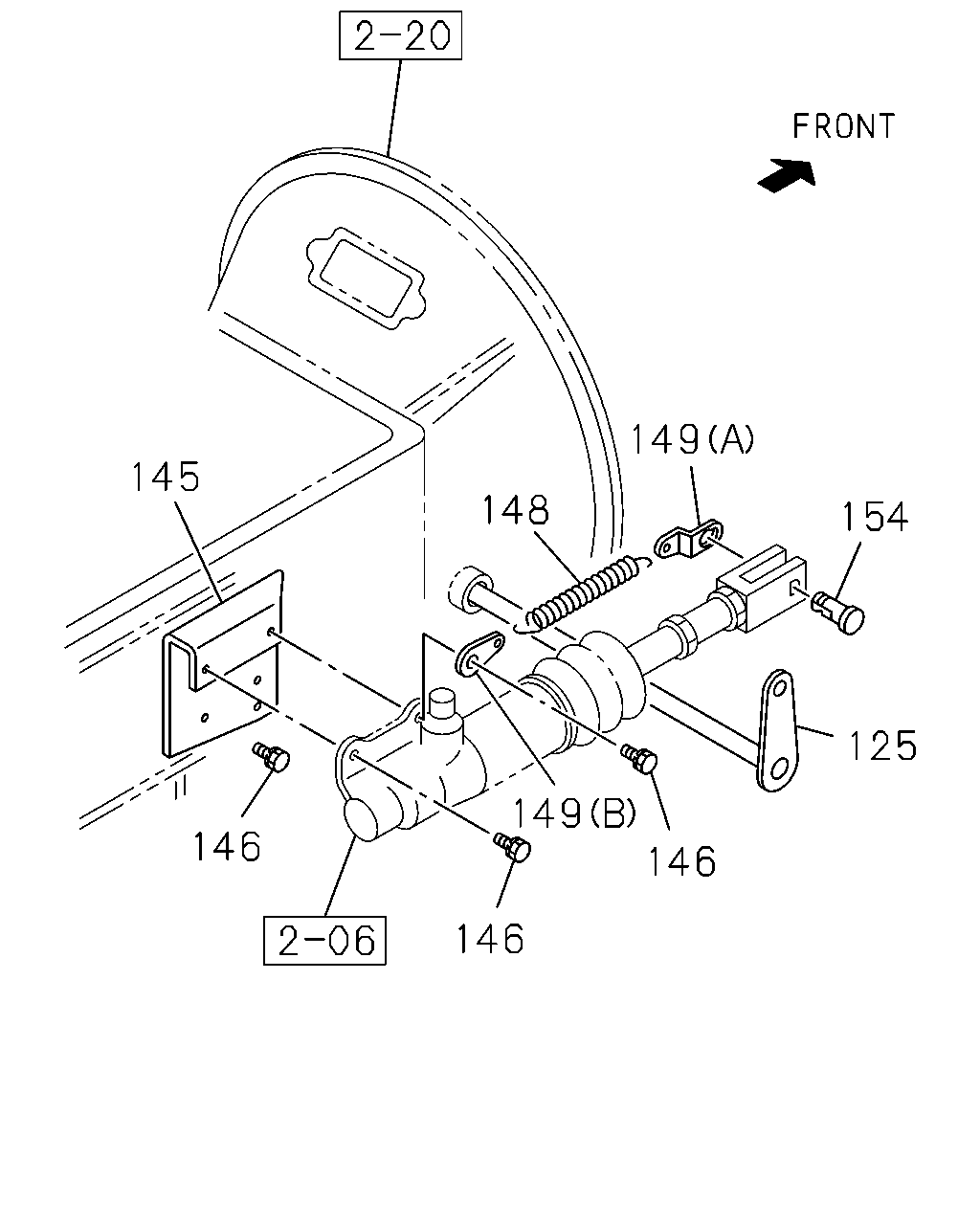

[201A] SLAVE CYLINDER (7 parça)

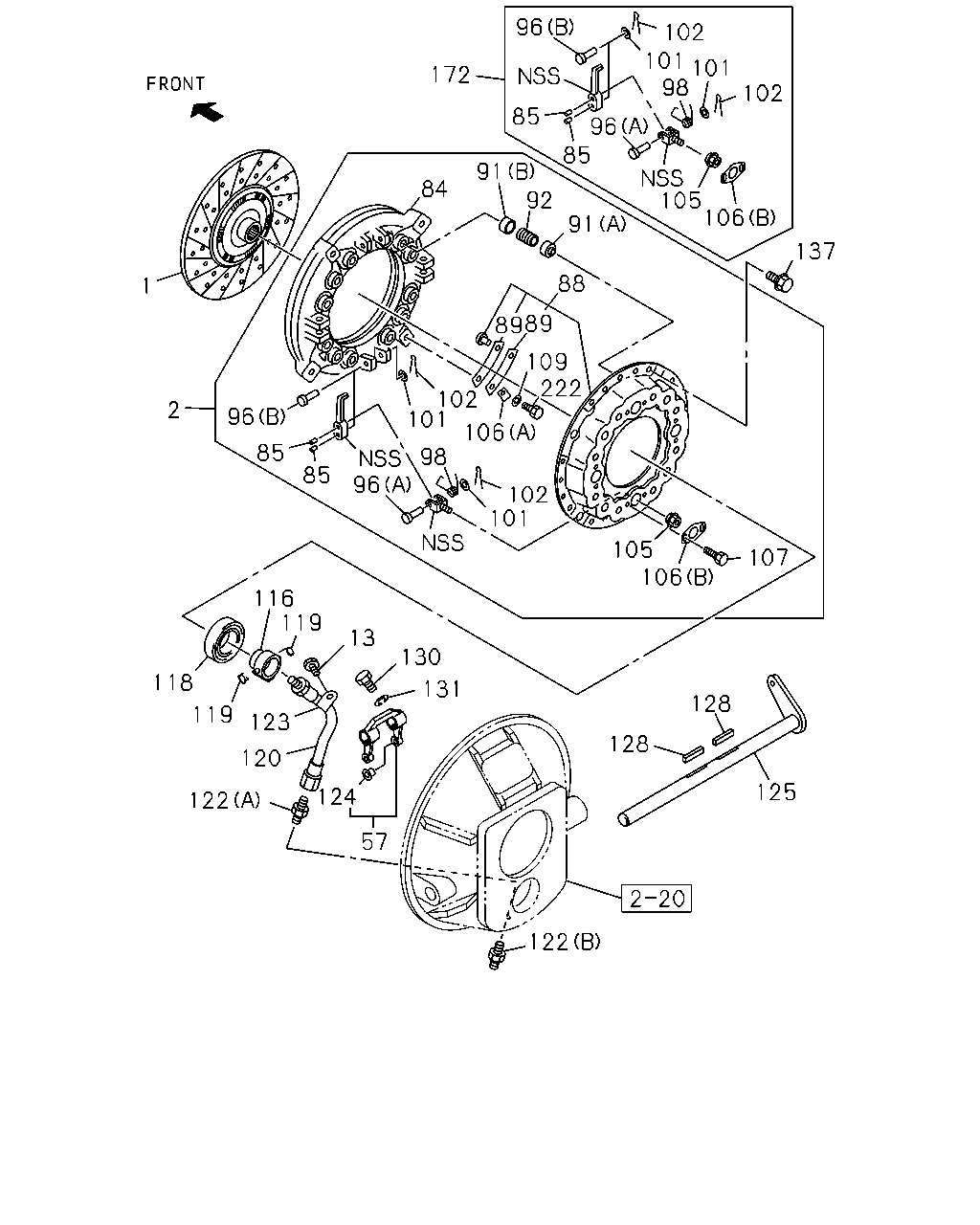

[201A] CLUTCH DISC AND PRESSURE PLATE (41 parça)
▶
149
145
148
154
125
149
146
146
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
125
SHAFT; CLU
1-31342-298-1
01
1
0711-
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-058-0
01
1
0711-
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28151-025-0
04
1
0711-
148
SPRING; CLU RETURN
1-09583-249-0
01
1
0711-
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-019-1
01
1
0711-
149
EYE; SPRING,RETURN SPRING
(B) T=2.3
1-47324-005-1
01
1
0711-
154
PIN; JAW JOINT
1-31424-009-0
01
1
0711-
96
102
101
101
98
172
102
96
85
85
91
92
105
106
84
91
137
88
1
109
222
102
101
2
96
106
96
85
85
102
101
105
106
107
116
119
13
130
118
131
128
119
123
128
120
124
125
122
57
122
98
89
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
14"
1-31240-901-0
01
1
0711-
2
PLATE ASM; PRESSURE,CLU
1-31220-364-2
01
1
0711-1005
2
PLATE ASM; PRESSURE,CLU
1-31220-447-0
01
1
1006-
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0711-
57
FORK; SHIFT,CLU
1-31340-056-1
01
1
0711-
84
PLATE; PRESSURE
14"
1-31221-082-0
01
1
0711-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0711-
88
COVER SUB ASM; CLU
IDN
1-31211-036-0
01
1
0711-
89
PLATE; STRAP
1-31229-001-0
08
1
0711-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0711-1005
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
08
1
1006-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0711-1005
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
08
1
1006-
92
SPRING; CLU
IDN
1-31214-088-0
12
1
0711-1005
92
SPRING; CLU
1-31214-060-0
08
1
1006-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
0711-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
0711-
98
SPRING; RETURN
1-31233-003-0
04
1
0711-
101
WASHER; RELEASE LEVER
9-31239-039-0
08
1
0711-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
0711-
105
NUT; SUPPORT
IDN
1-31235-014-0
04
1
0711-
106
PLATE; LK,LEVER SUPPORT
(A)
1-31235-008-0
04
1
0711-
106
PLATE; LK,LEVER SUPPORT
(B)
1-31239-019-0
04
1
0711-
107
BOLT; LK PLATE
IDN
1-31239-061-0
08
1
0711-
109
WASHER; LK,STRAP
ID=10.2
0-91510-510-0
04
1
0711-
116
BLOCK; SHIFT,CLU
1-31321-052-3
01
1
0711-
118
BEARING; CLU RELEASE
1-09820-114-0
01
1
0711-
119
SPRING; SHIFT FORK
1-09585-053-1
01
1
0711-
119
SPRING; SHIFT FORK
1-09585-054-1
01
1
0711-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0711-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
0711-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 & M10
1-09660-710-0
01
1
0711-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
0711-
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
0711-
125
SHAFT; CLU
1-31342-298-1
01
1
0711-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0711-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0711-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0711-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0711-
172
LEVER KIT; RELEASE,CLU
1-87831-173-1
01
1
0711-
222
BOLT; STRAP
IDN
1-31239-059-0
04
1
0711-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
