0-50B — OIL COOLER AND OIL FILTER (#2623) — 204 parça

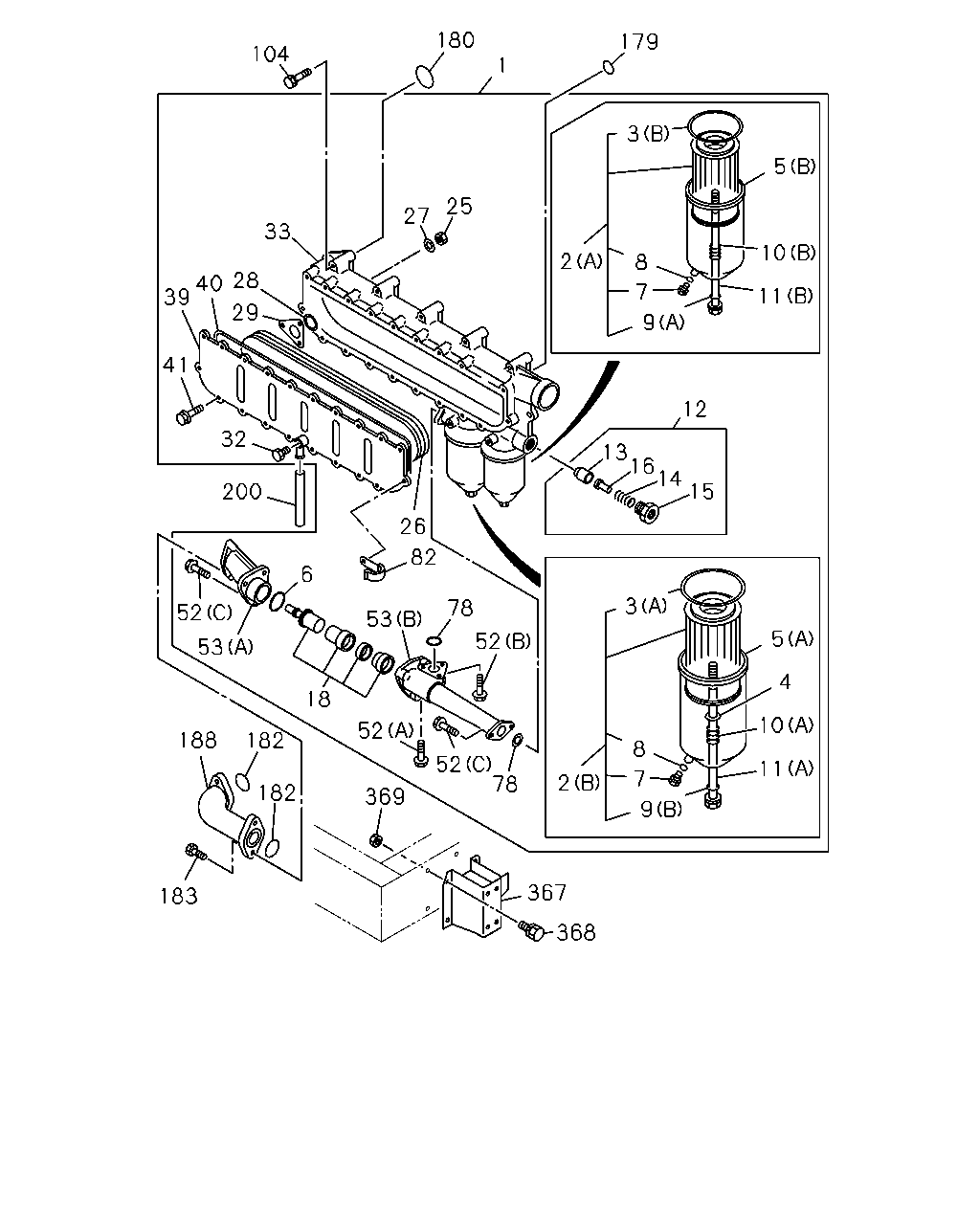

104 180 1 179 3 5 10 11 9 7 8 2 12 13 16 14 15 3 5 4 10 11 9 7 8 2 183 188 182 182 369 367 368 25 27 33 28 29 40 39 41 32 26 82 78 52 53 200 6 52 53 18 52 52 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL	1-13200-772-7	01	1	9002-9306	●
1	FILTER & COOLER ASM; OIL	1-13200-922-3	01	1	9307-	●
1	FILTER & COOLER ASM; OIL	1-13200-919-3	01	1	9307-		●
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-116-0	01	1	9002-	●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-117-1	01	1	9002-9108	●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-173-0	01	1	9109-9202	●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-179-0	01	1	9203-9310	●
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-187-0	01	1	9311-	●
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-165-0	01	1	9307-		●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-166-0	01	1	9307-		●
3	GASKET (B)	1-13213-010-0	01	1	9002-	●
3	GASKET (A)	1-13213-011-2	01	1	9002-	●
3	GASKET (A)	1-09623-548-0	01	1	9307-		●
3	GASKET (B)	1-09623-552-0	01	1	9307-		●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9002-	●
4	WASHER; ELEMENT	1-13234-005-0	01	1	9307-		●
5	CASE; OIL FILTER (B)	1-13211-197-0	01	1	9002-9004	●
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	9005-	●
5	CASE; OIL FILTER (A)	1-13211-199-0	01	1	9002-9004	●
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	9005-	●
5	CASE; OIL FILTER (A)	1-13211-239-0	01	1	9307-9601		●
5	CASE; OIL FILTER (A)	1-13211-262-0	01	1	9602-		●
5	CASE; OIL FILTER (B)	1-13211-240-0	01	1	9307-		●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9002-	●
6	GASKET; VLV CASE	1-09623-417-0	02	1	9307-		●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9002-	●
7	PLUG; CENTER BOLT	1-13219-272-0	02	1	9307-		●
8	GASKET; PLUG	9-09923-579-0	02	1	9002-	●
8	GASKET; PLUG	1-09623-550-0	02	1	9307-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	9002-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	9002-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-549-0	01	1	9307-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-551-0	01	1	9307-		●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9002-	●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9002-	●
10	SPRING; ELEMENT (B)	1-09580-387-0	01	1	9307-		●
10	SPRING; ELEMENT (A)	1-09580-484-0	01	1	9307-		●
11	BOLT; CENTER (B)	1-13231-071-0	01	1	9002-	●
11	BOLT; CENTER (A)	1-13231-072-0	01	1	9002-	●
11	BOLT; CENTER (A)	1-13219-281-1	01	1	9307-		●
11	BOLT; CENTER (B)	1-13231-075-0	01	1	9307-		●
12	VALVE ASM; BYPASS	1-13260-056-0	01	1	9002-9306	●
12	VALVE ASM; BYPASS	1-13200-875-0	01	1	9307-	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9002-	●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9002-	●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	9307-		●
15	PLUG; RELIEF VLV	1-13265-017-0	01	1	9002-9412	●
15	PLUG; RELIEF VLV	1-13265-024-0	01	1	9501-	●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	9002-	●
16	VALVE ASM; RELIEF	1-13262-005-0	01	1	9307-		●
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9002-	●
25	NUT; CORE TO BODY M10	9-09110-410-0	06	1	9002-	●
25	NUT; CORE TO BODY M10	9-09120-410-0	04	1	9307-		●
26	CORE ASM; OIL COOLER	1-21491-038-0	01	1	9002-	●
26	CORE ASM; OIL COOLER	1-21723-044-2	01	1	9307-		●
27	WASHER; PL,CORE TO BODY	9-09100-510-0	06	1	9002-	●
27	WASHER; PL,CORE TO BODY	9-09160-610-0	12	1	9307-		●
28	GASKET; CORE TO BODY	1-09623-560-0	02	1	9002-	●
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	9002-	●
29	GASKET; CORE TO BODY (A)	1-21729-079-1	01	1	9307-		●
29	GASKET; CORE TO BODY (B)	1-21729-080-1	01	1	9307-		●
32	PLUG; DRAIN	1-13219-151-0	01	1	9002-	●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9002-	●
33	HOUSING ASM; COOLER	1-21721-076-0	01	1	9307-		●
39	COVER; OIL COOLER	1-21722-029-0	01	1	9002-9306	●
39	COVER; OIL COOLER	1-21722-027-0	01	1	9307-	●
39	COVER; OIL COOLER	1-21721-066-0	01	1	9307-		●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9002-	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-520-0	01	1	9307-		●
41	BOLT; COVER FIX	1-13219-260-0	20	1	9002-9306	●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9307-	●
41	BOLT; COVER FIX	1-09033-004-0	12	1	9307-		●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9002-	●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9002-	●
52	BOLT; OIL INL PIPE & VLV CASE (C)	9-02050-830-0	05	1	9002-	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	9-01056-035-0	06	1	9307-		●
52	BOLT; OIL INL PIPE & VLV CASE (B)	9-01056-055-0	01	1	9307-		●
52	BOLT; OIL INL PIPE & VLV CASE (C)	9-01056-070-0	01	1	9307-		●
53	PIPE; OIL INL (A)	1-13219-273-0	01	1	9002-9306	●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9307-	●
53	PIPE; OIL INL (B)	1-13219-274-1	01	1	9002-9306	●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9307-	●
53	PIPE; OIL INL	1-21726-050-0	01	1	9307-		●
78	GASKET; PIPE	1-13219-257-0	02	1	9002-	●
78	GASKET; PIPE	1-09623-522-0	01	1	9307-		●
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	9307-	●	●
104	BOLT; OIL COOLER M10X60 FLANGE	8-94399-708-1	07	1	9002-9105	●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	07	1	9106-9412	●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9501-	●
104	BOLT; OIL COOLER M10X90	0-28181-090-0	05	1	9307-	●	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9002-	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9002-	●	●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9002-	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28020-822-0	04	1	9002-9005	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9006-	●	●
188	PIPE; BYPASS	1-13312-082-0	01	1	9002-	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
367	BRACKET; PARTIAL FILTER	1-47475-256-7	01	1	9002-	●	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002	●	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-	●	●
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	9002-	●	●

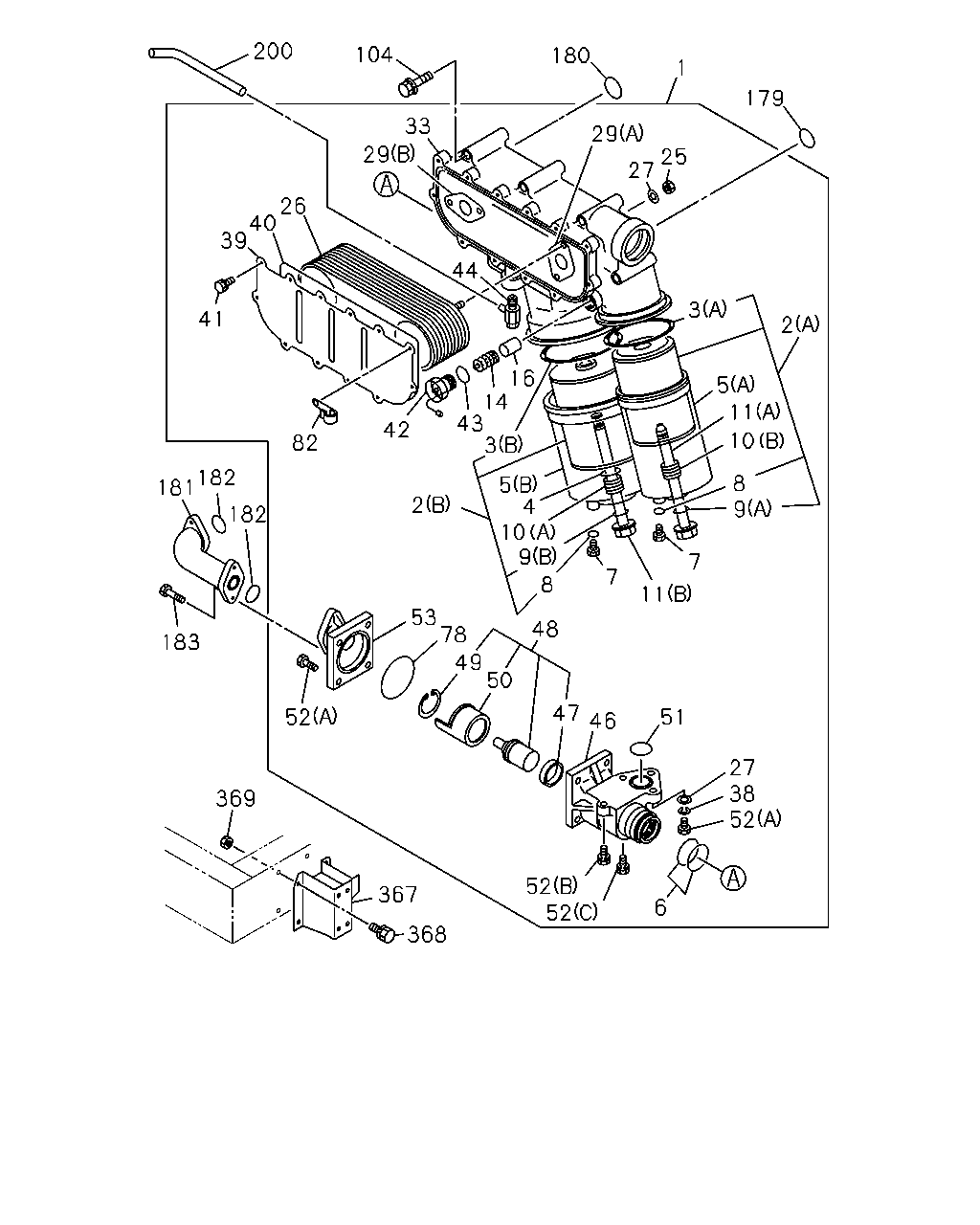

200 104 33 180 1 179 29 27 25 29 39 40 26 41 82 42 43 14 16 44 3 2 5 11 10 8 9 3 5 4 10 9 8 7 11 7 2 181 182 182 183 52 53 78 49 50 48 47 46 51 27 38 52 52 52 368 367 369 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL	1-13200-772-7	01	1	9002-9306	●
1	FILTER & COOLER ASM; OIL	1-13200-922-3	01	1	9307-	●
1	FILTER & COOLER ASM; OIL	1-13200-919-3	01	1	9307-		●
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-116-0	01	1	9002-	●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-117-1	01	1	9002-9108	●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-173-0	01	1	9109-9202	●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-179-0	01	1	9203-9310	●
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-187-0	01	1	9311-	●
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-165-0	01	1	9307-		●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-166-0	01	1	9307-		●
3	GASKET (B)	1-13213-010-0	01	1	9002-	●
3	GASKET (A)	1-13213-011-2	01	1	9002-	●
3	GASKET (A)	1-09623-548-0	01	1	9307-		●
3	GASKET (B)	1-09623-552-0	01	1	9307-		●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9002-	●
4	WASHER; ELEMENT	1-13234-005-0	01	1	9307-		●
5	CASE; OIL FILTER (B)	1-13211-197-0	01	1	9002-9004	●
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	9005-	●
5	CASE; OIL FILTER (A)	1-13211-199-0	01	1	9002-9004	●
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	9005-	●
5	CASE; OIL FILTER (A)	1-13211-239-0	01	1	9307-9601		●
5	CASE; OIL FILTER (A)	1-13211-262-0	01	1	9602-		●
5	CASE; OIL FILTER (B)	1-13211-240-0	01	1	9307-		●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9002-	●
6	GASKET; VLV CASE	1-09623-417-0	02	1	9307-		●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9002-	●
7	PLUG; CENTER BOLT	1-13219-272-0	02	1	9307-		●
8	GASKET; PLUG	9-09923-579-0	02	1	9002-	●
8	GASKET; PLUG	1-09623-550-0	02	1	9307-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	9002-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	9002-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-549-0	01	1	9307-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-551-0	01	1	9307-		●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9002-	●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9002-	●
10	SPRING; ELEMENT (B)	1-09580-387-0	01	1	9307-		●
10	SPRING; ELEMENT (A)	1-09580-484-0	01	1	9307-		●
11	BOLT; CENTER (B)	1-13231-071-0	01	1	9002-	●
11	BOLT; CENTER (A)	1-13231-072-0	01	1	9002-	●
11	BOLT; CENTER (A)	1-13219-281-1	01	1	9307-		●
11	BOLT; CENTER (B)	1-13231-075-0	01	1	9307-		●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9002-	●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	9307-		●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	9002-	●
16	VALVE ASM; RELIEF	1-13262-005-0	01	1	9307-		●
25	NUT; CORE TO BODY M10	9-09110-410-0	06	1	9002-	●
25	NUT; CORE TO BODY M10	9-09120-410-0	04	1	9307-		●
26	CORE ASM; OIL COOLER	1-21491-038-0	01	1	9002-	●
26	CORE ASM; OIL COOLER	1-21723-044-2	01	1	9307-		●
27	WASHER; PL,CORE TO BODY	9-09100-510-0	06	1	9002-	●
27	WASHER; PL,CORE TO BODY	9-09160-610-0	12	1	9307-		●
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	9002-	●
29	GASKET; CORE TO BODY (A)	1-21729-079-1	01	1	9307-		●
29	GASKET; CORE TO BODY (B)	1-21729-080-1	01	1	9307-		●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9002-	●
33	HOUSING ASM; COOLER	1-21721-076-0	01	1	9307-		●
38	WASHER; LK,OIL COOLER	9-09150-510-0	08	1	9307-		●
39	COVER; OIL COOLER	1-21722-029-0	01	1	9002-9306	●
39	COVER; OIL COOLER	1-21722-027-0	01	1	9307-	●
39	COVER; OIL COOLER	1-21721-066-0	01	1	9307-		●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9002-	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-520-0	01	1	9307-		●
41	BOLT; COVER FIX	1-13219-260-0	20	1	9002-9306	●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9307-	●
41	BOLT; COVER FIX	1-09033-004-0	12	1	9307-		●
42	CHAMBER ASM; SWITCH,FILTER	1-13260-097-0	01	1	9307-		●
43	GASKET; SWITCH CHAMBER	1-09630-114-0	01	1	9307-		●
44	COCK ASM; WATER DRAIN	1-09680-066-0	01	1	9307-		●
46	CASE; THERMO VLV	1-21726-047-0	01	1	9307-		●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9307-		●
48	VALVE; THERMO,OIL COOLER	1-21770-004-0	01	1	9307-		●
49	RING; SNAP,THERMO VLV OD=50.5	9-09180-147-0	01	1	9307-		●
50	SPACER; THERMO VLV	1-21799-001-0	01	1	9307-		●
51	GASKET; VLV CASE	1-09623-559-0	01	1	9307-		●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9002-	●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9002-	●
52	BOLT; OIL INL PIPE & VLV CASE (C)	9-02050-830-0	05	1	9002-	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	9-01056-035-0	06	1	9307-		●
52	BOLT; OIL INL PIPE & VLV CASE (B)	9-01056-055-0	01	1	9307-		●
52	BOLT; OIL INL PIPE & VLV CASE (C)	9-01056-070-0	01	1	9307-		●
53	PIPE; OIL INL (A)	1-13219-273-0	01	1	9002-9306	●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9307-	●
53	PIPE; OIL INL (B)	1-13219-274-1	01	1	9002-9306	●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9307-	●
53	PIPE; OIL INL	1-21726-050-0	01	1	9307-		●
78	GASKET; PIPE	1-13219-257-0	02	1	9002-	●
78	GASKET; PIPE	1-09623-522-0	01	1	9307-		●
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	9307-	●	●
104	BOLT; OIL COOLER M10X60 FLANGE	8-94399-708-1	07	1	9002-9105	●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	07	1	9106-9412	●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9501-	●
104	BOLT; OIL COOLER M10X90	0-28181-090-0	05	1	9307-	●	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9002-	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9002-	●	●
181	CONNECTOR; HSG TO COOLER	1-13312-082-0	01	1	9307-		●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9002-	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28020-822-0	04	1	9002-9005	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9006-	●	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
367	BRACKET; PARTIAL FILTER	1-47475-256-7	01	1	9002-	●	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002	●	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-	●	●
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
