1-10 — RADIATOR
(#26229) — 37 parça
◀

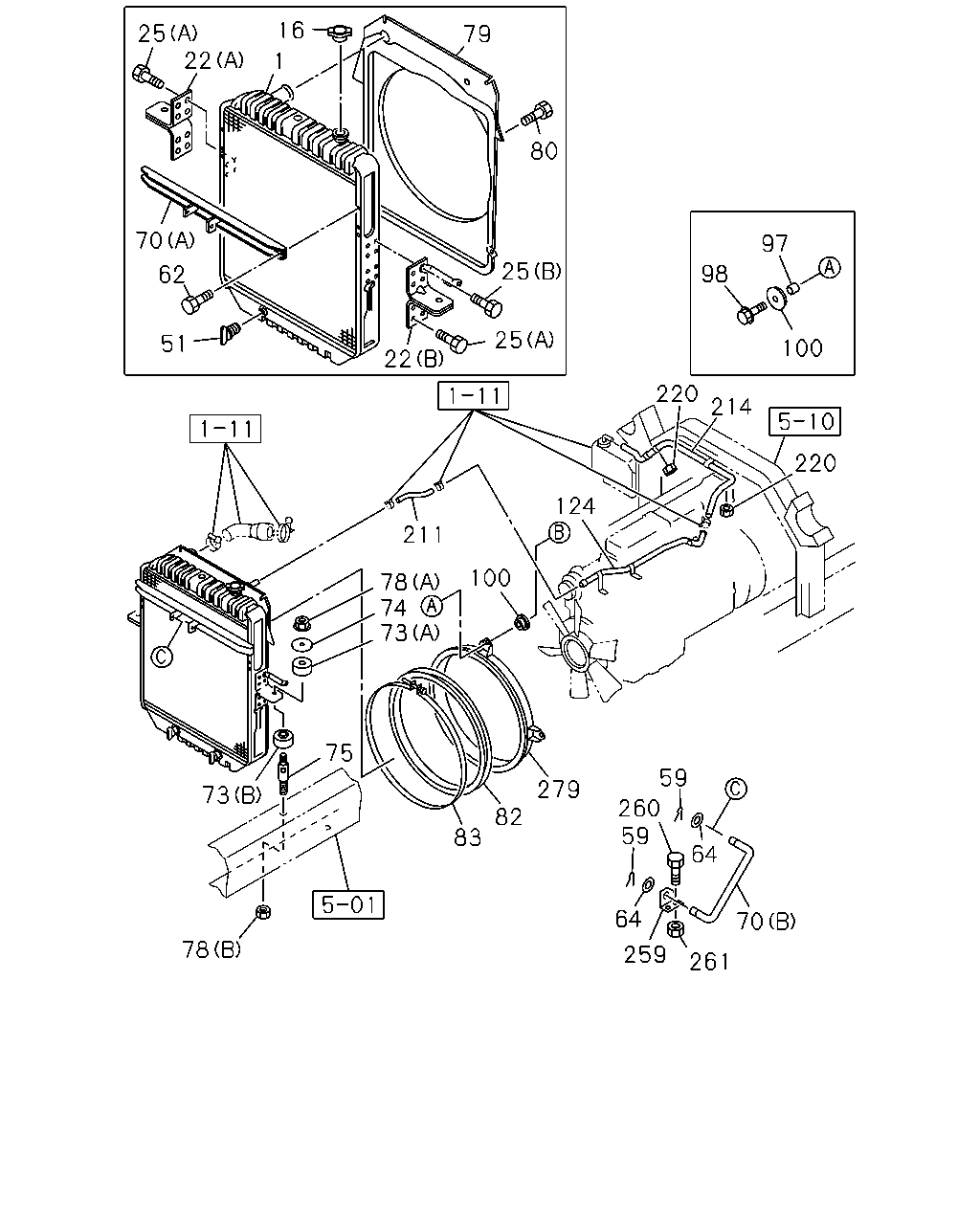

[110A] RADIATOR,FAN COVER AND GUIDE (33 parça)

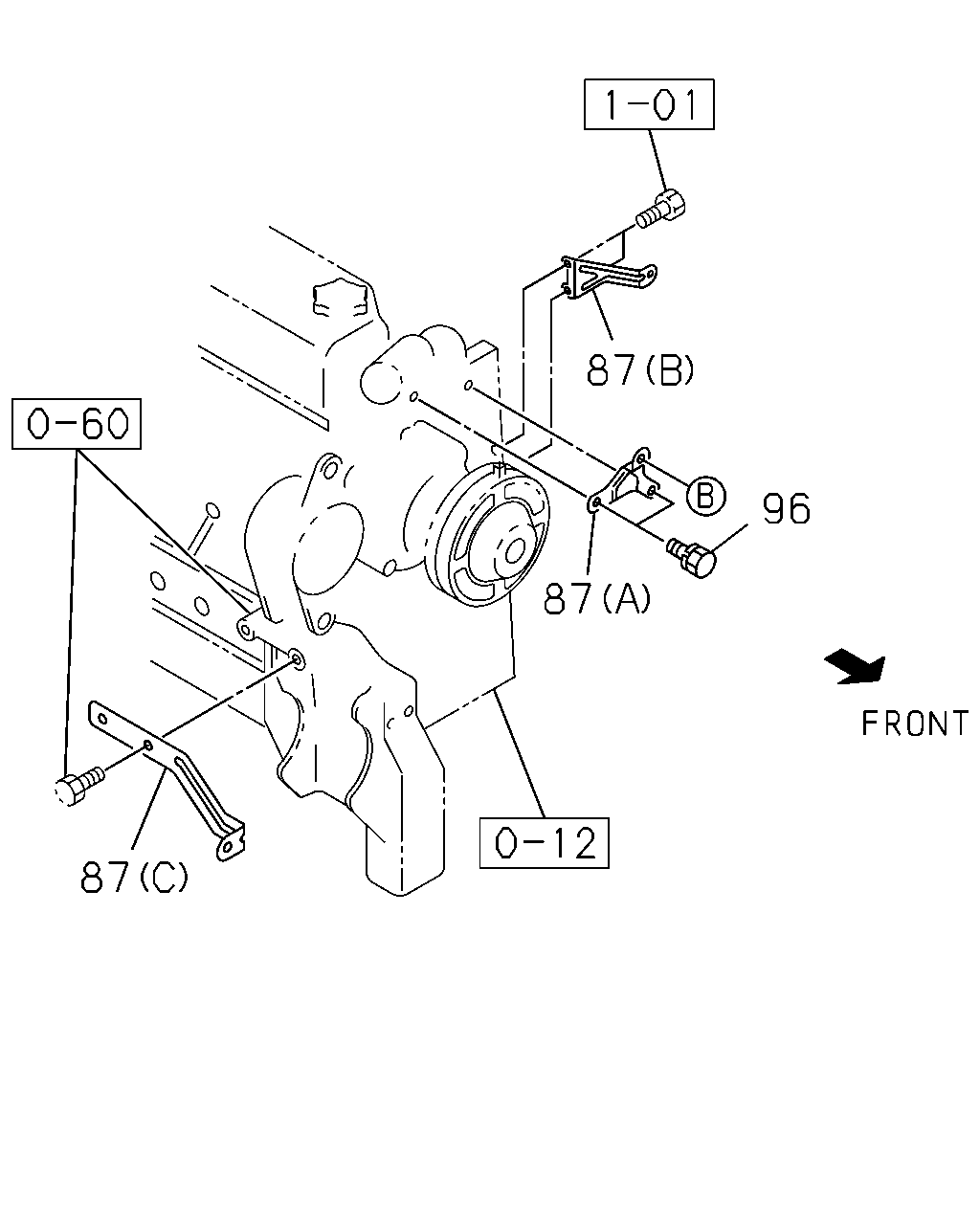

[110A] FAN GUIDE STAY (4 parça)
▶
16
25
22
79
1
80
70
97
25
98
62
25
51
100
22
220
214
220
124
211
100
78
74
73
75
59
279
73
260
59
82
83
64
64
70
78
259
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
IDN
1-21410-711-1
01
1
0711-
16
CAP; RAD
IDN
1-21450-142-0
01
1
0711-
22
BRACKET; RAD MTG
(A) IDN
1-21464-463-1
01
1
0711-
22
BRACKET; RAD MTG
(B) IDN
1-21464-549-0
01
1
0711-
25
BOLT; BRKT
(A) M8X12 FLANGE
0-28080-812-0
15
1
0711-
25
BOLT; BRKT
(B) M8X16 FLANGE
0-28080-816-0
01
1
0711-
51
PLUG; DRAIN
W/GASKET IDN
1-09609-009-0
01
1
0711-
59
PIN; SNAP,STAY
1-09987-158-1
02
1
0711-
62
BOLT; STAY
M8X12 FLANGE
0-28080-812-0
02
1
0711-
64
WASHER; STAY TO RAD
ID=12.5 OD=22 IDN
0-91610-512-0
02
1
0711-
70
STAY; RAD
(A) IDN
1-21522-064-0
01
1
0711-
70
STAY; RAD
(B)
1-21522-070-0
01
1
0711-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0711-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0711-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-2
02
1
0711-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0711-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-110-0
02
1
0711-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
0711-
79
GUIDE; FAN,RAD
IDN
1-21551-374-3
01
1
0711-
80
BOLT; FAN GUIDE
M6X12 FLANGE
0-28080-612-0
04
1
0711-
82
COVER; FAN,RAD
1-21559-340-0
01
1
0711-
83
CLIP; FAN COVER
1-09707-177-2
01
1
0711-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0711-
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28650-830-0
03
1
0711-
100
RUBBER; MTG
8-94395-766-0
06
1
0711-
124
PIPE; WATER,TANK TO RAD
8-94392-986-0
01
1
0711-
211
HOSE; RAD TO PIPE
L=540 SERVICED BY L=3000
0-03557-300-0
01
1
0711-
214
HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000
0-03557-300-0
01
1
0711-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
04
1
0711-
259
BRACKET; RAD STAY
1-21523-025-0
01
1
0711-
260
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
0711-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0711-
279
BELL MOUTH
8-94394-808-2
01
1
0711-
87
96
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(C)
8-94394-775-0
01
1
0711-
87
STAY; FAN GUIDE
(A)
8-94396-496-1
01
1
0711-
87
STAY; FAN GUIDE
(B)
8-94397-395-1
01
1
0711-
96
BOLT; STAY FIX
M10X16 FLANGE
0-28151-016-0
02
1
0711-
