Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10660 - CXZ RHD
▶
0 - Engine, Emission, Engine Electrical
▶

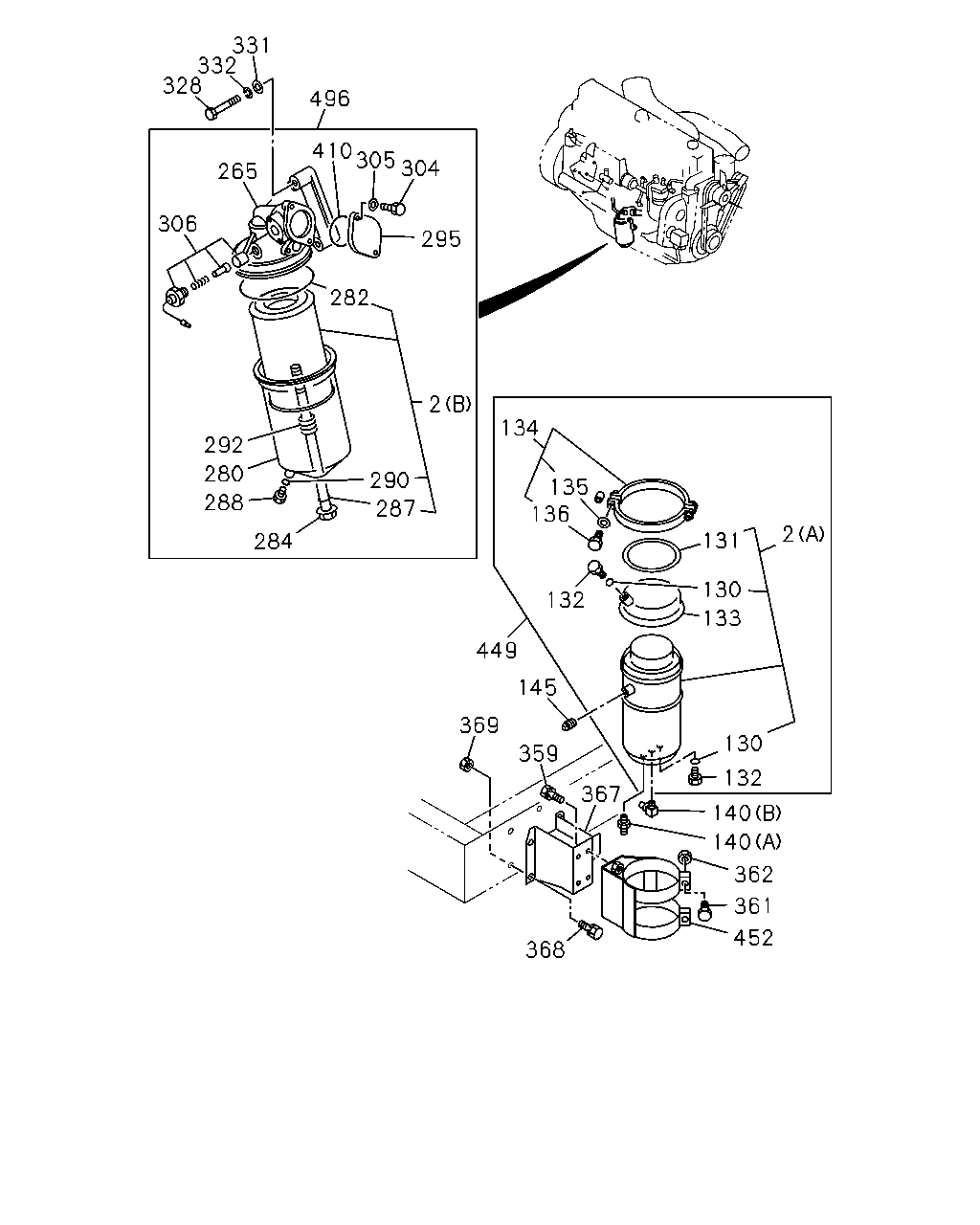

0-50A - OIL COOLER AND OIL FILTER
▶
0-50A — OIL COOLER AND OIL FILTER
(#2622) — 62 parça
Tümü
A - 6RB1 STD ENG
B - 6RA1TC ENG
C - 6RB1TC ENG
◀
[050A] NO.2 (45 parça)
[050A] NO.1 (17 parça)
▶
328
332
331
496
265
306
410
305
304
295
282
284
288
280
292
2
290
287
134
135
136
2
131
132
130
133
449
145
359
369
367
368
130
132
140
140
362
361
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
ELEMENT; OIL FILTER
(A)
1-13240-056-0
01
1
9002-
●
●
●
2
ELEMENT; OIL FILTER
(B)
1-87810-314-2
01
1
9002-
●
●
●
130
GASKET; PARTIAL OIL FILTER
ID=9.8
1-09623-055-0
02
1
9002-
●
●
●
131
GASKET; PARTIAL OIL FILTER
1-13213-006-0
01
1
9002-
●
●
●
132
PLUG; PARTIAL OIL FILTER
M10
1-09000-105-0
02
1
9002-
●
●
●
133
COVER; PARTIAL OIL FILTER
1-13212-034-0
01
1
9002-
●
●
●
134
CLAMP; PARTIAL OIL FILTER
1-13219-009-0
01
1
9002-
●
●
●
135
WASHER; PARTIAL OIL FILTER
ID=10.5
9-09164-510-0
01
1
9002-
●
●
●
136
BOLT; PARTIAL OIL FILTER
1-09029-021-0
01
1
9002-
●
●
●
140
CONNECTOR; ELBOW,PARTIAL OIL FILTER
(A) M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
9002-
●
●
●
140
CONNECTOR; ELBOW,PARTIAL OIL FILTER
(B) M16 & PT3/8 ELBOW
1-09650-180-1
01
1
9002-9302
●
●
●
140
CONNECTOR; ELBOW,PARTIAL OIL FILTER
(B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
9303-
●
●
●
145
PLUG; FILTER
1-09605-024-0
01
1
9307-
●
●
265
BODY; OIL FILTER
1-13212-082-1
01
1
9002-
●
●
●
280
CASE ASM; OIL FILTER
1-13211-105-2
01
1
9002-
●
●
●
282
GASKET; BODY TO CASE
1-09623-357-0
01
1
9002-
●
●
●
284
BOLT; CENTER,OIL FILTER
1-13231-054-1
01
1
9002-
●
●
●
287
GASKET; CENTER BOLT
ID=15.5
9-09920-694-0
01
1
9002-
●
●
●
288
PLUG; OIL DRAIN
M10
1-09000-105-0
01
1
9002-
●
●
●
290
GASKET; PLUG,OIL DRAIN
ID=9.8
1-09623-055-0
01
1
9002-
●
●
●
292
SPRING; ELEMENT
1-13219-187-0
01
1
9002-
●
●
●
295
COVER; OIL FILTER
1-13219-122-0
01
1
9002-
●
●
●
304
BOLT; PIPE TO COVER
M14X25
9-92351-425-0
02
1
9002-9005
●
●
●
304
BOLT; PIPE TO COVER
M14X25
0-23801-425-0
02
1
9006-
●
●
●
305
WASHER; PL
ID=10.5 OD=18
9-09160-510-0
02
1
9002-9306
●
●
●
306
VALVE; OIL FILTER
1-13260-056-0
01
1
9002-9306
●
●
●
306
VALVE; OIL FILTER
1-13200-875-0
01
1
9307-
●
●
328
BOLT; OIL FILTER
M10X60
9-01656-060-0
03
1
9002-9004
●
●
●
328
BOLT; OIL FILTER
M10X60
0-16806-060-0
03
1
9005-
●
●
●
331
WASHER; PL,OIL FILTER
ID=10.5 OD=18
9-09160-510-0
03
1
9002-
●
●
●
332
WASHER; LK,OIL FILTER
ID=10.2
9-09150-510-0
03
1
9002-
●
●
●
359
BOLT; BRKT TO FRAME
M10X30 W/LK WASHER
9-01911-030-0
04
1
9002-9002
●
●
●
359
BOLT; BRKT TO FRAME
M10X30 W/LK WASHER
0-50041-030-0
04
1
9003-
●
●
●
361
BOLT; PARTIAL OIL FILTER
M10X40 W/LK&PL WASHER
9-01971-040-0
02
1
9002-9002
●
●
●
361
BOLT; PARTIAL OIL FILTER
M10X40 W/LK&PL WASHER
0-50141-040-0
02
1
9003-
●
●
●
362
NUT; OIL FILTER
M10
9-09110-510-0
02
1
9002-
●
●
●
367
BRACKET; PARTIAL FILTER
1-47475-256-7
01
1
9002-
●
●
●
368
BOLT; BRKT TO FRAME
M10X35 W/LK WASHER
9-01911-035-0
04
1
9002-9002
●
●
●
368
BOLT; BRKT TO FRAME
M10X35 W/LK WASHER
0-50041-035-0
04
1
9003-
●
●
●
369
NUT; BRKT TO FRAME
M10
9-09110-510-0
04
1
9002-
●
●
●
410
GASKET
ID=59.6
9-09565-360-0
01
1
9002-
●
●
●
449
FILTER ASM; OIL PARTIAL
1-13200-560-1
01
1
9002-
●
●
●
452
BRACKET; PARTIAL OIL FILTER
1-13219-131-5
01
1
9002-
●
●
●
496
FILTER ASM; OIL
1-13200-509-4
01
1
9002-9306
●
●
●
496
FILTER ASM; OIL
1-13200-921-1
01
1
9307-
●
●

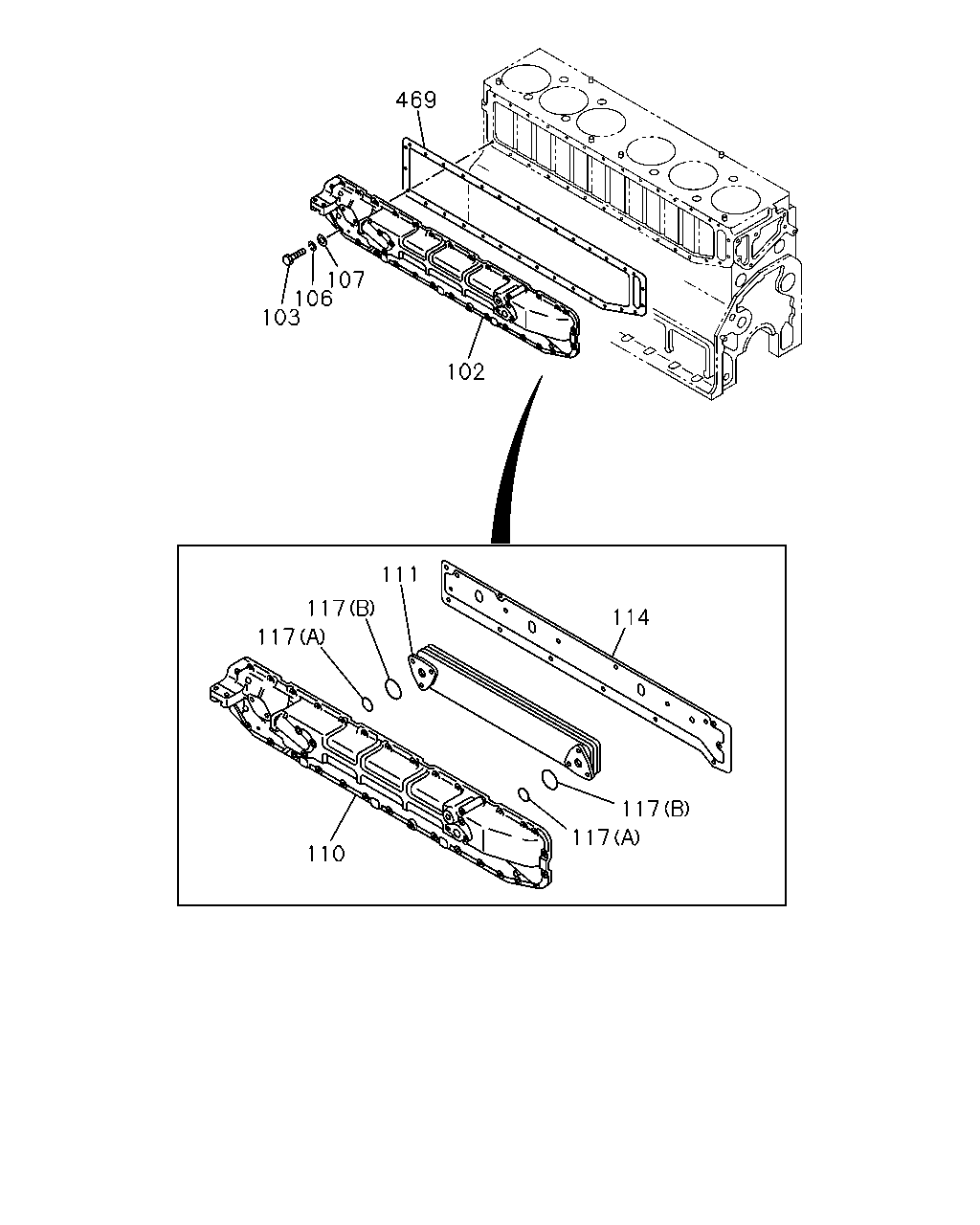

469
103
106
107
102
117
117
111
114
110
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
102
COOLER ASM; OIL
1-21700-142-5
01
1
9002-9306
●
102
COOLER ASM; OIL
1-21700-156-3
01
1
9002-
●
102
COOLER ASM; OIL
1-21700-206-2
01
1
9002-
●
103
BOLT; OIL COOLER
M8X70
9-01055-870-0
01
1
9002-9005
●
●
●
103
BOLT; OIL COOLER
M8X70
0-10805-870-0
01
1
9006-
●
●
●
103
BOLT; OIL COOLER
M8X25 W/LK&PL WASHER
9-01970-825-0
32
1
9002-9005
●
●
●
103
BOLT; OIL COOLER
M8X25 W/LK&PL WASHER
0-50140-825-0
32
1
9006-
●
●
●
106
WASHER; LK,OIL COOLER
ID=8.2
9-09150-508-0
01
1
9002-
●
●
●
107
WASHER; PL,OIL COOLER
ID=8.4
9-09160-508-0
01
1
9002-
●
●
●
110
BODY; CASE,OIL COOLER
1-21721-045-4
01
1
9002-
●
●
●
111
CORE; OIL COOLER
1-21723-025-1
01
1
9002-9306
●
111
CORE; OIL COOLER
1-21723-035-0
01
1
9002-
●
111
CORE; OIL COOLER
1-21723-041-0
01
1
9002-
●
114
PLATE; BAFFLE,OIL COOLER
1-21729-071-0
01
1
9002-
●
●
●
117
GASKET; OIL COOLER
(A) D=27.7
1-09623-187-0
02
1
9002-
●
●
●
117
GASKET; OIL COOLER
(B) D=39.7
1-09623-188-0
02
1
9002-
●
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11219-148-0
01
1
9002-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
