11126 - FTR(INDONESIA)6HH1
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#26219) — 28 parça
◀
[060A] WATER TEMP SENSOR AND RELAY (4 parça)
[060A] CHASSIS FRONT SIDE (9 parça)
[060A] STARTER,GENERATOR AND CONTROL UNIT (15 parça)
▶

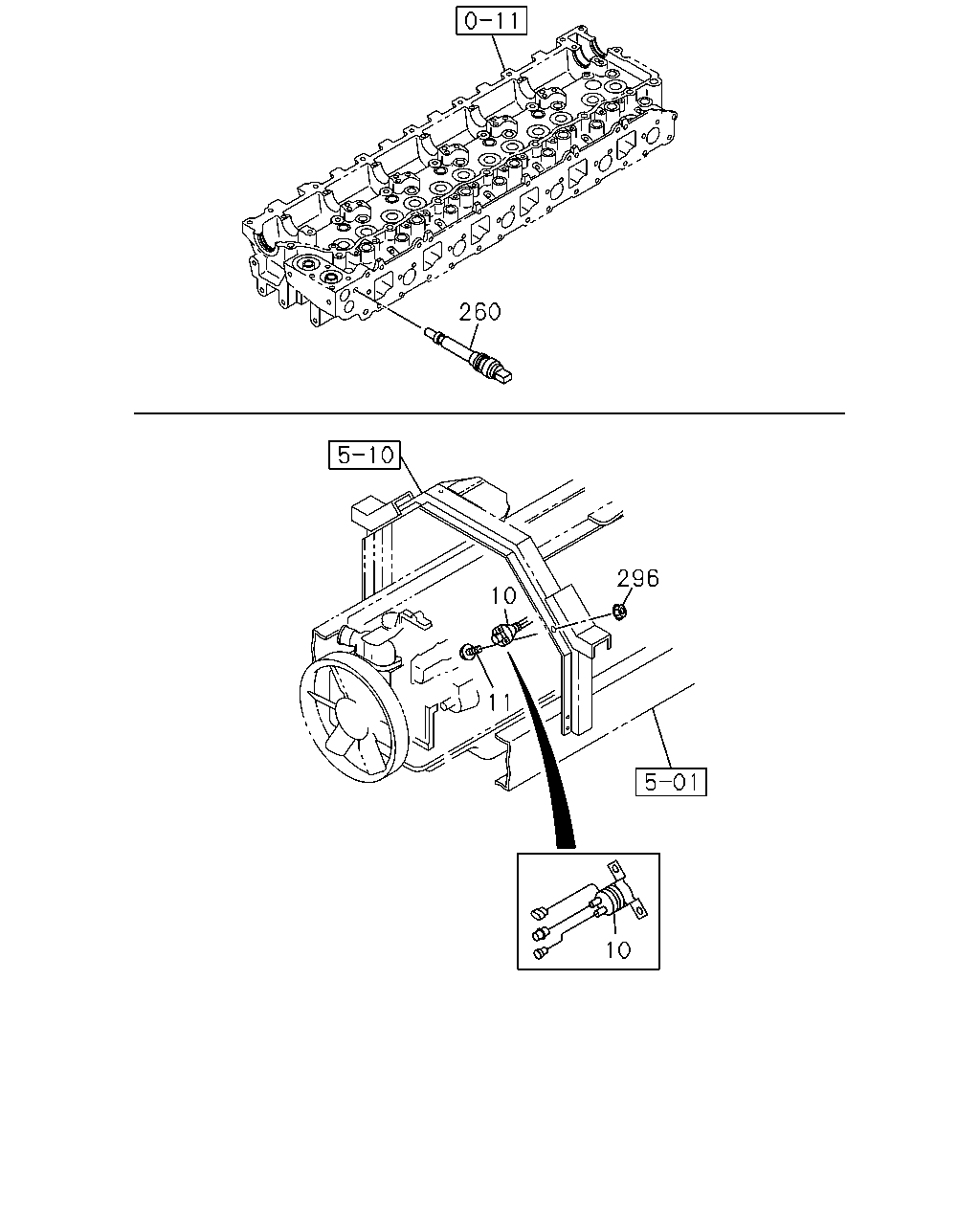

260
296
10
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
NIKKO
1-81171-075-1
01
1
0711-
11
BOLT; RELAY STARTER
M8X20 FLANGE IDN
0-28650-820-0
02
1
0711-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0711-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0711-

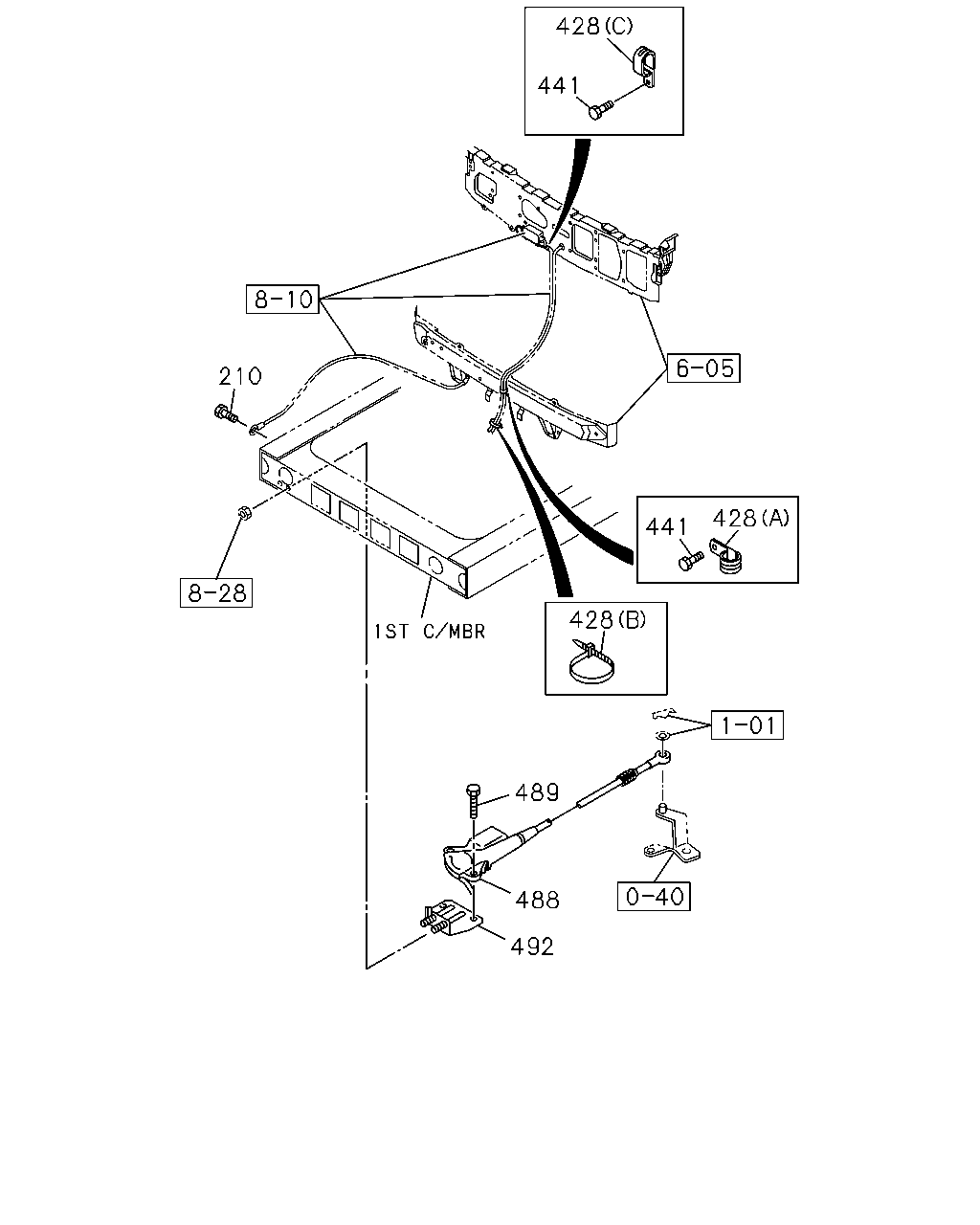

428
441
210
428
441
428
489
488
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0711-1202
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1203-
428
CLIP; HARNESS
(A) ID=35 L=50
1-09701-214-0
01
1
0711-
428
CLIP; HARNESS
(C) ID=30X2 L=28
1-09701-266-0
01
1
0711-
428
CLIP; HARNESS
(B) L=300
1-09707-001-1
03
1
0711-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE IDN
0-28650-825-0
02
1
0711-
488
STOPPER; ENG
1-82840-128-3
01
1
0711-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER IDN
0-50640-825-0
02
1
0711-
492
BRACKET; ENG STOPPER
1-82849-067-0
01
1
0711-

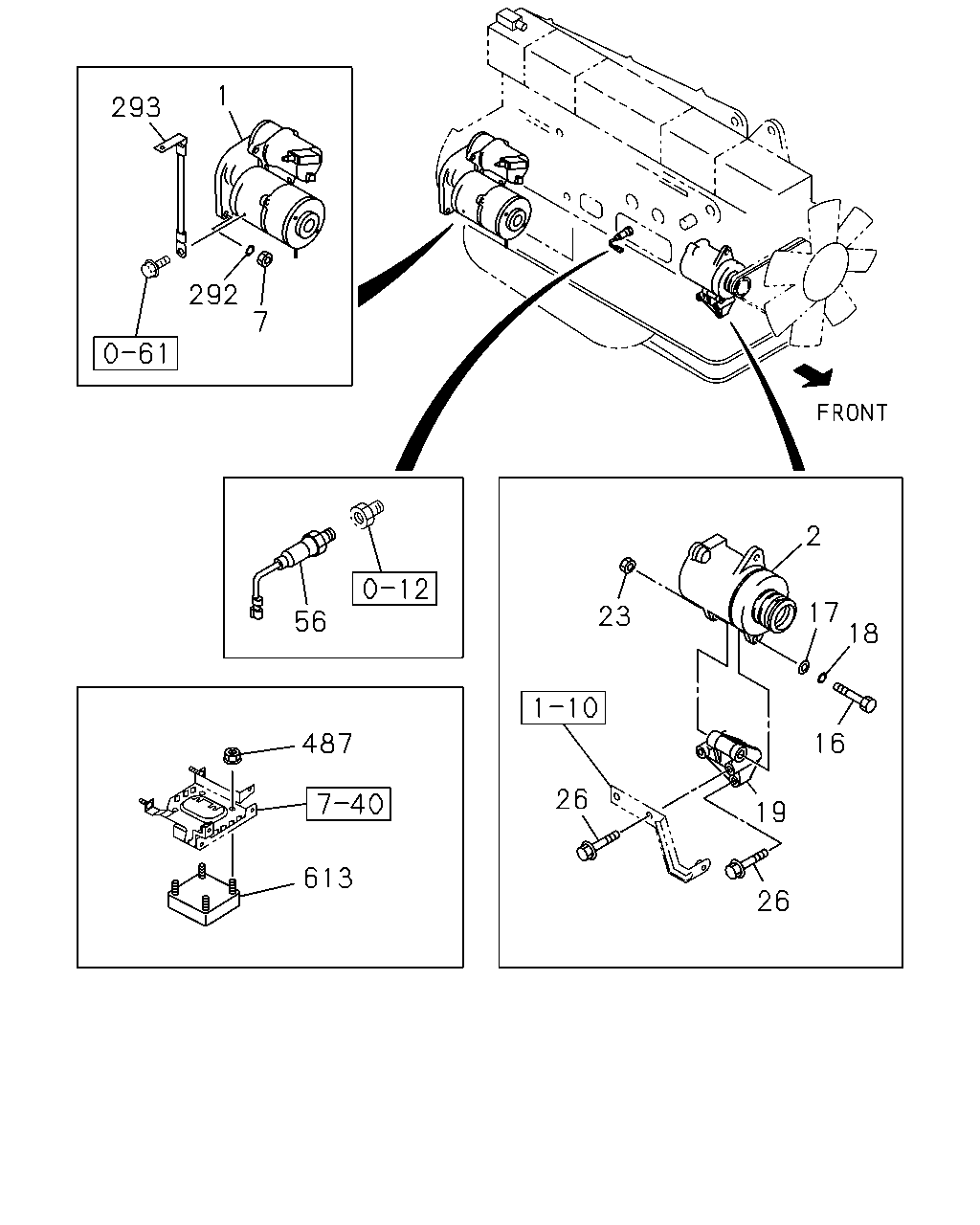

1
293
292
7
2
17
18
23
56
16
487
26
19
613
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO IDN
1-81100-324-1
01
1
0711-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-416-5
01
1
0711-
7
NUT; STARTER
M14
0-91110-514-0
02
1
0711-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0711-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0711-
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0711-
19
BRACKET; GEN
8-97602-318-0
01
1
0711-
23
NUT; GEN
M14
0-91110-514-0
01
1
0711-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0711-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0711-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0711-
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0711-
293
CABLE; STARTER EARTH
L=320
1-82650-324-0
01
1
0711-
487
NUT
M6 FLANGE
0-91180-106-0
04
1
0711-
613
CONTROL UNIT; ENG
8-94392-232-2
01
1
0711-
