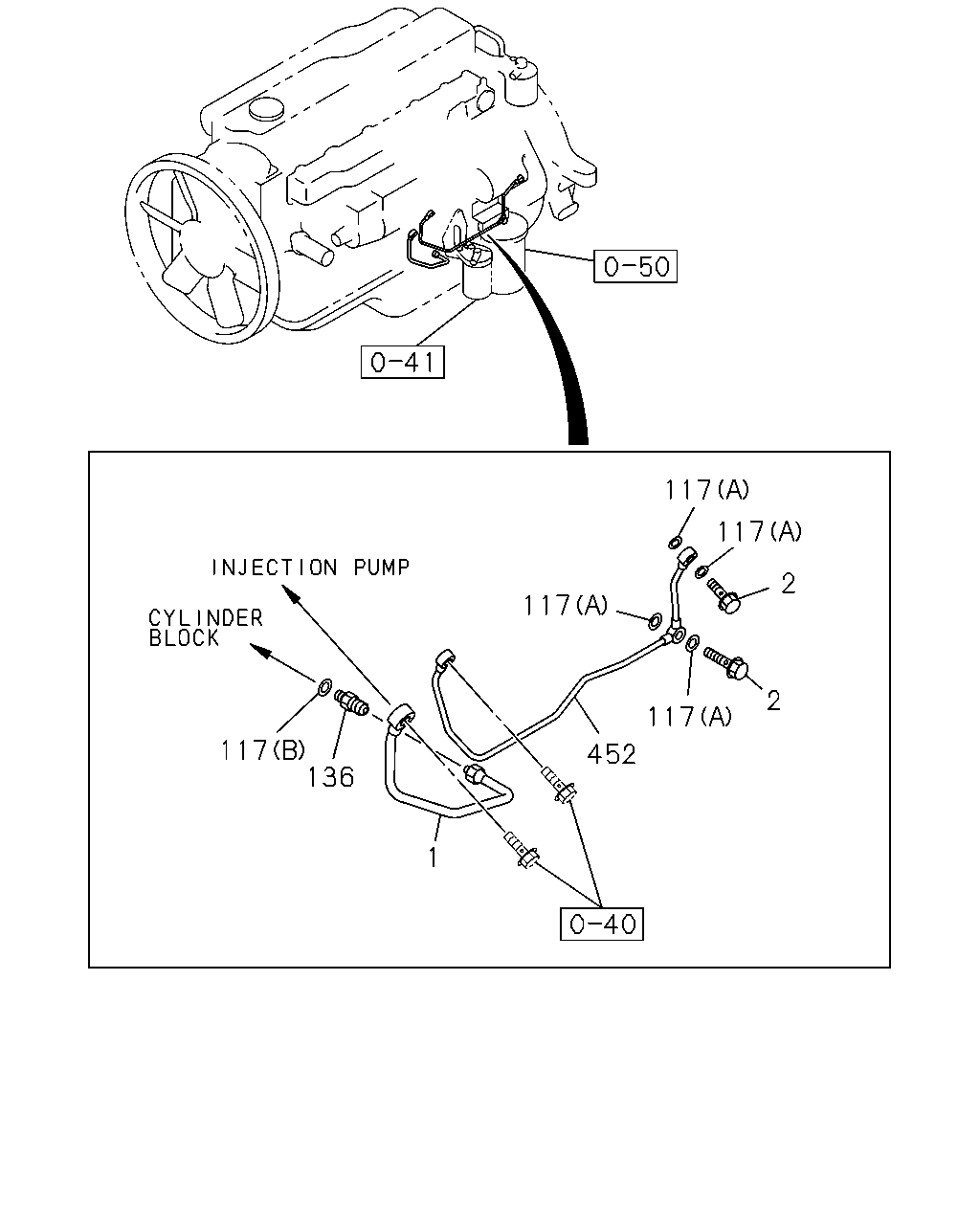

0-52 — OIL AND VACUUM PIPING; ENGINE (#26218) — 8 parça

117 117 2 117 2 117 117 136 452 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	8-94392-964-0	01	1	0711-
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	0711-0805
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	8-97372-238-0	02	1	0806-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0711-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	01	1	0711-1312
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	01	1	1401-
136	UNION	8-94392-422-0	01	1	0711-
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-571-0	01	1	0711-
