Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

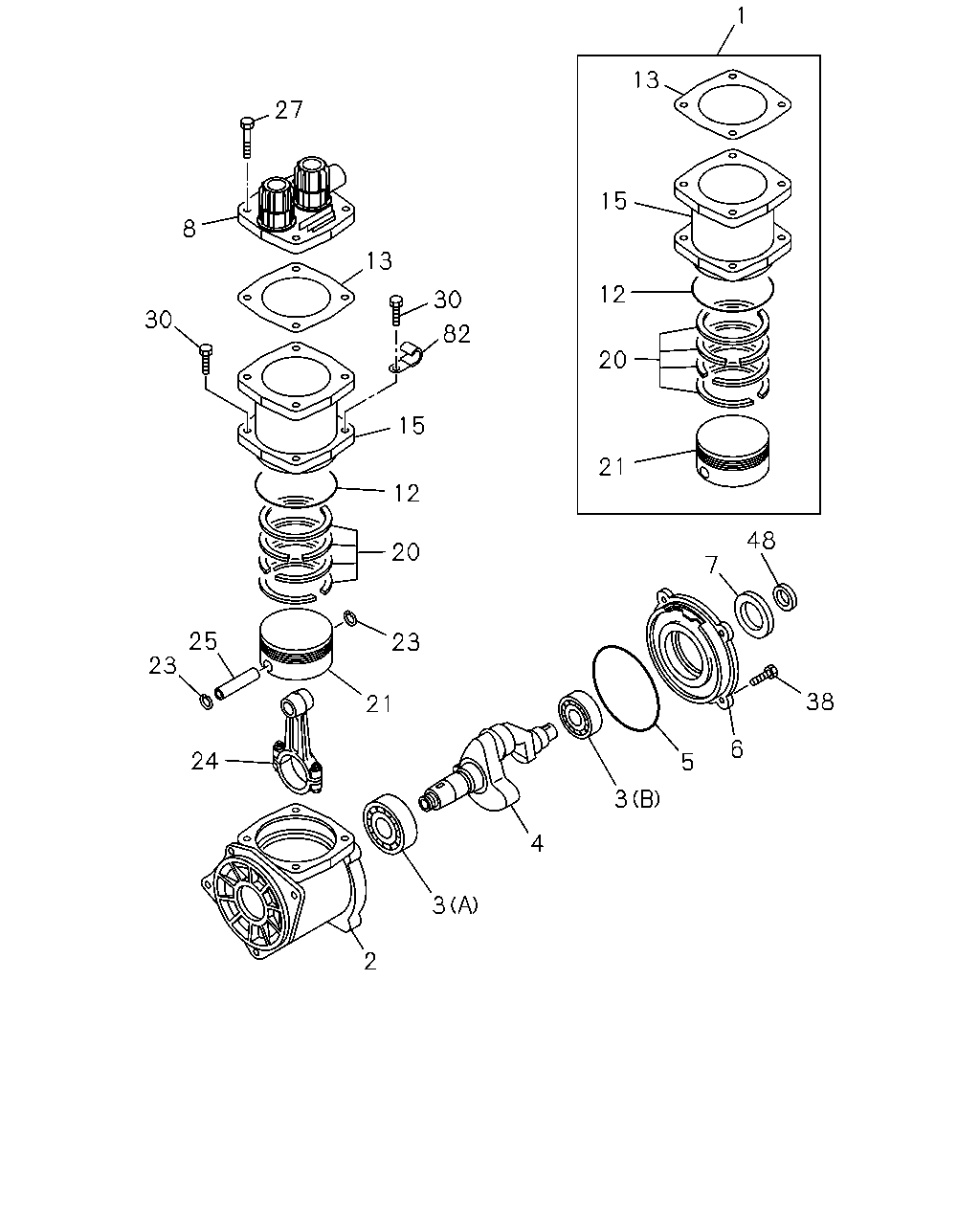

0-39 — AIR COMPRESSOR; BRAKE
(#26212) — 25 parça
27
1
13
15
12
20
21
13
8
30
30
82
15
12
20
23
21
25
23
24
2
3
4
3
5
6
38
7
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-063-0
01
1
0711-
2
CRANKCASE; AIR CMPR
1-19151-282-2
01
1
0711-
3
BEARING; AIR CMPR
(A)
1-19177-009-0
01
1
0711-
3
BEARING; AIR CMPR
(B)
1-19177-010-0
01
1
0711-
4
CRANKSHAFT; AIR CMPR
1-19171-077-0
01
1
0711-
5
GASKET; AIR CMPR
1-09623-627-0
01
1
0711-1107
5
GASKET; AIR CMPR
8-98192-464-0
01
1
1108-
6
COVER ASM; BRG,AIR CMPR
1-19156-075-1
01
1
0711-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
0711-
8
HEAD ASM; CYL,AIR CMPR
1-19110-019-0
01
1
0711-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0711-1107
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1108-
13
GASKET; AIR CMPR
8-98113-036-0
01
1
0711-
15
CYLINDER; AIR CMPR
1-19151-285-0
01
1
0711-
20
RING KIT; PISTON,AIR CMPR
1-19163-043-0
01
1
0711-
21
PISTON; AIR CMPR
1-19161-021-0
01
1
0711-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
0711-1107
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1108-
24
ROD ASM; CONN,AIR CMPR
1-19173-020-0
01
1
0711-
25
PIN; PISTON,AIR CMPR
9-19167-006-0
01
1
0711-
27
BOLT; HD
1-19119-031-0
04
1
0711-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
0711-
38
BOLT; COVER FIX
1-09100-018-0
02
1
0711-
48
SLEEVE; CR/SHF
1-19179-024-0
01
1
0711-
82
CLIP; AIR COMPRESSOR
1-19159-017-0
01
1
0711-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
