0-42B — FUEL PUMP AND PIPE (#2621) — 120 parça

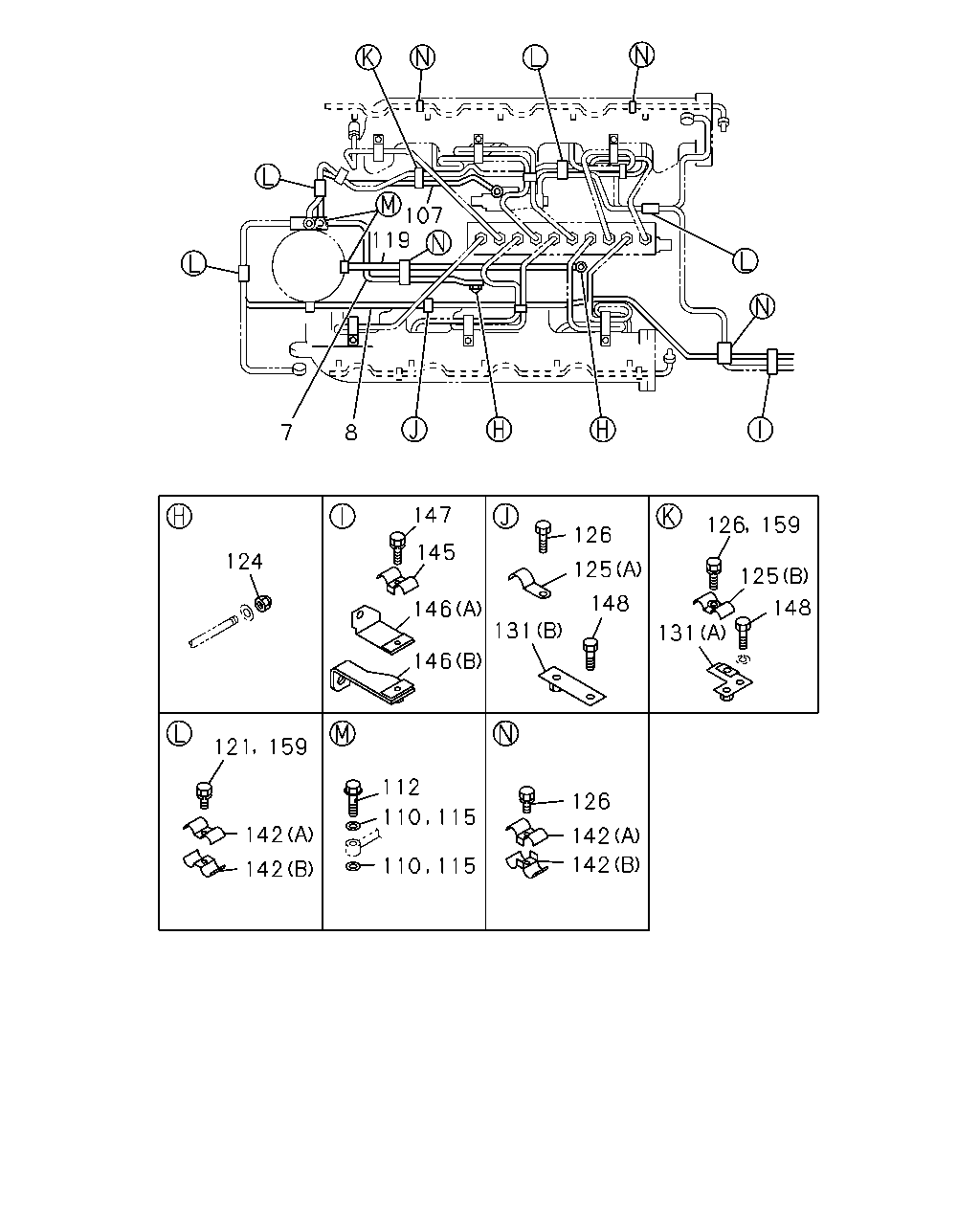

119 107 124 147 145 146 146 126 125 148 131 126 159 131 125 148 121 159 142 142 112 110 115 110 115 126 142 142 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-	●
7	PIPE ASM; FUEL OVERFLOW	1-15413-732-0	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW ENGINE REAR PTO(SV1)	1-15414-702-2	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW EXC. ENGINE REAR PTO(SV1)	1-15414-550-1	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW ENGINE REAR PTO(SV1)	1-15414-699-2	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-249-0	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1)	1-15414-542-1	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-612-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15414-332-0	01	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	06	1	9307-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●
112	BOLT; JOINT,FUEL FILTER M14X27 M10-HOLE ON HEAD	1-09675-087-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15414-117-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15413-613-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15413-731-0	01	1	9307-		●
121	BOLT; CLIP M6X22	0-28020-622-0	01	1	9002-9005	●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9006-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9002-9306	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9307-	●	●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-	●	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	05	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-150-1	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP ENGINE REAR PTO(SV1) (C)	1-22518-062-0	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP FRAME ENG MTG SEPARATE TYPE<SGM> (E)	1-22518-111-0	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1) (C)	1-22518-037-3	01	1	9307-		●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●
142	CLIP; FUEL PIPE (A)	9-09716-114-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-	●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	04	1	9307-		●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	04	1	9307-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
145	CLIP; FUEL PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9002-	●
146	BRACKET; FUEL END ENGINE REAR PTO(SV1) (B)	1-22518-062-0	01	1	9002-	●
146	BRACKET; FUEL END EXC. ENGINE REAR PTO(SV1) (A)	1-22518-037-3	01	1	9002-	●
147	BOLT; CLIP,FUEL PIPE M6X20	0-28020-620-0	01	1	9002-9005	●
147	BOLT; CLIP,FUEL PIPE M6X20 FLANGE	0-28080-620-0	01	1	9006-	●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	02	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	02	1	9005-9306	●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	01	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	01	1	9005-9306	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9307-	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	01	1	9307-		●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	04	1	9307-		●

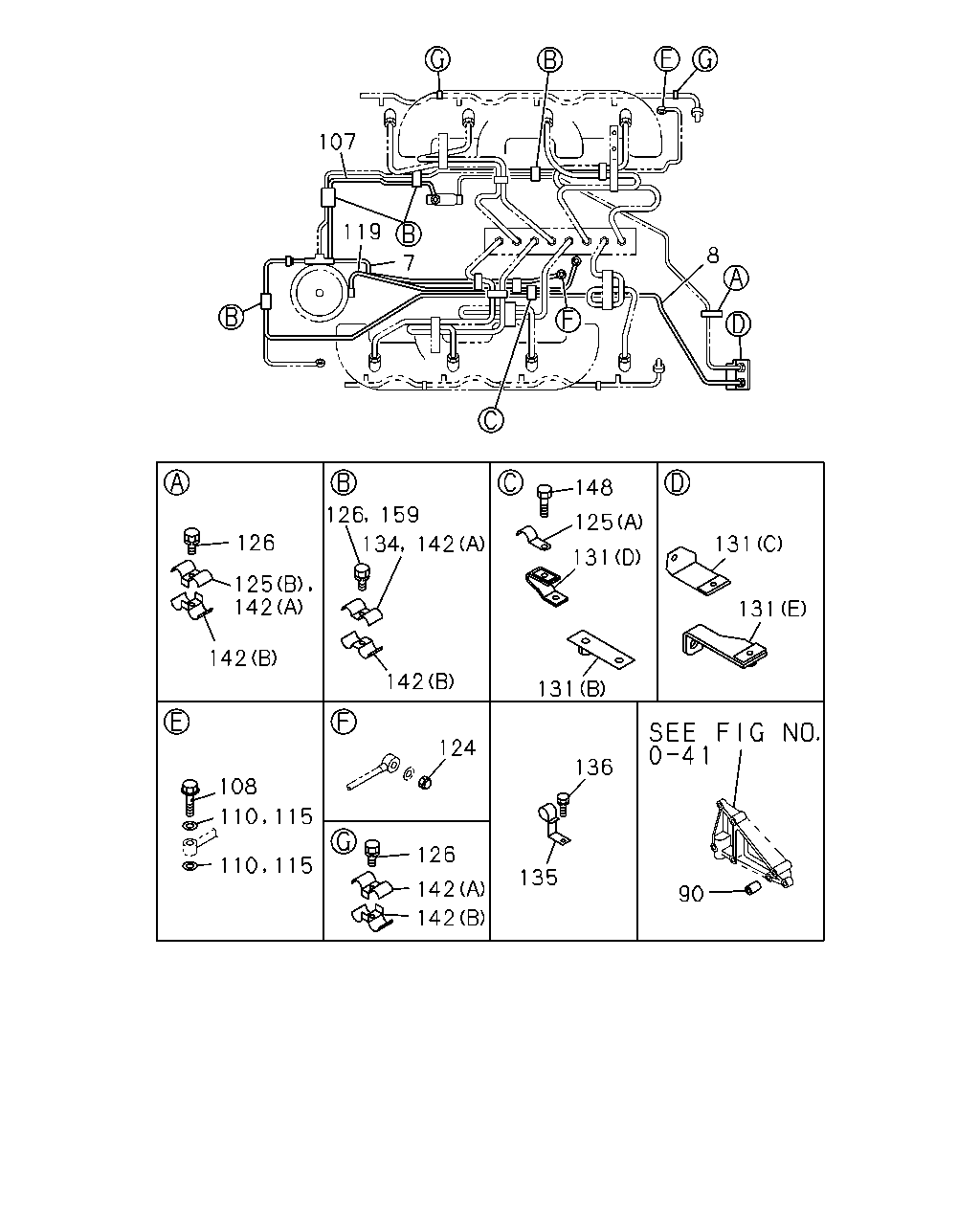

107 119 7 8 126 125 142 142 126 159 134 142 142 108 110 115 110 115 124 126 142 142 135 136 90 131 131 125 148 131 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-	●
7	PIPE ASM; FUEL OVERFLOW	1-15413-732-0	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW ENGINE REAR PTO(SV1)	1-15414-702-2	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW EXC. ENGINE REAR PTO(SV1)	1-15414-550-1	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW ENGINE REAR PTO(SV1)	1-15414-699-2	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-249-0	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1)	1-15414-542-1	01	1	9307-		●
90	TUBE; DIST	1-13219-121-0	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-612-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15414-332-0	01	1	9307-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	06	1	9307-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15414-117-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15413-613-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15413-731-0	01	1	9307-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9002-9306	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9307-	●	●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-	●	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	05	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-150-1	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP ENGINE REAR PTO(SV1) (C)	1-22518-062-0	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP FRAME ENG MTG SEPARATE TYPE<SGM> (E)	1-22518-111-0	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1) (C)	1-22518-037-3	01	1	9307-		●
134	CLIP; FUEL FEED NOZZLE ID=10 & 6 L=20	1-09700-404-0	01	1	9307-		●
135	CLIP; HARNESS ID=11	1-09700-474-0	01	1	9307-		●
136	BOLT; HARNESS CLIP M6X22 FLANGE	0-28080-622-0	01	1	9307-		●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●
142	CLIP; FUEL PIPE (A)	9-09716-114-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-	●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	04	1	9307-		●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	04	1	9307-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	02	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	02	1	9005-9306	●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	01	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	01	1	9005-9306	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9307-	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	01	1	9307-		●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	04	1	9307-		●
