0-32 — WATER PIPING; ENGINE (#26208) — 15 parça

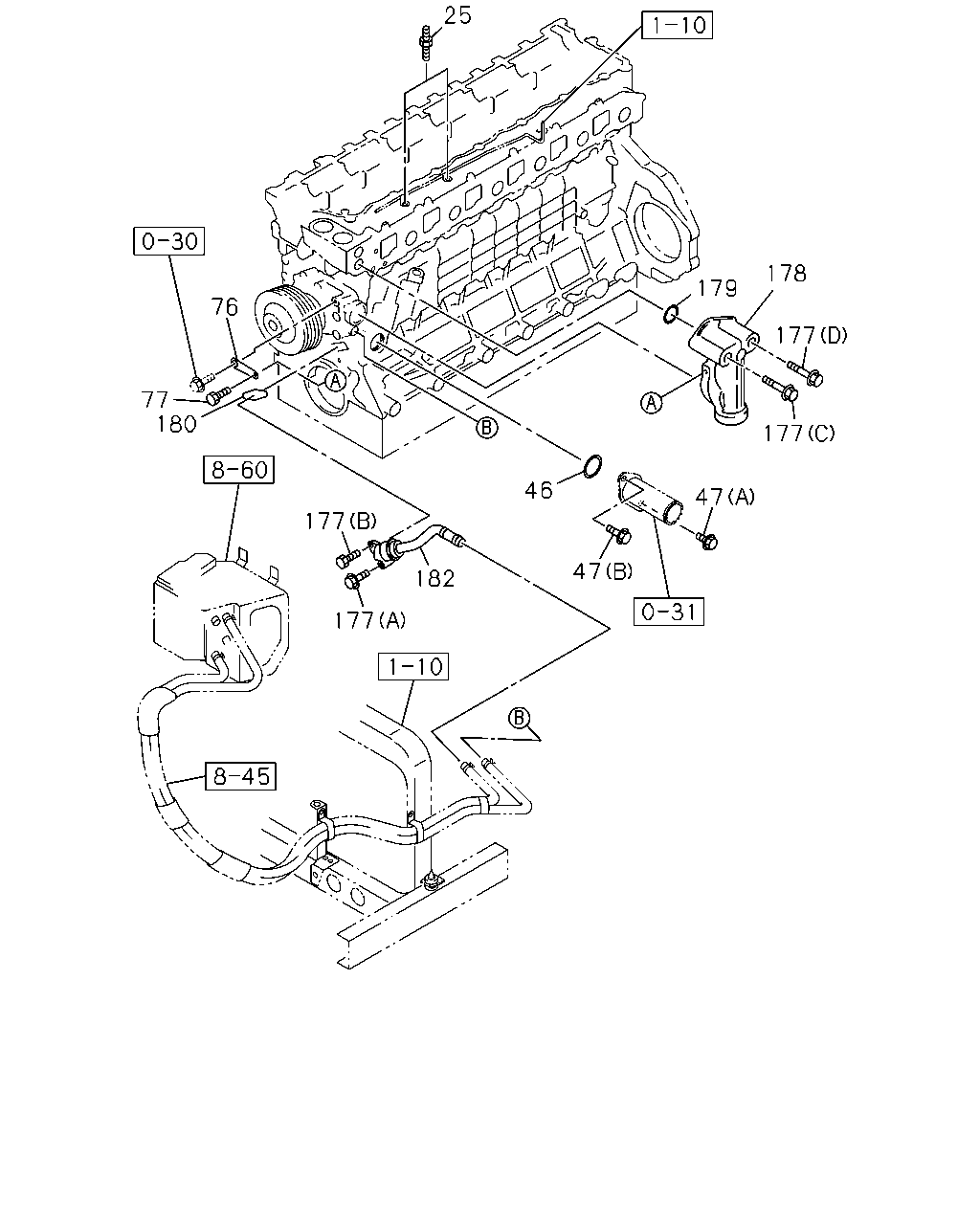

çizim 143356
25 178 179 177 177 46 47 47 182 177 177 180 76 77
BalonParca AdiParca NoAdetTipApplied Date
25 BOLT; WATER PIPE
M8X14,M8X14 L=33 		1-09300-058-1 02 1 0711-
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 0711-
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28050-845-0 01 1 0711-
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0711-
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 0711-
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 0711-
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 0711-
177 BOLT; WATER DUCT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0711-
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 0711-
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 0711-
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 0711-
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 0711-1408
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409-
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 0711-
182 DUCT; WATER,HTR 8-94390-283-0 01 1 0711-
