0-42A — FUEL PUMP AND PIPE (#2620) — 22 parça

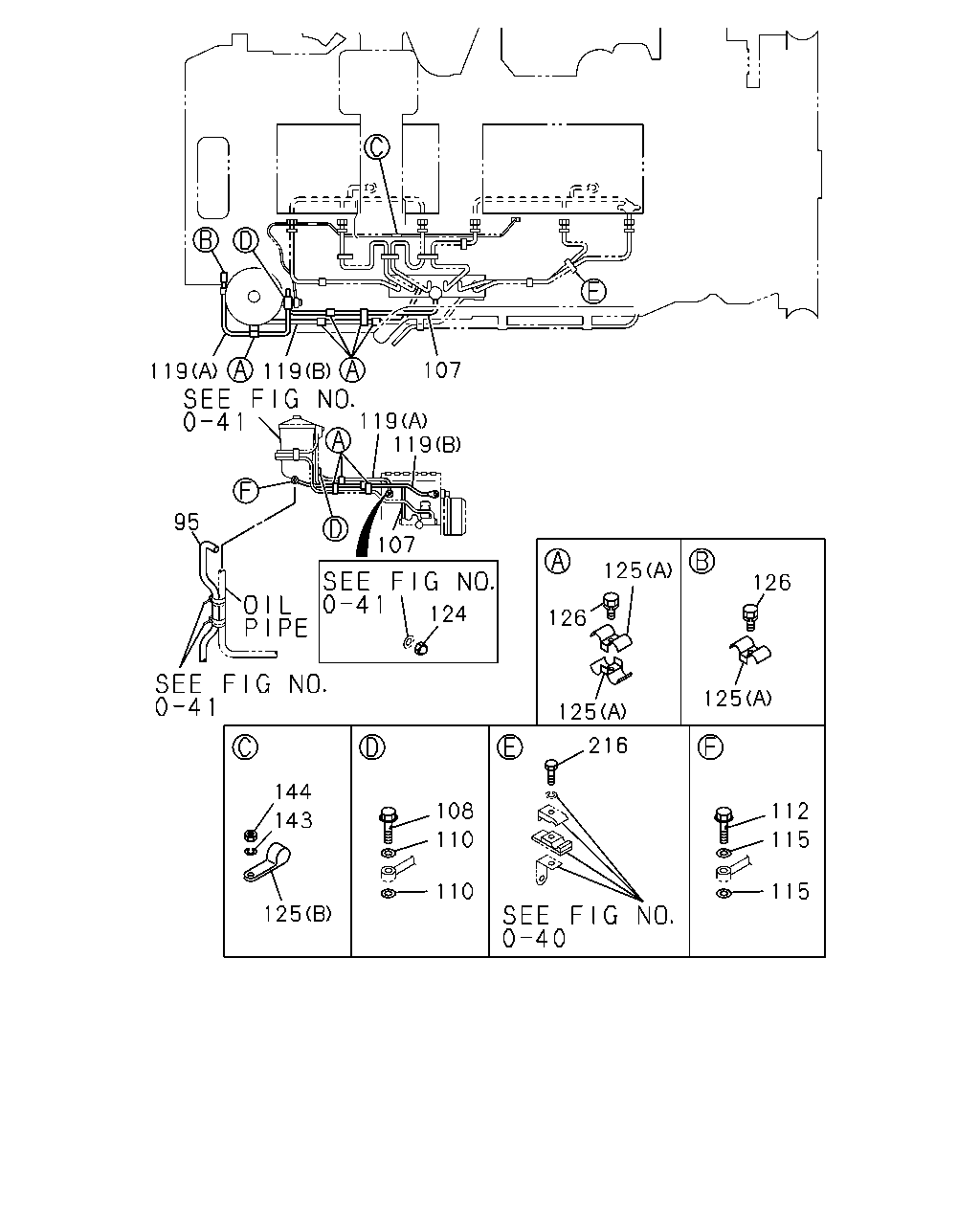

çizim 93900
119 119 107 119 119 107 95 124 125 126 125 126 125 144 143 125 108 110 110 216 112 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C
95 PIPE; VINYL
AIR BREATHER<E2C> L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9002- ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15413-048-0 01 1 9002- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9002- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9002- ●
112 BOLT; JOINT,FUEL FILTER
EXC. INTAKE HEATER<SL2> M14X27 FLANGE 		1-09675-086-0 01 1 9002- ● ●
112 BOLT; JOINT,FUEL FILTER
INTAKE HEATER<SL2> M14X27 M10-HOLE ON HEAD 		1-09675-087-0 01 1 9002- ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15413-385-1 01 1 9002- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15413-433-0 01 1 9002- ● ● ●
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 9002-9306 ● ● ●
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 9307- ● ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 		9-09716-114-0 01 1 9002-9306 ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 W/NUT 		9-09716-124-0 01 1 9002-9306 ●
125 CLIP; FUEL PIPE
(B) ID=7 L=28 		9-09524-652-0 01 1 9002- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 		9-09716-114-0 07 1 9002- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 W/NUT 		9-09716-124-0 05 1 9002- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X25 		9-01910-625-0 07 1 9002-9005 ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER 		0-50040-625-0 07 1 9006- ● ● ●
143 WASHER; LK,BRKT,FUEL & OIL
ID=6.1 		9-09150-506-0 01 1 9002- ● ● ●
144 NUT; CLIP
M6 		9-09110-406-0 01 1 9002- ● ● ●
216 BOLT; CLIP,FUEL PIPE
M5X25 		9-09602-082-0 01 1 9002- ● ● ●
