7-40 — INSTRUMENT PANEL AND BOX (#262) — 60 parça

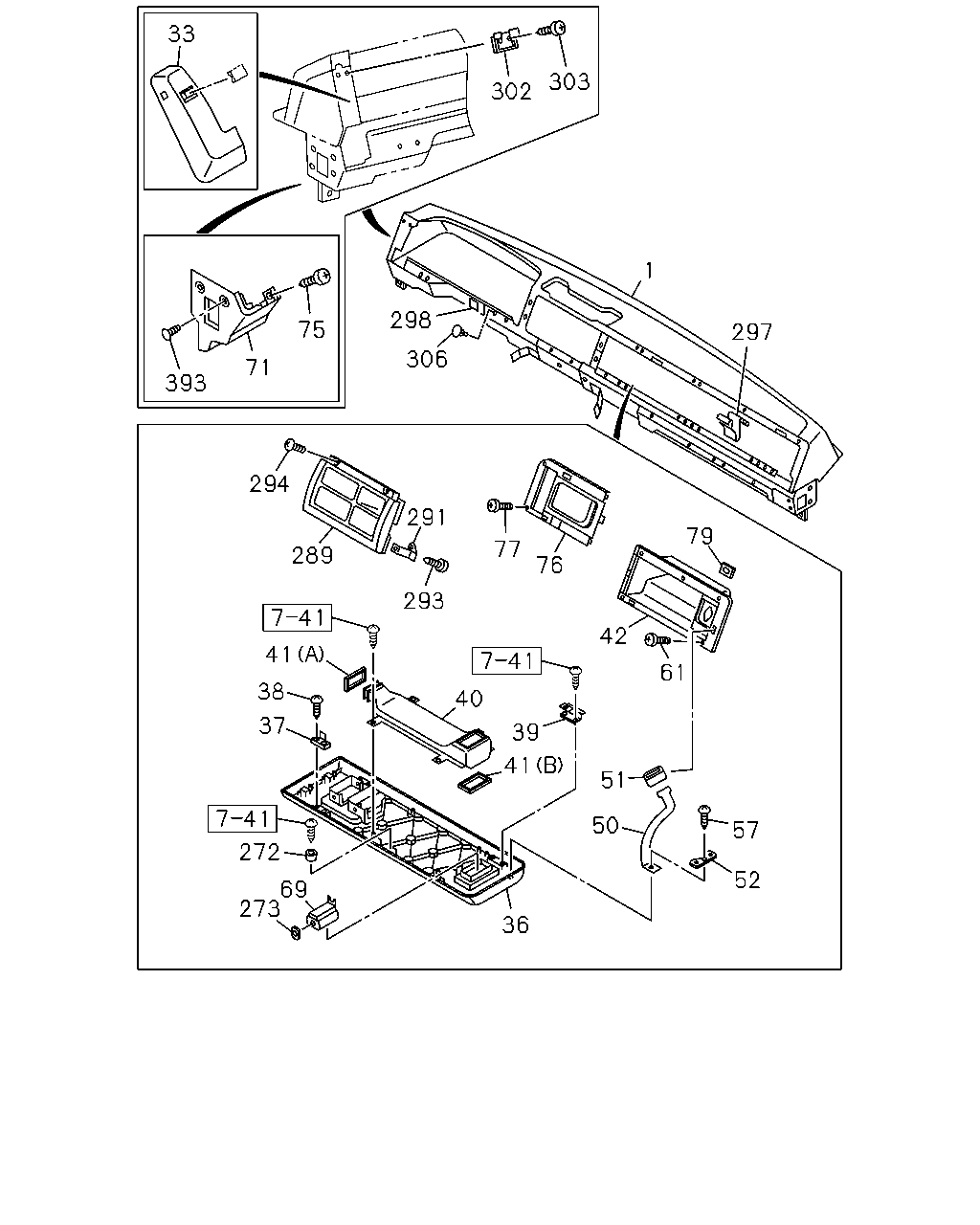

çizim 94691
33 303 302 1 298 75 297 306 71 393 294 291 79 77 289 76 293 42 41 61 38 40 37 39 41 51 50 57 272 52 69 273 36
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
DARK GRAY 		1-65680-814-2 01 1 9212-
33 LID; CHECK HOLE,CLU FLUID
DARK GRAY 		1-73927-068-0 01 1 9212-
36 BEZEL; INST SIDE CLUSTER
DARK GRAY 		1-72548-108-0 01 1 9212-
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9212-
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9212-
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-012-2 01 1 9212-
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-013-2 01 1 9212-
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76378-215-1 01 1 9212-
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9212-
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9212-
42 BOX; GLOVE,INST PNL 1-72538-032-5 01 1 9212-
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 1-72548-056-3 02 1 9212-
51 CUSHION; STOPPER,GLOVE BOX 1-72548-069-0 02 1 9212-
52 PLATE; STOPPER,GLOVE BOX 1-72548-073-0 02 1 9212-
57 SCREW; GLOVE BOX STOPPER 1-09981-388-1 06 1 9212-
61 SCREW; GLOVE BOX
M6X16 W/PL WASHER 		1-09981-176-0 05 1 9212-
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9212-
71 GARNISH; INST CLUSTER SIDE
DARK GRAY 		1-72437-039-0 01 1 9212-
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9212-
76 COVER; VENT DUCT,PASSENGER SIDE 1-73928-326-5 01 1 9212-
77 SCREW; VENT DUCT COVER
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9212-
79 SEAL; SIDE DEFROSTER
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-76377-092-0 01 1 9212-
272 CUSHION; SIDE CLUSTER BEZEL 1-72548-046-0 01 1 9212-
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9212-
289 BEZEL; CENTER,INST CLUSTER
DARK GRAY 		1-72437-037-0 01 1 9212-
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9212-
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9212-
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9212-
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72558-014-1 02 1 9212-
298 PIECE; DIST,CLUSTER BEZEL 1-72548-077-0 01 1 9212-
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9212-
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9212-
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE
AUTO ENG SHUTOFF<KB6> 		1-72448-261-0 02 1 9212-
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE
EXC. AUTO ENG SHUTOFF<KB6> 		1-72448-261-0 01 1 9212-
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9212-

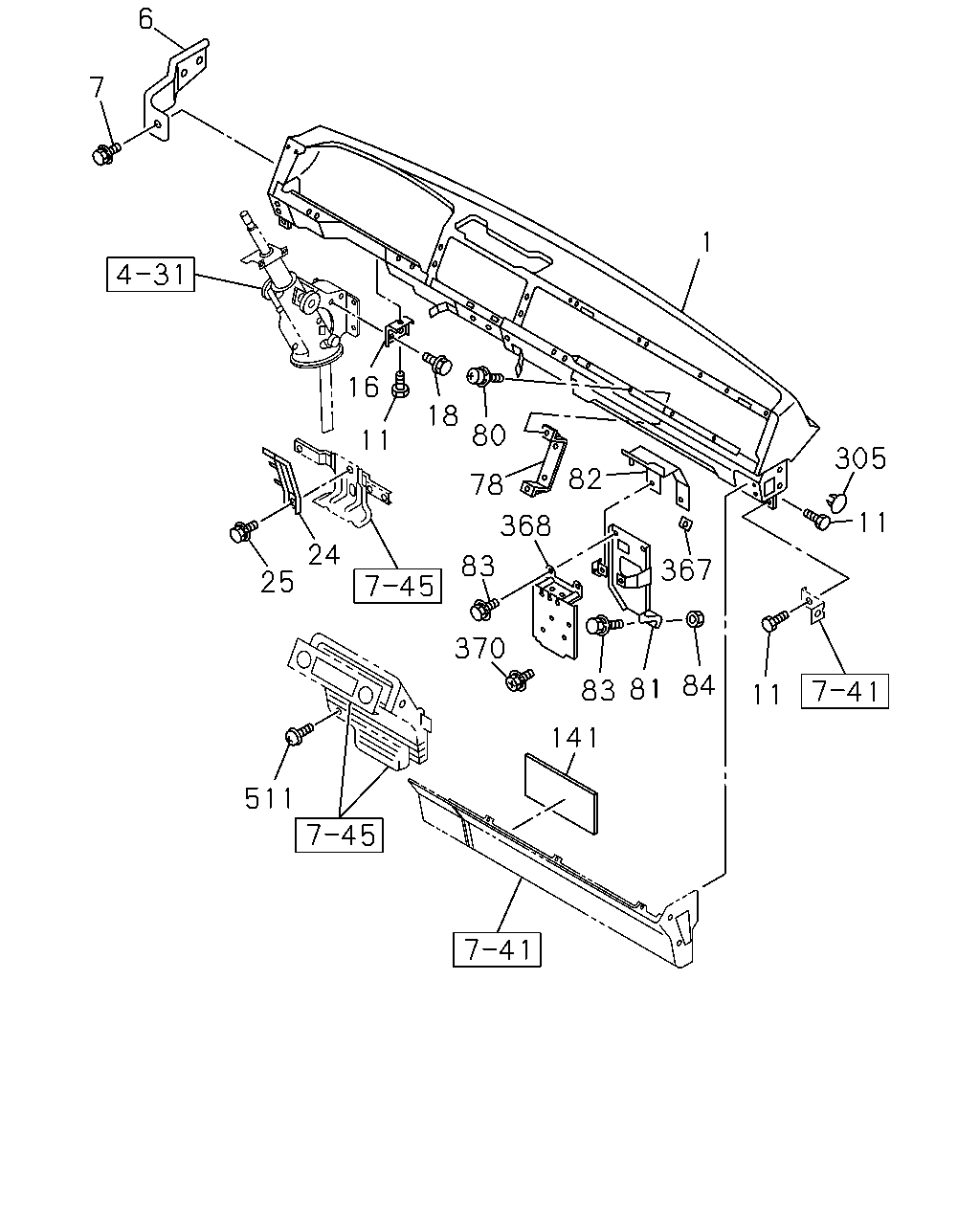

çizim 95593
6 7 1 16 18 80 11 305 82 78 11 368 24 83 367 25 370 84 81 83 11 141 511
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
DARK GRAY 		1-65680-814-2 01 1 9212-
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9212-
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9212-
7 BOLT; SUPPORT,INST PNL
M6X16 W/LK&PL WASHER 		1-09980-440-0 04 1 9212-
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 08 1 9212-
16 BRACKET; INST PNL 1-65680-836-0 01 1 9212-
18 BOLT; BRKT
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9212-
24 STAY; INST CLUSTER 1-65680-448-2 01 1 9212-
25 BOLT; STAY,INST CLUSTER
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9212-
78 SUPPORT; VENT DUCT,PASSENGER SIDE 1-65680-372-3 01 1 9212-
80 SCREW; SUPPORT,VENT DUCT
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9212-
81 BRACKET; ELEC CONT UNIT 1-73998-477-8 01 1 9212-
82 BRACKET; CONT UNIT,ELEC 1-73998-434-5 01 1 9212-
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9212-
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9212-9304
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305-
83 BOLT; BRKT,CONT UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9212-
83 BOLT; BRKT,CONT UNIT
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9212-
84 NUT; CONT UNIT BRKT
M6 FLANGE 		5-09440-004-0 01 1 9212-
141 PROTECTOR; EDGE 1-72378-025-0 01 1 9212-
305 PLUG; SIDE PANEL,INST CLUSTER
D4.6X14.7 BLACK 		1-09983-104-0 02 1 9212-
367 SEAL; CONT UNIT BRKT
25X25 		8-94272-533-0 01 1 9212-
368 BRACKET; SUB,ELEC CONT UNIT 1-73998-479-7 01 1 9212-
370 SCREW; BRKT,ELEC CONT UNIT
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9212-
511 SCREW; CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-431-0 02 1 9212-
