Isuzu WW
▶
TRUCKS
▶
FTR
▶
11125 - FTR(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#26183) — 21 parça
◀

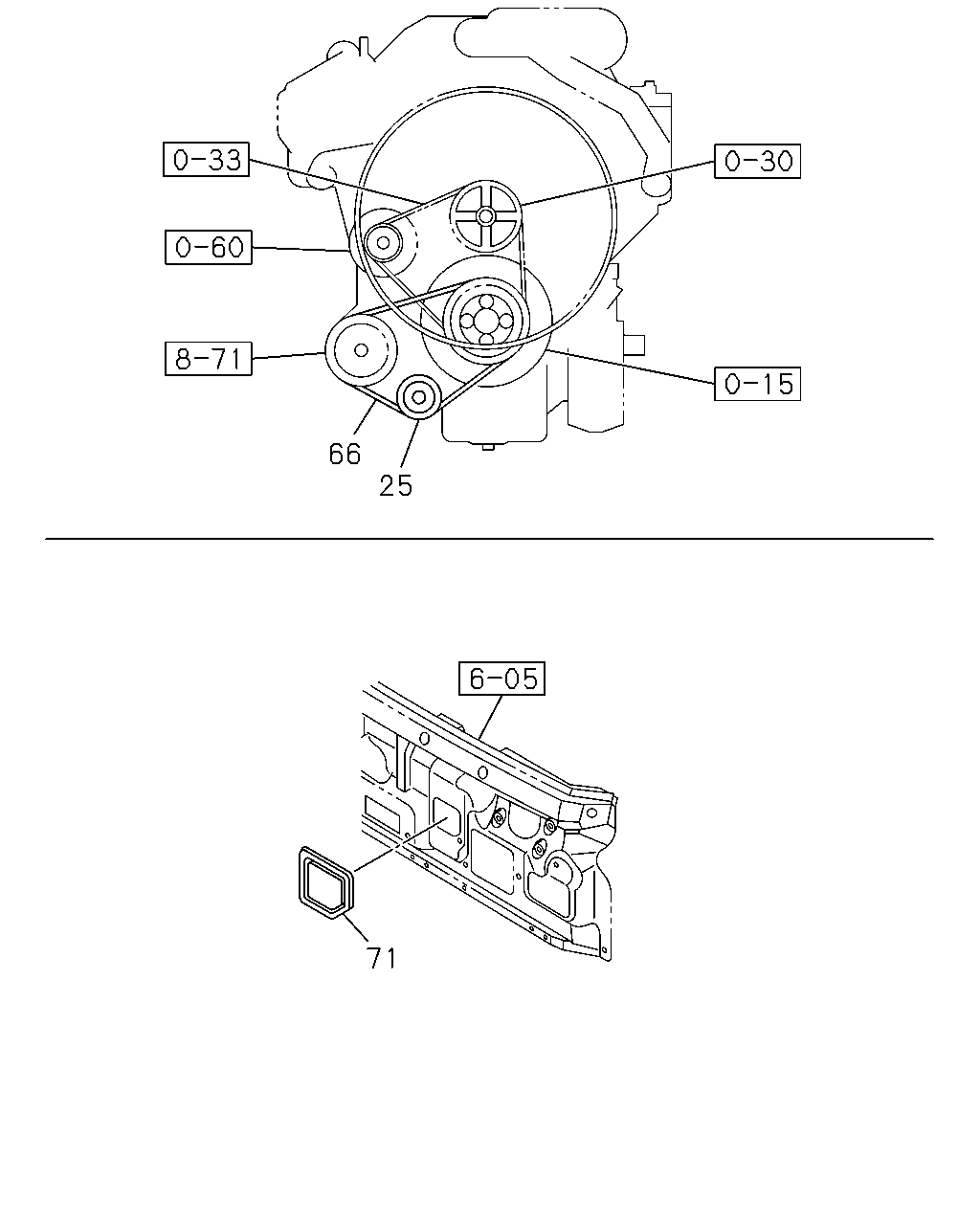

[850A] A/C CMPR BELT (4 parça)
[850A] DRAIN HOSE AND HOSE CLIP (4 parça)

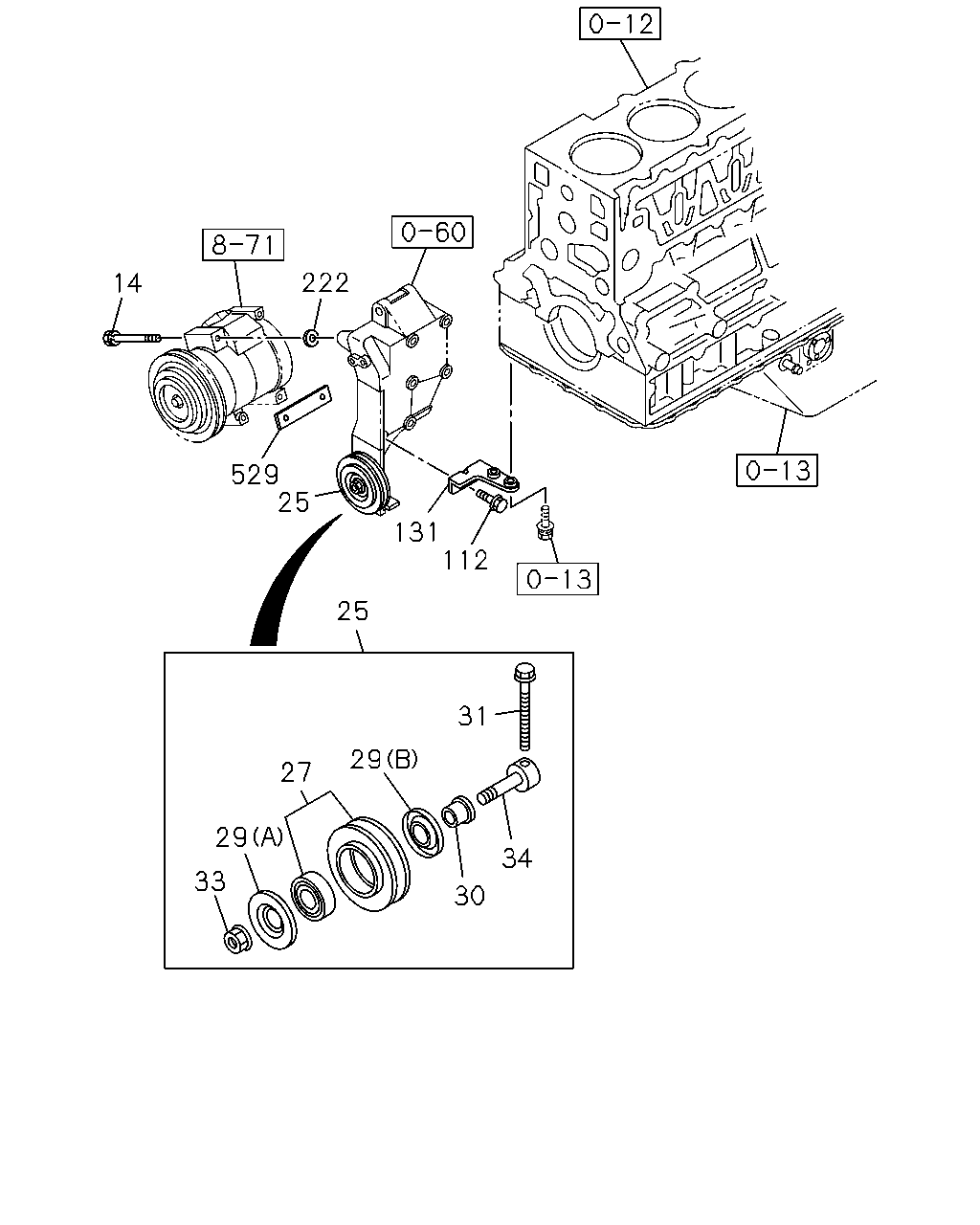

[850A] A/C CMPR FIXING AND IDLE PULLEY (13 parça)
▶
66
25
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-079-0
01
1
0808-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1114
8-97605-102-0
01
1
0808-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS
1-87610-104-0
01
1
0808-
71
COVER; EVAP,A/C
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98017-234-1
01
1
1305-
201
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-94423-042-0
01
1
0808-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98041-759-0
01
1
0808-1111
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98204-846-0
01
1
1112-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
8-98041-428-0
01
1
0808-
222
14
529
25
131
112
25
31
29
27
29
34
33
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X78 W/LK WASHER
5-09000-228-1
04
1
0808-
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-079-0
01
1
0808-
27
PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-323-0
01
1
0808-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-97605-329-0
01
1
0808-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-97605-330-0
01
1
0808-
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-328-0
01
1
0808-
31
BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-325-0
01
1
0808-
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-326-0
01
1
0808-
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-327-0
01
1
0808-
112
BOLT; STAY
M8X16 FLANGE THA
0-28050-816-0
02
1
0808-
131
STAY; CMPR BRKT
8-94393-451-0
01
1
0808-
222
GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=8.2
8-94312-733-0
02
1
0808-
529
SPACER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
1-83573-271-0
01
1
0808-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
