Sayfa 0-40B - Isuzu EPC

0-40B — FUEL INJECTION SYSTEM (#2617) — 318 parça

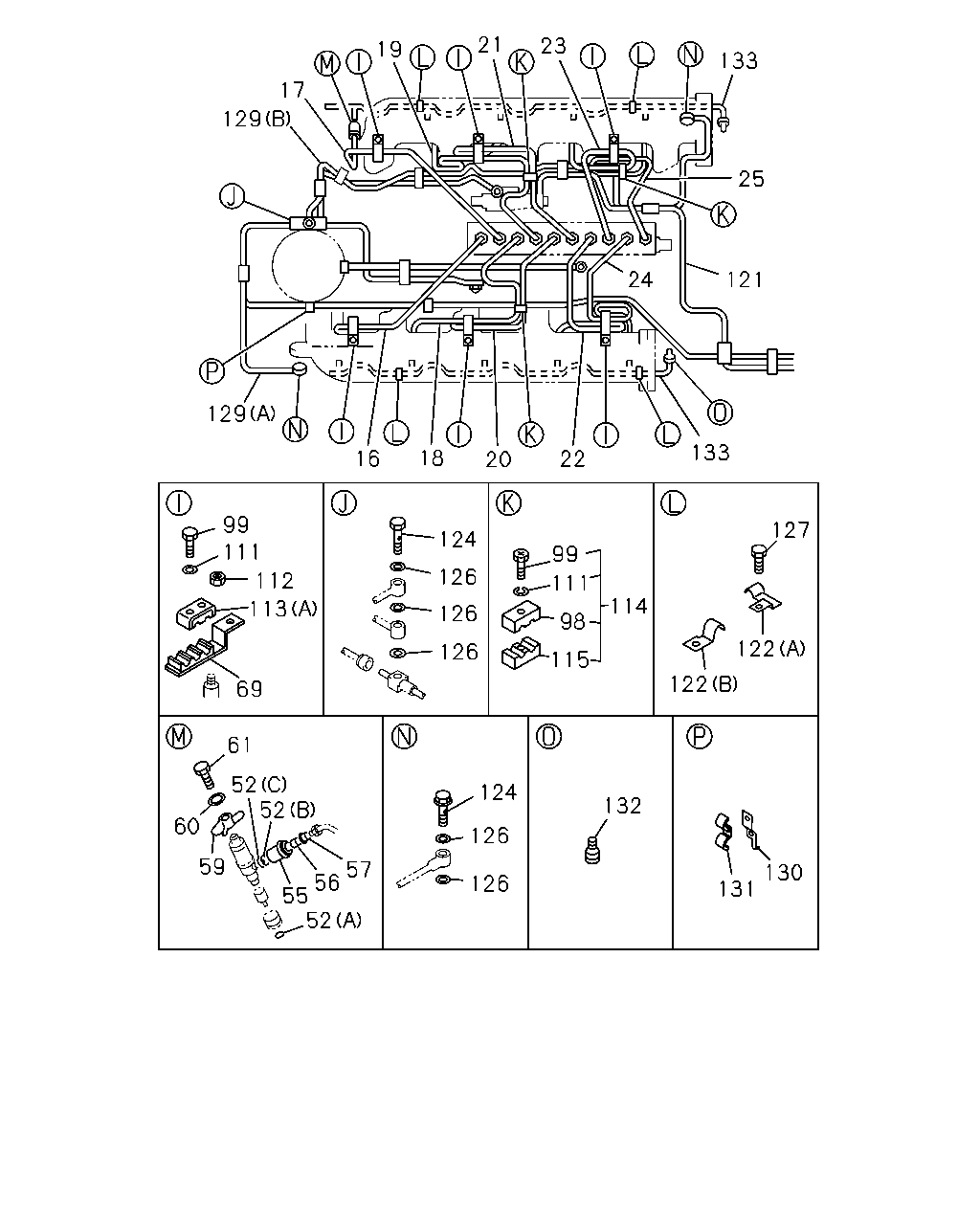

61 60 52 52 57 56 55 52 59 129 17 19 21 23 133 129 16 18 20 22 133 121 99 104 98 115 113 130 99 112 113 100 98 115 99 111 98 99 111 112 113 69 122 127 122 132 124 126 126 124 126 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15414-631-0	01	1	9002-9410	●
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-631-0	01	1	9411-	●
16	PIPE; INJ NO.1 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-058-0	01	1	9411-	●
16	PIPE; INJ NO.1	1-15414-633-0	01	1	9307-		●
17	PIPE; INJ NO.2	1-15414-632-0	01	1	9002-9410	●
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-632-0	01	1	9411-	●
17	PIPE; INJ NO.2 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-059-0	01	1	9411-	●
17	PIPE; INJ NO.2	1-15414-634-0	01	1	9307-		●
18	PIPE; INJ NO.3	1-15414-633-0	01	1	9002-9410	●
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-633-0	01	1	9411-	●
18	PIPE; INJ NO.3 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-060-1	01	1	9411-	●
18	PIPE; INJ NO.3	1-15414-635-0	01	1	9307-		●
19	PIPE; INJ NO.4	1-15414-634-0	01	1	9002-9410	●
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-634-0	01	1	9411-	●
19	PIPE; INJ NO.4 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-061-1	01	1	9411-	●
19	PIPE; INJ NO.4	1-15414-636-0	01	1	9307-		●
20	PIPE; INJ NO.5	1-15414-635-0	01	1	9002-9410	●
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-635-0	01	1	9411-	●
20	PIPE; INJ NO.5 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-062-1	01	1	9411-	●
20	PIPE; INJ NO.5	1-15414-637-0	01	1	9307-		●
21	PIPE; INJ NO.6	1-15414-636-0	01	1	9002-9410	●
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-636-0	01	1	9411-	●
21	PIPE; INJ NO.6 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-063-1	01	1	9411-	●
21	PIPE; INJ NO.6	1-15414-638-0	01	1	9307-		●
22	PIPE; INJ NO.7	1-15414-637-0	01	1	9002-9410	●
22	PIPE; INJ NO.7 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-637-0	01	1	9411-	●
22	PIPE; INJ NO.7 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-869-0	01	1	9411-	●
22	PIPE; INJ NO.7	1-15414-639-0	01	1	9307-		●
23	PIPE; INJ NO.8	1-15414-638-0	01	1	9002-9410	●
23	PIPE; INJ NO.8 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-638-0	01	1	9411-	●
23	PIPE; INJ NO.8 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-065-1	01	1	9411-	●
23	PIPE; INJ NO.8	1-15414-640-0	01	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9307-		●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-	●
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9307-		●
56	COVER	1-15419-028-0	10	1	9002-	●
56	COVER	1-15419-028-0	08	1	9307-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9307-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9307-		●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9307-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9307-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	04	1	9307-		●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-	●	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	03	1	9002-	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-92050-520-0	08	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	08	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	06	1	9307-	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	04	1	9307-		●
100	BOLT; INJ PIPE CLIP M5X20	9-09802-539-0	03	1	9307-		●
104	WASHER; LK,INJ PIPE ID=5.1	9-09150-505-0	03	1	9307-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	04	1	9307-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9307-		●
113	CLIP; INJ PIPE (A)	1-15419-036-1	06	1	9002-	●
113	CLIP; INJ PIPE (A)	1-15419-036-1	04	1	9307-		●
113	CLIP; INJ PIPE (B)	9-15419-612-0	03	1	9307-		●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15414-905-0	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15414-551-1	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15414-904-0	01	1	9307-		●
121	PIPE; FUEL,FEED PUMP,SUCTION FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-248-0	01	1	9307-		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1)	1-15414-543-1	01	1	9307-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-300-1	01	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-301-0	01	1	9307-		●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9307-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9307-		●

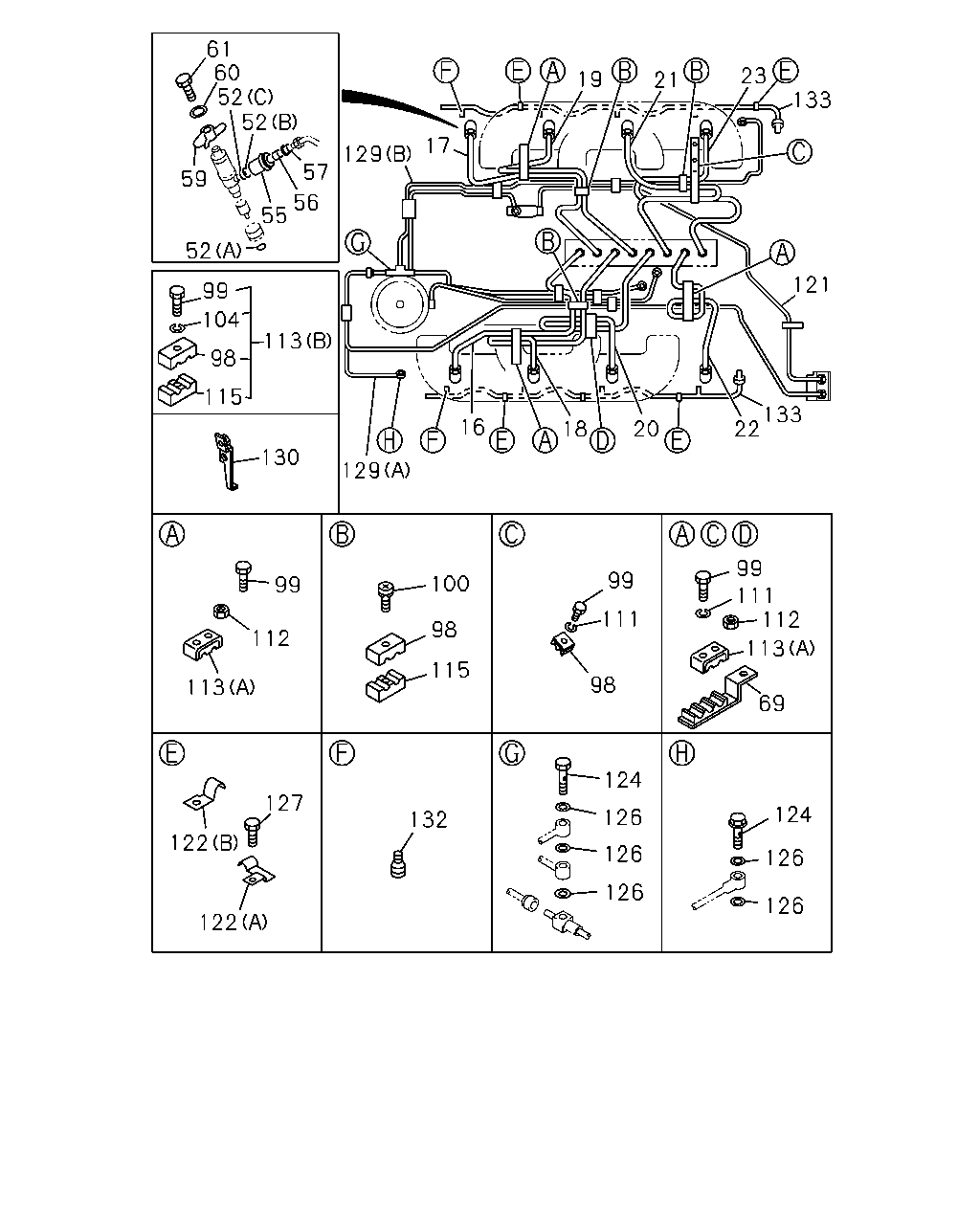

129 17 19 21 23 133 25 121 24 129 16 18 20 22 133 99 111 112 113 69 124 126 126 126 99 111 114 98 115 122 122 127 61 60 59 52 52 57 56 55 52 124 126 126 132 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15414-631-0	01	1	9002-9410	●
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-631-0	01	1	9411-	●
16	PIPE; INJ NO.1 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-058-0	01	1	9411-	●
16	PIPE; INJ NO.1	1-15414-633-0	01	1	9307-		●
17	PIPE; INJ NO.2	1-15414-632-0	01	1	9002-9410	●
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-632-0	01	1	9411-	●
17	PIPE; INJ NO.2 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-059-0	01	1	9411-	●
17	PIPE; INJ NO.2	1-15414-634-0	01	1	9307-		●
18	PIPE; INJ NO.3	1-15414-633-0	01	1	9002-9410	●
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-633-0	01	1	9411-	●
18	PIPE; INJ NO.3 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-060-1	01	1	9411-	●
18	PIPE; INJ NO.3	1-15414-635-0	01	1	9307-		●
19	PIPE; INJ NO.4	1-15414-634-0	01	1	9002-9410	●
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-634-0	01	1	9411-	●
19	PIPE; INJ NO.4 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-061-1	01	1	9411-	●
19	PIPE; INJ NO.4	1-15414-636-0	01	1	9307-		●
20	PIPE; INJ NO.5	1-15414-635-0	01	1	9002-9410	●
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-635-0	01	1	9411-	●
20	PIPE; INJ NO.5 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-062-1	01	1	9411-	●
20	PIPE; INJ NO.5	1-15414-637-0	01	1	9307-		●
21	PIPE; INJ NO.6	1-15414-636-0	01	1	9002-9410	●
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-636-0	01	1	9411-	●
21	PIPE; INJ NO.6 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-063-1	01	1	9411-	●
21	PIPE; INJ NO.6	1-15414-638-0	01	1	9307-		●
22	PIPE; INJ NO.7	1-15414-637-0	01	1	9002-9410	●
22	PIPE; INJ NO.7 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-637-0	01	1	9411-	●
22	PIPE; INJ NO.7 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-869-0	01	1	9411-	●
22	PIPE; INJ NO.7	1-15414-639-0	01	1	9307-		●
23	PIPE; INJ NO.8	1-15414-638-0	01	1	9002-9410	●
23	PIPE; INJ NO.8 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-638-0	01	1	9411-	●
23	PIPE; INJ NO.8 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-065-1	01	1	9411-	●
23	PIPE; INJ NO.8	1-15414-640-0	01	1	9307-		●
24	PIPE; INJ NO.9	1-15414-639-0	01	1	9002-9410	●
24	PIPE; INJ NO.9 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-639-0	01	1	9411-	●
24	PIPE; INJ NO.9 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-066-0	01	1	9411-	●
25	PIPE; INJ NO.10	1-15414-640-0	01	1	9002-9410	●
25	PIPE; INJ NO.10 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-640-0	01	1	9411-	●
25	PIPE; INJ NO.10 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-067-1	01	1	9411-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9307-		●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-	●
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9307-		●
56	COVER	1-15419-028-0	10	1	9002-	●
56	COVER	1-15419-028-0	08	1	9307-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9307-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9307-		●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9307-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9307-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	04	1	9307-		●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-	●	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	03	1	9002-	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-92050-520-0	08	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	08	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	06	1	9307-	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	04	1	9307-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	04	1	9307-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9307-		●
113	CLIP; INJ PIPE (A)	1-15419-036-1	06	1	9002-	●
113	CLIP; INJ PIPE (A)	1-15419-036-1	04	1	9307-		●
113	CLIP; INJ PIPE (B)	9-15419-612-0	03	1	9307-		●
114	CLIP; INJ PIPE	9-15419-612-0	03	1	9307-	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15414-905-0	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15414-551-1	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15414-904-0	01	1	9307-		●
121	PIPE; FUEL,FEED PUMP,SUCTION FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-248-0	01	1	9307-		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1)	1-15414-543-1	01	1	9307-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-300-1	01	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-301-0	01	1	9307-		●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●
131	CLIP; OVERFLOW LEAK OFF	1-09700-404-0	01	1	9002-	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9307-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9307-		●

2 186 1 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-902-1	01	1	9307-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-021-0	01	1	9411-9506	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-021-1	01	1	9507-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6> EXC. TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-922-0	01	1	9307-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-993-0	01	1	9411-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AUTO ENG SHUTOFF<KB6>,TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-434-4	01	1	9002-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AUTO ENG SHUTOFF<KB6>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-434-5	01	1	9411-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AUTO ENG SHUTOFF<KB6>,TAMPER PROOF INJ PUMP SET<W44>	1-15602-599-1	01	1	9002-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AUTO ENG SHUTOFF<KB6>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,TAMPER PROOF INJ PUMP SET<W44>	1-15602-599-1	01	1	9411-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. AUTO ENG SHUTOFF<KB6>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-907-1	01	1	9307-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. AUTO ENG SHUTOFF<KB6>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-907-1	01	1	9411-	●
2	BOLT; INJ PUMP M10X80	8-94399-730-1	04	1	9002-9101	●
2	BOLT; INJ PUMP M10X80 FLANGE	0-28181-080-0	04	1	9102-	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9002-	●	●
7	BOLT; INJ PUMP BRKT M10X40	0-28021-040-0	01	1	9002-9110	●
7	BOLT; INJ PUMP BRKT M10X40 FLANGE	0-28181-040-0	01	1	9111-	●	●
7	BOLT; INJ PUMP BRKT M10X22	0-28121-022-0	01	1	9002-9002	●
7	BOLT; INJ PUMP BRKT M10X22 FLANGE	0-28181-022-0	01	1	9003-	●	●
7	BOLT; INJ PUMP BRKT M10X95 FLANGE	8-94397-027-1	02	1	9002-	●	●
186	GEAR; INJ PUMP	1-12524-034-0	01	1	9307-	●	●

31 32 37 38 39 40 143 44 141 140 47 140 138 45 46 33 35 31 37 38 39 32 44 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-231-1	10	1	9002-9504	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-231-1	10	1	9505-	●
31	NOZZLE ASM; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-204-1	10	1	9505-	●
31	NOZZLE ASM; INJ	1-15300-231-1	08	1	9307-		●
32	HOLDER ASM; NOZZLE	1-15330-048-1	10	1	9002-9504	●
32	HOLDER ASM; NOZZLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-048-1	10	1	9505-	●
32	HOLDER ASM; NOZZLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-089-1	10	1	9505-	●
32	HOLDER ASM; NOZZLE	1-15330-048-1	08	1	9307-		●
33	NOZZLE; INJ	1-15311-159-1	10	1	9002-9504	●
33	NOZZLE; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-159-1	10	1	9505-	●
33	NOZZLE; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-180-0	10	1	9505-	●
33	NOZZLE; INJ	1-15311-159-1	08	1	9307-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	5-15332-007-0	10	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9307-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	08	1	9307-		●
37	NUT; CAP,NOZZLE HOLDER	1-15332-012-0	10	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	10	1	9307-9504	●
37	NUT; CAP,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-016-0	10	1	9505-	●
37	NUT; CAP,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-015-0	10	1	9505-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	08	1	9307-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	10	1	9002-9504	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15339-060-0	10	1	9505-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	9-15339-056-0	10	1	9505-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	08	1	9307-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	10	1	9002-9504	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-005-0	10	1	9505-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-004-0	10	1	9505-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	08	1	9307-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15332-011-0	10	1	9505-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	10	1	9002-9504	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15343-005-0	10	1	9505-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94246-531-0	10	1	9505-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	08	1	9307-		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	10	1	9002-9504	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94169-502-0	10	1	9505-	●
45	ROD; PUSH,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-004-0	10	1	9505-	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	08	1	9307-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9002-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	16	1	9307-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15339-015-0	10	1	9505-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15343-001-0	10	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.50	5-15339-007-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.60	5-15339-008-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.70	5-15339-009-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.80	5-15339-010-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.90	5-15339-011-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=1.00	5-15339-012-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.52	5-15339-018-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.54	5-15339-019-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.56	5-15339-020-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.58	5-15339-021-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.10	8-94128-982-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.20	8-94128-983-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.30	8-94128-984-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.40	8-94128-985-0	AR	1	9505-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-005-0	10	1	9505-	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-003-0	10	1	9505-	●

37 40 38 39 31 143 44 32 141 140 140 138 47 45 46 33 35 NSS

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-231-1	10	1	9002-9504	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-231-1	10	1	9505-	●
31	NOZZLE ASM; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-204-1	10	1	9505-	●
31	NOZZLE ASM; INJ	1-15300-231-1	08	1	9307-		●
32	HOLDER ASM; NOZZLE	1-15330-048-1	10	1	9002-9504	●
32	HOLDER ASM; NOZZLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-048-1	10	1	9505-	●
32	HOLDER ASM; NOZZLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-089-1	10	1	9505-	●
32	HOLDER ASM; NOZZLE	1-15330-048-1	08	1	9307-		●
33	NOZZLE; INJ	1-15311-159-1	10	1	9002-9504	●
33	NOZZLE; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-159-1	10	1	9505-	●
33	NOZZLE; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-180-0	10	1	9505-	●
33	NOZZLE; INJ	1-15311-159-1	08	1	9307-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	5-15332-007-0	10	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9307-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	08	1	9307-		●
37	NUT; CAP,NOZZLE HOLDER	1-15332-012-0	10	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	10	1	9307-9504	●
37	NUT; CAP,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-016-0	10	1	9505-	●
37	NUT; CAP,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-015-0	10	1	9505-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	08	1	9307-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	10	1	9002-9504	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15339-060-0	10	1	9505-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	9-15339-056-0	10	1	9505-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	08	1	9307-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	10	1	9002-9504	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-005-0	10	1	9505-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-004-0	10	1	9505-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	08	1	9307-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15332-011-0	10	1	9505-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	10	1	9002-9504	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15343-005-0	10	1	9505-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94246-531-0	10	1	9505-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	08	1	9307-		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	10	1	9002-9504	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94169-502-0	10	1	9505-	●
45	ROD; PUSH,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-004-0	10	1	9505-	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	08	1	9307-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9002-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	16	1	9307-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15339-015-0	10	1	9505-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15343-001-0	10	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.50	5-15339-007-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.60	5-15339-008-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.70	5-15339-009-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.80	5-15339-010-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.90	5-15339-011-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=1.00	5-15339-012-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.52	5-15339-018-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.54	5-15339-019-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.56	5-15339-020-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.58	5-15339-021-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.10	8-94128-982-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.20	8-94128-983-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.30	8-94128-984-0	AR	1	9505-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.40	8-94128-985-0	AR	1	9505-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-005-0	10	1	9505-	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-003-0	10	1	9505-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
