1-56 — EXHAUST BRAKE SYSTEM
(#26160) — 31 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
C - 6SD1 TCS ENG
◀
[156A] EXH BRAKE MAG VALVE (13 parça)

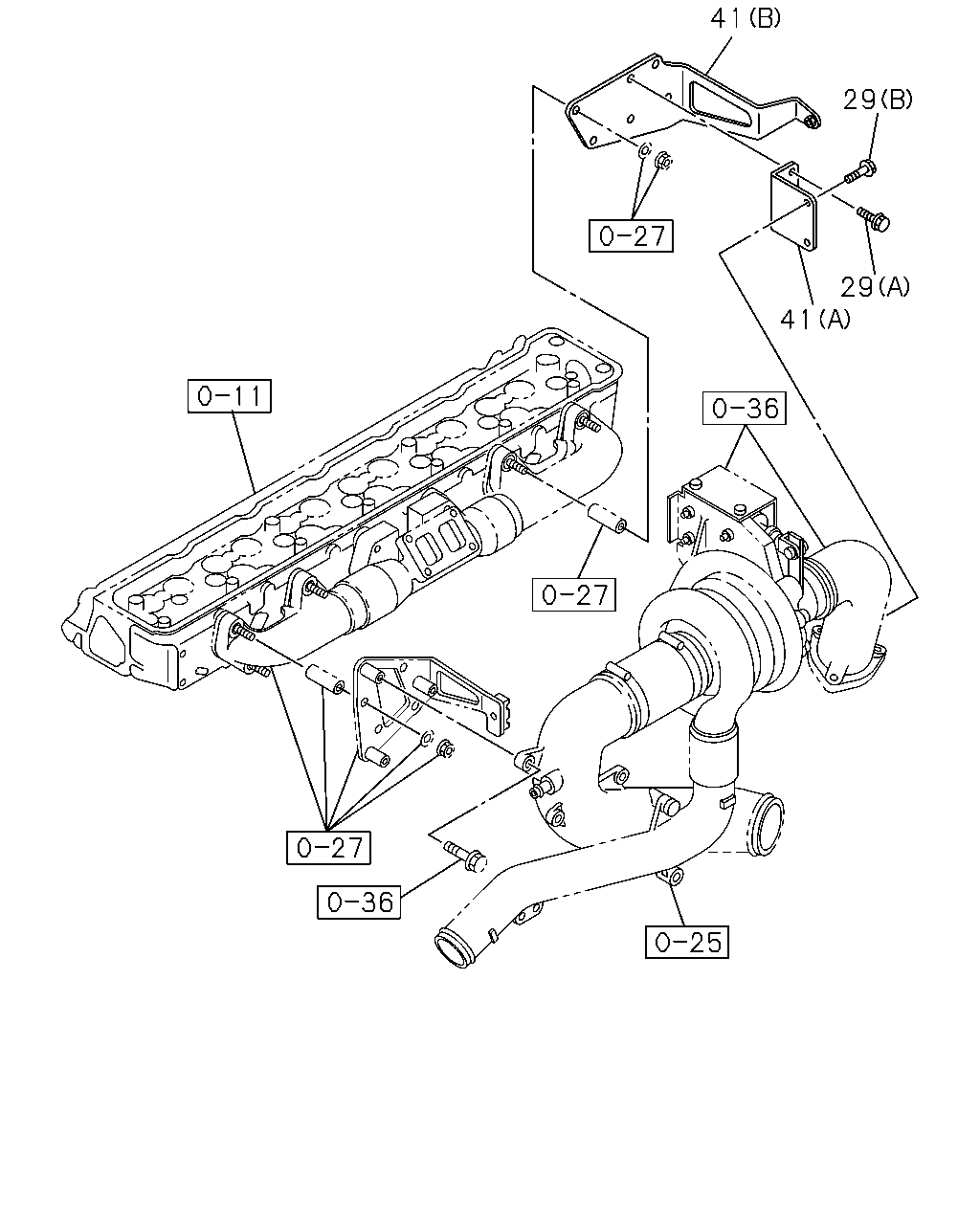

[156A] 6SD1 TCS;BRACKET (6 parça)
[156A] BRAKE LOCK CONT VALVE (12 parça)
▶
92
87
87
93
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
86
VALVE; MAG,EXH BRK
1-82563-602-6
01
1
0407-0410
●
●
86
VALVE; MAG,EXH BRK
1-82563-602-6
01
1
0411-
●
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0407-0410
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0411-
●
●
●
87
CONNECTOR
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0407-0410
●
●
87
CONNECTOR
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0411-
●
●
●
87
CONNECTOR
SHORT CHASSIS<FX***C> (C) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0407-
●
87
CONNECTOR
SHORT CHASSIS<FX***C> (D) DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0407-
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE
0-28080-825-0
02
1
0407-0701
●
●
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE THA
0-28050-825-0
02
1
0702-
●
●
●
92
BOLT; MAG VLV
SHORT CHASSIS<FX***C> (B) THA
8-97916-572-0
03
1
0407-
●
93
NUT; MAG VLV
M6 FLANGE
0-91150-106-0
02
1
0411-0605
●
93
NUT; MAG VLV
M6 FLANGE THA
0-91180-106-0
02
1
0606-
●
41
29
29
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
29
BOLT; CONT CYL
(A) M10X25 FLANGE
0-28681-025-0
02
1
0411-0512
●
29
BOLT; CONT CYL
(A) M10X25 FLANGE THA
0-28651-025-0
02
1
0601-
●
29
BOLT; CONT CYL
(B) M10X20 FLANGE
0-28781-020-0
02
1
0411-0512
●
29
BOLT; CONT CYL
(B) M10X20 FLANGE
0-28751-020-0
02
1
0601-
●
41
BRACKET
(A)
1-14149-243-0
01
1
0411-
●
41
BRACKET
(B)
1-14149-248-1
01
1
0411-
●
87
115
87
116
114
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
87
CONNECTOR
(A) M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0407-0410
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0411-
●
●
●
87
CONNECTOR
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0407-0410
●
●
87
CONNECTOR
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0411-
●
●
●
87
CONNECTOR
SHORT CHASSIS<FX***C> (C) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0407-
●
87
CONNECTOR
SHORT CHASSIS<FX***C> (D) DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0407-
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE
0-28080-825-0
02
1
0407-0701
●
●
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE THA
0-28050-825-0
02
1
0702-
●
●
●
92
BOLT; MAG VLV
SHORT CHASSIS<FX***C> (B) THA
8-97916-572-0
03
1
0407-
●
114
VALVE; CONT,BRK LOCK
SHORT CHASSIS<FX***C>
1-46362-084-0
01
1
0407-
●
115
BRACKET; CONT VLV
SHORT CHASSIS<FX***C>
1-47478-155-0
01
1
0407-
●
116
SWITCH; AIR PRESSURE
SHORT CHASSIS<FX***C>
1-82410-195-0
01
1
0407-
●
