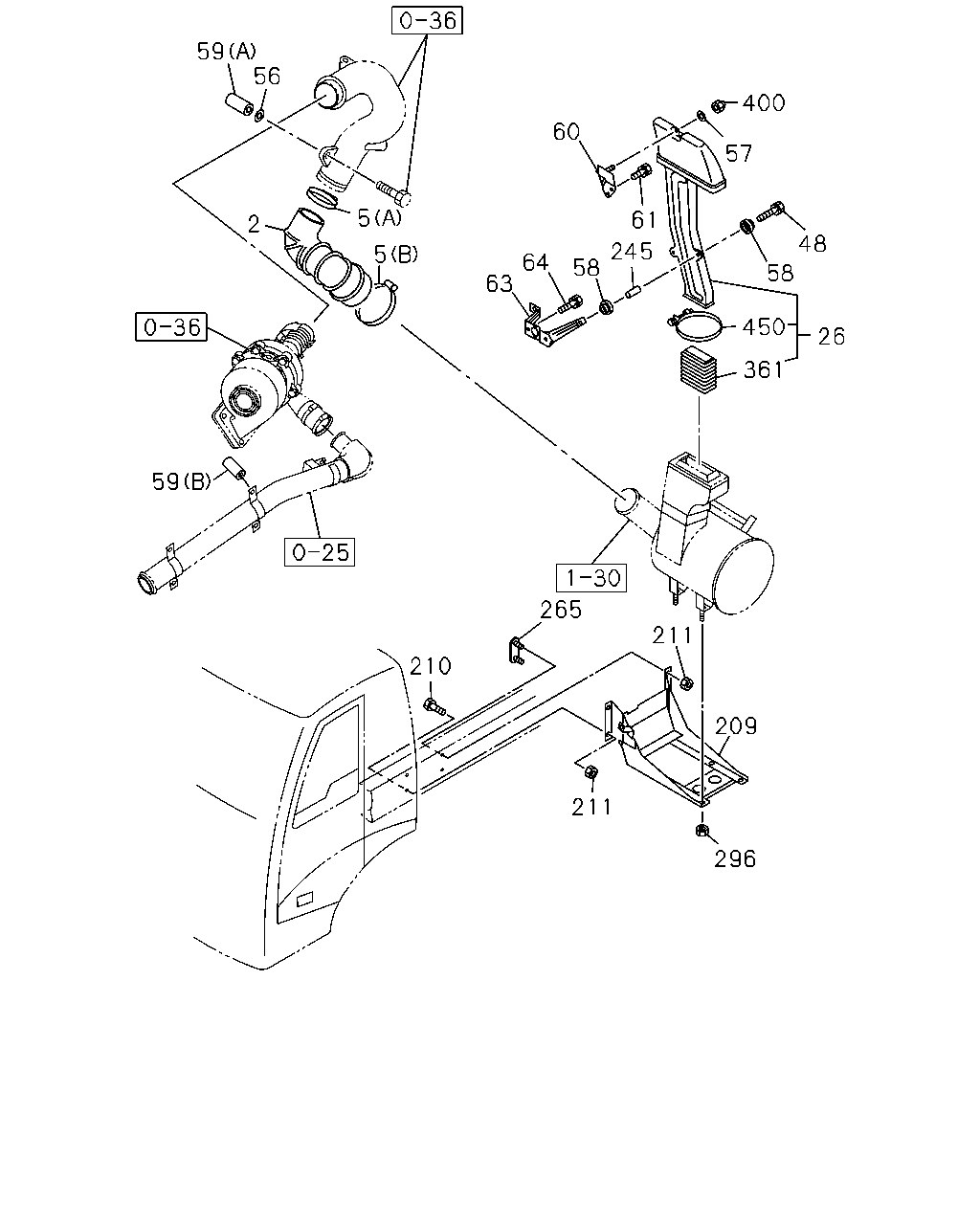

1-31 — AIR DUCT
(#26153) — 33 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
C - 6SD1 TCS ENG
59
56
400
60
57
5
61
2
48
245
5
64
58
58
63
450
26
361
59
265
211
210
209
211
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
HOSE; ACL
1-14231-914-1
01
1
0407-0709
●
●
2
HOSE; ACL
8-98096-414-0
01
1
0710-
●
●
2
HOSE; ACL
1-14232-111-0
01
1
0411-
●
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-198-0
01
1
0407-
●
●
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
01
1
0407-
●
●
●
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
01
1
0411-
●
26
DUCT; AIR INT
1-14230-175-2
01
1
0407-0611
●
●
●
26
DUCT; AIR INT
8-98064-760-0
01
1
0612-
●
●
●
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0407-
●
●
●
56
WASHER; LK,AIR INT DUCT
T=5.5
1-14149-042-0
02
1
0407-
●
●
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0407-
●
●
●
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0407-
●
●
●
59
TUBE; DIST,AIR INT DUCT
(B) L=43
1-14149-048-1
02
1
0407-
●
●
59
TUBE; DIST,AIR INT DUCT
(A) L=55
1-14149-166-0
02
1
0407-
●
●
60
BRACKET; AIR DUCT,UPR
THA
8-97914-643-0
01
1
0407-
●
●
●
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0407-
●
●
●
63
BRACKET; AIR DUCT,LWR
THA
8-97914-645-0
01
1
0407-
●
●
●
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0407-
●
●
●
209
BRACKET; ACL
SHORT CHASSIS<FX***C> THA
8-97913-971-0
01
1
0407-
●
●
●
209
BRACKET; ACL
MIDDLE CHASSIS<FX***F> THA
8-97913-970-0
01
1
0407-
●
●
●
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28081-235-0
01
1
0503-0611
●
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28051-235-0
01
1
0612-
●
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
03
1
0501-0605
●
211
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
03
1
0606-
●
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
0407-0605
●
●
211
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
04
1
0606-
●
●
245
PIECE; DIST,AIR DUCT
THA
1-79998-228-0
02
1
0407-
●
●
●
265
BRACKET; STUD,ACL
L=191 THA
1-53497-454-1
01
1
0407-
●
●
●
265
BRACKET; STUD,ACL
SHORT CHASSIS<FX***C> L=155
1-53497-523-0
01
1
0407-
●
●
●
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0407-
●
●
●
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0407-
●
●
●
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0407-
●
●
●
450
CLAMP; HOSE
9-09915-504-1
01
1
0407-
●
●
●
