◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#26152) — 19 parça

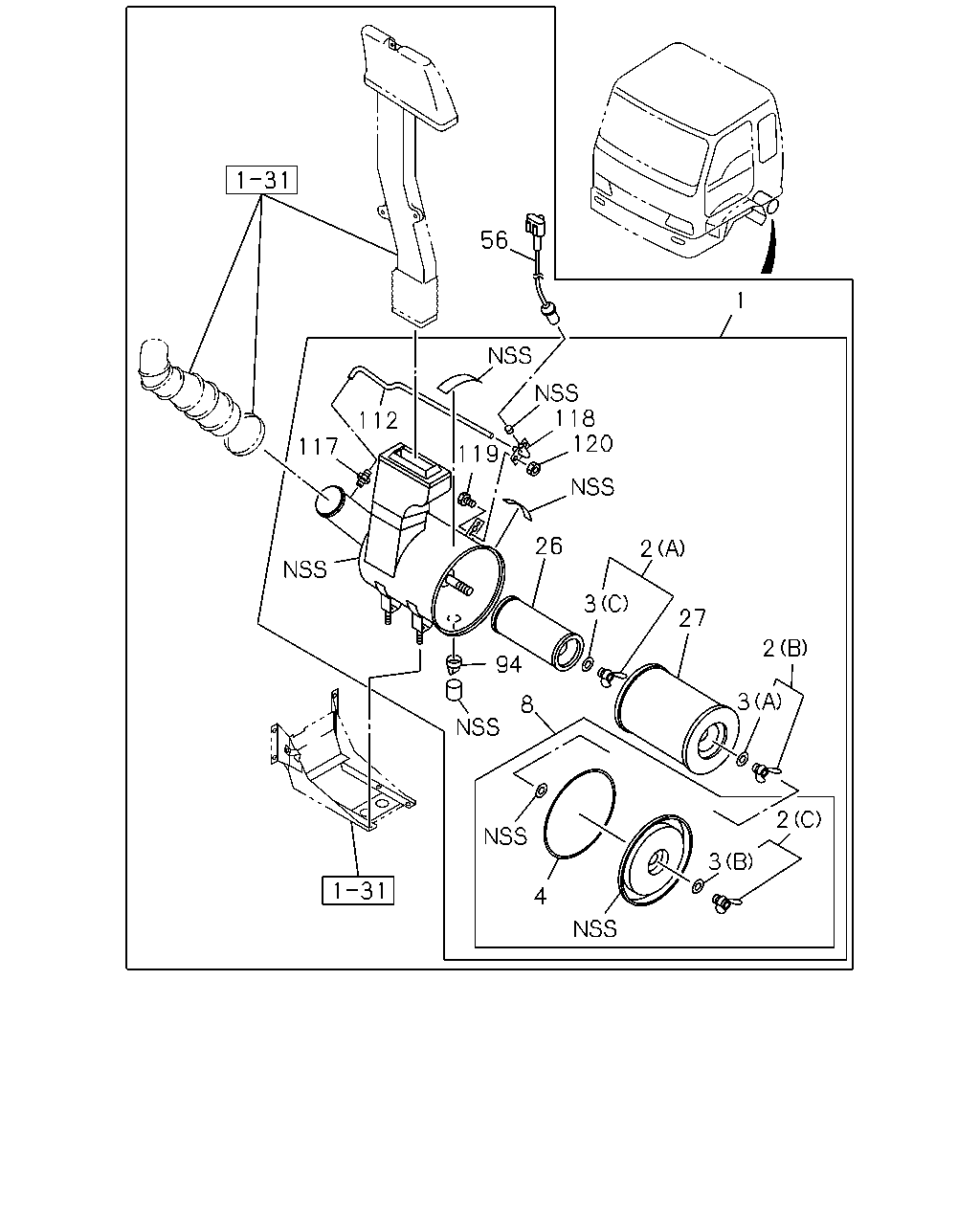

çizim 81828
56 1 118 120 112 117 119 26 2 3 27 2 94 3 8 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
THA 		8-97917-717-0 01 1 0407- ● ● ●
2 NUT; WING,ELEMENT
(A) THA 		8-97917-507-0 01 1 0407- ● ● ●
2 NUT; WING,ELEMENT
(B) THA 		8-97917-508-0 01 1 0407- ● ● ●
2 NUT; WING,ELEMENT
(C) THA 		8-97917-516-0 01 1 0407- ● ● ●
3 WASHER; SEAL,WING NUT
(B) THA 		8-97917-348-0 01 1 0407- ● ● ●
3 WASHER; SEAL,WING NUT
(C) THA 		8-97917-510-0 01 1 0407- ● ● ●
3 WASHER; SEAL,WING NUT
(A) THA 		8-97917-512-0 01 1 0407- ● ● ●
4 GASKET; COVER TO BODY
THA 		8-97917-514-0 01 1 0407- ● ● ●
8 COVER ASM; ACL
THA 		8-97917-515-0 01 1 0407- ● ● ●
26 FILTER; ACL,INNER
THA 		8-97917-505-0 01 1 0407- ● ● ●
27 FILTER; ACL,OUTER
THA 		8-97917-506-0 01 1 0407- ● ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 0407-0704 ● ● ●
56 SWITCH; ACL 1-81530-018-0 01 1 0705- ● ● ●
94 VALVE; VACUATOR
THA 		8-97917-502-0 01 1 0407- ● ● ●
112 HOSE; INDICATOR 1-14219-273-0 01 1 0407- ● ● ●
117 JOINT; INDICATOR HOSE 1-14219-272-0 01 1 0407- ● ● ●
118 BRACKET; INDICATOR
THA 		8-97917-517-0 01 1 0407- ● ● ●
119 BOLT; INDICATOR BRKT
THA 		8-97917-347-0 02 1 0407- ● ● ●
120 NUT; INDICATOR BRKT
THA 		8-97917-344-0 02 1 0407- ● ● ●
