1 |

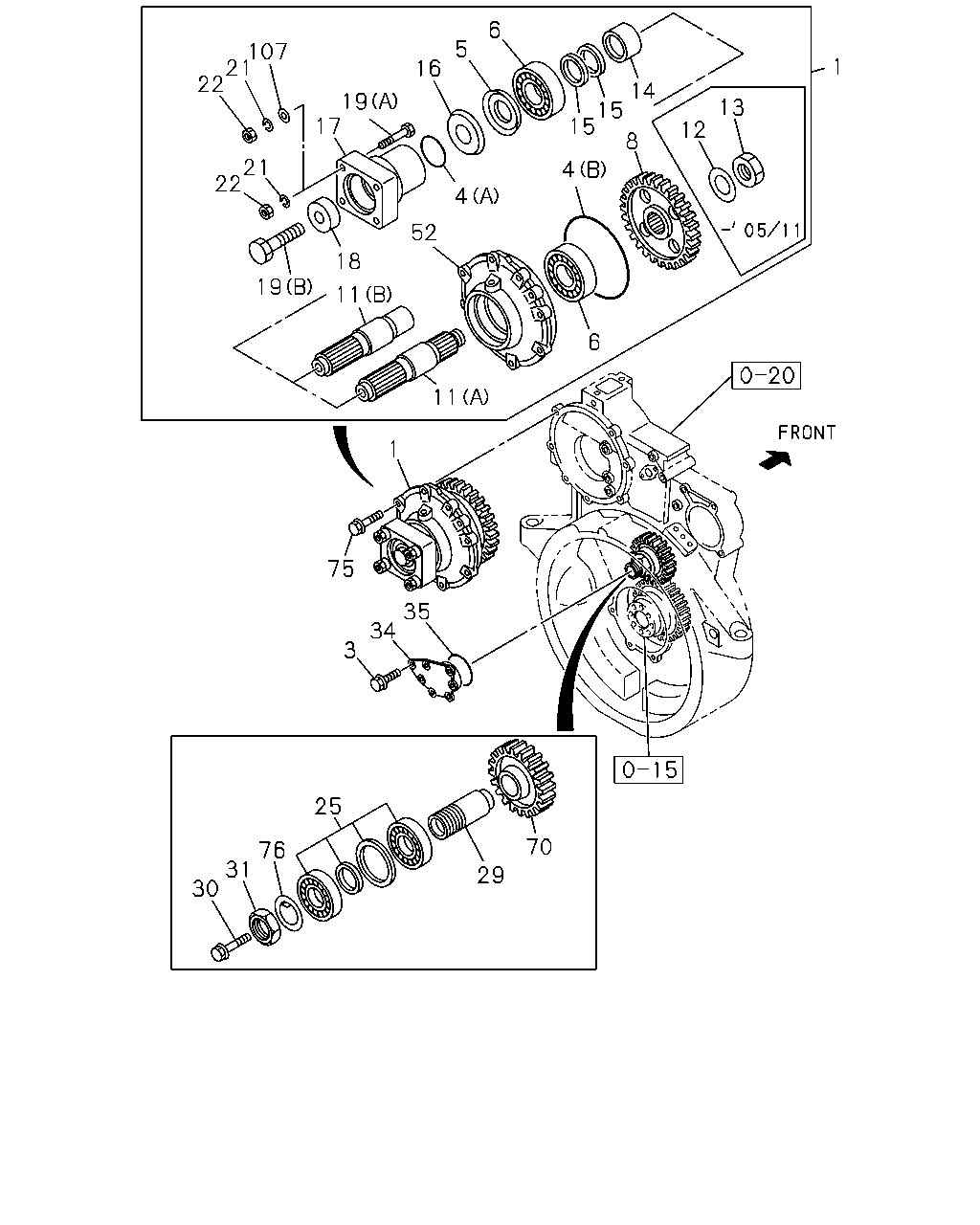

POWER TAKE OFF ASM; ENG RR
SHORT CHASSIS<FX***C>
|
1-38000-388-1 |
01 |
1 |
0407-0505 |
| |
1 |
POWER TAKE OFF ASM; ENG RR
SHORT CHASSIS<FX***C>
|
1-38000-394-3 |
01 |
1 |
0506- |
| |
3 |
BOLT; BRG CASE
SHORT CHASSIS<FX***C>
M8X20 FLANGE
|
0-28680-820-0 |
07 |
1 |
0407-0512 |
| |
3 |
BOLT; BRG CASE
SHORT CHASSIS<FX***C>
M8X20 FLANGE
THA
|
0-28650-820-0 |
07 |
1 |
0601- |
| |
4 |
GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
SHORT CHASSIS<FX***C>
(A)
|
9-09920-533-0 |
01 |
1 |
0702- |
| |
4 |
GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
SHORT CHASSIS<FX***C>
(B)
|
9-09920-778-0 |
01 |
1 |
0702- |
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
SHORT CHASSIS<FX***C>
|
1-09625-128-0 |
01 |
1 |
0407-0701 |
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
SHORT CHASSIS<FX***C>
|
8-97388-533-0 |
01 |
1 |
0702- |
| |
6 |
BEARING; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
NSK
|
9-00093-149-0 |
04 |
1 |
0407-0505 |
| |
6 |
BEARING; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
NSK
|
9-00093-149-0 |
06 |
1 |
0506-0511 |
| |
6 |
BEARING; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
NSK
|
9-00093-149-0 |
02 |
1 |
0512- |
| |
6 |
BEARING; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
KOYO
|
8-94248-088-2 |
02 |
1 |
0506-0708 |
| |
6 |
BEARING; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
KOYO
|
8-94248-088-2 |
04 |
1 |
0709- |
| |
8 |
GEAR; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
Z=61
|
1-38241-136-0 |
01 |
1 |
0407-0511 |
| |
8 |
GEAR; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
|
8-98012-348-0 |
01 |
1 |
0512- |
| |
11 |
SHAFT; PTO,FLYWHEEL
SHORT CHASSIS<FX***C>
(A)
|
1-38221-031-1 |
01 |
1 |
0407-0511 |
| |
11 |
SHAFT; PTO,FLYWHEEL
SHORT CHASSIS<FX***C>
(B)
|
8-98012-349-1 |
01 |
1 |
0512- |
| |
12 |
WASHER; LK,SHAFT NUT,FLYWHEEL PTO
SHORT CHASSIS<FX***C>
|
9-09853-865-0 |
01 |
1 |
0407-0511 |
| |
13 |
NUT; SHAFT,FLYWHEEL PTO
SHORT CHASSIS<FX***C>
|
9-09843-720-1 |
01 |
1 |
0407-0511 |
| |
14 |
SPACER; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
T=17.95
|
9-38226-045-0 |
01 |
1 |
0407- |
| |
14 |
SPACER; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
T=18.20
|
9-38226-046-0 |
01 |
1 |
0407- |
| |
14 |
SPACER; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
T=18.45
|
9-38226-047-0 |
01 |
1 |
0407- |
| |
14 |
SPACER; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
T=18.70
|
9-38226-048-0 |
01 |
1 |
0407- |
| |
14 |
SPACER; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
T=18.95
|
9-38226-049-0 |
01 |
1 |
0407- |
| |
14 |
SPACER; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
T=19.20
|
9-38226-050-0 |
01 |
1 |
0407- |
| |
14 |
SPACER; FLYWHEEL PTO
SHORT CHASSIS<FX***C>
T=19.45
|
9-38226-051-0 |
01 |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.50
|
9-41229-324-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.51
|
9-41229-325-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.52
|
9-41229-326-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.53
|
9-41229-327-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.54
|
9-41229-328-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.55
|
9-41229-329-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.56
|
9-41229-330-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.57
|
9-41229-331-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.58
|
9-41229-332-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.59
|
9-41229-333-0 |
AR |
1 |
0407- |
| |
15 |
SHIM; PTO
SHORT CHASSIS<FX***C>
T=3.60
|
9-41229-334-0 |
AR |
1 |
0407- |
| |
16 |
THROWER; OIL,FLYWHEEL PTO
SHORT CHASSIS<FX***C>
|
9-38175-011-0 |
01 |
1 |
0407- |
| |
17 |
FLANGE; PTO,FLYWHEEL
SHORT CHASSIS<FX***C>
|
1-38189-010-2 |
01 |
1 |
0407- |
| |
18 |
WASHER; FLANGE,FLYWHEEL PTO
SHORT CHASSIS<FX***C>
|
1-09509-014-1 |
01 |
1 |
0407- |
| |
19 |
BOLT; FLANGE
SHORT CHASSIS<FX***C>
(B)
M20X60
|
0-20852-060-0 |
01 |
1 |
0702- |
| |
19 |
BOLT; FLANGE
SHORT CHASSIS<FX***C>
(A)
M12X70
|
9-92621-270-0 |
04 |
1 |
0407-0505 |
| |
19 |
BOLT; FLANGE
SHORT CHASSIS<FX***C>
(A)
M12X40
|
9-92061-240-0 |
04 |
1 |
0506-0512 |
| |
19 |
BOLT; FLANGE
SHORT CHASSIS<FX***C>
(A)
M12X40
|
0-20951-240-0 |
04 |
1 |
0601- |
| |
21 |
WASHER; LK,FLANGE
SHORT CHASSIS<FX***C>
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0407-0603 |
| |
21 |
WASHER; LK,FLANGE
SHORT CHASSIS<FX***C>
ID=12.2
|
0-91510-612-0 |
04 |
1 |
0604-0701 |
| |
21 |
WASHER; LK,FLANGE
SHORT CHASSIS<FX***C>
ID=12.2
|
0-91510-812-0 |
04 |
1 |
0702- |
| |
22 |
NUT; FLANGE
SHORT CHASSIS<FX***C>
M12
|
9-99110-512-0 |
04 |
1 |
0407-0512 |
| |
22 |
NUT; FLANGE
SHORT CHASSIS<FX***C>
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
25 |
BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
SHORT CHASSIS<FX***C>
|
1-09820-105-0 |
01 |
1 |
0407- |
| |
29 |
SPINDLE; IDLE GEAR,PTO
SHORT CHASSIS<FX***C>
|
1-12531-108-0 |
01 |
1 |
0407- |
| |
30 |
BOLT; SPINDLE
SHORT CHASSIS<FX***C>
|
9-09805-081-1 |
01 |
1 |
0407- |
| |
31 |
NUT; IDLE GEAR
SHORT CHASSIS<FX***C>
|
9-09843-063-0 |
01 |
1 |
0407- |
| |
34 |
COVER; PTO,FLYWHEEL
SHORT CHASSIS<FX***C>
|
1-11343-008-1 |
01 |
1 |
0407- |
| |
35 |
GASKET; COVER
SHORT CHASSIS<FX***C>
|
9-09920-528-0 |
01 |
1 |
0407- |
| |
52 |
CASE; BRG,PTO
SHORT CHASSIS<FX***C>
|
9-38181-007-3 |
01 |
1 |
0407- |
| |
70 |
GEAR; IDLE DRIVEN,PTO
SHORT CHASSIS<FX***C>
|
1-38261-022-1 |
01 |
1 |
0407- |
| |
75 |
BOLT; COVER
SHORT CHASSIS<FX***C>
M10X35 FLANGE
|
0-28781-035-0 |
08 |
1 |
0407-0512 |
| |
75 |
BOLT; COVER
SHORT CHASSIS<FX***C>
M10X35 FLANGE
THA
|
0-28751-035-0 |
08 |
1 |
0601- |
| |
76 |
WASHER; LK,IDLE GEAR
SHORT CHASSIS<FX***C>
|
9-09854-034-0 |
01 |
1 |
0407- |
| |
107 |
WASHER; PL,FLANGE
SHORT CHASSIS<FX***C>
ID=12.5
|
9-09160-512-0 |
04 |
1 |
0407-0605 |
| |
107 |
WASHER; PL,FLANGE
SHORT CHASSIS<FX***C>
ID=12.5 OD=22
|
0-91610-512-0 |
04 |
1 |
0606- |
