Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10946 - FXZ(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#26147) — 35 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
C - 6SD1 TCS ENG
◀

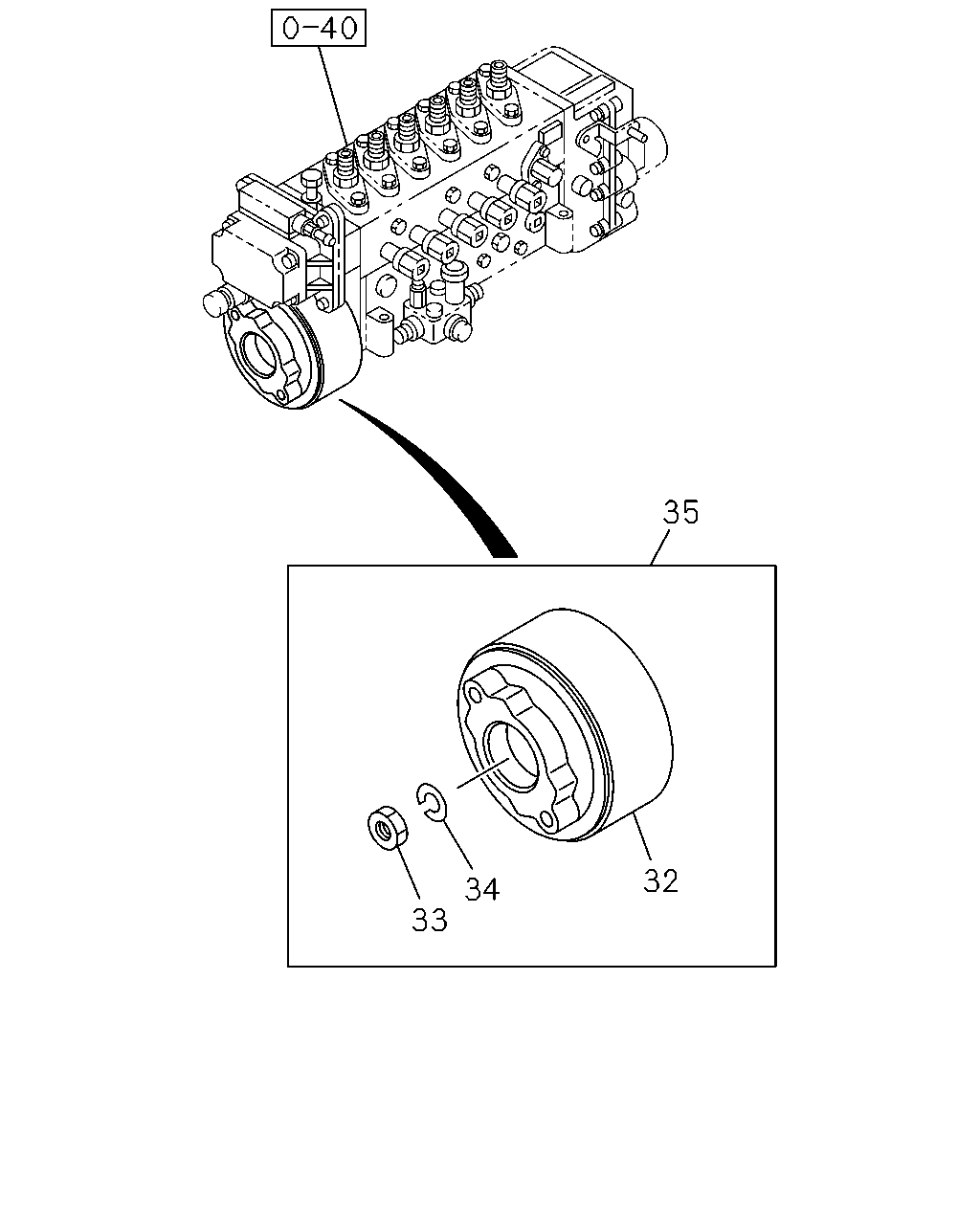

[087A] DAMPER (12 parça)
[087A] COMPONENT;COUPLING (23 parça)
▶
35
32
34
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
32
DAMPER; INJ PUMP
1-15744-008-1
01
1
0407-0501
●
32
DAMPER; INJ PUMP
1-15744-024-0
01
1
0407-0410
●
32
DAMPER; INJ PUMP
1-15744-024-0
01
1
0411-0501
●
●
32
DAMPER; INJ PUMP
1-15744-024-0
01
1
0502-
●
●
●
33
NUT; DAMPER
1-19179-020-0
01
1
0407-0410
●
●
33
NUT; DAMPER
1-19179-020-0
01
1
0411-
●
●
●
34
WASHER; DAMPER
1-19179-002-0
01
1
0407-0410
●
●
34
WASHER; DAMPER
1-19179-002-0
01
1
0411-
●
●
●
35
DAMPER ASM; INJ PUMP
1-15744-026-0
01
1
0407-0410
●
35
DAMPER ASM; INJ PUMP
1-15744-026-0
01
1
0411-0501
●
●
35
DAMPER ASM; INJ PUMP
1-15744-026-0
01
1
0502-
●
●
●
35
DAMPER ASM; INJ PUMP
1-15744-014-1
01
1
0407-0501
●
14
6
20
13
10
9
5
2
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COUPLING; INJ PUMP DRIVE
1-15781-039-0
01
1
0407-0410
●
●
1
COUPLING; INJ PUMP DRIVE
1-15781-039-0
01
1
0411-0612
●
●
●
1
COUPLING; INJ PUMP DRIVE
1-15781-048-0
01
1
0701-
●
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-162-0
01
1
0407-0410
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-162-0
01
1
0411-
●
●
●
5
WASHER; COUPLING FIX,INJ PUMP
1-15789-021-0
01
1
0407-0410
●
●
5
WASHER; COUPLING FIX,INJ PUMP
1-15789-021-0
01
1
0411-
●
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-221-0
01
1
0407-0410
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-221-0
01
1
0411-
●
●
●
7
PLATE; COUPLING,COUPLING SIDE
1-15619-181-0
01
1
0407-0410
●
●
7
PLATE; COUPLING,COUPLING SIDE
1-15619-181-0
01
1
0411-
●
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15619-183-0
02
1
0407-0410
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15619-183-0
02
1
0411-
●
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-159-0
02
1
0407-0410
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-159-0
02
1
0411-
●
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-165-0
02
1
0407-0410
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-165-0
02
1
0411-
●
●
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15619-181-0
01
1
0407-0410
●
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15619-181-0
01
1
0411-
●
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15619-183-0
02
1
0407-0410
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15619-183-0
02
1
0411-
●
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15619-183-0
02
1
0407-0410
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15619-183-0
02
1
0411-
●
●
●
