0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#26140) — 34 parça

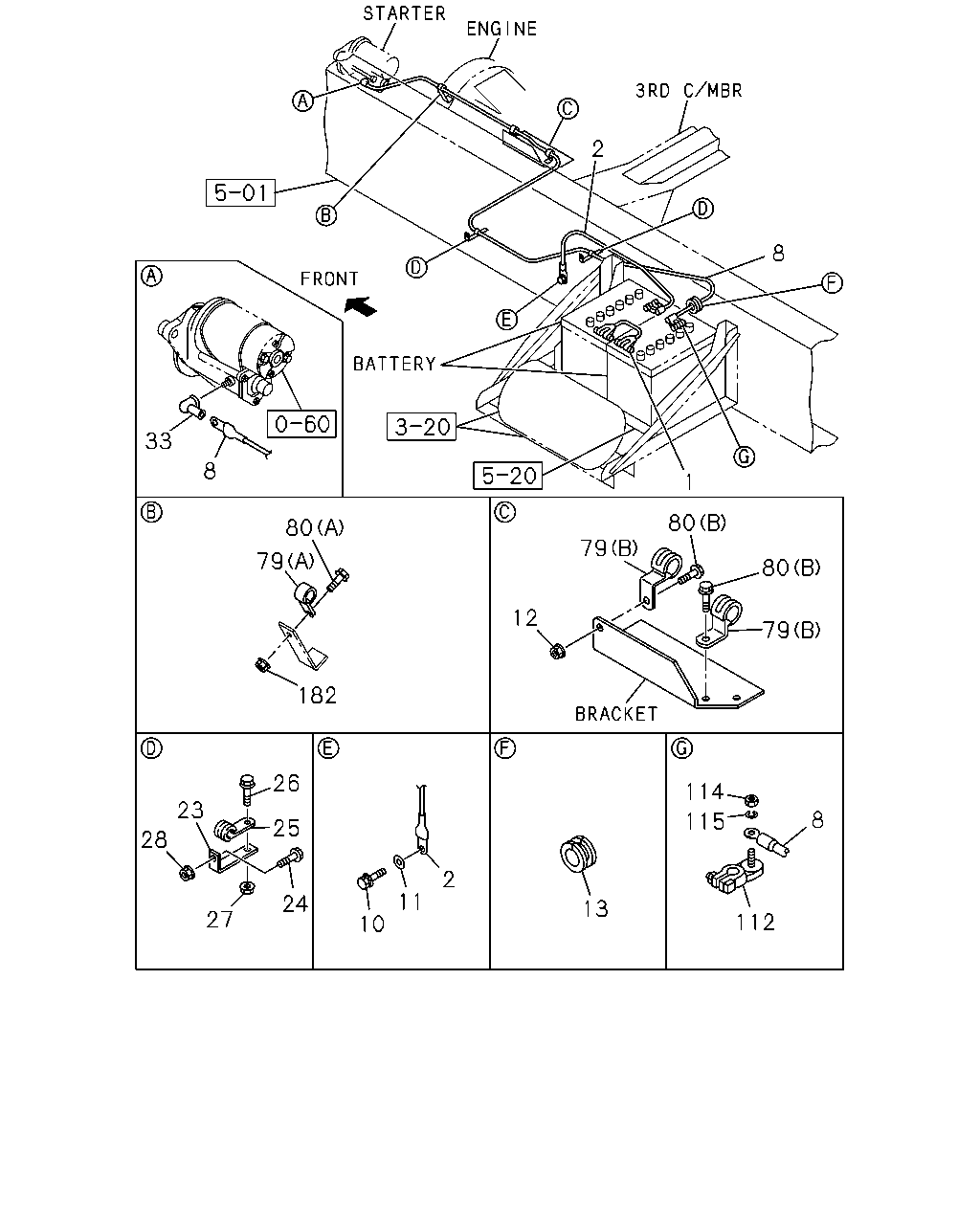

çizim 83916
2 8 33 8 1 80 80 79 79 80 12 79 182 26 114 23 8 115 25 28 2 11 24 13 27 112 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; BATTERY
L=180 THA 		8-97916-366-0 01 1 0407- ● ● ●
2 CABLE; BATTERY
L=185 THA 		8-97916-170-0 01 1 0407- ● ● ●
8 CABLE; BATTERY,STARTER
SHORT CHASSIS<FX***C> MAL6V M/T<Y2U> THA 		8-97913-066-1 01 1 0407- ● ● ●
8 CABLE; BATTERY,STARTER
MIDDLE CHASSIS<FX***F> ZF 9S109 OD M/T<Y2L> L=2400 THA 		8-97910-138-2 01 1 0407- ● ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0407- ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 		1-09503-265-0 01 1 0407- ● ● ●
12 NUT; BATTERY CABLE CLIP
MIDDLE CHASSIS<FX***F> ZF 9S109 OD M/T<Y2L> M8 FLANGE 		0-91150-108-0 01 1 0407- ● ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0407- ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=145 		1-47475-655-0 01 1 0407- ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 THA 		1-82699-085-0 01 1 0407- ● ● ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 02 1 0407-0611 ● ● ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE THA 		0-28650-835-0 02 1 0612- ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=22 H=30 THA 		1-09701-215-1 02 1 0407- ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 THA 		1-09701-216-0 02 1 0407- ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0611 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE THA 		0-28650-820-0 02 1 0612- ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0407-0611 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X35 FLANGE THA 		0-28650-835-0 02 1 0612- ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407- ● ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0407- ● ● ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0407- ● ● ●
79 CLIP; BATTERY CABLE
SHORT CHASSIS<FX***C> MAL6V M/T<Y2U> (B) ID=15 L=22 H=30 THA 		1-09701-215-1 01 1 0407- ● ● ●
79 CLIP; BATTERY CABLE
SHORT CHASSIS<FX***C> MAL6V M/T<Y2U> (A) ID=15 L=28 THA 		1-09701-216-0 01 1 0407- ● ● ●
79 CLIP; BATTERY CABLE
MIDDLE CHASSIS<FX***F> ZF 9S109 OD M/T<Y2L> (B) ID=15 L=22 H=30 THA 		1-09701-215-1 02 1 0407- ● ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0611 ● ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 0612- ● ● ●
80 BOLT; BATTERY CABLE CLIP
MIDDLE CHASSIS<FX***F> ZF 9S109 OD M/T<Y2L> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611 ● ● ●
80 BOLT; BATTERY CABLE CLIP
MIDDLE CHASSIS<FX***F> ZF 9S109 OD M/T<Y2L> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0407- ● ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0407- ● ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0407- ● ● ●
182 NUT; CLIP
MIDDLE CHASSIS<FX***F> ZF 9S109 OD M/T<Y2L> M8 FLANGE 		0-91150-108-0 01 1 0407- ● ● ●
182 NUT; CLIP
MIDDLE CHASSIS<FX***F> ZF 9S109 OD M/T<Y2L> M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ● ●
