0-50 — OIL COOLER AND OIL FILTER (#26136) — 156 parça

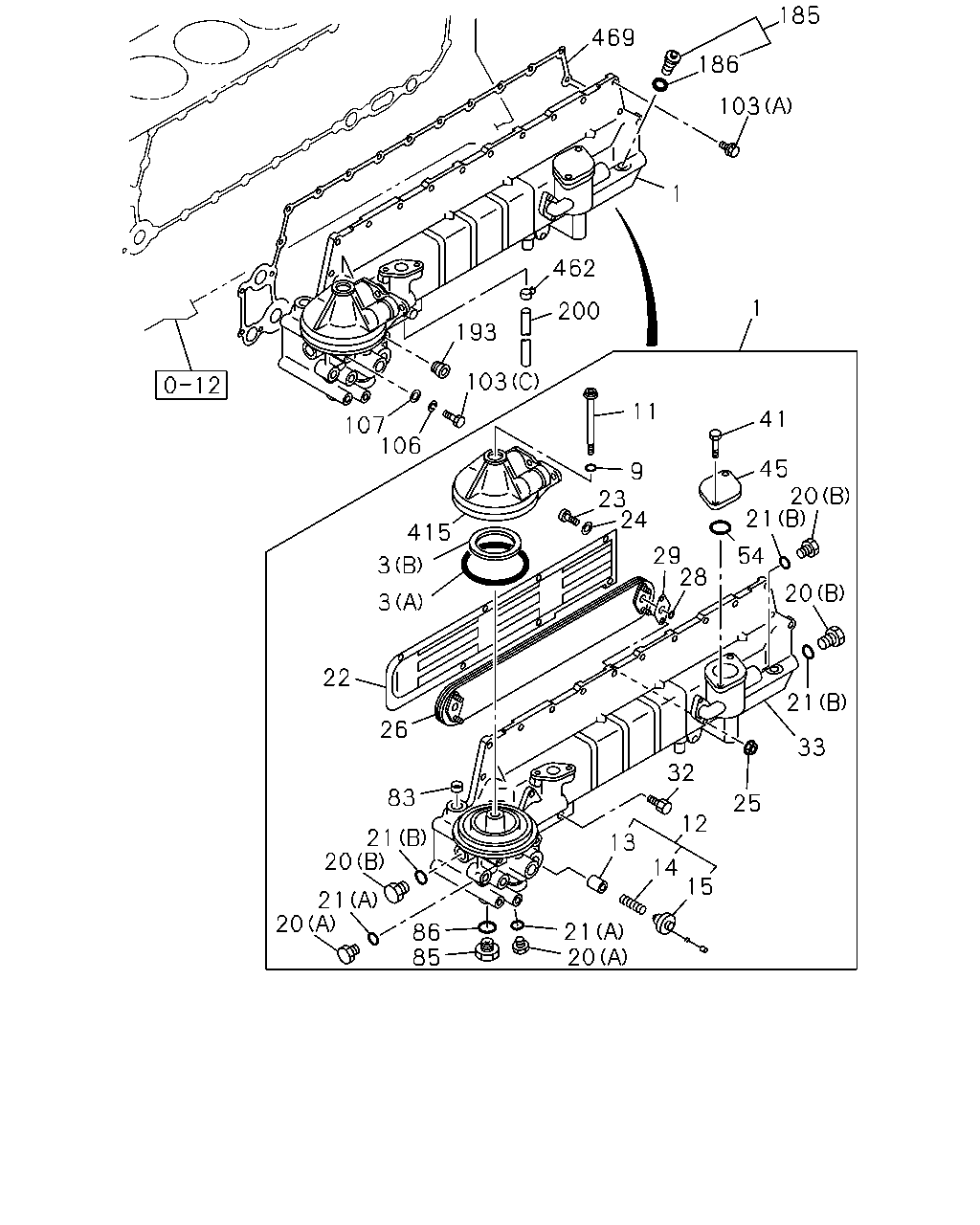

çizim 24591
185 469 186 103 1 462 1 200 193 103 11 41 107 106 45 20 21 9 23 24 415 54 29 28 3 20 3 22 21 26 33 32 83 25 12 21 20 13 14 15 21 20 86 85 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER & COOLER ASM; OIL 1-21700-368-0 01 1 0407-0410 ● ●
1 FILTER & COOLER ASM; OIL 1-21700-368-0 01 1 0411- ● ● ●
3 GASKET
(A) 		1-09623-352-0 01 1 0407-0410 ● ●
3 GASKET
(A) 		1-09623-352-0 01 1 0411- ● ● ●
3 GASKET
(B) 		1-09630-109-0 01 1 0407-0410 ● ●
3 GASKET
(B) 		1-09630-109-0 01 1 0411- ● ● ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5 		9-09920-694-0 01 1 0407-0410 ● ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5 		9-09920-694-0 01 1 0411- ● ● ●
11 BOLT; CENTER 1-13231-062-0 01 1 0407-0410 ● ●
11 BOLT; CENTER 1-13231-062-0 01 1 0411- ● ● ●
12 VALVE ASM; BYPASS 1-13260-110-0 01 1 0407-0410 ● ●
12 VALVE ASM; BYPASS 1-13260-110-0 01 1 0411- ● ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 0407-0410 ● ●
13 VALVE; RELIEF 9-13262-010-0 01 1 0411- ● ● ●
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 0407-0410 ● ●
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 0411- ● ● ●
15 PLUG; RELIEF VLV 1-13219-322-0 01 1 0407-0410 ● ●
15 PLUG; RELIEF VLV 1-13219-322-0 01 1 0411- ● ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 0407-0410 ● ●
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 0411- ● ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 0407-0410 ● ●
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 0411- ● ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 0407-0410 ● ●
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 0411- ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0407-0410 ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0411- ● ● ●
22 GUIDE; WATER 1-13219-155-1 01 1 0407-0410 ● ●
22 GUIDE; WATER 1-13219-155-1 01 1 0411- ● ● ●
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 0407-0410 ● ●
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 0411- ● ● ●
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 0407-0410 ● ●
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 0411- ● ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0407-0410 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0411- ● ● ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 0407-0410 ● ●
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 0411- ● ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 0407-0410 ● ●
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 0411- ● ● ●
29 GASKET; CORE TO BODY 8-94394-930-0 02 1 0407-0410 ● ●
29 GASKET; CORE TO BODY 8-94394-930-0 02 1 0411- ● ● ●
32 PLUG; DRAIN 1-13219-276-0 01 1 0407-0410 ● ●
32 PLUG; DRAIN 1-13219-276-0 01 1 0411- ● ● ●
33 HOUSING ASM; COOLER 1-13211-323-0 01 1 0407-0410 ● ●
33 HOUSING ASM; COOLER 1-13211-323-0 01 1 0411- ● ● ●
41 BOLT; COVER FIX
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0410 ● ●
41 BOLT; COVER FIX
M8X25 FLANGE 		0-28680-825-0 02 1 0411- ● ● ●
45 COVER; OIL PORT 1-13219-172-0 01 1 0407-0410 ● ●
45 COVER; OIL PORT 1-13219-172-0 01 1 0411- ● ● ●
54 GASKET; OIL PIPE 1-13219-162-0 01 1 0407-0410 ● ●
54 GASKET; OIL PIPE 1-13219-162-0 01 1 0411- ● ● ●
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 0407-0410 ● ●
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 0411- ● ● ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-252-0 01 1 0407-0410 ● ●
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-252-0 01 1 0411- ● ● ●
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 0407-0410 ● ●
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 0411- ● ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 0407-0410 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 0411-0512 ● ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE THA 		0-28050-825-0 24 1 0601- ● ● ●
103 BOLT; OIL COOLER
(B) M8X145 		1-09000-448-1 02 1 0407-0410 ● ●
103 BOLT; OIL COOLER
(B) M8X145 		1-09000-448-1 02 1 0411- ● ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 0407-0410 ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 0411- ● ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 0407-0410 ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 0411-0603 ● ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604- ● ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 0407-0410 ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 0411-0605 ● ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 THA 		0-91610-508-0 04 1 0606- ● ● ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 0407- ● ●
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-034-0 01 1 0411- ●
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 0407-0410 ● ●
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 0411- ● ● ●
193 PLUG; TAPER
PT3/8 T=8.0 		1-09605-066-0 01 1 0407-0410 ● ●
193 PLUG; TAPER
PT3/8 T=8.0 		1-09605-066-0 01 1 0411- ● ● ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03457-300-0 01 1 0407-0410 ● ●
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03457-300-0 01 1 0411- ● ● ●
415 COVER; OIL COOLER 1-21722-031-0 01 1 0407-0410 ● ●
415 COVER; OIL COOLER 1-21722-031-0 01 1 0411- ● ● ●
462 CLIP; HOSE,DRAIN 1-09704-100-0 01 1 0407-0410 ● ●
462 CLIP; HOSE,DRAIN 1-09704-100-0 01 1 0411- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11219-177-1 01 1 0407-0410 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11219-177-1 01 1 0411- ● ● ●

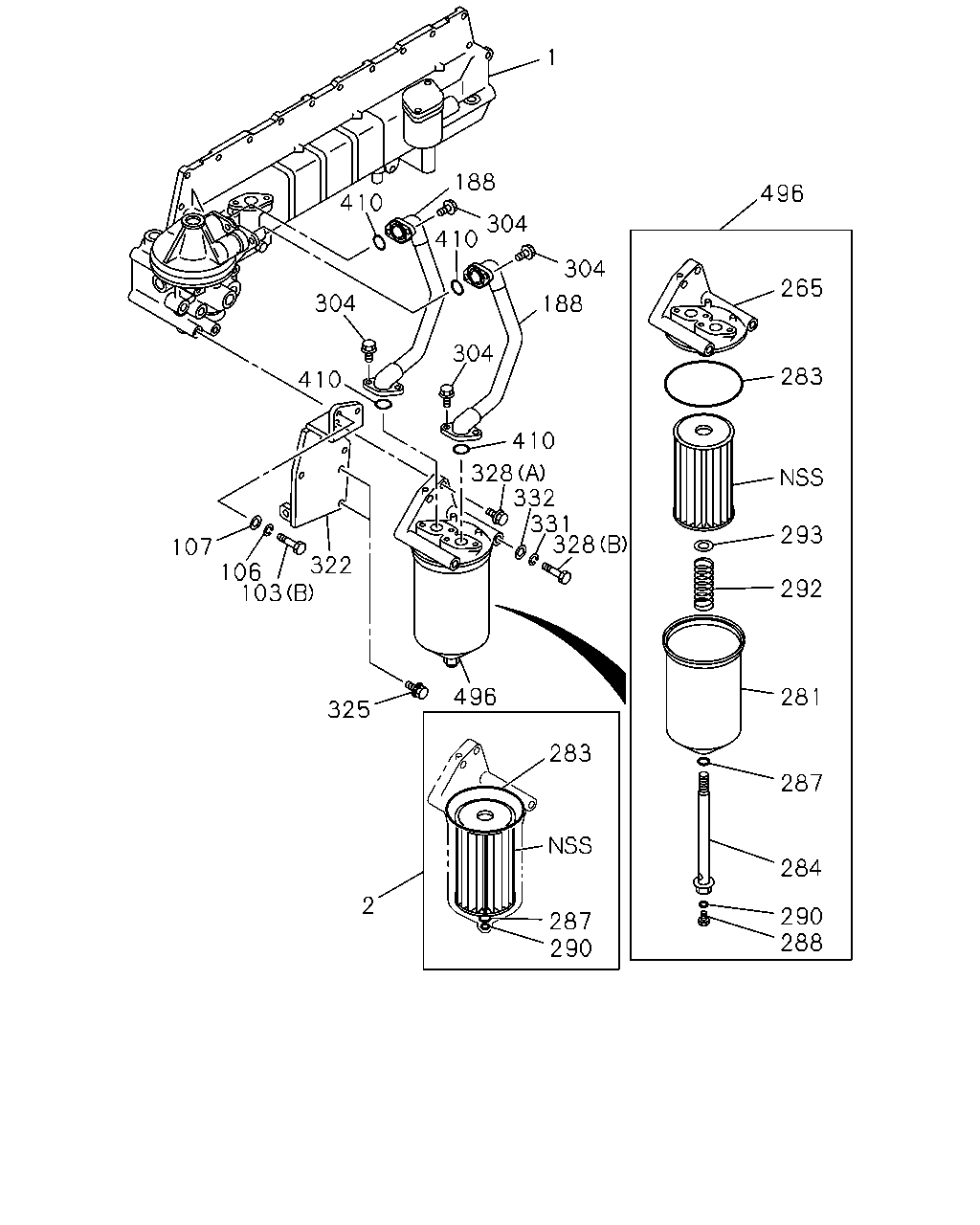

çizim 24719
1 188 496 410 304 410 304 265 304 188 304 283 410 410 328 332 331 328 293 107 322 106 103 292 496 281 325 283 287 284 2 290 288 287 290
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER & COOLER ASM; OIL 1-21700-368-0 01 1 0407-0410 ● ●
1 FILTER & COOLER ASM; OIL 1-21700-368-0 01 1 0411- ● ● ●
2 ELEMENT; OIL FILTER 1-87810-075-2 01 1 0407-0410 ● ●
2 ELEMENT; OIL FILTER 1-87810-075-2 01 1 0411- ● ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 0407-0410 ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 0411-0512 ● ● ●
103 BOLT; OIL COOLER
(A) M8X25 FLANGE THA 		0-28050-825-0 24 1 0601- ● ● ●
103 BOLT; OIL COOLER
(B) M8X145 		1-09000-448-1 02 1 0407-0410 ● ●
103 BOLT; OIL COOLER
(B) M8X145 		1-09000-448-1 02 1 0411- ● ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 0407-0410 ● ●
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 0411- ● ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 0407-0410 ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 0411-0603 ● ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604- ● ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 0407-0410 ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 0411-0605 ● ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 THA 		0-91610-508-0 04 1 0606- ● ● ●
188 PIPE; BYPASS 1-13312-650-0 02 1 0407-0410 ● ●
188 PIPE; BYPASS 1-13312-650-0 02 1 0411- ● ● ●
265 BODY; OIL FILTER 1-13212-161-0 01 1 0407-0410 ● ●
265 BODY; OIL FILTER 1-13212-161-0 01 1 0411- ● ● ●
281 COVER; OIL FILTER 1-13211-153-0 01 1 0407-0410 ● ●
281 COVER; OIL FILTER 1-13211-153-0 01 1 0411- ● ● ●
283 GASKET; BODY TO COVER
ID=27.7 		1-09623-170-0 01 1 0407-0410 ● ●
283 GASKET; BODY TO COVER
ID=27.7 		1-09623-170-0 01 1 0411- ● ● ●
284 BOLT; CENTER,OIL FILTER 1-13231-047-0 01 1 0407-0410 ● ●
284 BOLT; CENTER,OIL FILTER 1-13231-047-0 01 1 0411- ● ● ●
287 GASKET; CENTER BOLT
ID=15.5 		9-09920-694-0 01 1 0407-0410 ● ●
287 GASKET; CENTER BOLT
ID=15.5 		9-09920-694-0 01 1 0411- ● ● ●
288 PLUG; OIL DRAIN
M10 		1-09000-105-0 01 1 0407-0410 ● ●
288 PLUG; OIL DRAIN
M10 		1-09000-105-0 01 1 0411- ● ● ●
290 GASKET; PLUG,OIL DRAIN
ID=9.8 		1-09623-055-0 01 1 0407-0410 ● ●
290 GASKET; PLUG,OIL DRAIN
ID=9.8 		1-09623-055-0 01 1 0411- ● ● ●
292 SPRING; ELEMENT 9-09941-283-0 01 1 0407-0410 ● ●
292 SPRING; ELEMENT 9-09941-283-0 01 1 0411- ● ● ●
293 SEAT; SPR 1-13219-173-0 01 1 0407-0410 ● ●
293 SEAT; SPR 1-13219-173-0 01 1 0411- ● ● ●
304 BOLT; PIPE TO COVER
M8X20 FLANGE 		0-28080-820-0 08 1 0407-0410 ● ●
304 BOLT; PIPE TO COVER
M8X20 FLANGE 		0-28080-820-0 08 1 0411-0512 ● ● ●
304 BOLT; PIPE TO COVER
M8X20 FLANGE THA 		0-28050-820-0 08 1 0601- ● ● ●
322 BRACKET; OIL FILTER 1-19755-122-1 01 1 0407-0410 ● ●
322 BRACKET; OIL FILTER 1-19755-122-1 01 1 0411- ● ● ●
325 BOLT; BRKT TO BODY
M10X22 W/LK WASHER 		0-50051-022-0 02 1 0407-0410 ● ●
325 BOLT; BRKT TO BODY
M10X22 W/LK WASHER 		0-50051-022-0 02 1 0411- ● ● ●
328 BOLT; OIL FILTER
(A) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 0407-0410 ● ●
328 BOLT; OIL FILTER
(A) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 0411-0512 ● ● ●
328 BOLT; OIL FILTER
(A) M10X40 W/LK&PL WASHER 		0-50641-040-0 01 1 0601- ● ● ●
328 BOLT; OIL FILTER
(B) M10X142 		5-09000-160-1 02 1 0407-0410 ● ●
328 BOLT; OIL FILTER
(B) M10X142 		5-09000-160-1 02 1 0411- ● ● ●
331 WASHER; PL,OIL FILTER
ID=10.5 OD=18 		9-09160-510-0 02 1 0407-0410 ● ●
331 WASHER; PL,OIL FILTER
ID=10.5 OD=18 		9-09160-510-0 02 1 0411-0605 ● ● ●
331 WASHER; PL,OIL FILTER
ID=10.5 		0-91610-510-0 02 1 0606- ● ● ●
332 WASHER; LK,OIL FILTER
ID=10.2 		9-09150-510-0 02 1 0407-0410 ● ●
332 WASHER; LK,OIL FILTER
ID=10.2 		9-09150-510-0 02 1 0411-0603 ● ● ●
332 WASHER; LK,OIL FILTER
ID=10.2 		0-91510-510-0 02 1 0604- ● ● ●
410 GASKET
ID=27.7 		1-09623-450-0 04 1 0407-0410 ● ●
410 GASKET
ID=27.7 		1-09623-450-0 04 1 0411- ● ● ●
496 FILTER ASM; OIL 1-13200-848-0 01 1 0407-0410 ● ●
496 FILTER ASM; OIL 1-13200-848-0 01 1 0411- ● ● ●

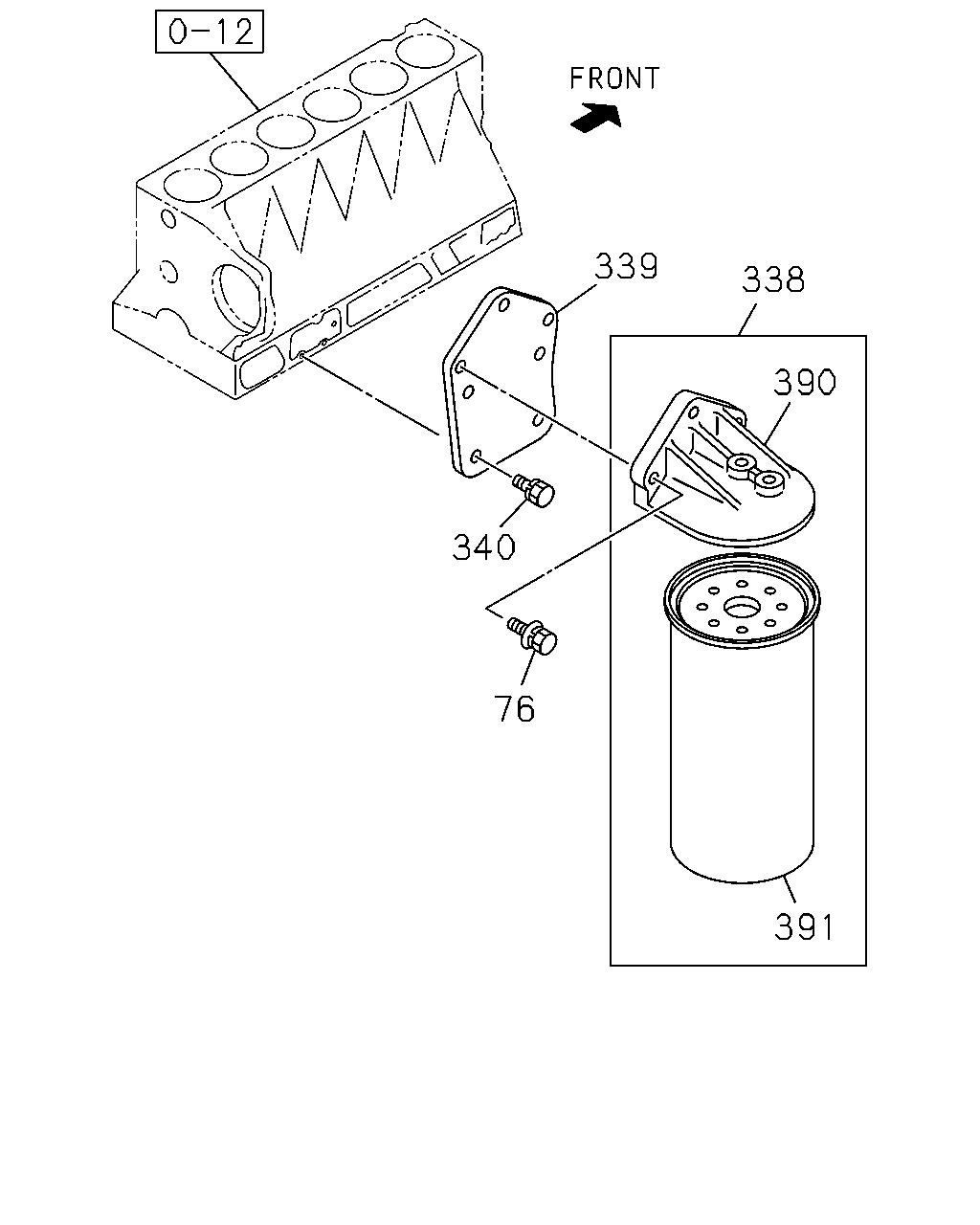

çizim 82178
339 338 390 340 76 391
BalonParca AdiParca NoAdetTipApplied Date A B C
76 BOLT; OIL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 03 1 0407-0410 ● ●
76 BOLT; OIL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 03 1 0411-0512 ● ● ●
76 BOLT; OIL FILTER
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 03 1 0601- ● ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-744-0 01 1 0407-0410 ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-744-0 01 1 0411- ● ● ●
339 BRACKET; PARTIAL OIL FILTER 1-19755-062-1 01 1 0407- ● ●
339 BRACKET; PARTIAL OIL FILTER 8-97604-630-0 01 1 0411- ●
340 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 0407- ● ●
340 BOLT; BRKT
M10X35 FLANGE 		0-28781-035-0 04 1 0411-0512 ●
340 BOLT; BRKT
M10X35 FLANGE THA 		0-28751-035-0 04 1 0601- ●
390 BODY; OIL FILTER,PARTIAL 1-13212-089-2 01 1 0407-0410 ● ●
390 BODY; OIL FILTER,PARTIAL 1-13212-089-2 01 1 0411- ● ● ●
391 CARTRIDGE; OIL FILTER,PARTIAL 1-13240-163-2 01 1 0407-0410 ● ●
391 CARTRIDGE; OIL FILTER,PARTIAL 1-13240-163-2 01 1 0411- ● ● ●
