0-39 — AIR COMPRESSOR; BRAKE (#26132) — 54 parça

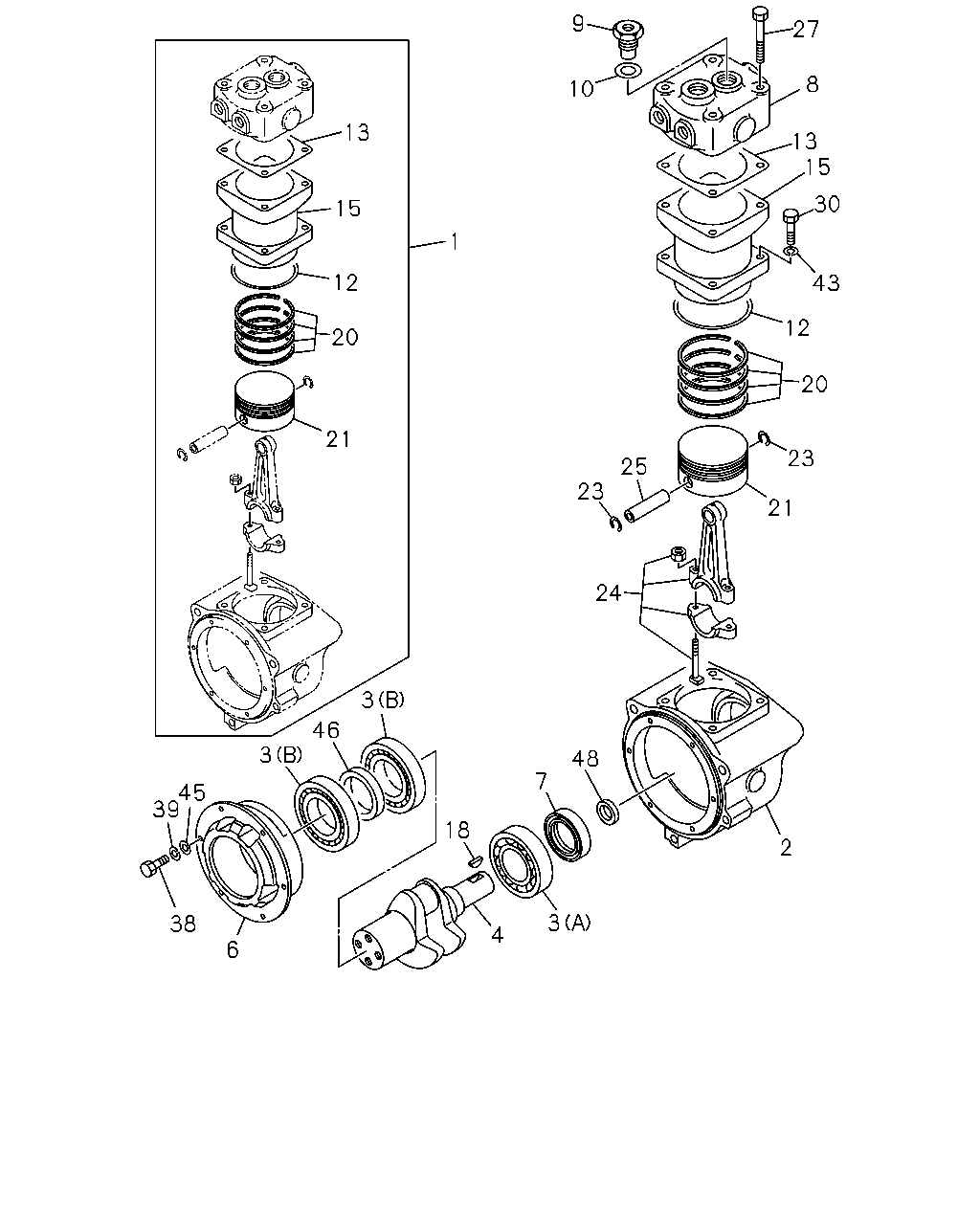

çizim 24233
9 27 8 10 13 13 15 30 15 1 12 43 12 20 20 21 23 25 23 21 24 3 46 3 48 7 45 39 18 2 3 38 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 01 1 0407-0410 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-060-1 01 1 0411- ● ● ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 0407-0410 ● ●
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 0411- ● ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 0407-0410 ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 0411- ● ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-282-0 02 1 0407-0410 ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-282-0 02 1 0411- ● ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-081-1 01 1 0407-0410 ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-081-1 01 1 0411- ● ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 0407-0410 ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 0411- ● ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0407-0410 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0411- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 0407-0410 ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 0411- ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 0407-0410 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 0411- ● ● ●
10 SHIM; AIR CMPR 9-19139-021-0 01 1 0407-0410 ● ●
10 SHIM; AIR CMPR 9-19139-021-0 01 1 0411- ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0407-0410 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0411- ● ● ●
13 GASKET; AIR CMPR 1-19139-017-1 01 1 0407-0410 ● ●
13 GASKET; AIR CMPR 1-19139-017-1 01 1 0411- ● ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 0407-0410 ● ●
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 0411- ● ● ●
18 KEY; AIR CMPR 1-09735-041-0 01 1 0407-0410 ● ●
18 KEY; AIR CMPR 1-09735-041-0 01 1 0411- ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0407-0410 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0411- ● ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0407-0410 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0411- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0407-0410 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0411- ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0407-0410 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0411- ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0407-0410 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0411- ● ● ●
27 BOLT; HD
M10X60 		9-01066-060-0 04 1 0407-0410 ● ●
27 BOLT; HD
M10X60 		9-01066-060-0 04 1 0411- ● ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0407-0410 ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0411- ● ● ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 0407-0410 ● ●
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 0411- ● ● ●
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 0407-0410 ● ●
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 0411- ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0407-0410 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0411- ● ● ●
45 WASHER; PL,COVER FIX,AIR CMPR 1-19159-005-0 06 1 0407-0410 ● ●
45 WASHER; PL,COVER FIX,AIR CMPR 1-19159-005-0 06 1 0411- ● ● ●
46 SPACER; BRG 1-19179-010-0 01 1 0407-0410 ● ●
46 SPACER; BRG 1-19179-010-0 01 1 0411- ● ● ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 0407-0410 ● ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 0411- ● ● ●
