Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#26131) — 276 parça

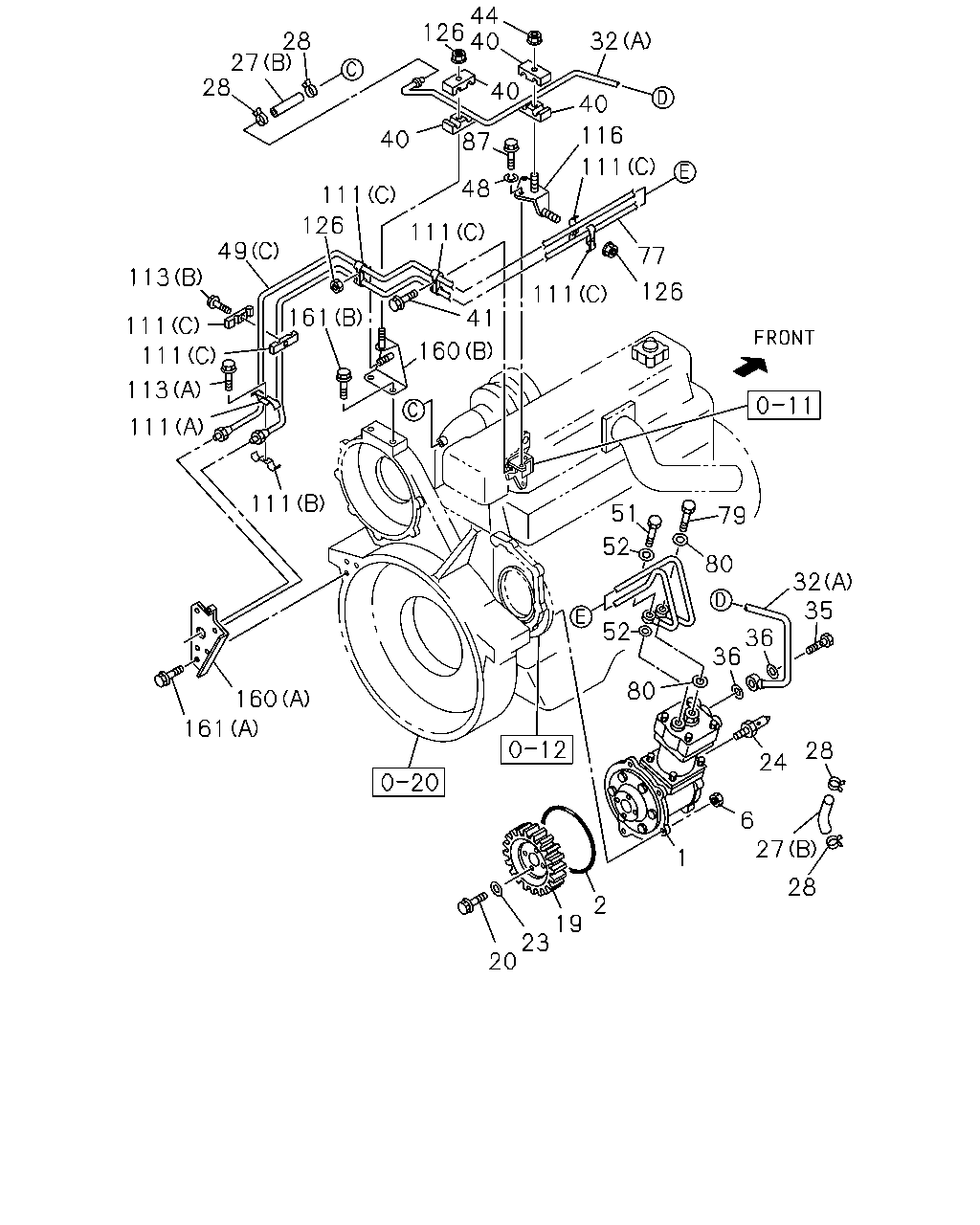

28 44 40 87 32 27 40 48 40 40 116 111 28 113 113 41 111 111 113 126 111 49 77 111 111 79 51 80 49 52 77 32 35 52 36 36 160 161 80 28 24 6 1 27 28 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	0407-0410	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-2	01	1	0411-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0407-0410	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0411-	●	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0407-0602	●	●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	04	1	0603-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0411-0602			●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	02	1	0603-			●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0407-0410	●	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0411-	●	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0407-0410	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0411-	●	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0407-0410	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0411-	●	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0407-0410	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0411-	●	●	●
27	HOSE; AIR CMPR,SUCTION SHORT CHASSIS<FX***C> (B)	0-02117-080-0	01	1	0407-	●
27	HOSE; AIR CMPR,SUCTION MIDDLE CHASSIS<FX***F> (A)	1-09360-916-0	01	1	0407-	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0411-			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0407-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0411-			●
32	PIPE; AIR,AIR CMPR SHORT CHASSIS<FX***C> (A)	1-19192-979-0	01	1	0407-	●
32	PIPE; AIR,AIR CMPR MIDDLE CHASSIS<FX***F> (A)	1-19192-892-0	01	1	0407-	●	●
32	PIPE; AIR,AIR CMPR (B)	1-19193-356-0	01	1	0411-			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0407-0410	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0411-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-0410	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0411-	●	●	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0407-	●	●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0411-			●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0407-0512	●	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0411-0512			●
41	BOLT; CLIP M8X50 FLANGE THA	0-28050-850-0	04	1	0601-			●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0407-0602	●	●
44	NUT M6 FLANGE THA	0-91180-106-0	01	1	0603-	●	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605	●	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-	●	●
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (C)	1-19192-978-0	01	1	0407-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (C)	1-19192-963-0	01	1	0407-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-350-0	01	1	0411-			●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0411-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0407-0410	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0411-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-0410	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0411-	●	●	●
77	PIPE; AIR,GOV SHORT CHASSIS<FX***C>	1-19192-977-0	01	1	0407-	●
77	PIPE; AIR,GOV MIDDLE CHASSIS<FX***F>	1-19192-962-0	01	1	0407-	●	●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0411-			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-0410	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0411-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-0410	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0411-	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0407-0512	●	●
87	BOLT; BRKT FIX M10X20 FLANGE THA	0-28051-020-0	02	1	0601-	●	●
111	CLIP; AIR PIPE SHORT CHASSIS<FX***C> (C)	1-09701-208-0	02	1	0407-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0407-	●	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0407-	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0407-	●	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (B) M6X35 FLANGE	0-28080-635-0	01	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0407-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (B) M6X40 FLANGE	0-28080-640-0	02	1	0407-0512	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0407-	●	●
116	BRACKET; AIR PIPE	1-14119-469-0	02	1	0411-			●
126	NUT; CLIP FIX SHORT CHASSIS<FX***C> M6 FLANGE	0-91150-106-0	02	1	0407-0602	●
126	NUT; CLIP FIX SHORT CHASSIS<FX***C> M6 FLANGE THA	0-91180-106-0	02	1	0603-	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0407-0602	●	●
126	NUT; CLIP FIX M6 FLANGE THA	0-91180-106-0	01	1	0603-	●	●
160	BRACKET; AIR PIPE SHORT CHASSIS<FX***C> (B)	1-19199-277-0	01	1	0407-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	0407-	●	●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0411-			●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0407-0410	●	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0411-0512	●	●	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE THA	0-28050-816-0	03	1	0601-	●	●	●

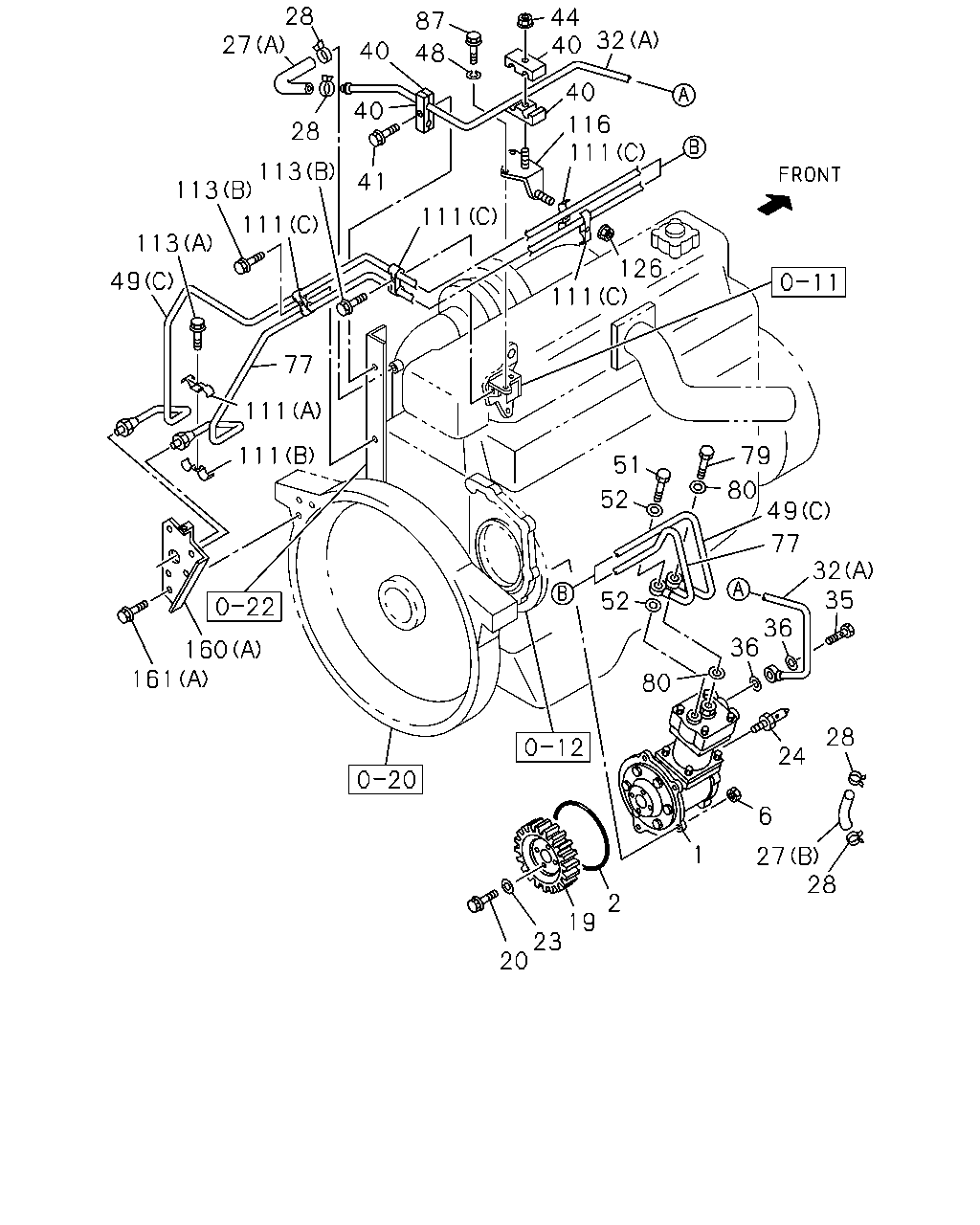

44 126 40 28 27 28 32 40 40 116 40 87 111 48 111 126 111 49 77 113 41 126 111 161 111 160 111 113 111 111 51 79 52 80 32 35 52 36 36 80 160 161 28 24 6 27 1 28 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	0407-0410	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-2	01	1	0411-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0407-0410	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0411-	●	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0407-0602	●	●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	04	1	0603-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0411-0602			●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	02	1	0603-			●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0407-0410	●	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0411-	●	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0407-0410	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0411-	●	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0407-0410	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0411-	●	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0407-0410	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0411-	●	●	●
27	HOSE; AIR CMPR,SUCTION SHORT CHASSIS<FX***C> (B)	0-02117-080-0	01	1	0407-	●
27	HOSE; AIR CMPR,SUCTION MIDDLE CHASSIS<FX***F> (A)	1-09360-916-0	01	1	0407-	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0411-			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0407-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0411-			●
32	PIPE; AIR,AIR CMPR SHORT CHASSIS<FX***C> (A)	1-19192-979-0	01	1	0407-	●
32	PIPE; AIR,AIR CMPR MIDDLE CHASSIS<FX***F> (A)	1-19192-892-0	01	1	0407-	●	●
32	PIPE; AIR,AIR CMPR (B)	1-19193-356-0	01	1	0411-			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0407-0410	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0411-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-0410	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0411-	●	●	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0407-	●	●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0411-			●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0407-0512	●	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0411-0512			●
41	BOLT; CLIP M8X50 FLANGE THA	0-28050-850-0	04	1	0601-			●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0407-0602	●	●
44	NUT M6 FLANGE THA	0-91180-106-0	01	1	0603-	●	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605	●	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-	●	●
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (C)	1-19192-978-0	01	1	0407-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (C)	1-19192-963-0	01	1	0407-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-350-0	01	1	0411-			●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0411-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0407-0410	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0411-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-0410	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0411-	●	●	●
77	PIPE; AIR,GOV SHORT CHASSIS<FX***C>	1-19192-977-0	01	1	0407-	●
77	PIPE; AIR,GOV MIDDLE CHASSIS<FX***F>	1-19192-962-0	01	1	0407-	●	●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0411-			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-0410	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0411-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-0410	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0411-	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0407-0512	●	●
87	BOLT; BRKT FIX M10X20 FLANGE THA	0-28051-020-0	02	1	0601-	●	●
111	CLIP; AIR PIPE SHORT CHASSIS<FX***C> (C)	1-09701-208-0	02	1	0407-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0407-	●	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0407-	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0407-	●	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (B) M6X35 FLANGE	0-28080-635-0	01	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0407-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (B) M6X40 FLANGE	0-28080-640-0	02	1	0407-0512	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0407-	●	●
116	BRACKET; AIR PIPE	1-14119-469-0	02	1	0411-			●
126	NUT; CLIP FIX SHORT CHASSIS<FX***C> M6 FLANGE	0-91150-106-0	02	1	0407-0602	●
126	NUT; CLIP FIX SHORT CHASSIS<FX***C> M6 FLANGE THA	0-91180-106-0	02	1	0603-	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0407-0602	●	●
126	NUT; CLIP FIX M6 FLANGE THA	0-91180-106-0	01	1	0603-	●	●
160	BRACKET; AIR PIPE SHORT CHASSIS<FX***C> (B)	1-19199-277-0	01	1	0407-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	0407-	●	●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0411-			●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0407-0410	●	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0411-0512	●	●	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE THA	0-28050-816-0	03	1	0601-	●	●	●

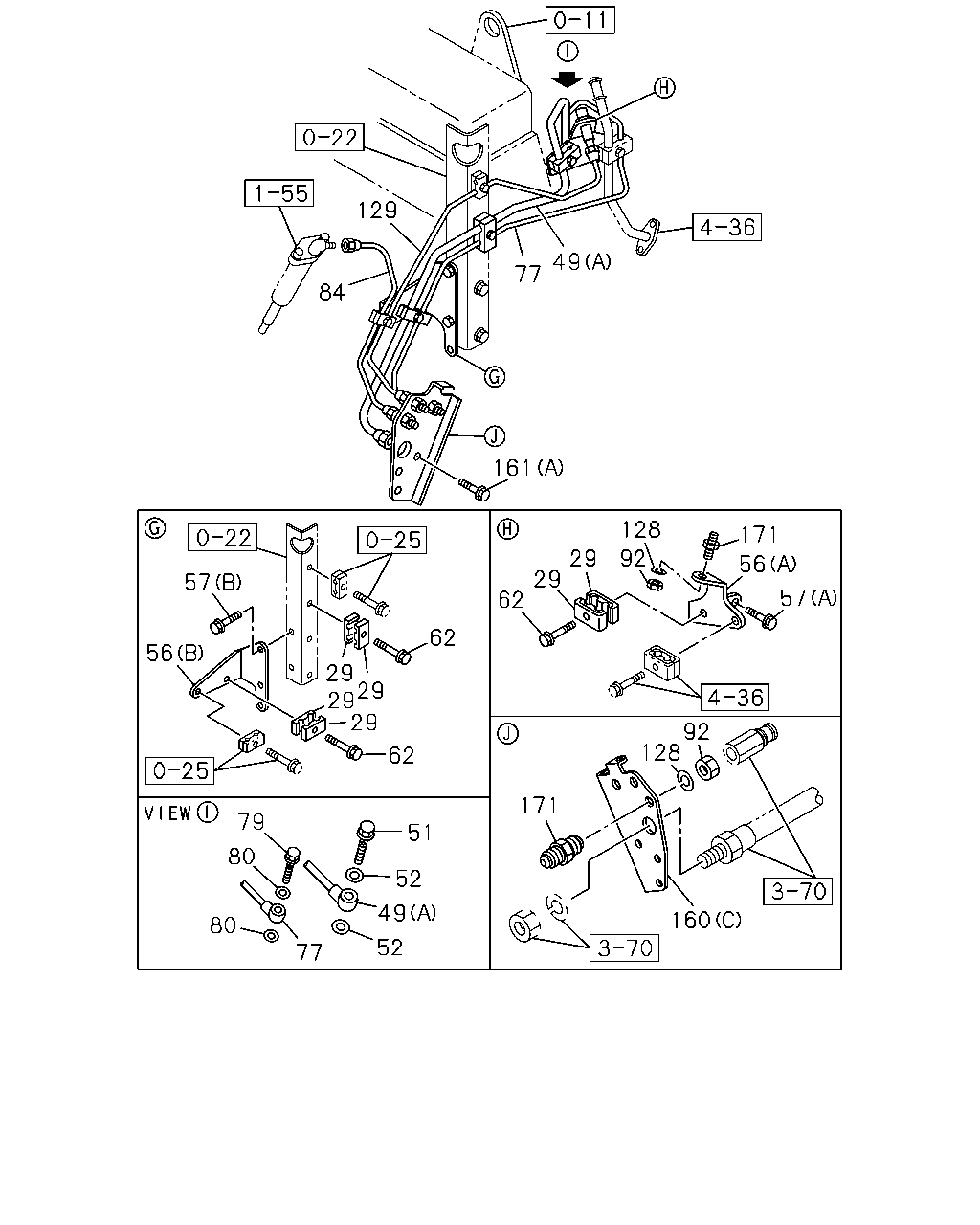

129 49 77 84 161 128 171 29 29 62 92 56 57 57 62 56 29 29 29 29 92 128 62 171 79 51 80 52 49 160 80 52 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	CLIP; AIR PIPE	1-09701-208-0	06	1	0411-			●
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (C)	1-19192-978-0	01	1	0407-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (C)	1-19192-963-0	01	1	0407-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-350-0	01	1	0411-			●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0411-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0407-0410	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0411-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-0410	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0411-	●	●	●
56	BRACKET; AIR PIPE FIX (A)	1-19193-353-0	01	1	0411-			●
56	BRACKET; AIR PIPE FIX (B)	1-19199-379-0	01	1	0411-			●
57	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0411-0512			●
57	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-			●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE	0-28680-820-0	02	1	0411-0512			●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0601-			●
62	BOLT; CLIP M6X40 FLANGE	0-28680-640-0	03	1	0411-0512			●
62	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	03	1	0601-			●
77	PIPE; AIR,GOV SHORT CHASSIS<FX***C>	1-19192-977-0	01	1	0407-	●
77	PIPE; AIR,GOV MIDDLE CHASSIS<FX***F>	1-19192-962-0	01	1	0407-	●	●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0411-			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-0410	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0411-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-0410	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0411-	●	●	●
84	PIPE; AIR SHORT CHASSIS<FX***C>	1-19192-976-0	01	1	0407-	●
84	PIPE; AIR MIDDLE CHASSIS<FX***F>	1-19192-964-0	01	1	0407-	●	●
84	PIPE; AIR	1-19193-354-0	01	1	0411-			●
92	NUT; UNION M12	9-09840-280-0	04	1	0411-			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	04	1	0411-0603			●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	04	1	0604-			●
129	PIPE; AIR,VGS	1-19193-355-0	01	1	0411-			●
160	BRACKET; AIR PIPE SHORT CHASSIS<FX***C> (B)	1-19199-277-0	01	1	0407-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	0407-	●	●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0411-			●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0407-0410	●	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0411-0512	●	●	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE THA	0-28050-816-0	03	1	0601-	●	●	●
171	UNION M12 L=66.5	9-09223-306-1	04	1	0411-0607			●
171	UNION M12 L=66.5	0-92113-306-0	04	1	0608-			●

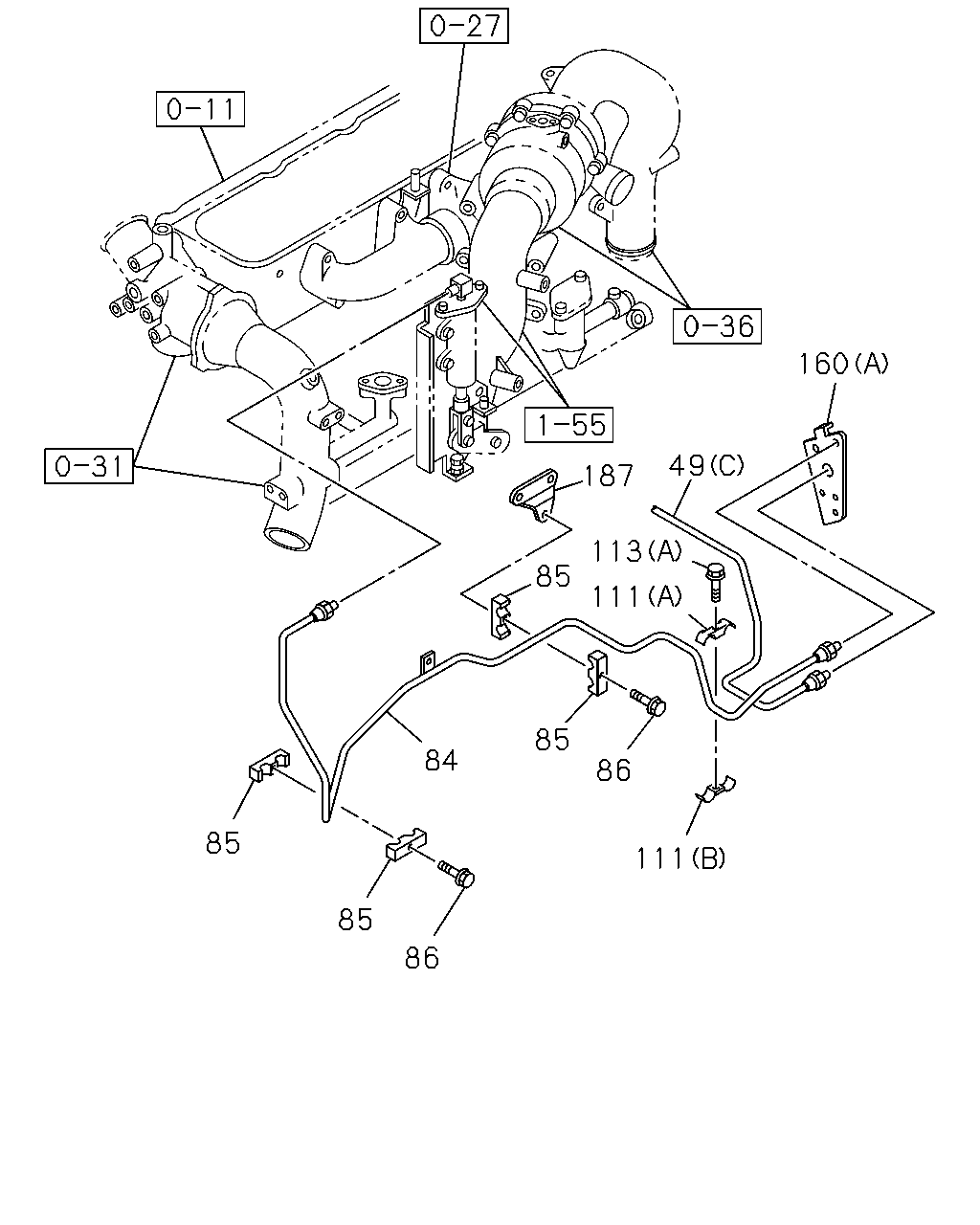

160 49 187 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (C)	1-19192-978-0	01	1	0407-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (C)	1-19192-963-0	01	1	0407-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-350-0	01	1	0411-			●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0411-			●
84	PIPE; AIR SHORT CHASSIS<FX***C>	1-19192-976-0	01	1	0407-	●
84	PIPE; AIR MIDDLE CHASSIS<FX***F>	1-19192-964-0	01	1	0407-	●	●
84	PIPE; AIR	1-19193-354-0	01	1	0411-			●
85	CLIP; PIPE	1-09701-240-0	04	1	0407-	●	●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	0407-0512	●	●
86	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	02	1	0601-	●	●
111	CLIP; AIR PIPE SHORT CHASSIS<FX***C> (C)	1-09701-208-0	02	1	0407-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0407-	●	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0407-	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0407-	●	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (B) M6X35 FLANGE	0-28080-635-0	01	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0407-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (B) M6X40 FLANGE	0-28080-640-0	02	1	0407-0512	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●	●
160	BRACKET; AIR PIPE SHORT CHASSIS<FX***C> (B)	1-19199-277-0	01	1	0407-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	0407-	●	●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0411-			●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	0407-	●	●

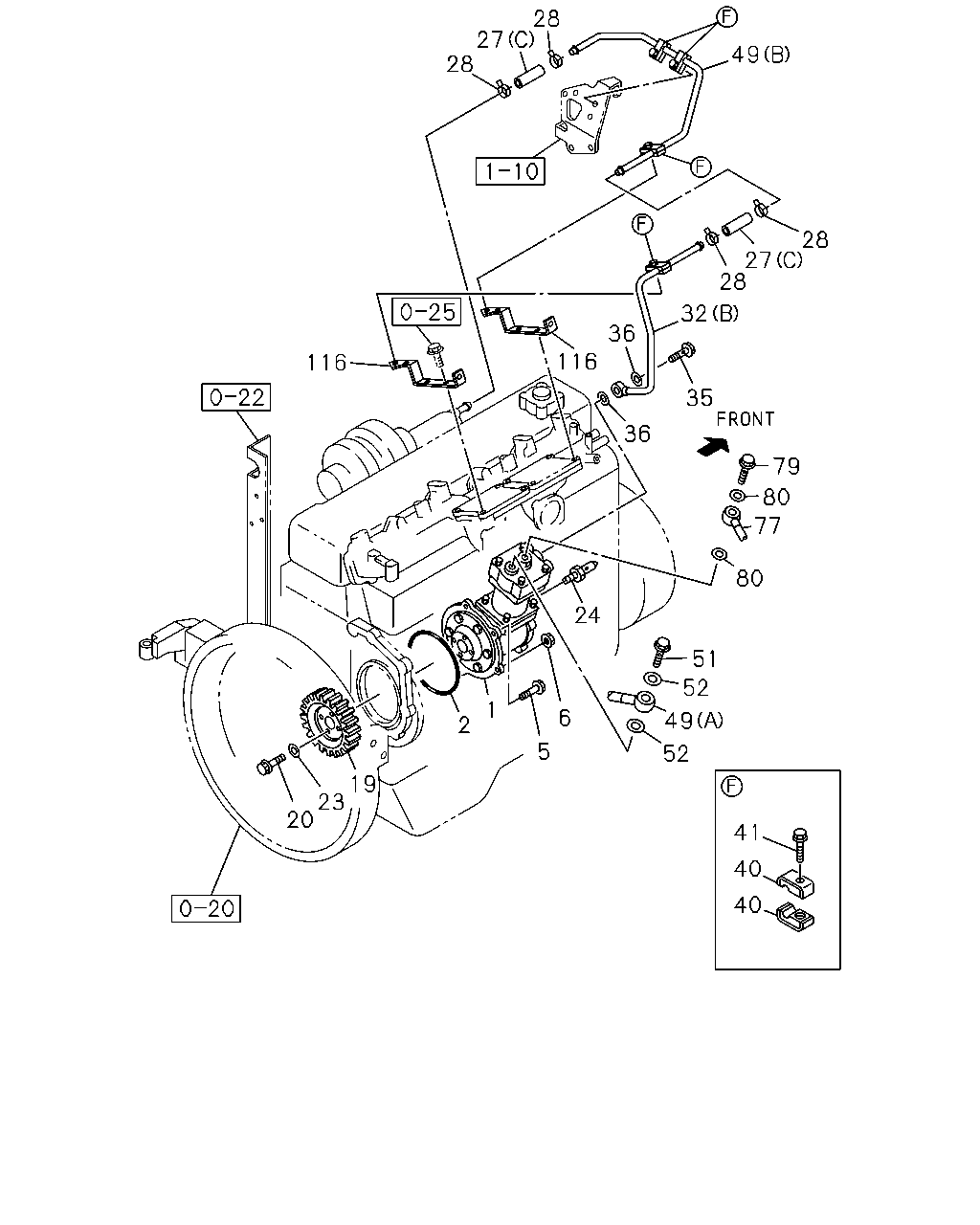

28 27 28 49 28 27 28 32 36 116 116 35 36 79 80 77 80 24 51 52 1 6 49 2 5 52 19 23 20 41 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	0407-0410	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-2	01	1	0411-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0407-0410	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0411-	●	●	●
5	BOLT; AIR CMPR FIX M12X100 FLANGE	0-28181-200-0	02	1	0411-0512			●
5	BOLT; AIR CMPR FIX M12X100 FLANGE	0-28151-200-0	02	1	0601-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0407-0602	●	●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	04	1	0603-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0411-0602			●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	02	1	0603-			●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0407-0410	●	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0411-	●	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0407-0410	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0411-	●	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0407-0410	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0411-	●	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0407-0410	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0411-	●	●	●
27	HOSE; AIR CMPR,SUCTION SHORT CHASSIS<FX***C> (B)	0-02117-080-0	01	1	0407-	●
27	HOSE; AIR CMPR,SUCTION MIDDLE CHASSIS<FX***F> (A)	1-09360-916-0	01	1	0407-	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0411-			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0407-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0411-			●
32	PIPE; AIR,AIR CMPR SHORT CHASSIS<FX***C> (A)	1-19192-979-0	01	1	0407-	●
32	PIPE; AIR,AIR CMPR MIDDLE CHASSIS<FX***F> (A)	1-19192-892-0	01	1	0407-	●	●
32	PIPE; AIR,AIR CMPR (B)	1-19193-356-0	01	1	0411-			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0407-0410	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0411-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-0410	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0411-	●	●	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0407-	●	●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0411-			●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0407-0512	●	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0411-0512			●
41	BOLT; CLIP M8X50 FLANGE THA	0-28050-850-0	04	1	0601-			●
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (C)	1-19192-978-0	01	1	0407-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (C)	1-19192-963-0	01	1	0407-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-350-0	01	1	0411-			●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0411-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0407-0410	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0411-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-0410	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0411-	●	●	●
77	PIPE; AIR,GOV SHORT CHASSIS<FX***C>	1-19192-977-0	01	1	0407-	●
77	PIPE; AIR,GOV MIDDLE CHASSIS<FX***F>	1-19192-962-0	01	1	0407-	●	●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0411-			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-0410	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0411-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-0410	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0411-	●	●	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0407-	●	●
116	BRACKET; AIR PIPE	1-14119-469-0	02	1	0411-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
