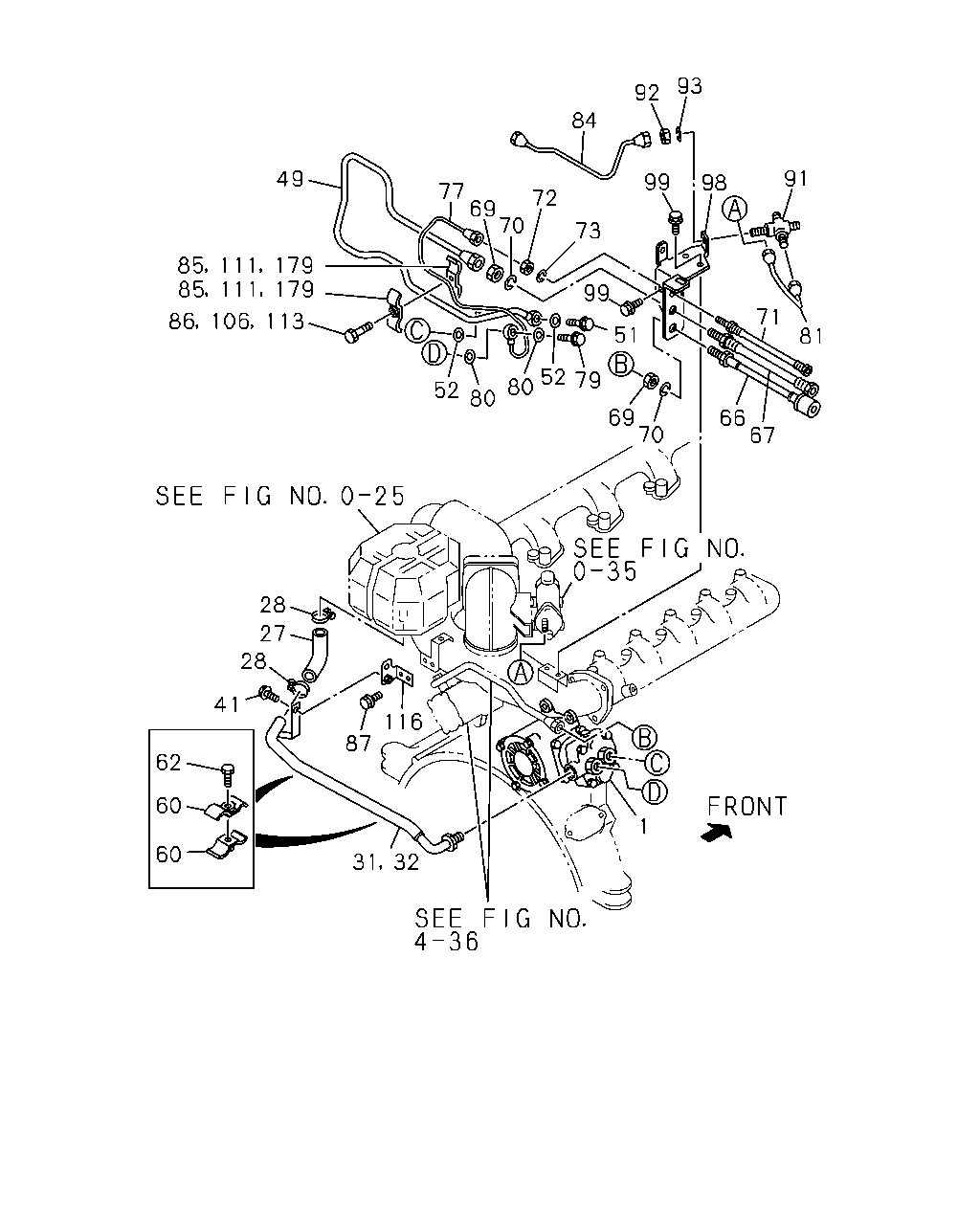

0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#2613) — 87 parça

49 77 69 70 72 73 84 92 93 99 98 91 85 111 179 85 111 179 86 106 113 99 71 81 51 52 80 80 52 79 69 70 66 67 28 27 28 41 62 60 60 87 116 31 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-212-6	01	1	9002-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	9002-	●	●
27	HOSE; AIR CMPR,SUCTION ID=18	1-09360-858-0	01	1	9002-9011		●
27	HOSE; AIR CMPR,SUCTION ID=18	1-09360-896-0	01	1	9012-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-548-1	01	1	9307-	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-461-0	01	1	9002-9011		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-551-1	01	1	9012-	●	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-450-0	01	1	9002-9011		●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-548-1	01	1	9012-		●
41	BOLT; CLIP M6X12	0-28020-612-0	01	1	9002-9005		●
41	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	9006-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-284-1	01	1	9002-9212		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-759-0	01	1	9301-	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-802-1	01	1	9002-9212		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-760-0	01	1	9301-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-	●	●
60	CLIP; AIR PIPE WO/NUT	1-09700-985-0	02	1	9002-		●
60	CLIP; AIR PIPE ID=12 & 21 L=30 W/NUT	1-09700-986-0	02	1	9002-		●
60	CLIP; AIR PIPE WO/NUT	1-09709-001-1	02	1	9307-	●
60	CLIP; AIR PIPE W/NUT	1-09709-002-1	02	1	9307-	●
62	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	02	1	9307-	●
62	BOLT; CLIP M6X30	0-28020-630-0	02	1	9002-9005		●
62	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	02	1	9006-		●
66	HOSE; FLEX,POWER STRG L=360	0-09538-360-0	01	1	9002-		●
66	HOSE; FLEX,POWER STRG L=410	0-09538-410-0	01	1	9307-	●
67	HOSE; FLEX,AIR CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) L=480	0-07806-480-1	01	1	9002-	●	●
67	HOSE; FLEX,AIR CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) L=420	0-07806-420-1	01	1	9002-	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9002-	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	02	1	9002-	●	●
71	HOSE; FLEX,AIR GOV L=320	0-07120-320-0	01	1	9002-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-285-0	01	1	9002-	●	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-806-0	01	1	9002-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR	1-09675-086-0	01	1	9002-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●
81	PIPE; AIR,INT SHUTTER	1-19192-059-0	01	1	9002-	●	●
84	PIPE; AIR	1-19192-442-0	01	1	9002-	●	●
85	CLIP; PIPE ID=8 & 12	9-09917-471-0	01	1	9002-9401	●	●
85	CLIP; PIPE WO/NUT	1-09700-547-0	01	1	9402-	●	●
85	CLIP; PIPE W/NUT	9-09917-472-0	01	1	9002-9401	●	●
85	CLIP; PIPE W/NUT	1-09700-550-0	01	1	9402-	●	●
86	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005		●
86	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-	●	●
87	BOLT; BRKT FIX M8X14	0-28020-814-0	02	1	9002-9005		●
87	BOLT; BRKT FIX M8X14 FLANGE	0-28080-814-0	02	1	9006-9411	●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9412-	●	●
91	UNION; 4 WAY	9-09229-106-1	01	1	9002-	●	●
92	NUT; UNION M12	9-09840-280-0	01	1	9002-	●	●
93	WASHER; LK ID=12.2	9-09150-512-0	01	1	9002-	●	●
98	BRACKET; AIR & OIL PIPE	1-22518-121-0	01	1	9002-	●	●
99	BOLT; BRKT AIR PIPE M8X14	0-28020-814-0	04	1	9002-9005		●
99	BOLT; BRKT AIR PIPE M8X14 FLANGE	0-28080-814-0	04	1	9006-9411	●	●
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28080-816-0	04	1	9412-	●	●
106	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005		●
106	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-		●
111	CLIP; AIR PIPE ID=8 & 12	9-09917-471-0	01	1	9307-9401	●
111	CLIP; AIR PIPE WO/NUT	1-09700-547-0	01	1	9402-	●
111	CLIP; AIR PIPE W/NUT	9-09917-472-0	01	1	9307-9401	●
111	CLIP; AIR PIPE W/NUT	1-09700-550-0	01	1	9402-	●
113	BOLT; CLIP,AIR PIPE M6X25 FLANGE	0-28080-625-0	01	1	9307-	●
116	BRACKET; AIR PIPE	1-22196-283-0	01	1	9307-	●
179	CLIP; PIPE ID=8 & 12	9-09917-471-0	01	1	9002-9401		●
179	CLIP; PIPE WO/NUT	1-09700-547-0	01	1	9402-		●
179	CLIP; PIPE W/NUT	9-09917-472-0	01	1	9002-9401		●
179	CLIP; PIPE W/NUT	1-09700-550-0	01	1	9402-		●

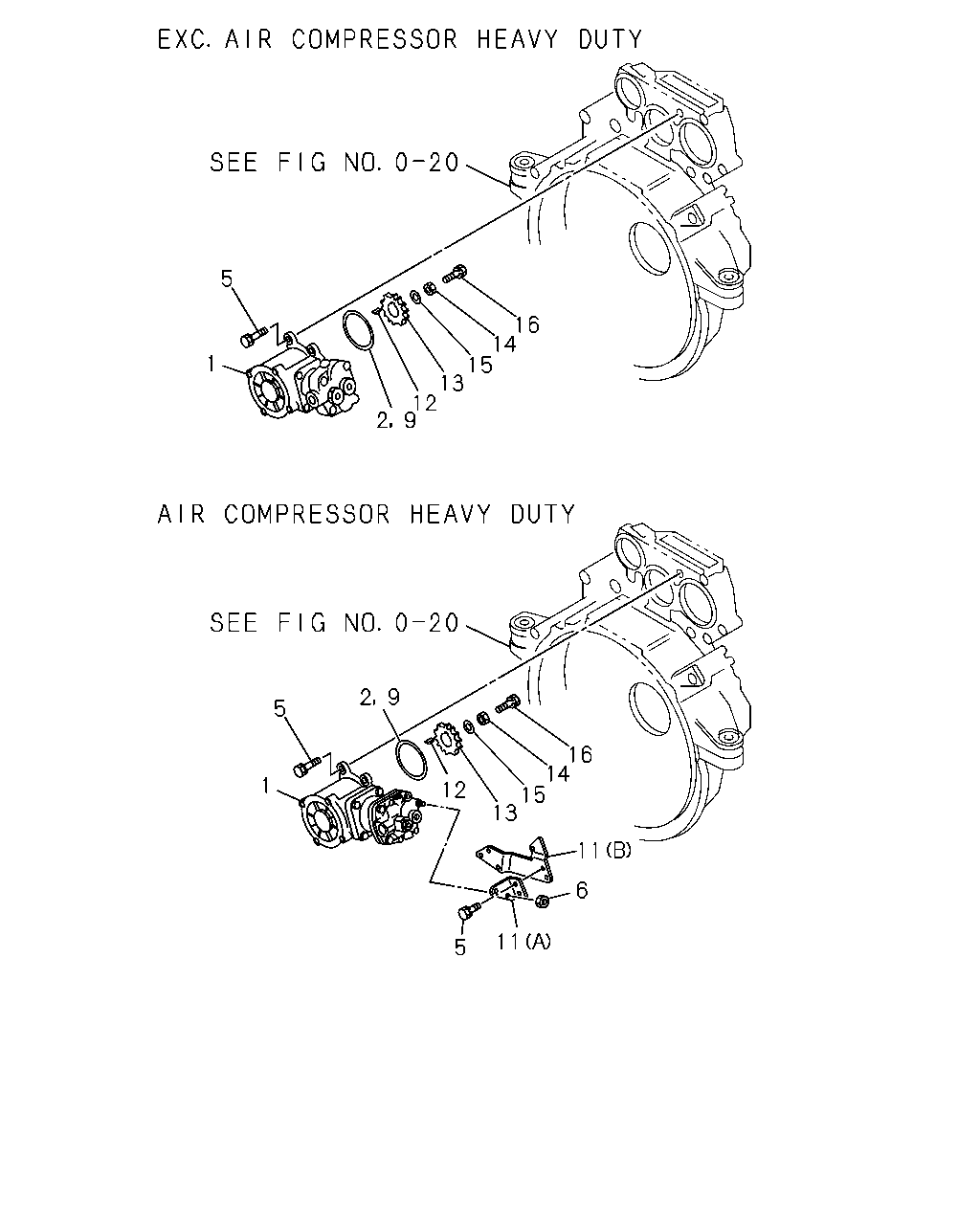

5 1 2 9 12 13 15 14 16 5 1 2 9 12 13 15 14 16 5 11 6 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-212-6	01	1	9002-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	9002-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9002-		●
5	BOLT; AIR CMPR FIX M12X40	9-01991-240-0	04	1	9002-9005		●
5	BOLT; AIR CMPR FIX M12X40 W/LK&PL WASHER	0-50151-240-0	04	1	9006-	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20	0-28021-020-0	02	1	9002-9002		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 FLANGE	0-28081-020-0	02	1	9003-	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X18	8-94399-729-1	03	1	9002-9104		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X18 FLANGE	0-28181-018-0	03	1	9105-	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9307-		●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE	0-91150-210-0	02	1	9002-	●	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9307-	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19187-018-0	01	1	9002-	●	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19187-023-1	01	1	9002-	●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9002-	●	●
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-044-0	01	1	9002-	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	9002-	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9002-	●	●
16	ADAPTER	1-12539-010-0	01	1	9002-	●	●
