Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10946 - FXZ(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#26129) — 73 parça
Tümü
A - 6SD1 TCS ENG
B - 6SD1 TCN ENG
C - 6SD1 TCR ENG
◀
[036A] 6SD1 TCS;MAG VLV TUBE (6 parça)
[036A] 6SD1 TCS;OUTLET HOSE (4 parça)
[036A] 6SD1 TCN,TCR;ASM AND DUCT FIXING (28 parça)
[036A] 6SD1 TCS;FRAME SIDE (7 parça)
[036A] 6SD1 TCS;ASM AND DUCT FIXING (28 parça)
▶

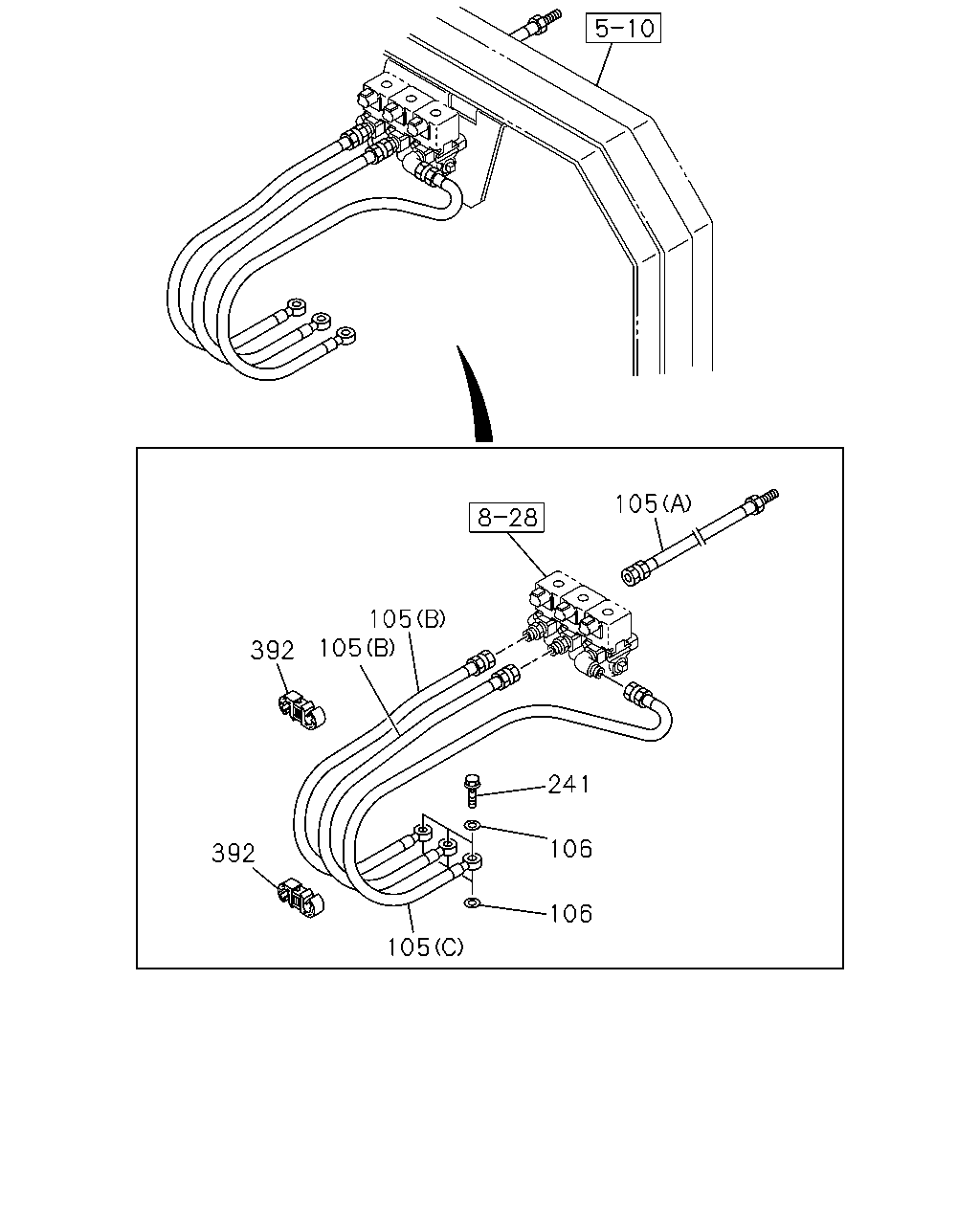

105
105
105
392
241
106
392
106
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
105
TUBE; FLEX MAG VLV
(A) L=320
1-09363-625-0
01
1
0411-
●
105
TUBE; FLEX MAG VLV
(B) L=390
1-09363-879-0
02
1
0411-
●
105
TUBE; FLEX MAG VLV
(C) L=290
1-09363-898-0
01
1
0411-
●
106
GASKET; FLEX TUBE
ID=10.2 OD=15.2 THA
1-09630-083-0
06
1
0411-
●
241
BOLT
8-94107-713-2
03
1
0411-
●
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
02
1
0411-
●

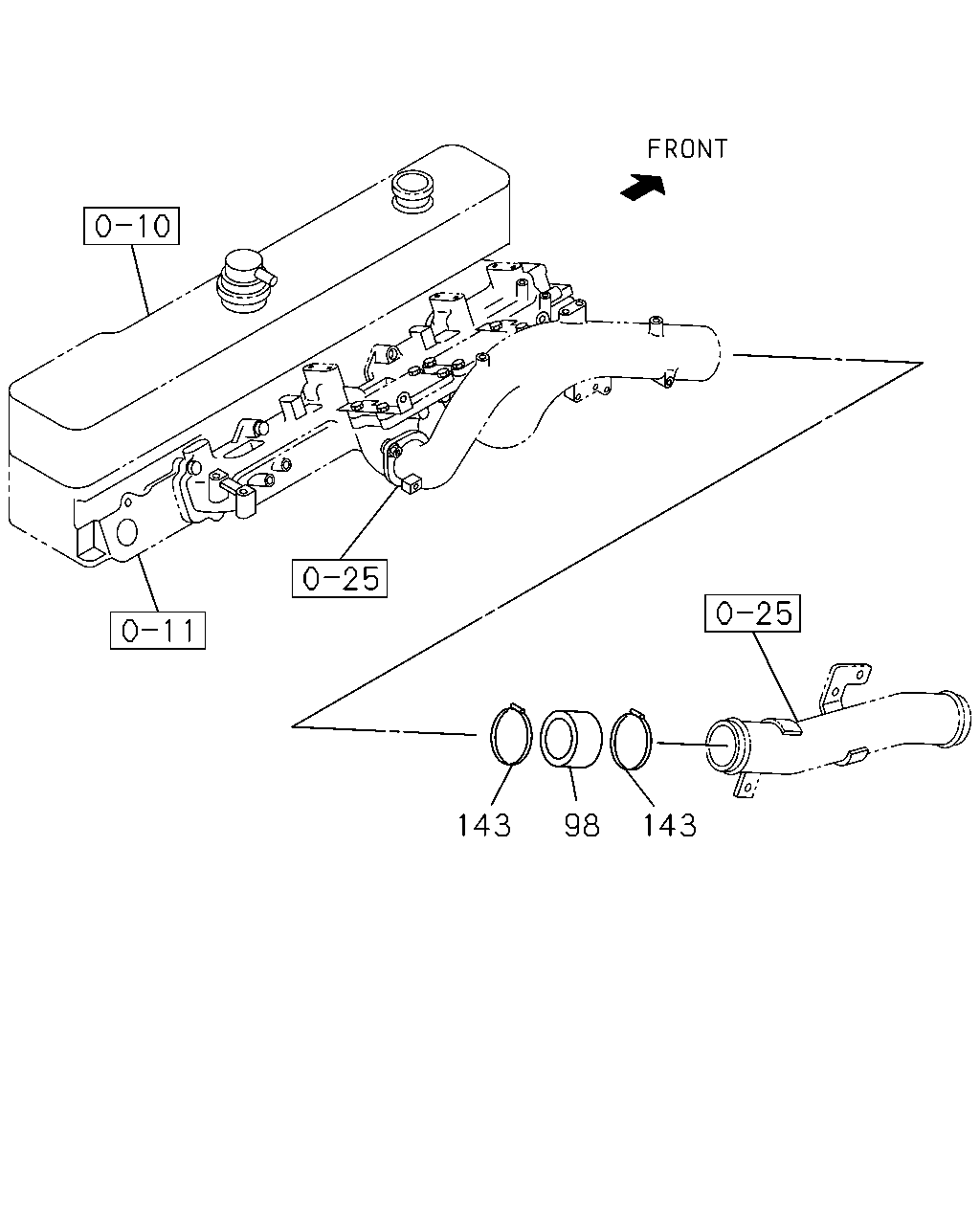

143
98
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
0407-0410
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
0411-
●
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 THA
1-09707-203-0
04
1
0407-0410
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 THA
1-09707-203-0
04
1
0411-
●
●
●

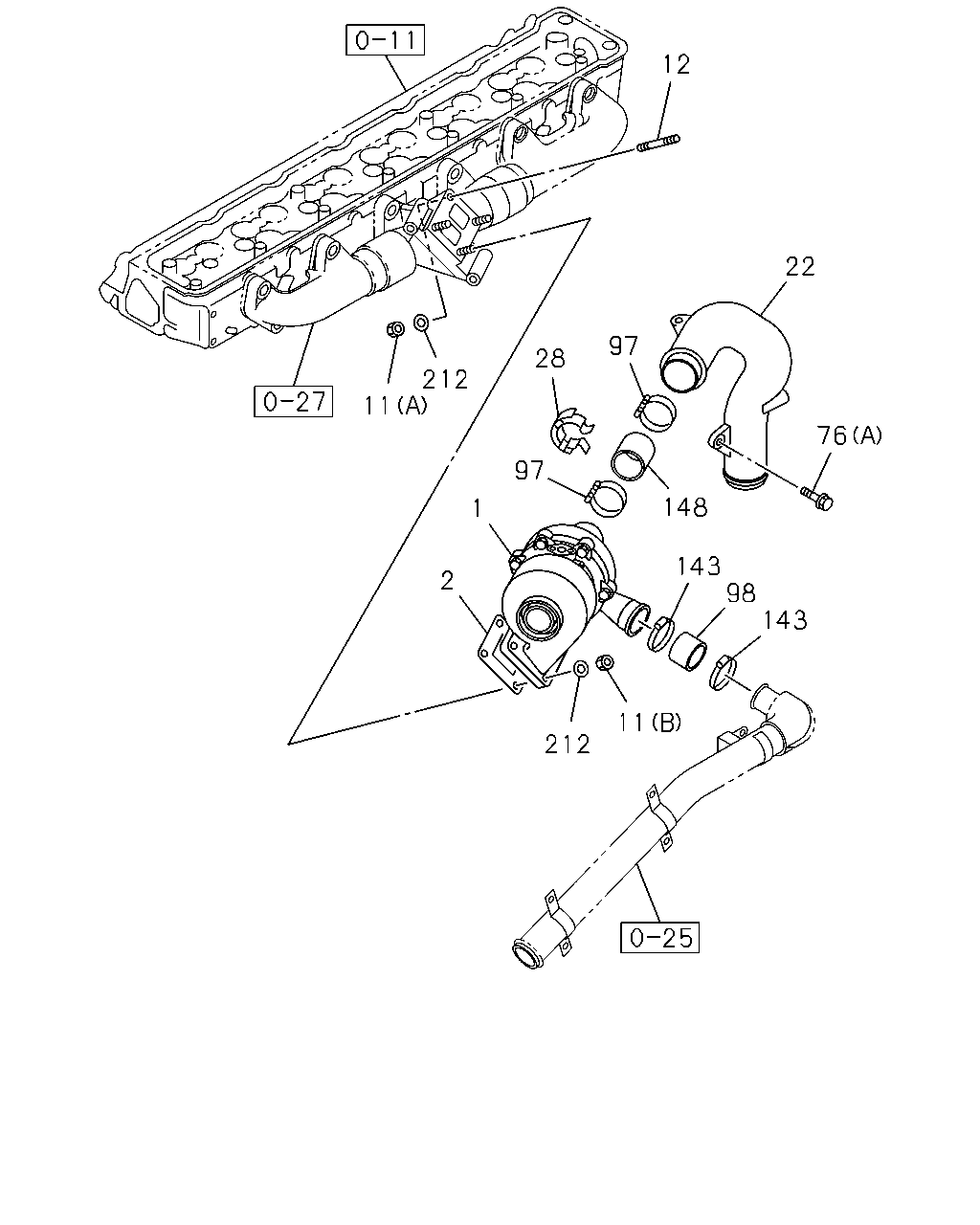

12
22
97
28
212
11
76
97
148
1
143
98
143
2
11
212
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-366-1
01
1
0407-
●
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-414-2
01
1
0411-0709
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-455-0
01
1
0710-0802
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-414-3
01
1
0803-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-181-0
01
1
0407-
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-140-0
01
1
0411-
●
11
NUT; TURBOCHARGER
(A) M10
1-09420-005-0
01
1
0407-
●
●
11
NUT; TURBOCHARGER
(B) M10 P=1.5 H=8
9-09842-007-0
03
1
0407-
●
●
11
NUT; TURBOCHARGER
(C) M10
1-09420-005-0
08
1
0411-
●
12
STUD; TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
01
1
0407-
●
●
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-161-1
01
1
0407-
●
●
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-398-3
01
1
0411-
●
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-221-0
01
1
0407-
●
●
76
BOLT; AIR DUCT
(A) M10X90 FLANGE
0-28081-090-0
02
1
0407-0512
●
●
76
BOLT; AIR DUCT
(A) M10X90 FLANGE
0-28051-090-0
02
1
0601-
●
●
76
BOLT; AIR DUCT
(C) M10X60 FLANGE
0-28081-060-0
01
1
0411-0512
●
76
BOLT; AIR DUCT
(C) M10X60 FLANGE THA
0-28051-060-0
01
1
0601-
●
76
BOLT; AIR DUCT
(B) M10X80 FLANGE
0-28081-080-0
02
1
0411-0512
●
76
BOLT; AIR DUCT
(B) M10X80 FLANGE
0-28051-080-0
02
1
0601-
●
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
1-09707-200-0
04
1
0411-
●
97
CLIP; HOSE,TURBOCHARGER,INL
ID=86
9-09915-592-0
02
1
0407-
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
0407-0410
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
0411-
●
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 THA
1-09707-203-0
04
1
0407-0410
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 THA
1-09707-203-0
04
1
0411-
●
●
●
148
HOSE; TURBOCHARGER,INL
1-09360-403-1
01
1
0407-
●
●
148
HOSE; TURBOCHARGER,INL
1-09361-135-1
01
1
0411-
●
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
0407-
●
●

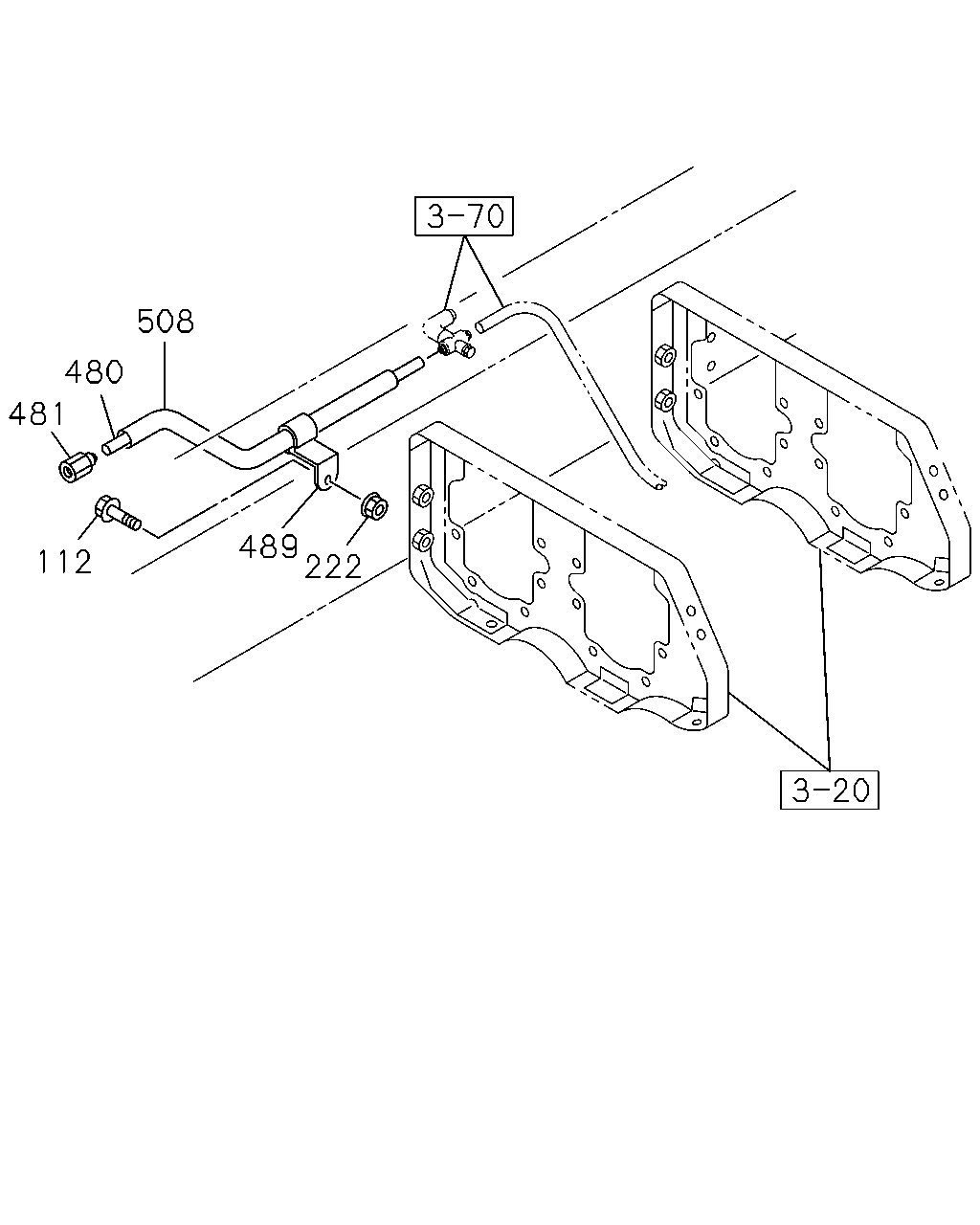

508
480
481
489
222
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
112
BOLT; CLIP
M8X30 FLANGE
0-28680-830-0
01
1
0411-0611
●
112
BOLT; CLIP
M8X30 FLANGE THA
0-28650-830-0
01
1
0612-
●
222
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0411-
●
480
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0411-
●
481
ADAPTER
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0411-
●
489
CLIP; NYLON TUBE
1-09700-214-0
01
1
0411-
●
508
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
01
1
0411-
●

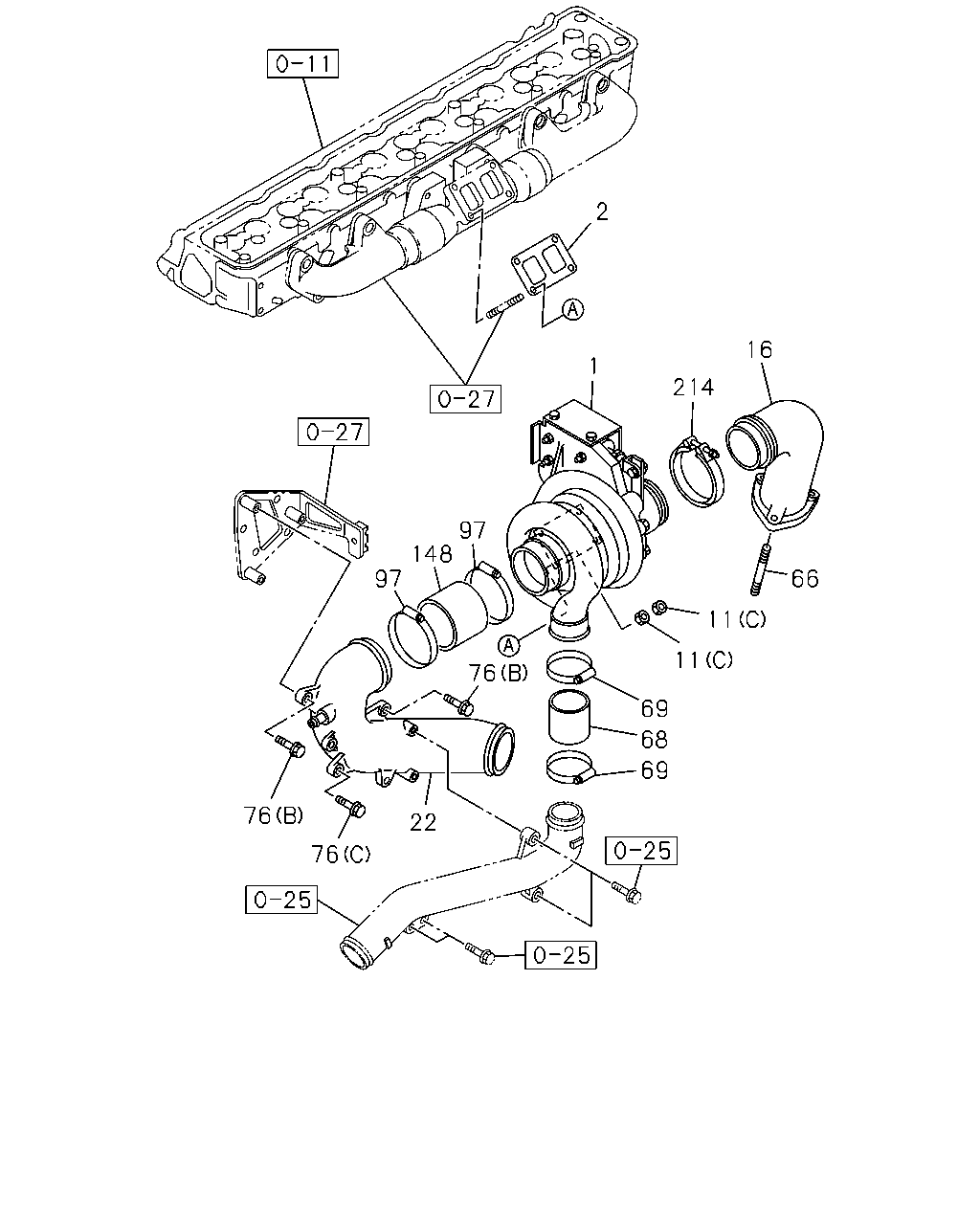

2
16
1
214
97
148
66
97
11
11
76
69
68
69
76
22
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-366-1
01
1
0407-
●
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-414-2
01
1
0411-0709
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-455-0
01
1
0710-0802
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-414-3
01
1
0803-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-181-0
01
1
0407-
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-140-0
01
1
0411-
●
11
NUT; TURBOCHARGER
(A) M10
1-09420-005-0
01
1
0407-
●
●
11
NUT; TURBOCHARGER
(B) M10 P=1.5 H=8
9-09842-007-0
03
1
0407-
●
●
11
NUT; TURBOCHARGER
(C) M10
1-09420-005-0
08
1
0411-
●
16
ADAPTER; EXH PIPE
1-14144-650-0
01
1
0411-
●
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-161-1
01
1
0407-
●
●
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-398-3
01
1
0411-
●
66
STUD; EXH PIPE
1-09302-165-0
02
1
0411-0501
●
66
STUD; EXH PIPE
M12X90 L=110
1-09302-035-0
02
1
0502-
●
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
1-09361-124-0
01
1
0411-
●
69
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
1-09707-202-0
02
1
0411-
●
76
BOLT; AIR DUCT
(A) M10X90 FLANGE
0-28081-090-0
02
1
0407-0512
●
●
76
BOLT; AIR DUCT
(A) M10X90 FLANGE
0-28051-090-0
02
1
0601-
●
●
76
BOLT; AIR DUCT
(C) M10X60 FLANGE
0-28081-060-0
01
1
0411-0512
●
76
BOLT; AIR DUCT
(C) M10X60 FLANGE THA
0-28051-060-0
01
1
0601-
●
76
BOLT; AIR DUCT
(B) M10X80 FLANGE
0-28081-080-0
02
1
0411-0512
●
76
BOLT; AIR DUCT
(B) M10X80 FLANGE
0-28051-080-0
02
1
0601-
●
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
1-09707-200-0
04
1
0411-
●
97
CLIP; HOSE,TURBOCHARGER,INL
ID=86
9-09915-592-0
02
1
0407-
●
●
148
HOSE; TURBOCHARGER,INL
1-09360-403-1
01
1
0407-
●
●
148
HOSE; TURBOCHARGER,INL
1-09361-135-1
01
1
0411-
●
214
BAND; "V",TURBOCHARGER TO EXH PIPE
1-09709-094-1
01
1
0411-0609
●
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98059-890-0
01
1
0610-
●
