Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10946 - FXZ(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶
0-35 — ENGINE CONTROL VALVE AND LEVER
(#26128) — 18 parça
Tümü
A - 6SD1 TCS ENG
B - 6SD1 TCN ENG
C - 6SD1 TCR ENG
◀

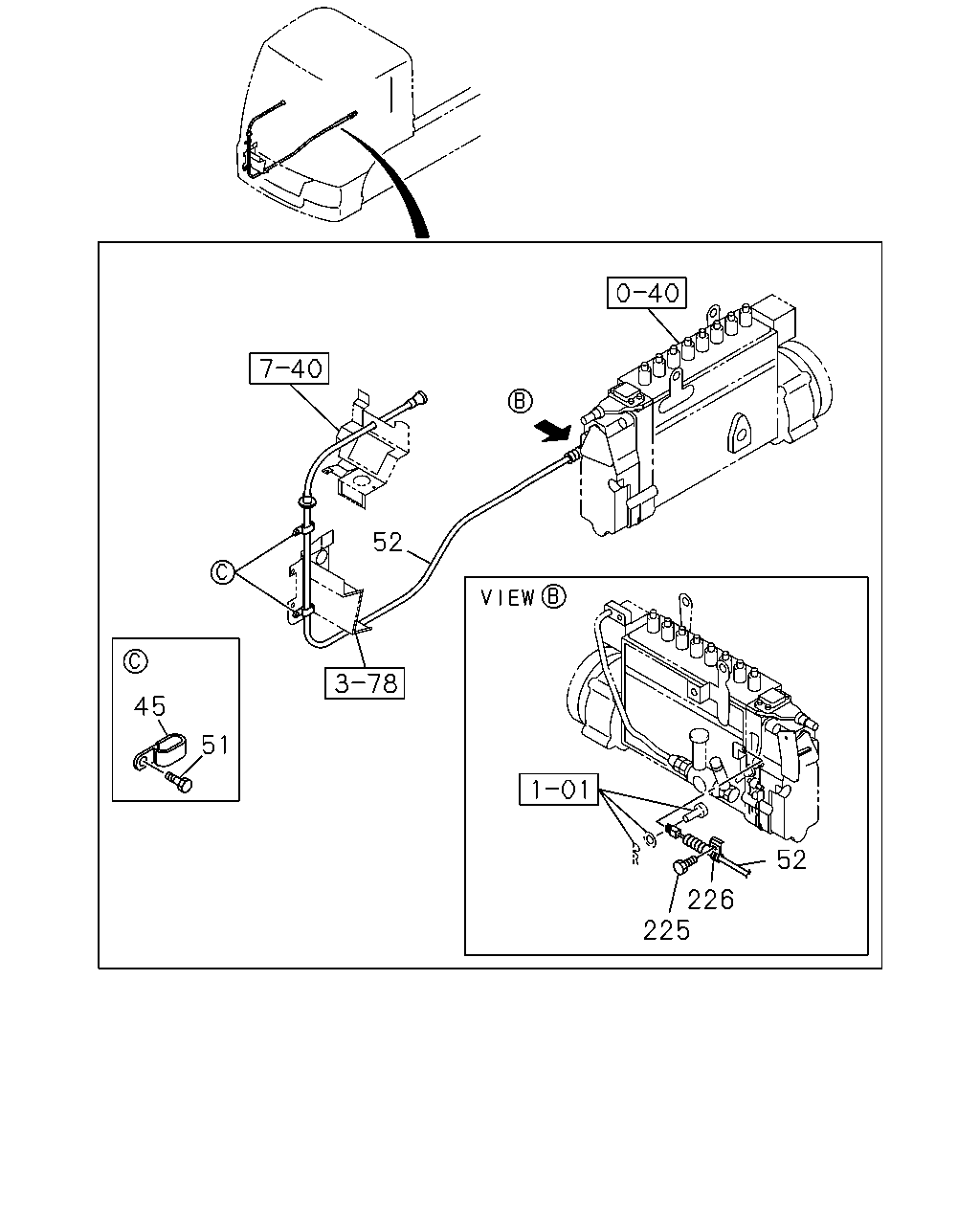

[035A] 6SD1 TCS (10 parça)

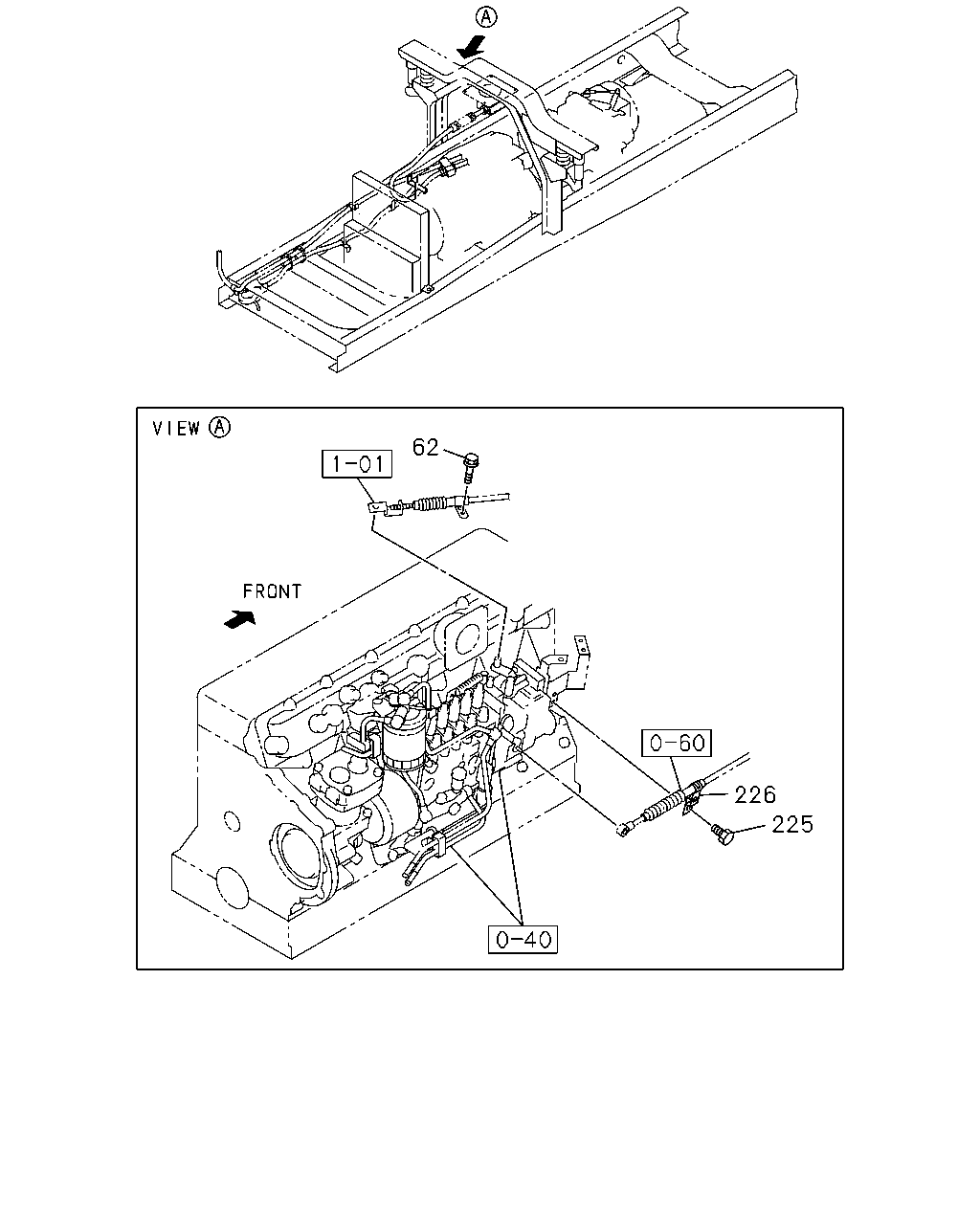

[035A] 6SD1 TCN,TCR (8 parça)
▶
52
45
51
52
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
45
CLIP; FUEL CUT CABLE
ID=11 L=20
9-09525-035-0
01
1
0411-0606
●
45
CLIP; FUEL CUT CABLE
ID=11 L=20
0-95235-035-0
01
1
0607-
●
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0411-
●
52
CABLE; FUEL CUT
1-73907-684-2
01
1
0411-
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
02
1
0407-0611
●
●
225
BOLT; CLIP FIX
M8X16 FLANGE THA
0-28050-816-0
02
1
0612-
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0411-0611
●
225
BOLT; CLIP FIX
M8X20 FLANGE THA
0-28650-820-0
01
1
0612-
●
226
CLIP; CABLE END
1-23219-032-0
01
1
0407-
●
●
226
CLIP; CABLE END
1-14319-082-0
01
1
0411-
●
62
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
62
BOLT; CABLE END
M6X20 FLANGE
0-28680-620-0
02
1
0407-0611
●
●
62
BOLT; CABLE END
M6X20 FLANGE THA
0-28650-620-0
02
1
0612-
●
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
02
1
0407-0611
●
●
225
BOLT; CLIP FIX
M8X16 FLANGE THA
0-28050-816-0
02
1
0612-
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0411-0611
●
225
BOLT; CLIP FIX
M8X20 FLANGE THA
0-28650-820-0
01
1
0612-
●
226
CLIP; CABLE END
1-23219-032-0
01
1
0407-
●
●
226
CLIP; CABLE END
1-14319-082-0
01
1
0411-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
