0-27 — EXHAUST MANIFOLD (#26122) — 69 parça

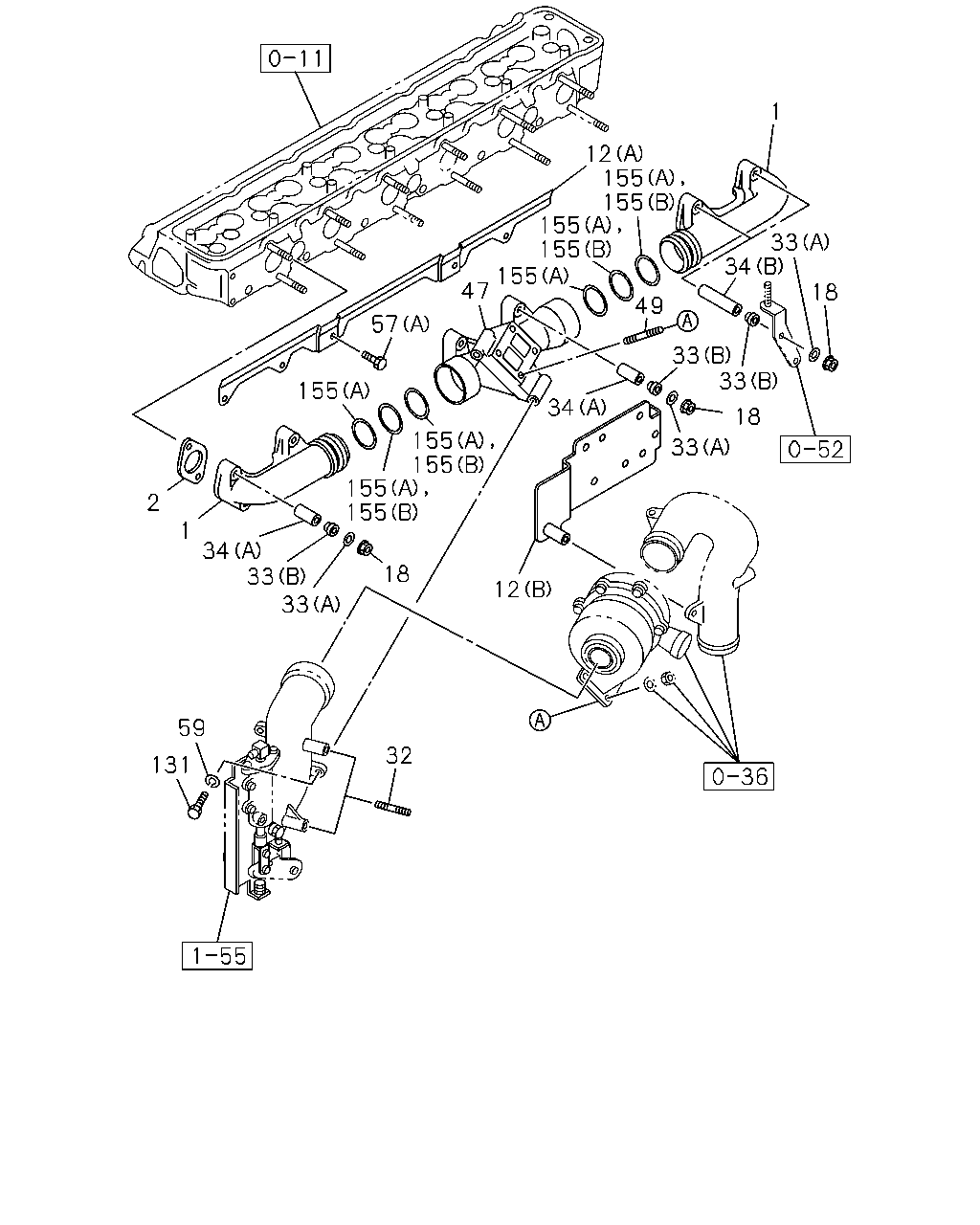

1 12 155 155 155 155 155 47 33 34 18 49 57 33 33 155 34 18 155 155 155 155 33 2 1 34 33 33 18 12 59 32 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0407-0410	●	●
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0411-	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	0407-0410	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	0411-	●	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	0407-	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	0407-	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0411-			●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0407-0410	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0411-0602	●	●	●
18	NUT; EXH MANIF M10 FLANGE THA	0-91180-210-0	12	1	0603-	●	●	●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	0407-0604	●	●
32	STUD; EXH PIPE M10X60 L=75	0-44011-060-0	02	1	0605-	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0407-0410	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0411-	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0407-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0411-			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0407-	●	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0407-	●	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0411-			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0411-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0407-	●	●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0411-			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0407-	●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0411-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	01	1	0407-0512	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE	0-28080-816-0	02	1	0411-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28181-016-0	01	1	0411-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●
59	WASHER; LK,EXH PIPE ID=10	1-09503-033-1	02	1	0407-	●	●
131	BOLT; MTG	9-09804-206-0	02	1	0407-	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0407-0410	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0411-0501	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●	●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●	●	●

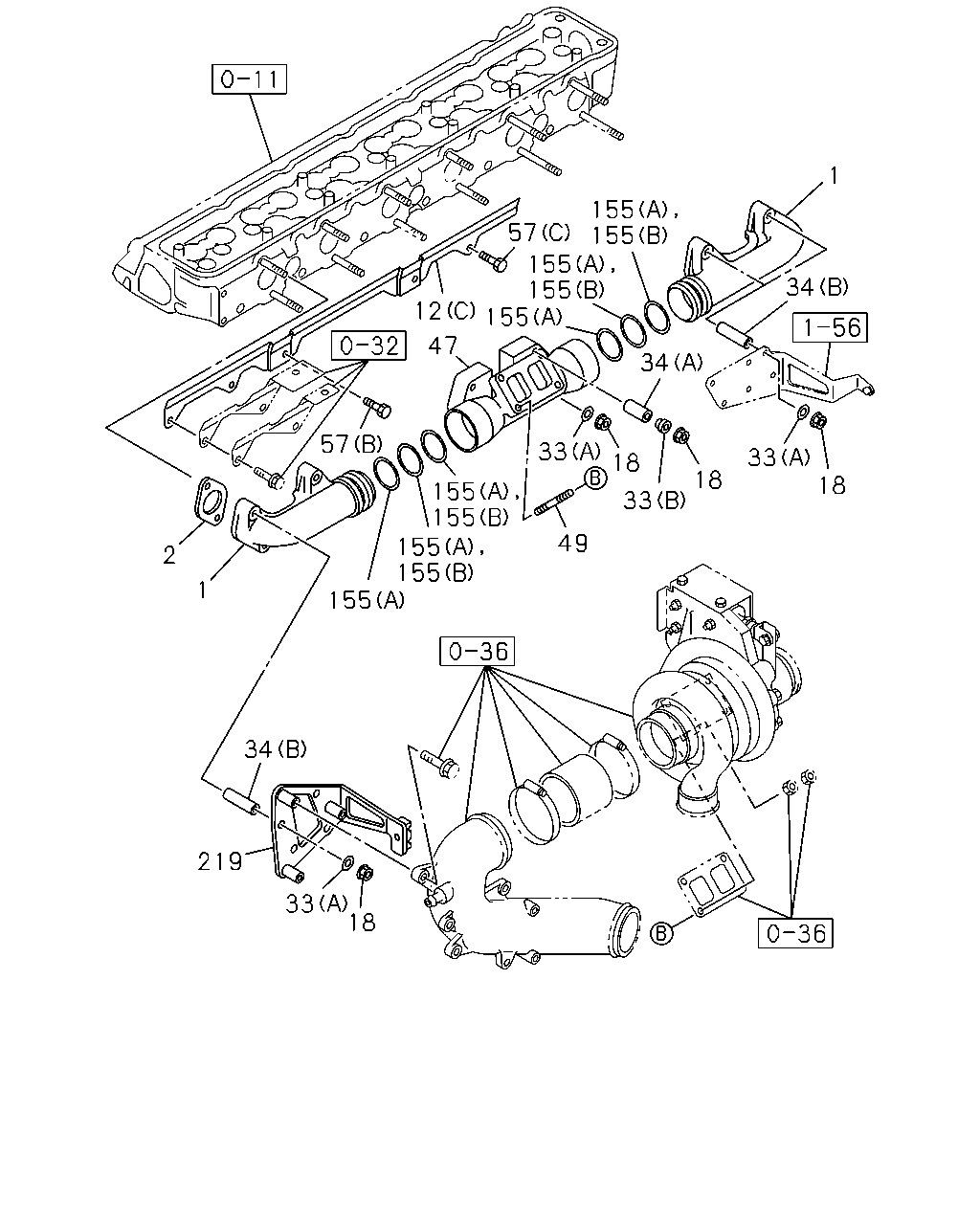

1 155 155 155 155 155 57 34 12 47 34 57 33 33 18 18 18 155 155 155 155 33 49 2 1 155 34 219 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0407-0410	●	●
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0411-	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	0407-0410	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	0411-	●	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	0407-	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	0407-	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0411-			●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0407-0410	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0411-0602	●	●	●
18	NUT; EXH MANIF M10 FLANGE THA	0-91180-210-0	12	1	0603-	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0407-0410	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0411-	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0407-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0411-			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0407-	●	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0407-	●	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0411-			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0411-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0407-	●	●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0411-			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0407-	●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0411-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	01	1	0407-0512	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE	0-28080-816-0	02	1	0411-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28181-016-0	01	1	0411-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0407-0410	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0411-0501	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●	●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●	●	●
219	BRACKET; DUCT	1-14149-244-0	01	1	0411-			●
