0-22 — ENGINE MOUNTING (#26120) — 38 parça

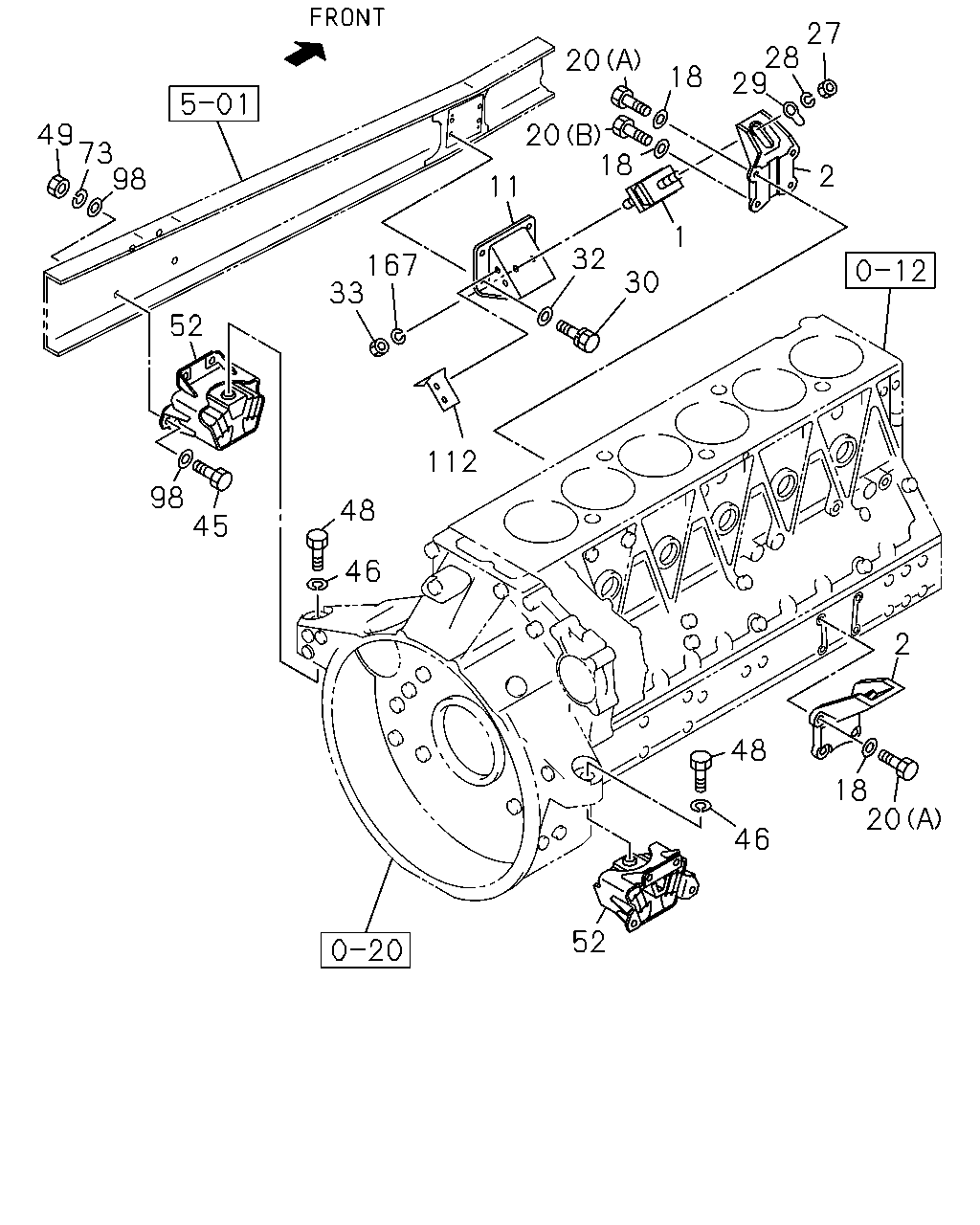

çizim 86808
27 28 29 20 18 20 18 49 73 98 2 11 1 32 167 33 30 52 112 98 45 48 46 2 48 18 20 46 52
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-132-2 02 1 0407- ● ● ●
2 FOOT; ENG 1-11771-172-0 02 1 0407-0410 ● ●
2 FOOT; ENG 1-11771-172-0 02 1 0411- ● ● ●
11 BRACKET; CUSHION RUBBER,FRT
THA 		8-97916-044-0 02 1 0407- ● ● ●
18 WASHER; PL,ENG FOOT
ID=12.2 		1-09503-008-0 08 1 0407-0410 ● ●
18 WASHER; PL,ENG FOOT
ID=12.2 		1-09503-008-0 08 1 0411- ● ● ●
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 0407-0410 ● ●
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 0411- ● ● ●
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 0407-0410 ● ●
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 0411- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 0407-0512 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 THA 		0-91110-518-0 02 1 0601- ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 0407-0603 ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 0604- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 0407- ● ● ●
30 BOLT; BRKT TO FRAME
M12X40 W/LK WASHER 		0-50041-240-0 08 1 0407- ● ● ●
32 WASHER; PL,BRKT TO FRAME
ID=12.5 		1-09503-171-0 08 1 0407- ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 0407-0512 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 THA 		0-91110-514-0 04 1 0601- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 0407-0512 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		0-20951-450-0 08 1 0601- ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		9-09164-522-0 02 1 0407-0605 ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		0-91614-522-0 02 1 0606- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 0407- ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 0407-0512 ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 THA 		0-91110-514-0 08 1 0601- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-316-0 02 1 0407- ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-814-0 08 1 0407-0603 ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-814-0 08 1 0604- ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 THA 		9-09651-069-0 16 1 0407- ● ● ●
112 PROTECTOR; HEAT 1-53219-322-0 01 1 0407- ● ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		9-09150-514-0 04 1 0407-0603 ● ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-514-0 04 1 0604- ● ● ●

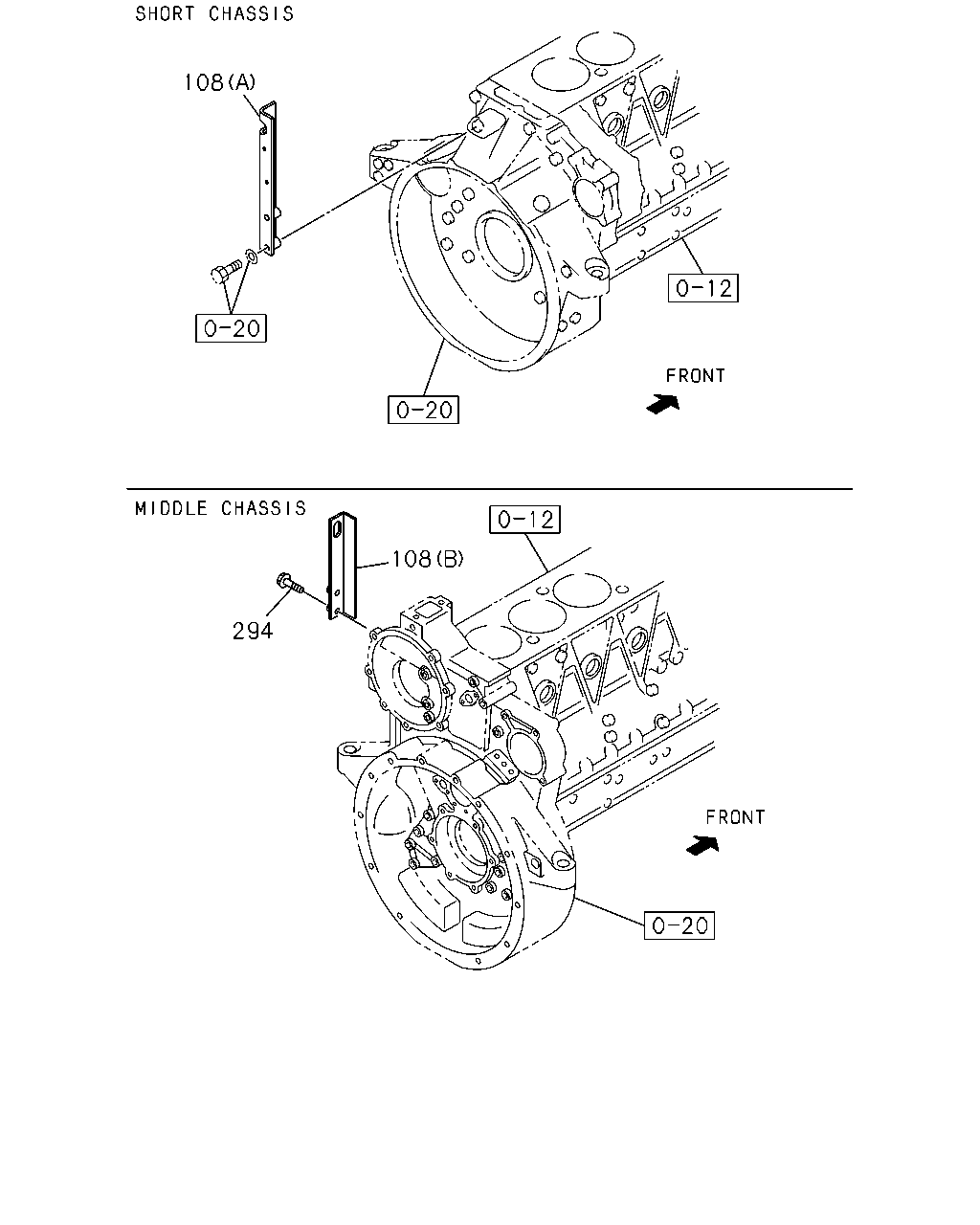

çizim 86874
108 108 294
BalonParca AdiParca NoAdetTipApplied Date A B C
108 HANGER; ENG FLYWHEEL HSG
SHORT CHASSIS<FX***C> (A) 		1-11777-224-0 01 1 0407- ●
108 HANGER; ENG FLYWHEEL HSG
MIDDLE CHASSIS<FX***F> (B) 		1-11777-268-0 01 1 0407- ● ●
108 HANGER; ENG FLYWHEEL HSG
(B) 		1-11777-254-0 01 1 0411- ●
294 BOLT; HANGER
SHORT CHASSIS<FX***C> M12X40 FLANGE 		0-28181-240-0 02 1 0407-0804 ●
294 BOLT; HANGER
SHORT CHASSIS<FX***C> M12X40 FLANGE 		0-28151-240-0 02 1 0805- ●
