0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#2612) — 185 parça

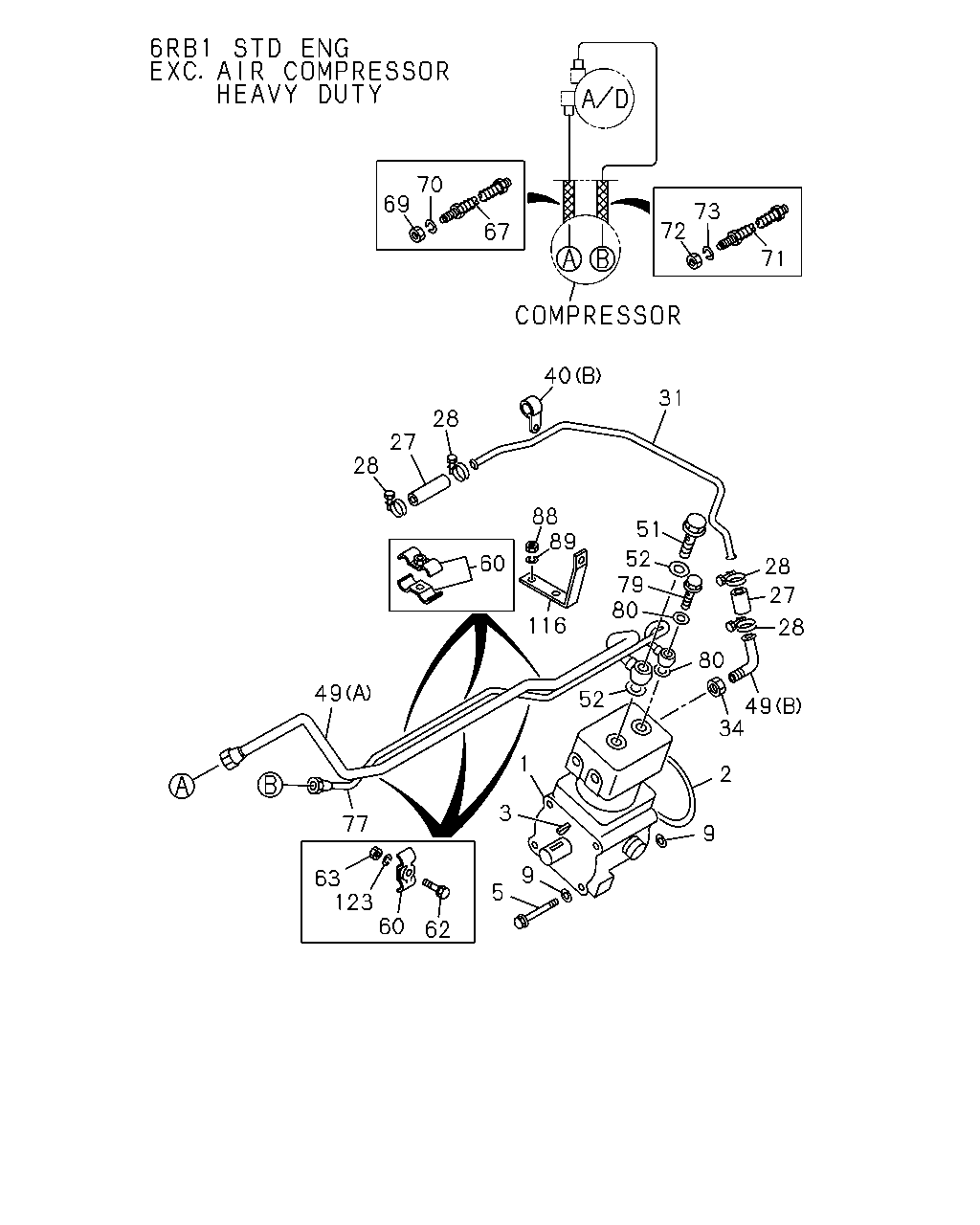

69 70 67 72 73 71 31 40 28 27 28 60 88 89 116 80 79 52 51 28 27 28 80 49 34 2 9 52 1 3 9 5 49 77 63 123 60 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-218-6	01	1	9002-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-218-6	01	1	9002-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-232-5	01	1	9002-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-247-0	01	1	9002-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=105.6	1-09623-247-0	01	1	9002-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-468-0	02	1	9002-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=124.6	1-09623-468-0	02	1	9002-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=124.6	1-09623-468-0	01	1	9002-			●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9002-	●	●
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	9002-			●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-516-0	01	1	9002-			●
5	BOLT; AIR CMPR FIX M12X45	9-01991-245-0	03	1	9002-9005	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	9-01991-245-0	03	1	9002-9005			●
5	BOLT; AIR CMPR FIX M12X45	0-50151-245-0	03	1	9006-	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	0-50151-245-0	03	1	9006-			●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X143	1-09044-025-2	04	1	9002-			●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11	1-09623-469-0	08	1	9002-			●
27	HOSE; AIR CMPR,SUCTION ID=17	1-09360-128-2	01	1	9002-9205	●
27	HOSE; AIR CMPR,SUCTION ID=17	1-09360-916-0	01	1	9206-9306	●
27	HOSE; AIR CMPR,SUCTION AIR BREATHER<E2C> ID=18	1-09360-627-0	02	1	9012-			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AIR BREATHER<E2C> ID=18	9-09919-309-0	01	1	9002-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AIR BREATHER<E2C> ID=18	9-09919-309-0	02	1	9002-			●
27	HOSE; AIR CMPR,SUCTION ID=20.5	1-09360-826-0	01	1	9002-		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	02	1	9002-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	04	1	9002-			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-765-0	01	1	9002-			●
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	9601-		●	●
40	CLIP; AIR PIPE (A)	1-09701-048-0	03	1	9002-	●	●
40	CLIP; AIR PIPE (B)	1-09701-049-0	01	1	9002-	●	●
40	CLIP; AIR PIPE (C)	1-19199-160-1	02	1	9002-	●	●
40	CLIP; AIR PIPE (B)	9-09525-856-0	01	1	9002-			●
49	PIPE; AIR,CHARGE	1-19192-296-0	01	1	9002-9212	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-296-0	01	1	9002-9212			●
49	PIPE; AIR,CHARGE	1-19192-725-0	01	1	9301-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-725-0	01	1	9301-			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19191-321-0	01	1	9002-			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19191-992-0	01	1	9002-9212			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19192-724-0	01	1	9301-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-9306	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	04	1	9307-		●	●
60	CLIP; AIR PIPE W/NUT	1-09700-550-0	02	1	9002-	●	●	●
60	CLIP; AIR PIPE WO/NUT	1-09700-547-0	06	1	9002-	●	●
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) WO/NUT	1-09700-547-0	06	1	9002-			●
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) WO/NUT	1-09700-547-0	08	1	9002-			●
62	BOLT; CLIP M6X25	9-01910-625-0	03	1	9002-9005	●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	03	1	9006-9306	●
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005			●
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-			●
62	BOLT; CLIP M6X25	9-01910-625-0	02	1	9002-9005		●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	02	1	9006-		●
63	NUT; CLIP M6	9-09110-406-0	01	1	9002-9306	●
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-		●	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-	●	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
77	PIPE; AIR,GOV	1-19192-298-0	01	1	9002-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-298-0	01	1	9002-			●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-993-0	01	1	9002-			●
79	BOLT; EYE,AIR PIPE TO CMPR	1-09675-086-0	01	1	9002-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●
88	NUT; BRKT FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10	9-09110-410-0	02	1	9002-			●
89	WASHER; LK,BRKT FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9002-			●
116	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19199-112-0	01	1	9002-			●
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-	●	●	●

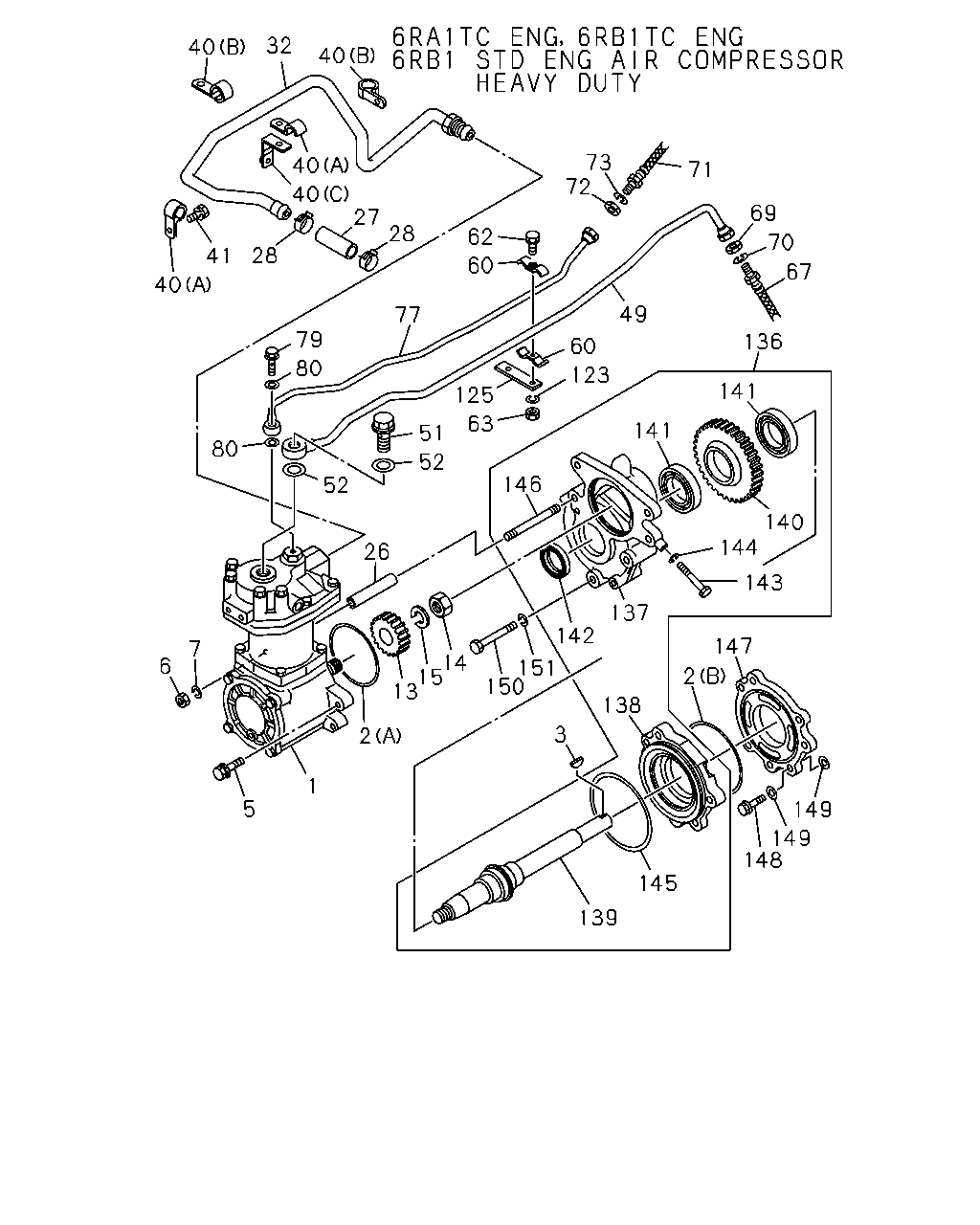

40 32 40 40 40 40 41 28 27 28 62 60 72 73 71 77 80 79 80 52 52 51 63 125 123 60 49 69 70 67 136 141 141 146 140 144 143 137 142 151 150 14 15 13 2 1 5 6 7 26 3 138 2 147 149 149 148 145 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-218-6	01	1	9002-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-218-6	01	1	9002-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-232-5	01	1	9002-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-247-0	01	1	9002-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=105.6	1-09623-247-0	01	1	9002-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-468-0	02	1	9002-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=124.6	1-09623-468-0	02	1	9002-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=124.6	1-09623-468-0	01	1	9002-			●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9002-	●	●
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	9002-			●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-516-0	01	1	9002-			●
5	BOLT; AIR CMPR FIX M12X45	9-01991-245-0	03	1	9002-9005	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	9-01991-245-0	03	1	9002-9005			●
5	BOLT; AIR CMPR FIX M12X45	0-50151-245-0	03	1	9006-	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X45	0-50151-245-0	03	1	9006-			●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X143	1-09044-025-2	04	1	9002-			●
6	NUT; AIR CMPR M12	9-99110-512-0	01	1	9002-	●	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M12	9-99110-512-0	01	1	9002-			●
7	WASHER; LK,AIR CMPR ID=12.2	9-09150-512-0	01	1	9002-	●	●
7	WASHER; LK,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=12.2	9-09150-512-0	01	1	9002-			●
13	GEAR; AIR CMPR DRIVE	1-19372-007-0	01	1	9002-	●	●
13	GEAR; AIR CMPR DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19372-007-0	01	1	9002-			●
14	NUT; GEAR M20	9-99111-520-0	01	1	9002-	●	●
14	NUT; GEAR AIR COMPRESSOR HEAVY DUTY(E1Q) M20	9-99111-520-0	01	1	9002-			●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9002-	●	●
15	WASHER; GEAR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=21	9-09164-520-0	01	1	9002-			●
26	COLLAR; DIST,AIR CMPR	1-19189-003-1	01	1	9002-	●	●
26	COLLAR; DIST,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19189-003-1	01	1	9002-			●
27	HOSE; AIR CMPR,SUCTION ID=17	1-09360-128-2	01	1	9002-9205	●
27	HOSE; AIR CMPR,SUCTION ID=17	1-09360-916-0	01	1	9206-9306	●
27	HOSE; AIR CMPR,SUCTION AIR BREATHER<E2C> ID=18	1-09360-627-0	02	1	9012-			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AIR BREATHER<E2C> ID=18	9-09919-309-0	01	1	9002-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AIR BREATHER<E2C> ID=18	9-09919-309-0	02	1	9002-			●
27	HOSE; AIR CMPR,SUCTION ID=20.5	1-09360-826-0	01	1	9002-		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	02	1	9002-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26	1-09707-091-0	04	1	9002-			●
32	PIPE; AIR,AIR CMPR	1-19192-332-0	01	1	9002-	●	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-300-0	01	1	9002-			●
40	CLIP; AIR PIPE (A)	1-09701-048-0	03	1	9002-	●	●
40	CLIP; AIR PIPE (B)	1-09701-049-0	01	1	9002-	●	●
40	CLIP; AIR PIPE (C)	1-19199-160-1	02	1	9002-	●	●
40	CLIP; AIR PIPE (B)	9-09525-856-0	01	1	9002-			●
41	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●	●
41	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-	●	●
49	PIPE; AIR,CHARGE	1-19192-296-0	01	1	9002-9212	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-296-0	01	1	9002-9212			●
49	PIPE; AIR,CHARGE	1-19192-725-0	01	1	9301-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-725-0	01	1	9301-			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19191-321-0	01	1	9002-			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19191-992-0	01	1	9002-9212			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19192-724-0	01	1	9301-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-9306	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	04	1	9307-		●	●
60	CLIP; AIR PIPE W/NUT	1-09700-550-0	02	1	9002-	●	●	●
60	CLIP; AIR PIPE WO/NUT	1-09700-547-0	06	1	9002-	●	●
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) WO/NUT	1-09700-547-0	06	1	9002-			●
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) WO/NUT	1-09700-547-0	08	1	9002-			●
62	BOLT; CLIP M6X25	9-01910-625-0	03	1	9002-9005	●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	03	1	9006-9306	●
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005			●
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-			●
62	BOLT; CLIP M6X25	9-01910-625-0	02	1	9002-9005		●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	02	1	9006-		●
63	NUT; CLIP M6	9-09110-406-0	01	1	9002-9306	●
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-		●	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-	●	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
77	PIPE; AIR,GOV	1-19192-298-0	01	1	9002-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-298-0	01	1	9002-			●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-993-0	01	1	9002-			●
79	BOLT; EYE,AIR PIPE TO CMPR	1-09675-086-0	01	1	9002-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-	●	●	●
125	CLIP; AIR PIPE	1-19199-074-0	01	1	9004-9306	●
136	BOX ASM; GEAR,AIR CMPR	1-19371-021-0	01	1	9002-	●	●
136	BOX ASM; GEAR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-020-0	01	1	9002-			●
137	BODY; GEAR BOX	1-19371-010-0	01	1	9002-	●	●
137	BODY; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-010-0	01	1	9002-			●
138	BODY; GEAR BOX	1-19371-011-0	01	1	9002-	●	●
138	BODY; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-011-0	01	1	9002-			●
139	SHAFT; GEAR BOX	1-19373-004-1	01	1	9002-	●	●
139	SHAFT; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19373-001-2	01	1	9002-			●
140	GEAR; GEAR BOX	1-19372-008-0	01	1	9002-	●	●
140	GEAR; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19372-008-0	01	1	9002-			●
141	BEARING; BALL,GEAR BOX	9-00090-071-0	02	1	9002-	●	●
141	BEARING; BALL,GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	9-00090-071-0	02	1	9002-			●
142	SEAL; OIL,GEAR BOX	1-09625-347-0	01	1	9002-	●	●
142	SEAL; OIL,GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-347-0	01	1	9002-			●
143	BOLT; BODY M8X60	9-01055-860-0	02	1	9002-9005	●	●
143	BOLT; BODY AIR COMPRESSOR HEAVY DUTY(E1Q) M8X60	9-01055-860-0	02	1	9002-9005			●
143	BOLT; BODY M8X60	0-10805-860-0	02	1	9006-	●	●
143	BOLT; BODY AIR COMPRESSOR HEAVY DUTY(E1Q) M8X60	0-10805-860-0	02	1	9006-			●
144	WASHER; LK,BODY ID=8.2	9-09150-508-0	02	1	9002-	●	●
144	WASHER; LK,BODY AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-508-0	02	1	9002-			●
145	GASKET; BODY	1-09623-472-0	01	1	9002-	●	●
145	GASKET; BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-472-0	01	1	9002-			●
146	STUD; AIR CMPR	1-09302-097-1	01	1	9002-	●	●
146	STUD; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09302-097-1	01	1	9002-			●
147	SPACER; GEAR BOX	1-19371-009-0	01	1	9002-	●	●
147	SPACER; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19371-009-0	01	1	9002-			●
148	BOLT; SPACER	8-94257-289-0	04	1	9002-	●	●
148	BOLT; SPACER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94257-289-0	04	1	9002-			●
149	GASKET; SPACER ID=11	1-09623-469-0	08	1	9002-	●	●
149	GASKET; SPACER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11	1-09623-469-0	08	1	9002-			●
150	BOLT; GEAR BOX M12X85	9-01666-285-0	03	1	9002-	●	●
150	BOLT; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X85	9-01666-285-0	03	1	9002-			●
150	BOLT; GEAR BOX M12X35	9-02361-235-0	02	1	9002-	●	●
150	BOLT; GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q) M12X35	9-02361-235-0	02	1	9002-			●
151	WASHER; PL,GEAR BOX ID=12.2	1-09503-008-0	05	1	9002-	●	●
151	WASHER; PL,GEAR BOX AIR COMPRESSOR HEAVY DUTY(E1Q) ID=12.2	1-09503-008-0	05	1	9002-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
