0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#26119) — 103 parça

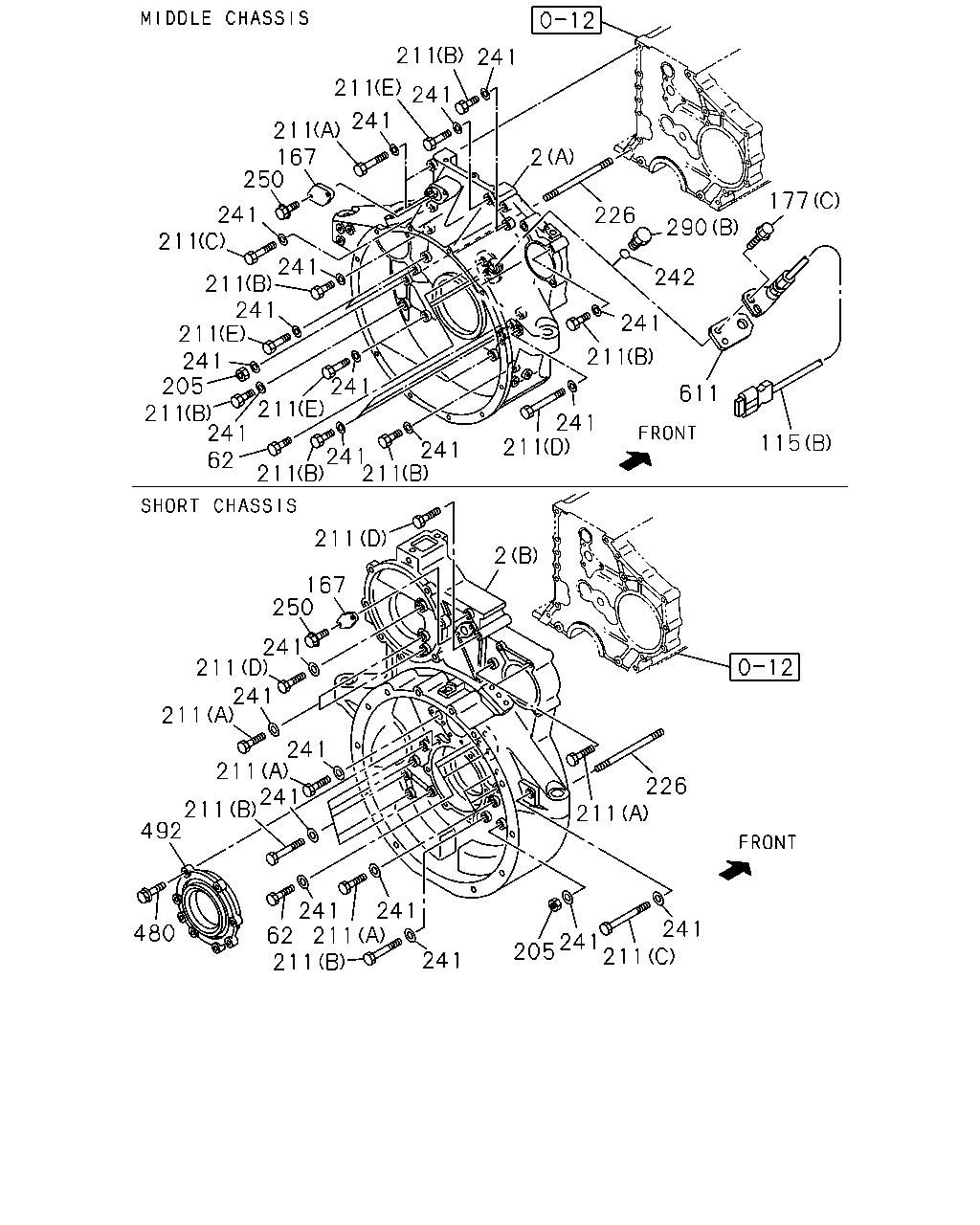

çizim 24793
211 241 211 241 241 211 167 250 2 177 241 211 226 290 241 211 241 211 241 205 211 241 62 242 241 211 241 211 611 241 211 241 241 211 211 115 211 2 167 250 241 211 241 211 241 211 241 211 492 226 211 241 241 211 480 241 241 205 211 241 62 211
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; FLYWHEEL
SHORT CHASSIS<FX***C> (B) 		1-11341-552-0 01 1 0407- ●
2 HOUSING; FLYWHEEL
MIDDLE CHASSIS<FX***F> (A) 		1-11341-521-5 01 1 0407- ● ●
2 HOUSING; FLYWHEEL
(A) 		1-11341-668-1 01 1 0411- ●
62 BOLT; COVER
SHORT CHASSIS<FX***C> M8X25 FLANGE 		0-28680-825-0 03 1 0407-0512 ●
62 BOLT; COVER
SHORT CHASSIS<FX***C> M8X25 FLANGE THA 		0-28650-825-0 03 1 0601- ●
62 BOLT; COVER
MIDDLE CHASSIS<FX***F> M8X14 FLANGE 		0-28080-814-0 03 1 0407-0410 ● ●
62 BOLT; COVER
MIDDLE CHASSIS<FX***F> M8X14 FLANGE 		0-28080-814-0 03 1 0411- ●
62 BOLT; COVER
M8X14 FLANGE 		0-28080-814-0 03 1 0411- ● ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		1-80240-003-3 01 1 0407- ● ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		1-81510-494-2 01 1 0411- ●
167 COVER; OIL 1-11749-103-0 01 1 0407-0410 ● ●
167 COVER; OIL 1-11749-103-0 01 1 0411- ● ● ●
177 BOLT; SENSOR
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512 ● ●
177 BOLT; SENSOR
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0601- ● ●
177 BOLT; SENSOR
(A) M6X18 W/LK WASHER 		0-50040-618-0 01 1 0407- ● ●
177 BOLT; SENSOR
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0411-0512 ●
177 BOLT; SENSOR
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 0601- ●
205 NUT; HSG
M12 		9-99110-412-0 01 1 0407-0410 ● ●
205 NUT; HSG
M12 		9-99110-412-0 01 1 0411-0512 ● ● ●
205 NUT; HSG
M12 		0-91110-512-0 01 1 0601- ● ● ●
211 BOLT; HSG
SHORT CHASSIS<FX***C> (B) M12X60 		0-16806-260-0 08 1 0407-0512 ●
211 BOLT; HSG
SHORT CHASSIS<FX***C> (B) M12X60 		0-16856-260-0 08 1 0601- ●
211 BOLT; HSG
SHORT CHASSIS<FX***C> (B) M12X130 		1-09020-040-0 06 1 0407- ●
211 BOLT; HSG
SHORT CHASSIS<FX***C> (C) M12X185 		8-94393-483-0 01 1 0407- ●
211 BOLT; HSG
SHORT CHASSIS<FX***C> (E) M12X75 		9-01666-275-0 03 1 0407- ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (A) M12X100 		0-16806-200-0 02 1 0407-0410 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (A) M12X100 		0-16806-200-0 02 1 0411-0512 ●
211 BOLT; HSG
(A) M12X100 		0-16806-200-0 02 1 0411-0512 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (A) M12X100 		0-16856-200-0 02 1 0601- ●
211 BOLT; HSG
(A) M12X100 		0-16856-200-0 02 1 0601- ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (B) M12X60 		0-16806-260-0 09 1 0407-0410 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (B) M12X60 		0-16806-260-0 09 1 0411-0512 ●
211 BOLT; HSG
(B) M12X60 		0-16806-260-0 09 1 0411-0512 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (B) M12X60 		0-16856-260-0 09 1 0601- ●
211 BOLT; HSG
(B) M12X60 		0-16856-260-0 09 1 0601- ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (C) M12X90 		0-16806-290-0 01 1 0407-0410 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (C) M12X90 		0-16806-290-0 01 1 0411-0512 ●
211 BOLT; HSG
(C) M12X90 		0-16806-290-0 01 1 0411-0512 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (C) M12X90 		0-16856-290-0 01 1 0601- ●
211 BOLT; HSG
(C) M12X90 		0-16856-290-0 01 1 0601- ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (D) M12X173 		1-09020-057-1 01 1 0407-0410 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (D) M12X173 		1-09020-057-1 01 1 0411- ●
211 BOLT; HSG
(D) M12X173 		1-09020-057-1 01 1 0411- ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (E) M12X75 		9-01666-275-0 05 1 0407-0410 ● ●
211 BOLT; HSG
MIDDLE CHASSIS<FX***F> (E) M12X75 		9-01666-275-0 05 1 0411- ●
211 BOLT; HSG
(E) M12X75 		9-01666-275-0 05 1 0411- ● ●
226 STUD; HSG
M12X60 L=78 		9-94411-260-0 01 1 0407-0410 ● ●
226 STUD; HSG
M12X60 L=78 		9-94411-260-0 01 1 0411-0604 ● ● ●
226 STUD; HSG
M12X60 L=78 		0-44011-260-0 01 1 0605- ● ● ●
241 WASHER; PL,HSG
ID=12.2 		9-09851-933-0 19 1 0407-0410 ● ●
241 WASHER; PL,HSG
ID=12.2 		9-09851-933-0 19 1 0411- ● ● ●
242 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24 THA 		9-09571-416-0 01 1 0407- ● ●
250 BOLT; COVER,OIL
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0410 ● ●
250 BOLT; COVER,OIL
M8X16 FLANGE 		0-28080-816-0 02 1 0411-0512 ● ● ●
250 BOLT; COVER,OIL
M8X16 FLANGE THA 		0-28050-816-0 02 1 0601- ● ● ●
290 PLUG; SENSOR HOLE
(A) 		8-97101-974-0 01 1 0407- ● ●
290 PLUG; SENSOR HOLE
(B) M16X12 		9-99202-316-0 01 1 0407-0606 ● ●
290 PLUG; SENSOR HOLE
(B) M16X12 		0-92002-416-0 01 1 0607- ● ●
480 BOLT; COVER
SHORT CHASSIS<FX***C> M8X25 FLANGE 		0-28680-825-0 08 1 0407-0512 ●
480 BOLT; COVER
SHORT CHASSIS<FX***C> M8X25 FLANGE THA 		0-28650-825-0 08 1 0601- ●
492 COVER; OIL SEAL
SHORT CHASSIS<FX***C> 		1-12363-041-0 01 1 0407- ●
611 SPACER; SENSOR 1-11349-251-0 01 1 0411- ●

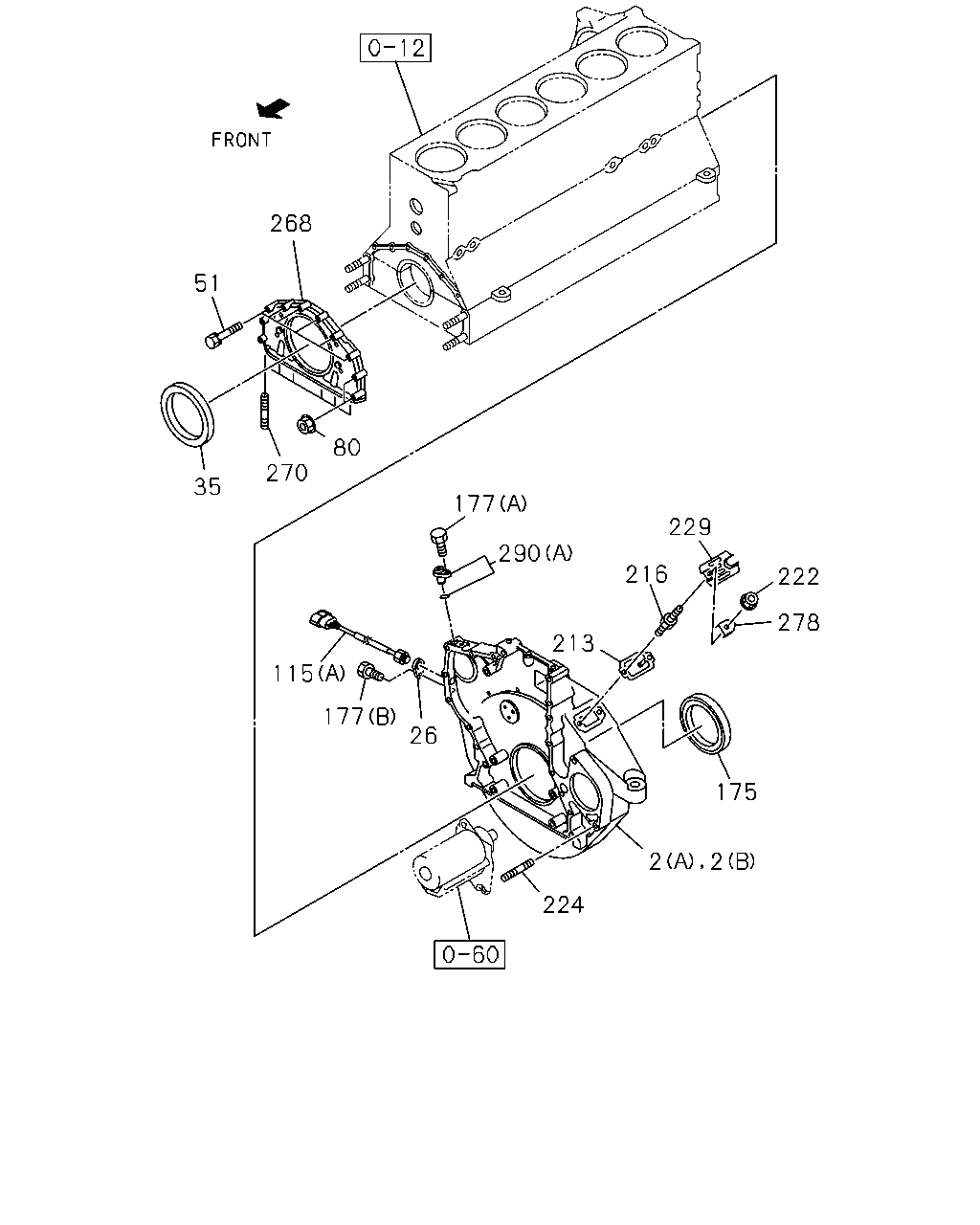

çizim 86248
268 51 80 270 35 177 229 290 216 222 278 213 115 177 26 175 2 2 224
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; FLYWHEEL
SHORT CHASSIS<FX***C> (B) 		1-11341-552-0 01 1 0407- ●
2 HOUSING; FLYWHEEL
MIDDLE CHASSIS<FX***F> (A) 		1-11341-521-5 01 1 0407- ● ●
2 HOUSING; FLYWHEEL
(A) 		1-11341-668-1 01 1 0411- ●
26 ADAPTER 1-81519-012-0 01 1 0407- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-540-3 01 1 0407-0410 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-540-3 01 1 0411- ● ● ●
51 BOLT; GEAR CASE COVER
M8X45 W/LK&PL WASHER 		0-50140-845-0 08 1 0407-0410 ● ●
51 BOLT; GEAR CASE COVER
M8X45 W/LK&PL WASHER 		0-50140-845-0 08 1 0411- ● ● ●
80 NUT; COVER
M10 FLANGE 		0-91150-110-0 04 1 0407-0410 ● ●
80 NUT; COVER
M10 FLANGE 		0-91150-110-0 04 1 0411-0602 ● ● ●
80 NUT; COVER
M10 FLANGE THA 		0-91180-110-0 04 1 0603- ● ● ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		1-80240-003-3 01 1 0407- ● ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		1-81510-494-2 01 1 0411- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-541-2 01 1 0407-0410 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-541-2 01 1 0411- ● ● ●
177 BOLT; SENSOR
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512 ● ●
177 BOLT; SENSOR
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0601- ● ●
177 BOLT; SENSOR
(A) M6X18 W/LK WASHER 		0-50040-618-0 01 1 0407- ● ●
177 BOLT; SENSOR
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0411-0512 ●
177 BOLT; SENSOR
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 0601- ●
213 POINTER; FLYWHEEL HSG 1-11342-018-0 01 1 0407- ● ●
213 POINTER; FLYWHEEL HSG 1-11342-029-0 01 1 0411- ●
216 STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33 		1-09300-058-1 02 1 0407-0410 ● ●
216 STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33 		1-09300-058-1 02 1 0411- ● ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 02 1 0407-0410 ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 02 1 0411-0602 ● ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ● ●
224 STUD; STARTER
M14X40 L=61 		9-04411-440-0 02 1 0407-0410 ● ●
224 STUD; STARTER
M14X40 L=61 		9-04411-440-0 02 1 0411-0604 ● ● ●
224 STUD; STARTER
M14X40 L=61 		0-44011-440-0 02 1 0605- ● ● ●
229 COVER; TIMING CHECK HOLE 1-11349-126-0 01 1 0407-0410 ● ●
229 COVER; TIMING CHECK HOLE 1-11349-126-0 01 1 0411- ● ● ●
268 COVER; FRT 1-11321-085-3 01 1 0407-0410 ● ●
268 COVER; FRT 1-11321-085-3 01 1 0411- ● ● ●
270 STUD; FRT COVER
M8X20 		9-04010-820-0 06 1 0407-0410 ● ●
270 STUD; FRT COVER
M8X20 		9-04010-820-0 06 1 0411- ● ● ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 0407-0410 ● ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 0411- ● ● ●
290 PLUG; SENSOR HOLE
(A) 		8-97101-974-0 01 1 0407- ● ●
290 PLUG; SENSOR HOLE
(B) M16X12 		9-99202-316-0 01 1 0407-0606 ● ●
290 PLUG; SENSOR HOLE
(B) M16X12 		0-92002-416-0 01 1 0607- ● ●
