◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#26118) — 67 parça

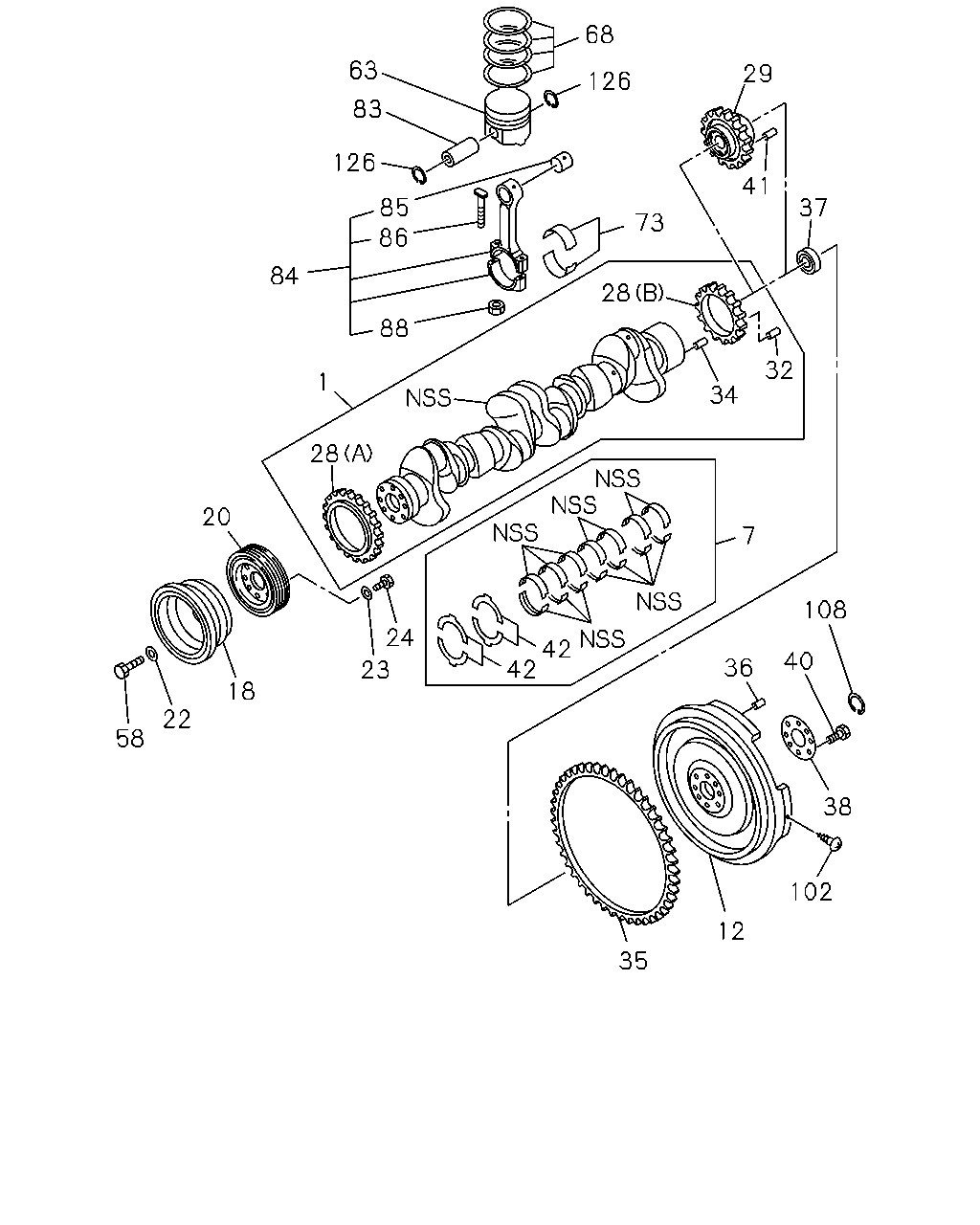

çizim 24796
68 63 29 126 83 126 41 85 86 37 73 84 28 88 32 1 34 28 20 7 108 24 42 42 40 36 23 18 22 58 38 102 12 35
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CRANKSHAFT 1-12310-668-0 01 1 0407-0410 ● ●
1 CRANKSHAFT 1-12310-668-0 01 1 0411- ● ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-087-1 01 1 0407- ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-108-2 01 1 0411- ●
12 FLYWHEEL
SHORT CHASSIS<FX***C> 		1-12331-313-0 01 1 0407- ●
12 FLYWHEEL
MIDDLE CHASSIS<FX***F> 		1-12331-162-4 01 1 0407-0501 ● ●
12 FLYWHEEL
MIDDLE CHASSIS<FX***F> 		1-12331-162-4 02 1 0502- ● ●
12 FLYWHEEL 1-12331-399-0 01 1 0411- ●
18 PULLEY; CR/SHF
3-GROOVE 		1-12371-359-2 01 1 0407- ● ●
18 PULLEY; CR/SHF
4-GROOVE 		1-12371-478-0 01 1 0411- ●
20 DAMPER; CR/SHF 1-12375-180-0 01 1 0407-0410 ● ●
20 DAMPER; CR/SHF 1-12375-180-1 01 1 0411- ● ● ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0407-0410 ● ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0411- ● ● ●
23 WASHER; DAMPER
ID=12.5 		9-09851-682-0 08 1 0407-0410 ● ●
23 WASHER; DAMPER
ID=12.5 		9-09851-682-0 08 1 0411- ● ● ●
24 BOLT; DAMPER 9-02361-220-0 08 1 0407-0410 ● ●
24 BOLT; DAMPER 9-02361-220-0 08 1 0411- ● ● ●
28 GEAR; CR/SHF
(A) Z=53 		1-12521-027-1 01 1 0407-0410 ● ●
28 GEAR; CR/SHF
(A) Z=53 		1-12521-027-1 01 1 0411- ● ● ●
28 GEAR; CR/SHF
(B) Z=46 		1-12521-053-1 01 1 0407-0410 ● ●
28 GEAR; CR/SHF
(B) Z=46 		1-12521-053-1 01 1 0411- ● ● ●
29 GEAR; CR/SHF,PTO
SHORT CHASSIS<FX***C> 		1-38261-026-1 01 1 0407- ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0407-0410 ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0411- ● ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0407-0410 ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0411- ● ● ●
35 GEAR; RING
Z=140 		1-12333-016-0 01 1 0407-0410 ● ●
35 GEAR; RING
Z=140 		1-12333-016-0 01 1 0411-0501 ● ● ●
35 GEAR; RING
Z=140 		1-12333-025-0 01 1 0502- ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0407-0410 ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0411- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-214-0 01 1 0407-0410 ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-214-0 01 1 0411- ● ● ●
38 WASHER; FLYWHEEL 1-12336-005-1 01 1 0407-0410 ● ●
38 WASHER; FLYWHEEL 1-12336-005-1 01 1 0411- ● ● ●
40 BOLT; FLYWHEEL
SHORT CHASSIS<FX***C> 		1-09000-607-1 08 1 0407- ●
40 BOLT; FLYWHEEL
MIDDLE CHASSIS<FX***F> 		1-09000-183-1 08 1 0407- ● ●
40 BOLT; FLYWHEEL 1-09070-146-0 08 1 0411- ●
41 PIN; GEAR,CR/SHF PTO
SHORT CHASSIS<FX***C> OD=8 L=16 		9-08150-816-0 01 1 0407- ●
42 WASHER; THRUST,CR/SHF 1-11599-007-0 02 1 0407-0410 ● ●
42 WASHER; THRUST,CR/SHF 1-11599-007-0 02 1 0411- ● ● ●
58 BOLT; CR/SHF PULLEY
M16X45 		9-92061-645-0 04 1 0407-0410 ● ●
58 BOLT; CR/SHF PULLEY
M16X45 		9-92061-645-0 04 1 0411- ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-842-0 06 1 0407- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-843-0 06 1 0407- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12112-011-0 06 1 0411- ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12112-012-0 06 1 0411- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-137-1 06 1 0407- ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-149-0 06 1 0411- ●
73 METAL SET; CONN ROD,STANDARD 1-12271-084-0 06 1 0407-0410 ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-084-0 06 1 0411- ● ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-022-0 06 1 0407- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-037-0 06 1 0411- ●
84 ROD ASM; CONN 1-12230-097-1 06 1 0407- ● ●
84 ROD ASM; CONN 1-12230-180-1 06 1 0411- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-021-1 06 1 0407- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-043-0 06 1 0411- ●
86 BOLT; CONNROD 1-12235-025-1 12 1 0407-0410 ● ●
86 BOLT; CONNROD 1-12235-025-1 12 1 0411- ● ● ●
88 NUT; CONNROD 1-09840-003-1 12 1 0407-0410 ● ●
88 NUT; CONNROD 1-09840-003-1 12 1 0411- ● ● ●
102 PIN; TIMING SENSOR 1-09122-025-0 06 1 0411- ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0407-0410 ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0411- ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-065-0 12 1 0407- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-099-0 12 1 0411- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
