0-13 — OIL PAN AND LEVEL GAUGE (#26116) — 44 parça

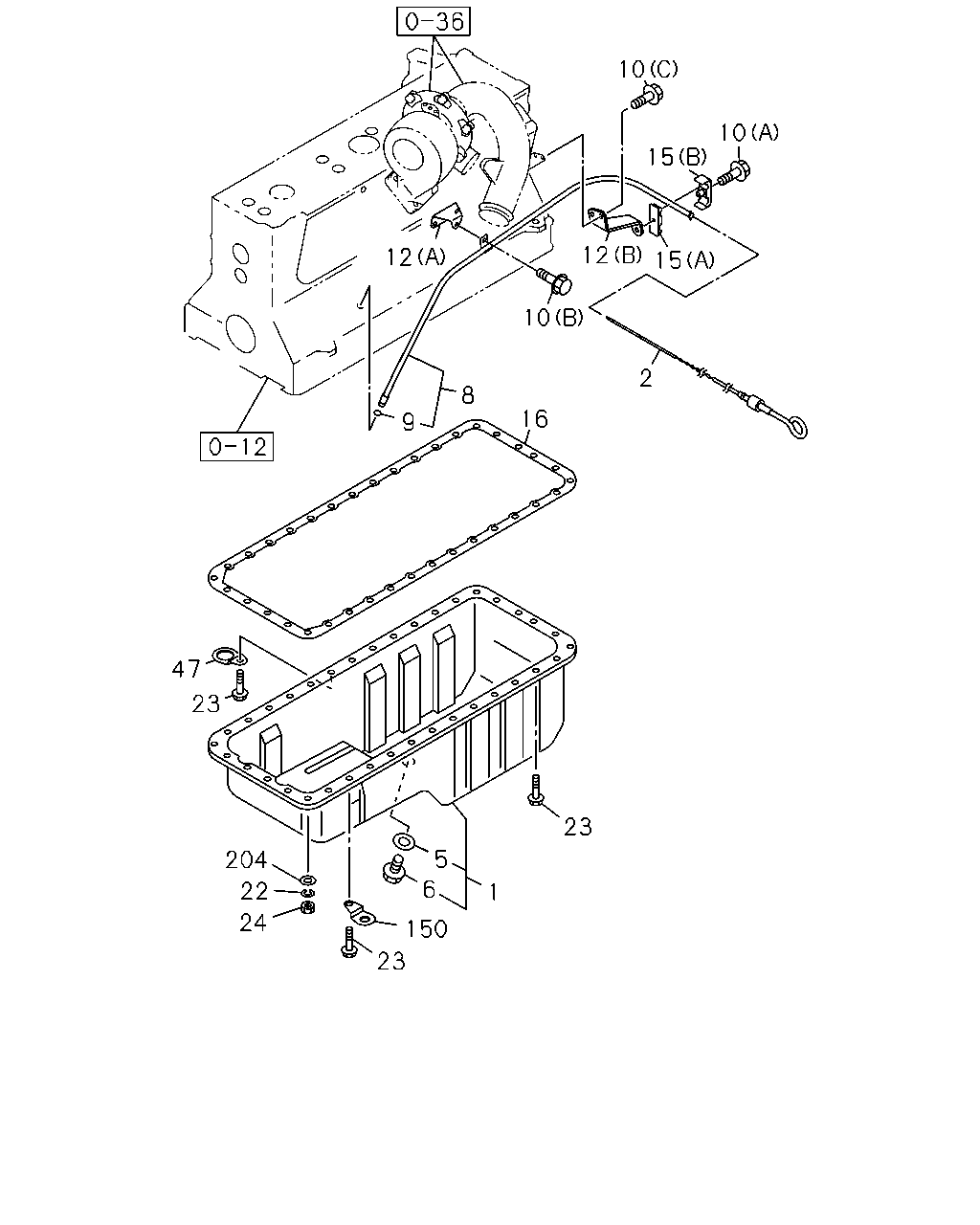

çizim 85036
10 10 15 12 12 15 10 2 8 16 9 47 23 23 5 204 6 22 1 24 150 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAN ASM; OIL 1-11360-708-3 01 1 0407-0410 ● ●
1 PAN ASM; OIL 1-11360-708-3 01 1 0411- ● ● ●
2 GAUGE; OIL LEVEL 1-11760-395-0 01 1 0407-0410 ● ●
2 GAUGE; OIL LEVEL 1-11760-395-0 01 1 0411- ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-058-0 01 1 0407-0410 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-058-0 01 1 0411- ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-022-0 01 1 0407-0410 ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-022-0 01 1 0411- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 1-11766-483-0 01 1 0407-0410 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 1-11766-483-0 01 1 0411- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0407-0410 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0411- ● ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28080-640-0 01 1 0407-0410 ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28080-640-0 01 1 0411-0512 ● ● ●
10 BOLT; GUIDE TUBE
(A) M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE 		0-28080-812-0 02 1 0407-0512 ● ●
10 BOLT; GUIDE TUBE
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0601- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0407-0410 ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0411-0512 ● ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 0601- ● ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(A) 		1-11769-167-0 01 1 0407-0410 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(A) 		1-11769-167-0 01 1 0411- ● ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
(B) 		1-11769-169-0 01 1 0407- ● ●
15 CLIP; GUIDE TUBE
(B) 		1-09701-193-1 01 1 0407-0410 ● ●
15 CLIP; GUIDE TUBE
(B) 		1-09701-193-1 01 1 0411- ● ● ●
15 CLIP; GUIDE TUBE
(A) 		1-09701-194-1 01 1 0407-0410 ● ●
15 CLIP; GUIDE TUBE
(A) 		1-09701-194-1 01 1 0411- ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-129-1 01 1 0407-0410 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-129-1 01 1 0411- ● ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		9-09150-508-0 06 1 0407-0410 ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		9-09150-508-0 06 1 0411-0603 ● ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		0-91510-508-0 06 1 0604- ● ● ●
23 BOLT; OIL PAN
M8X22 W/LK&PL WASHER 		0-50140-822-0 30 1 0407-0410 ● ●
23 BOLT; OIL PAN
M8X22 W/LK&PL WASHER 		0-50140-822-0 30 1 0411- ● ● ●
24 NUT; OIL PAN
M8 		9-09110-408-0 06 1 0407-0410 ● ●
24 NUT; OIL PAN
M8 		9-09110-408-0 06 1 0411-0512 ● ● ●
24 NUT; OIL PAN
M8 		0-91110-508-0 06 1 0601- ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11229-014-0 01 1 0407-0410 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11229-014-0 01 1 0411- ● ● ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 0407- ● ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 02 1 0411- ●
204 WASHER; PL,OIL PAN
ID=8.4 		9-09160-508-0 06 1 0407-0410 ● ●
204 WASHER; PL,OIL PAN
ID=8.4 		9-09160-508-0 06 1 0411-0605 ● ● ●
204 WASHER; PL,OIL PAN
ID=8.4 OD=16 THA 		0-91610-508-0 06 1 0606- ● ● ●
