0-12 — CYLINDER BLOCK (#26115) — 81 parça

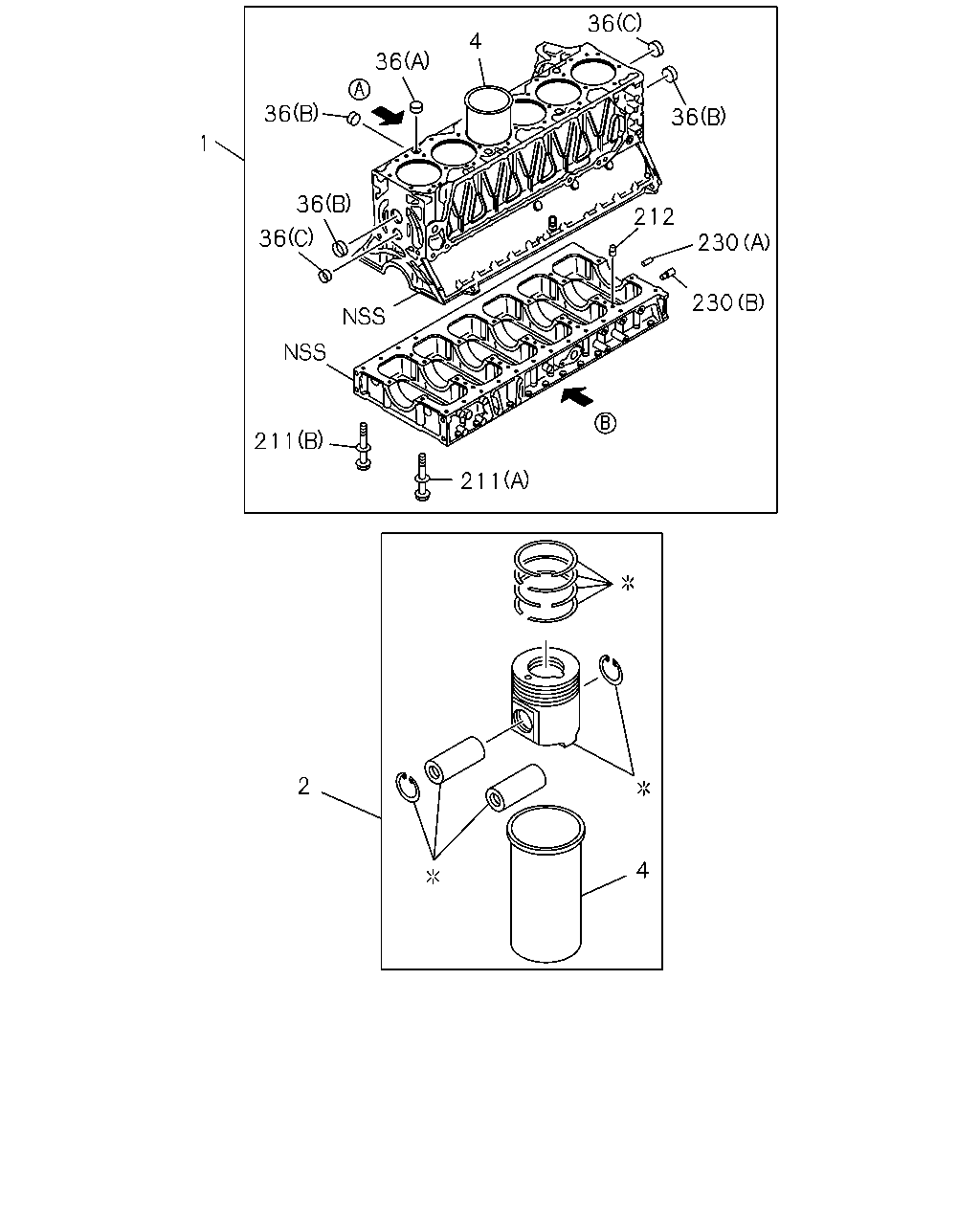

çizim 82145
36 4 36 36 36 1 36 212 36 230 230 211 211 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL 1-11210-620-4 01 1 0407- ● ●
1 BLOCK ASM; CYL 1-11210-682-1 01 1 0411- ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-426-2 06 1 0407- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-427-2 06 1 0407- ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-629-1 06 1 0411- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-630-1 06 1 0411- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		1-11261-298-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		1-11261-299-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		1-11261-300-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		1-11261-301-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		1-11261-368-1 06 1 0411- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		1-11261-369-1 06 1 0411- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		1-11261-370-1 06 1 0411- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		1-11261-371-1 06 1 0411- ●
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 05 1 0407-0410 ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 05 1 0411- ● ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=45 		1-09600-058-0 07 1 0407-0410 ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=45 		1-09600-058-1 07 1 0411- ● ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-059-0 02 1 0407-0410 ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-059-1 02 1 0411- ● ● ●
211 BOLT; CRANKCASE
(B) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 14 1 0407-0410 ● ●
211 BOLT; CRANKCASE
(B) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 14 1 0411- ● ● ●
211 BOLT; CRANKCASE
(A) M10X98 FLANGE W/PL WASHER 		1-09070-061-0 24 1 0407-0410 ● ●
211 BOLT; CRANKCASE
(A) M10X98 FLANGE W/PL WASHER 		1-09070-061-0 24 1 0411- ● ● ●
212 PIN; CRANKCASE 1-09740-031-0 02 1 0407-0410 ● ●
212 PIN; CRANKCASE 1-09740-031-0 02 1 0411- ● ● ●
230 PIN; THRUST METAL,CR/SHF
(B) L=25 		1-09749-025-1 02 1 0407-0410 ● ●
230 PIN; THRUST METAL,CR/SHF
(B) L=25 		1-09749-025-1 02 1 0411- ● ● ●
230 PIN; THRUST METAL,CR/SHF
(A) OD=5 L=10 		9-08160-510-0 02 1 0407-0410 ● ●
230 PIN; THRUST METAL,CR/SHF
(A) OD=5 L=10 		9-08160-510-0 02 1 0411- ● ● ●

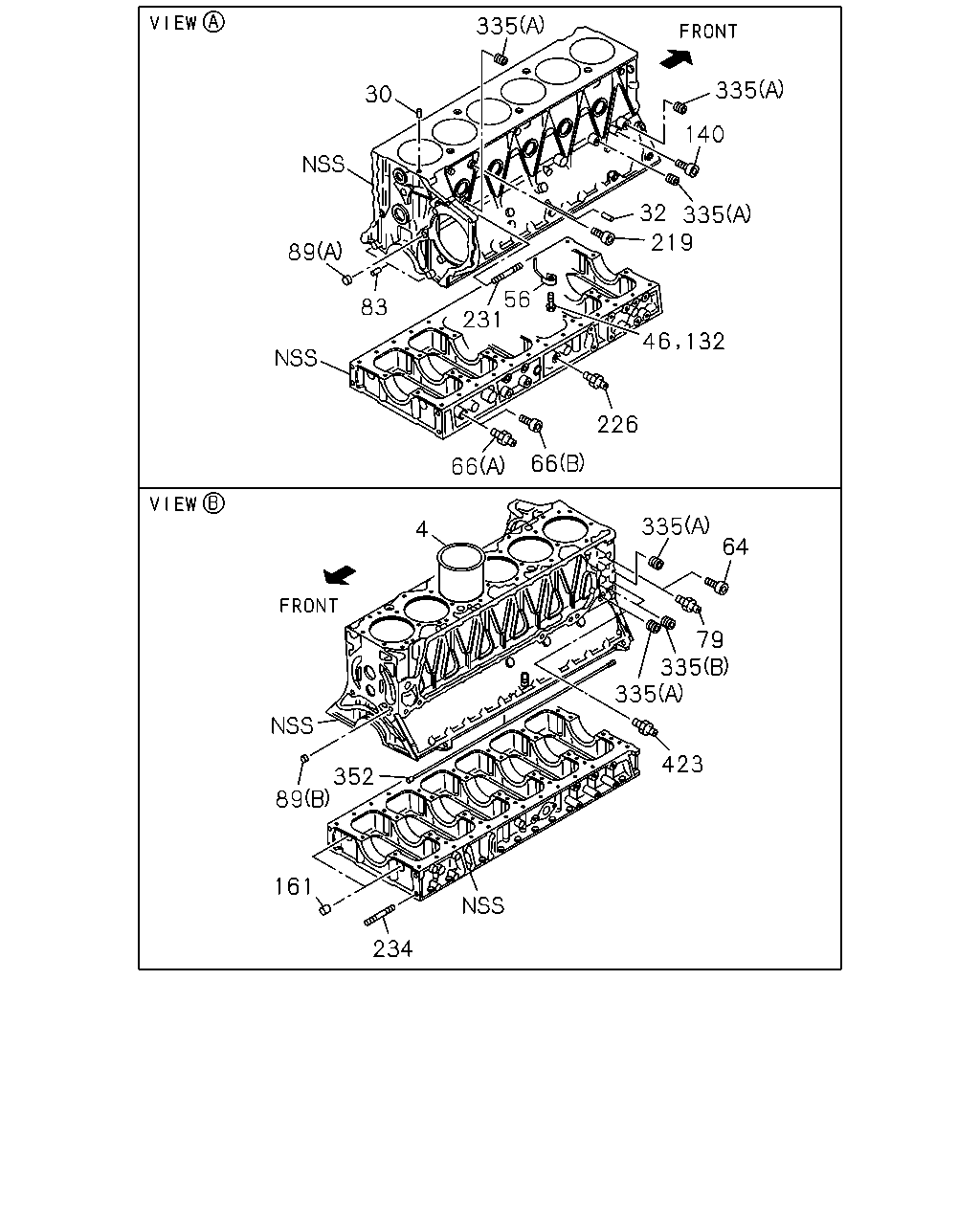

çizim 84360
335 335 30 140 32 335 219 89 56 231 83 226 66 66 335 4 64 79 335 335 423 352 89 161 234 46 132
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		1-11261-298-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		1-11261-299-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		1-11261-300-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		1-11261-301-1 06 1 0407- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		1-11261-368-1 06 1 0411- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		1-11261-369-1 06 1 0411- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		1-11261-370-1 06 1 0411- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		1-11261-371-1 06 1 0411- ●
30 PIN; CYL HD GASKET SETTING
OD=8 L=16 		9-08150-816-0 03 1 0407-0410 ● ●
30 PIN; CYL HD GASKET SETTING
OD=8 L=16 		9-08150-816-0 03 1 0411- ● ● ●
32 PIN; INJ PUMP BRKT
OD=8 L=16 		9-08150-816-0 02 1 0407-0410 ● ●
32 PIN; INJ PUMP BRKT
OD=8 L=16 		9-08150-816-0 02 1 0411- ● ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-09675-105-1 06 1 0407- ● ●
56 JET; OIL,PISTON COOLING 1-13342-127-1 06 1 0407- ● ●
56 JET; OIL,PISTON COOLING 1-13342-140-1 06 1 0411- ●
64 CONNECTOR; TURBOCHARGER OIL FEED 1-09660-526-0 01 1 0411- ●
66 CONNECTOR; PARTIAL FILTER
(A) M16 & PT1/4 STRAIGHT 		1-09650-210-1 01 1 0407- ● ●
66 CONNECTOR; PARTIAL FILTER
(B) 		1-09660-526-0 01 1 0411- ●
79 NIPPLE; OIL FEED,TURBOCHARGER
M16 & PT1/4 STRAIGHT 		1-09650-210-1 01 1 0407- ● ●
83 PIN; FLYWHEEL HSG 9-08151-025-0 02 1 0407- ● ●
83 PIN; FLYWHEEL HSG 9-08161-025-0 02 1 0411- ●
89 CUP; SEALING,OIL GALLERY
SHORT CHASSIS<FX***C> (B) OD=20 		9-11219-192-0 01 1 0407- ●
89 CUP; SEALING,OIL GALLERY
(A) OD=16 		5-11129-006-0 01 1 0407-0410 ● ●
89 CUP; SEALING,OIL GALLERY
(A) OD=16 		5-11129-006-0 01 1 0411- ● ● ●
89 CUP; SEALING,OIL GALLERY
MIDDLE CHASSIS<FX***F> (B) OD=20 		9-11219-192-0 02 1 0407-0410 ● ●
89 CUP; SEALING,OIL GALLERY
MIDDLE CHASSIS<FX***F> (B) OD=20 		9-11219-192-0 02 1 0411- ●
89 CUP; SEALING,OIL GALLERY
(B) OD=20 		9-11219-192-0 02 1 0411- ● ●
132 VALVE; CHECK,OIL 1-13161-025-2 06 1 0411- ●
140 NIPPLE; INJ PUMP 1-09660-155-0 01 1 0407-0410 ● ●
140 NIPPLE; INJ PUMP 1-09660-155-0 01 1 0411- ● ● ●
161 DOWEL; FRT COVER 1-11229-012-1 02 1 0407-0410 ● ●
161 DOWEL; FRT COVER 1-11229-012-1 02 1 0411- ● ● ●
219 NIPPLE; AIR CMPR,WATER 1-09660-408-0 01 1 0407-0410 ● ●
219 NIPPLE; AIR CMPR,WATER 1-09660-408-0 01 1 0411- ● ● ●
226 CONNECTOR; INJ PUMP,RETURN
M20 & PT3/8 STRAIGHT 		1-09650-211-1 01 1 0407- ● ●
226 CONNECTOR; INJ PUMP,RETURN 1-09660-408-0 01 1 0411- ●
231 STUD; AIR CMPR
M12X67 L=82 		1-09302-112-0 04 1 0407- ● ●
231 STUD; AIR CMPR
M12X67 L=82 		1-09302-112-0 02 1 0411- ●
234 STUD; FRT COVER
M10X50 L=65 		1-09302-105-0 04 1 0407-0410 ● ●
234 STUD; FRT COVER
M10X50 L=65 		1-09302-105-0 04 1 0411- ● ● ●
335 PLUG; C/BL,SIDE
(B) PT1/4 		1-09605-019-0 06 1 0407-0410 ● ●
335 PLUG; C/BL,SIDE
(B) PT1/4 		1-09605-019-0 06 1 0411- ● ● ●
335 PLUG; C/BL,SIDE
(A) PT1/8 		1-09605-050-0 01 1 0407-0410 ● ●
335 PLUG; C/BL,SIDE
MIDDLE CHASSIS<FX***F> (A) PT1/8 		1-09605-050-0 01 1 0407-0410 ● ●
335 PLUG; C/BL,SIDE
(A) PT1/8 		1-09605-050-0 01 1 0411- ● ● ●
335 PLUG; C/BL,SIDE
MIDDLE CHASSIS<FX***F> (A) PT1/8 		1-09605-050-0 01 1 0411- ●
335 PLUG; C/BL,SIDE
(A) PT1/8 		1-09605-050-0 01 1 0411- ● ●
352 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11219-166-0 02 1 0407-0410 ● ●
352 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11219-166-0 02 1 0411- ● ● ●
423 CONNECTOR; OIL FEED
SHORT CHASSIS<FX***C> M12 & PT1/8 		9-09221-806-1 01 1 0407-0607 ●
423 CONNECTOR; OIL FEED
SHORT CHASSIS<FX***C> M12 & PT1/8 		0-92111-806-0 01 1 0608- ●
