0-11 — CYLINDER HEAD (#26114) — 81 parça

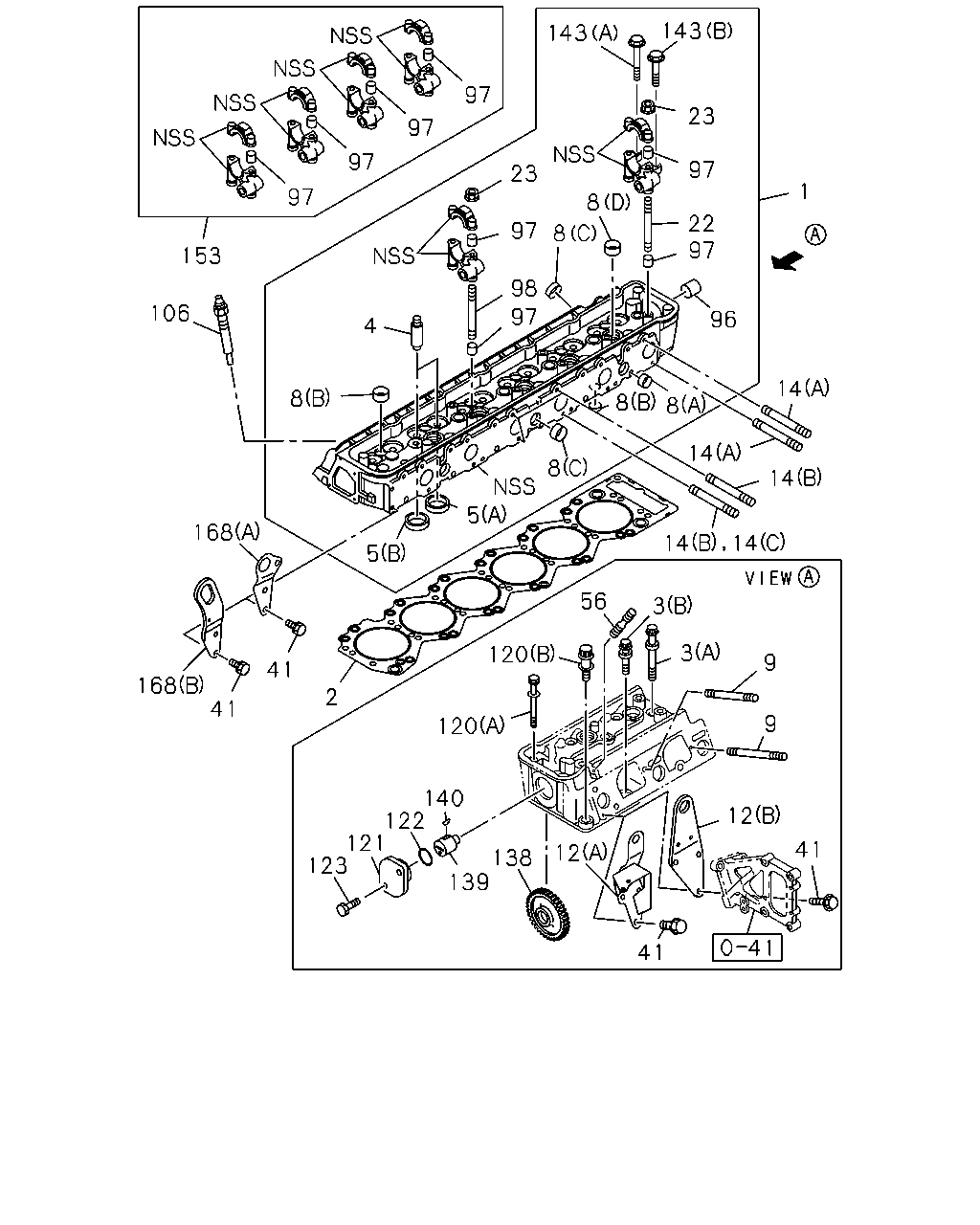

çizim 24798
143 143 97 23 97 97 97 23 8 1 97 22 97 97 8 153 98 106 97 96 4 8 14 8 8 14 8 14 5 168 14 14 5 56 3 3 120 9 41 168 2 41 9 120 140 122 121 123 12 41 12 138 139 41
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-856-2 01 1 0407- ● ●
1 HEAD ASM; CYL 1-11110-924-4 01 1 0411- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 0407- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-278-2 01 1 0411- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 0407- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 0407- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-143-0 20 1 0411- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-144-0 06 1 0411- ●
4 GUIDE; VLV 1-11721-008-0 12 1 0407-0410 ● ●
4 GUIDE; VLV 1-11721-008-0 12 1 0411- ● ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0407- ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-122-0 06 1 0407- ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-085-0 06 1 0411- ●
5 SEAT; VLV INSERT
(B) 		1-11715-118-0 06 1 0411- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0411-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0411-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0407-0502 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-2 06 1 0503- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 0407-0410 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 0411- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0407-0502 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 09 1 0503- ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=30 		8-94241-638-0 05 1 0407-0410 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=30 		8-94241-638-0 05 1 0411- ● ● ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 0407- ● ●
9 STUD; INL MANIF
M8X12,M8X17 L=96 		1-09309-020-1 12 1 0411- ●
12 HANGER; ENG,RR
(A) 		1-11777-099-0 01 1 0407- ● ●
12 HANGER; ENG,RR
(B) 		1-11777-222-0 01 1 0411- ●
14 STUD; EXH MANIF
(A) M10X104 L=119 		1-09302-104-1 08 1 0407- ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 04 1 0407- ● ●
14 STUD; EXH MANIF
(B) M10X95 L=110 		1-09302-063-0 03 1 0411- ●
14 STUD; EXH MANIF
(A) M10X135 L=150 		1-09302-159-0 08 1 0411- ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		9-04321-045-0 01 1 0411-0604 ●
14 STUD; EXH MANIF
(C) M10X45 L=65 		0-43211-045-0 01 1 0605- ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 0407-0410 ● ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 0411- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 0407-0410 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 0411- ● ● ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50051-020-0 05 1 0407-0512 ● ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50551-020-0 05 1 0601- ● ●
41 BOLT; ENG HANGER
M10X25 FLANGE 		0-28781-025-0 02 1 0411-0512 ●
41 BOLT; ENG HANGER
M10X25 FLANGE 		0-28751-025-0 02 1 0601- ●
41 BOLT; ENG HANGER
M10X40 FLANGE 		0-28791-040-0 03 1 0411-0512 ●
41 BOLT; ENG HANGER
M10X40 FLANGE 		0-28761-040-0 03 1 0601- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 0407-0410 ● ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 0411- ● ● ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 0407-0410 ● ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 0411- ● ● ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 0407-0410 ● ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 0411- ● ● ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 0407-0410 ● ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 0411- ● ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 0407-0410 ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 0411- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 0407-0410 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 0411- ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 0407-0410 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 0411- ● ● ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 0407-0410 ● ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 0411- ● ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 0407-0410 ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 0411- ● ● ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0410 ● ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 0411-0512 ● ● ●
123 BOLT; COVER
M8X16 FLANGE THA 		0-28050-816-0 02 1 0601- ● ● ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 0407-0410 ● ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 0411- ● ● ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0407-0410 ● ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0411- ● ● ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 0407-0410 ● ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 0411- ● ● ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 0407-0410 ● ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 0411-0512 ● ● ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28050-800-0 01 1 0601- ● ● ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 0407-0410 ● ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 0411-0512 ● ● ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28060-860-0 01 1 0601- ● ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 AR 1 0407-0410 ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 AR 1 0411- ● ● ●
168 HANGER; ENG,FRT
(A) 		1-11777-207-0 01 1 0407- ● ●
168 HANGER; ENG,FRT
(B) 		1-11777-247-0 01 1 0411- ●
