Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10945 - GXZ(THAI)EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#26101) — 27 parça
◀

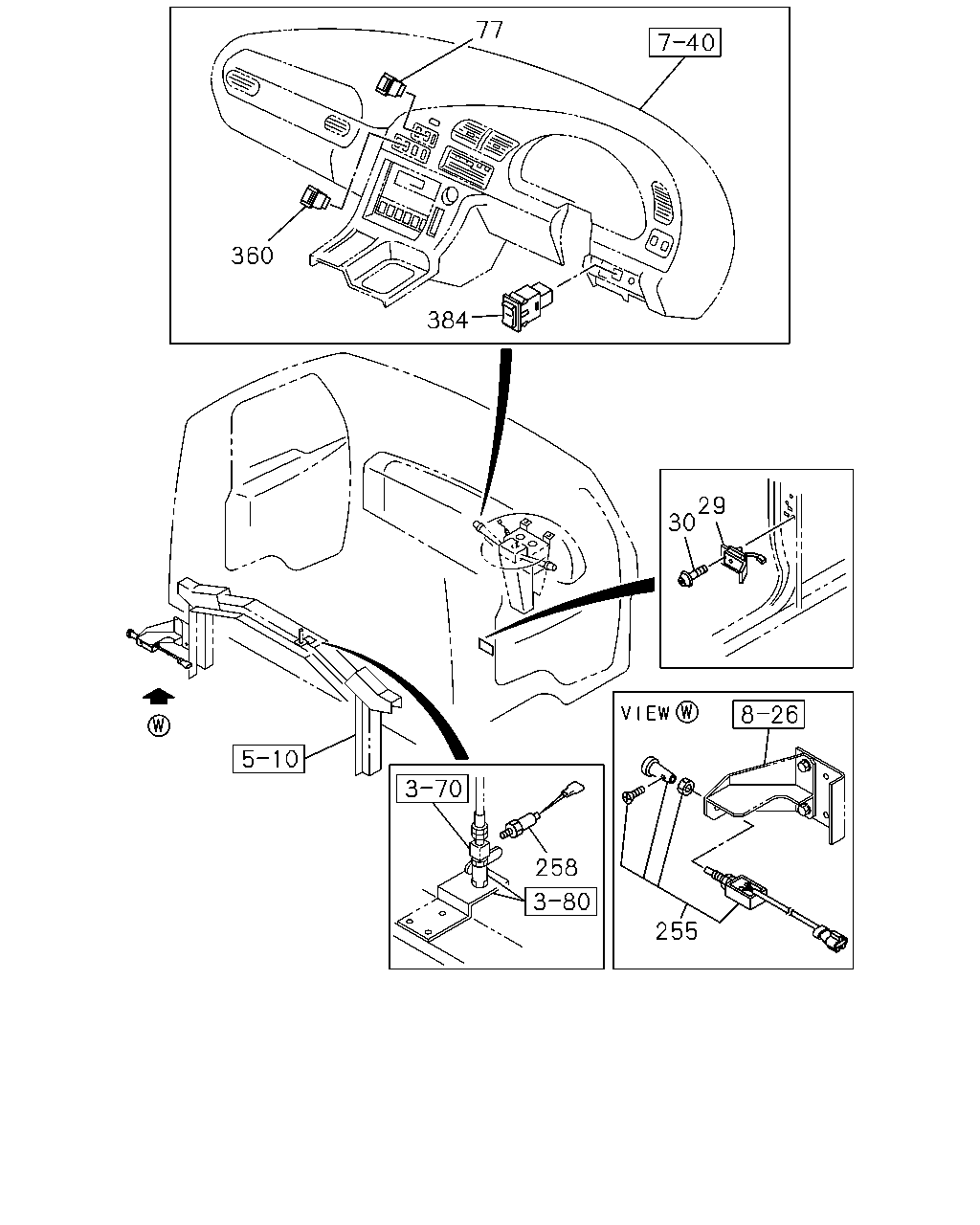

[825A] METER CLUSTER SIDE AND TRAILER PARKING (9 parça)

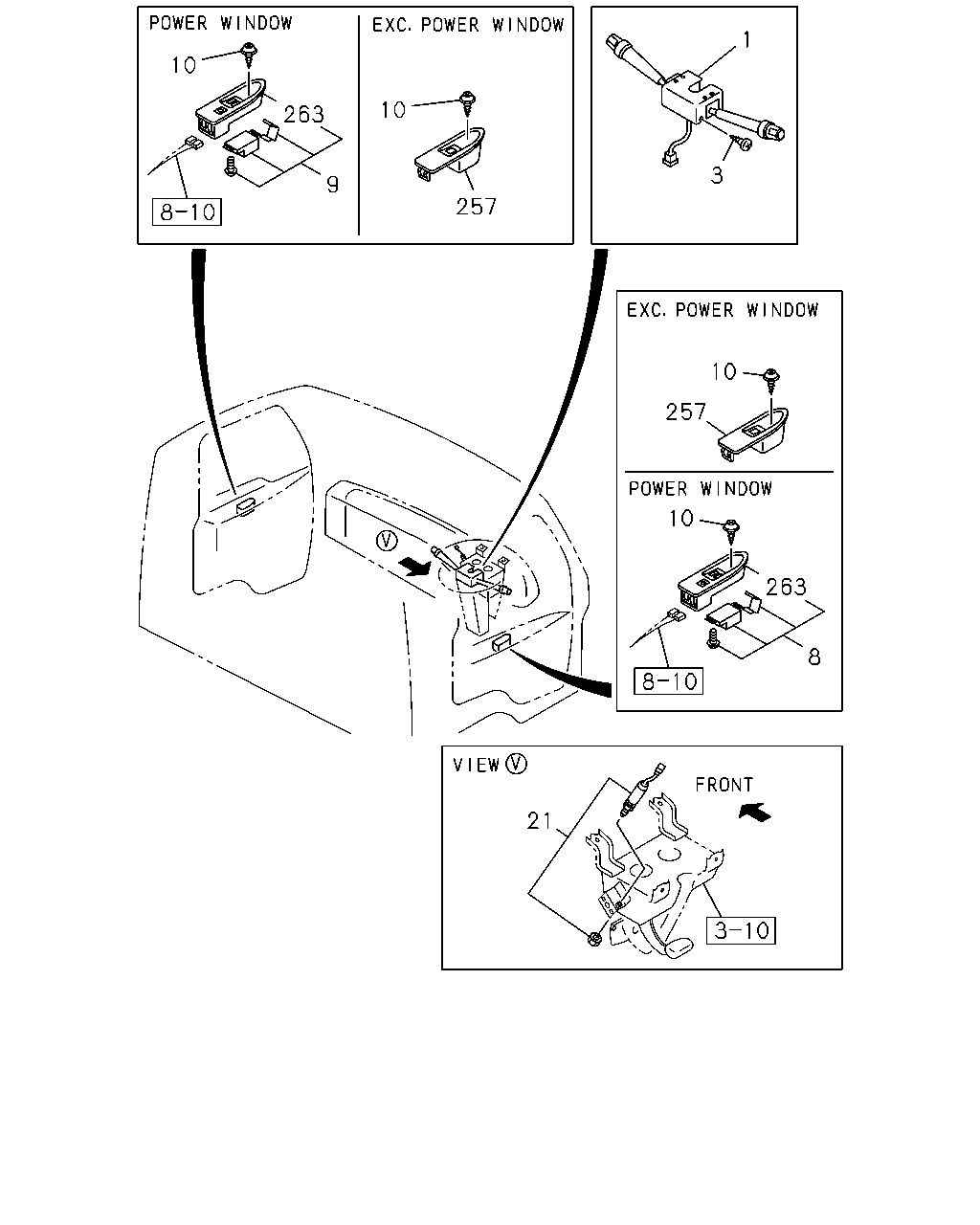

[825A] SWITCH;INST PANEL AND DOOR SIDE (14 parça)

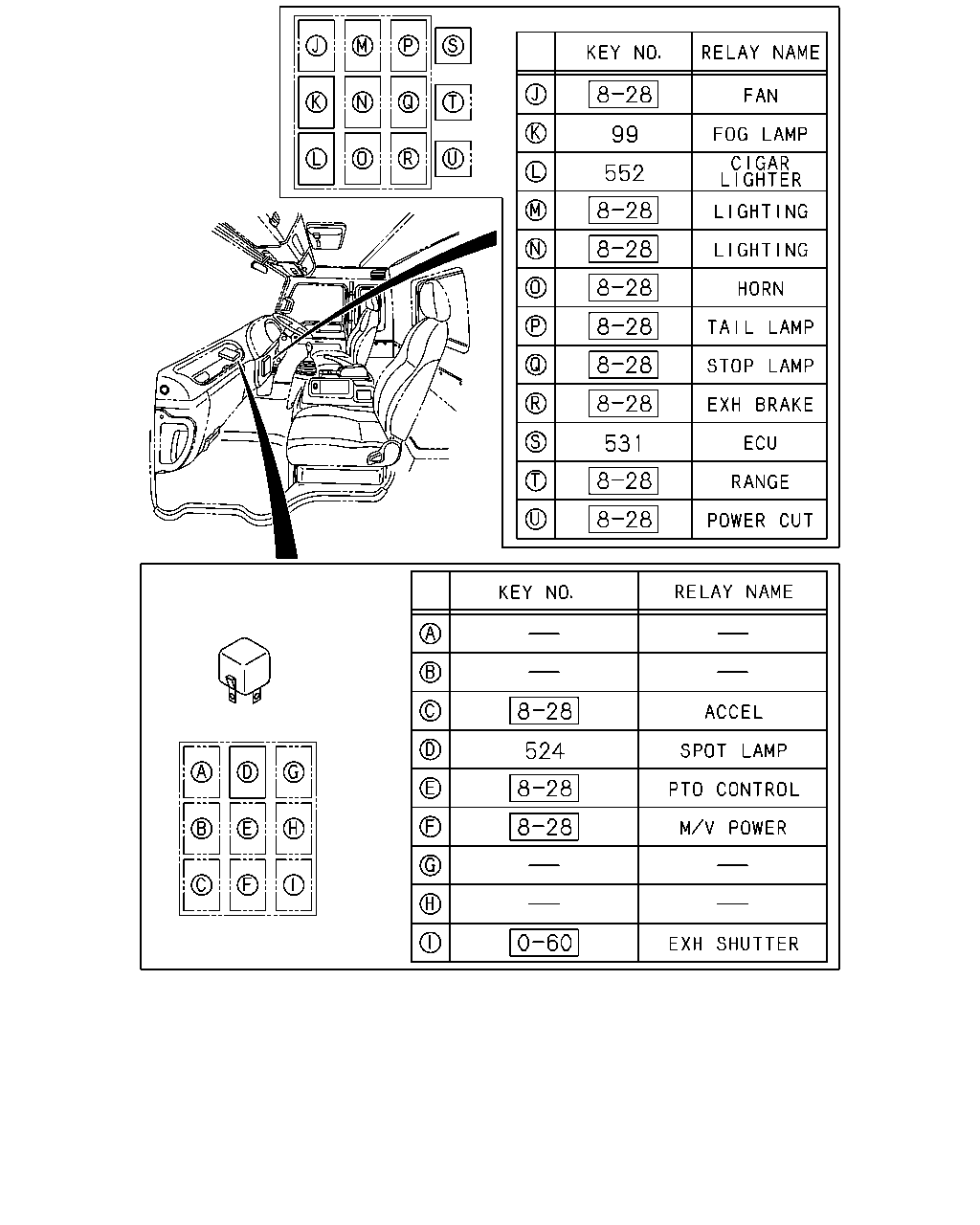

[825A] RELAY BOX;INST PANEL AND DOOR SIDE (4 parça)
▶
77
360
384
29
30
258
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0407-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0407-
77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
0407-
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
1-82340-360-1
01
1
0407-0706
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
8-97621-403-0
01
1
0707-0711
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
8-98106-483-0
01
1
0712-
258
SWITCH; FLASHER UNIT
1-82410-137-1
01
1
0407-
360
SWITCH ASM; DIFF LK
1-82340-404-0
01
1
0407-
384
SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED4<Q4F>
1-82350-213-1
01
1
0407-
1
10
10
263
3
9
257
10
257
10
263
8
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-715-0
01
1
0407-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0407-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER
1-82380-155-3
01
1
0407-
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER
1-82380-154-3
01
1
0407-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0407-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
ELECTRONIC GOV RED4<Q4F>
1-82440-116-1
01
1
0407-0608
21
SWITCH; CLU
ELECTRONIC GOV RED4<Q4F>
1-82440-126-1
01
1
0609-
21
SWITCH; CLU
EXC. ELECTRONIC GOV RED4<Q4F>
1-82380-114-3
01
1
0407-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30>
1-82389-011-2
01
1
0407-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30>
1-82389-012-2
01
1
0407-
263
COVER; SW
POWER WINDOW<A30>
1-82385-005-2
01
1
0407-
263
COVER; SW
POWER WINDOW<A30>
1-82385-006-3
01
1
0407-
99
552
531
524
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
99
RELAY; FOG LAMP
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0407-
524
RELAY; LAMP
INSPECTION LAMP<T95> 24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0407-
531
RELAY; ECU
ELECTRONIC GOV RED4<Q4F> 24V
1-82550-308-1
01
1
0407-
552
RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0407-
