0-36A — TURBOCHARGER SYSTEM (#2610) — 37 parça

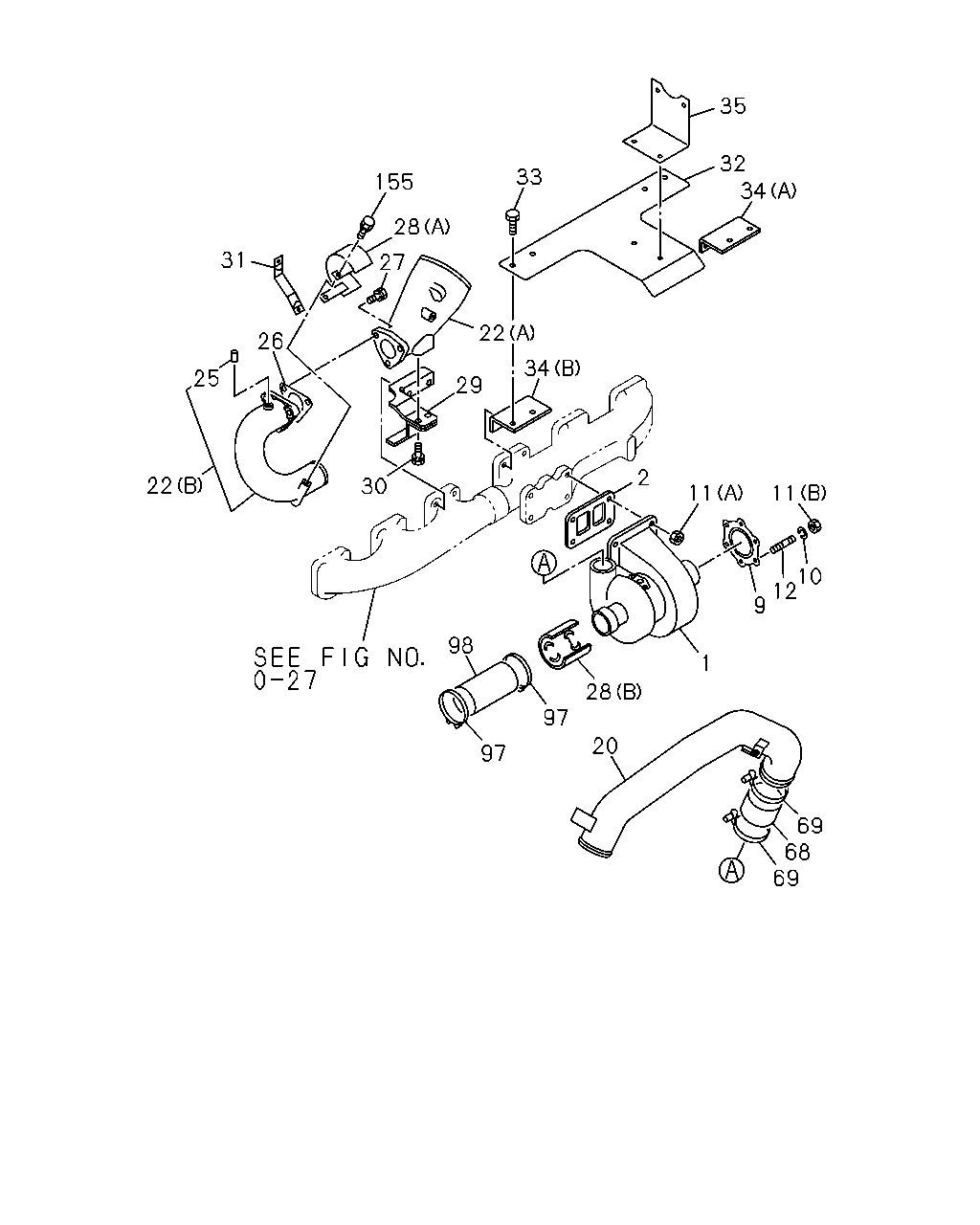

çizim 93958
35 32 34 33 28 155 27 31 26 25 22 30 29 22 34 2 11 11 10 12 9 1 28 20 97 97 98 69 68 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-180-0 01 1 9002-9306 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-170-0 01 1 9002- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-103-0 01 1 9002- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-122-0 01 1 9002- ● ●
10 WASHER; LK,TURBOCHARGER 1-09500-007-0 06 1 9002- ● ●
11 NUT; TURBOCHARGER
(B) 		1-09400-027-0 06 1 9002- ● ●
11 NUT; TURBOCHARGER
(A) 		9-09844-575-0 04 1 9002- ● ●
12 STUD; TURBOCHARGER
M10X30 L=45 		1-09302-106-0 06 1 9002- ● ●
20 PIPE; INL,TURBOCHARGER OUT 1-14112-334-0 01 1 9002-9101 ●
20 PIPE; INL,TURBOCHARGER OUT 1-14112-448-3 01 1 9102-9306 ●
20 PIPE; INL,TURBOCHARGER OUT 1-14112-228-0 01 1 9002-9101 ●
20 PIPE; INL,TURBOCHARGER OUT 1-14112-228-0 01 1 9107- ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		1-14114-826-0 01 1 9002- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		1-14114-995-0 01 1 9002- ● ●
25 PIPE; AIR SUCTION 8-94129-650-0 01 1 9002- ● ●
26 GASKET; DUCT 1-14117-022-0 01 1 9002- ● ●
27 BOLT; DUCT,ACL TO TURBOCHARGER
M10X35 W/LK WASHER 		9-01991-035-0 03 1 9002-9002 ● ●
27 BOLT; DUCT,ACL TO TURBOCHARGER
M10X35 W/LK&PL WASHER 		0-50151-035-0 03 1 9003- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-190-0 01 1 9002- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-191-1 01 1 9002- ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-165-1 01 1 9002- ● ●
30 BOLT; PIPE TO BRKT
M10X25 		9-01911-025-0 02 1 9002-9002 ● ●
30 BOLT; PIPE TO BRKT
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9003- ● ●
31 BRACKET; INL DUCT,HEAT PROTECTOR 1-14119-231-0 01 1 9002- ● ●
32 PROTECTOR; HEAT,TURBOCHARGER 1-14181-196-0 01 1 9002- ● ●
33 BOLT; HEAT PROTECTOR
M10X22 		9-01971-022-0 06 1 9002-9002 ● ●
33 BOLT; HEAT PROTECTOR
M10X22 W/LK&PL WASHER 		0-50141-022-0 06 1 9003- ● ●
34 BRACKET; HEAT PROTECTOR
(A) 		1-14189-080-0 01 1 9002- ● ●
34 BRACKET; HEAT PROTECTOR
(B) 		1-14189-082-0 01 1 9002- ● ●
35 STAY; HEAT PROTECTOR,TURBOCHARGER 1-14189-081-0 01 1 9002- ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-618-1 01 1 9002- ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=58-79 		8-94126-771-0 02 1 9002- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=96 		9-09915-597-0 01 1 9002- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104 		9-09915-601-0 01 1 9002- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-723-1 01 1 9002- ● ●
155 BOLT; HEAT PROTECTOR
M8X20 		9-01970-820-0 02 1 9002-9005 ● ●
155 BOLT; HEAT PROTECTOR
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9006- ● ●
