◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10945 - GXZ(THAI)EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#26098) — 179 parça
çizim 23237
53 334 178 178 59 178 1 530 1
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
6SD1 TCN ENG<31L> (A) L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 0807-
1 SLEEVE; RUBBER
6SD1 TCN ENG<31L> (B) 		8-98125-584-0 01 1 0807-
53 BRACKET; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> 		1-47476-200-0 01 1 0407-
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0407-
178 GROMMET; HARNESS
ELECTRONIC GOV RED4<Q4F> (C) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0407-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0407-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407-
334 BRACKET
ELECTRONIC GOV RED4<Q4F> 		1-47477-571-3 01 1 0407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0407-

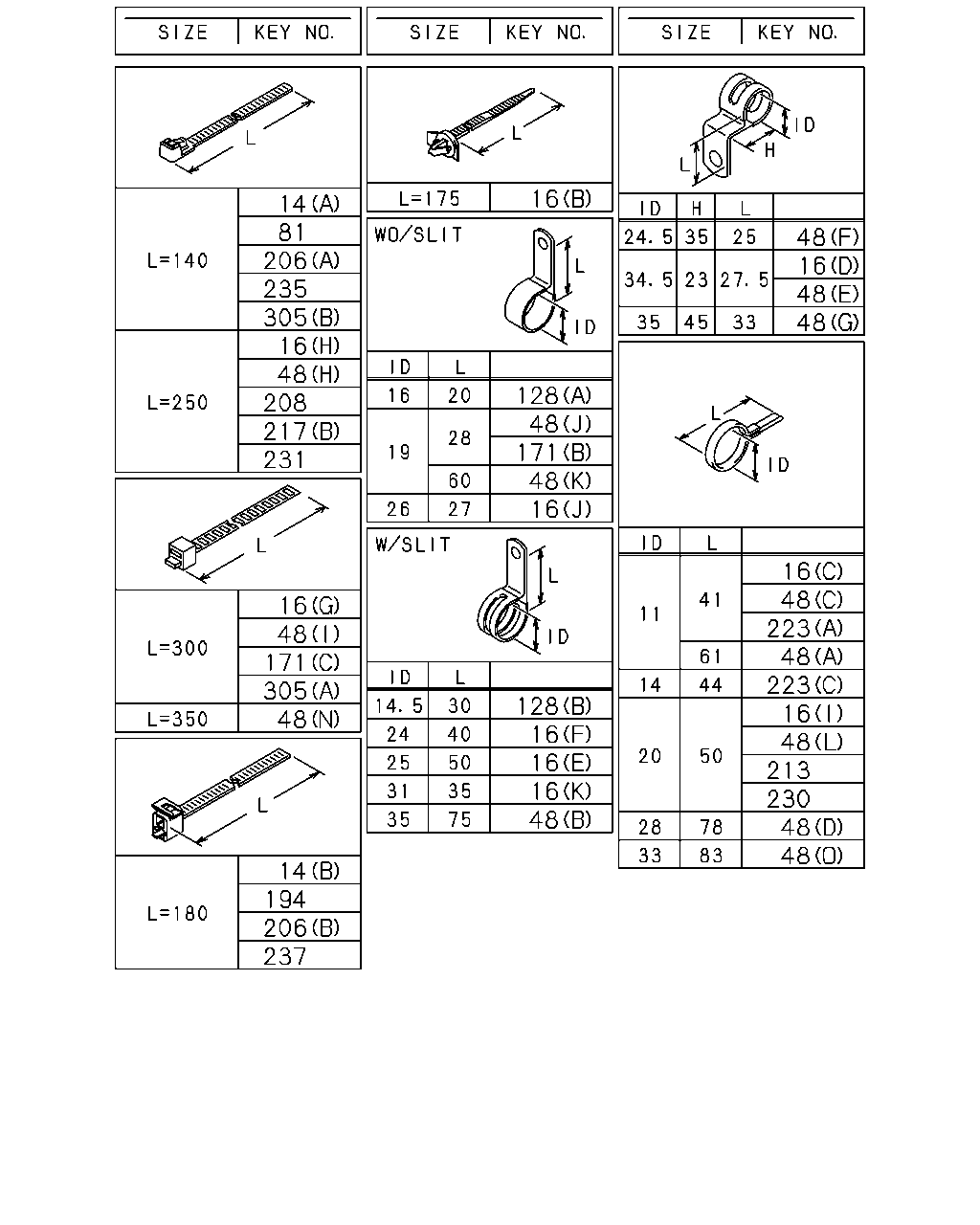

çizim 23238
16 14 81 206 235 305 16 48 208 217 231 48 16 48 48 128 48 171 48 16 16 48 223 48 223 16 48 213 230 48 48 16 48 171 305 48 128 16 16 16 48 14 194 206 237
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
INSPECTION LAMP<T95> (B) L=180 THA 		1-09707-162-1 01 1 0407-
14 CLIP; BAND,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (A) L=140 		5-09707-031-1 01 1 0407-
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 01 1 0503-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (K) ID=31 L=35 		1-09700-329-1 01 1 0407-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (J) ID=26 L=27 		1-09701-006-0 01 1 0407-
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
16 CLIP; HARNESS
(G) L=300 THA 		1-09707-001-1 01 1 0407-
16 CLIP; HARNESS
(M) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(L) ID=6-10 & 10-14 		1-09709-201-1 02 1 0407-
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0407-
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (E) ID=25 L=50 		1-09701-019-0 01 1 0407-
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24 L=40 		1-09701-139-0 01 1 0407-
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=55 		8-94432-655-0 06 1 0407-
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=175 		8-97110-167-0 04 1 0407-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (M) L=175 		1-09707-178-0 02 1 0807-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (N) L=350 		1-09707-183-0 01 1 0603-0806
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (N) L=350 		1-09707-183-0 03 1 0807-
48 CLIP; FRAME HARNESS
(O) ID=33 L=83 		1-09701-291-0 01 1 0501-
48 CLIP; FRAME HARNESS
PTO CONTROL<SV6> (A) ID=11 L=61 THA 		1-09700-484-0 01 1 0407-
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> (C) ID=11 L=41 THA 		1-09700-403-0 01 1 0407-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 10 1 0407-0412
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 09 1 0501-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
48 CLIP; FRAME HARNESS
(I) L=300 THA 		1-09707-001-1 03 1 0407-
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		9-09525-856-0 01 1 0407-0606
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		9-09525-896-0 01 1 0407-0606
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) ID=35 L=75 		1-09700-608-2 01 1 0407-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 09 1 0407-0412
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 08 1 0501-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0407-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (H) L=250 		5-09707-030-1 01 1 0407-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (L) ID=20 L=50 THA 		8-97916-115-0 09 1 0407-0407
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 THA 		8-97916-115-0 09 1 0408-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 THA 		8-97916-115-0 02 1 0407-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (L) ID=20 L=50 THA 		8-97916-115-0 08 1 0407-0407
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0407-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0407-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0407-
171 CLIP; STARTER HARNESS
ELECTRONIC GOV RED4<Q4F> (C) L=300 THA 		1-09707-001-1 01 1 0407-
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0407-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0407-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0407-
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0407-
206 CLIP; FUEL TANK HARNESS
(B) L=180 THA 		1-09707-162-1 01 1 0407-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> L=250 		5-09707-030-1 01 1 0407-0410
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0407-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0407-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0407-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0407-
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0407-
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-1 01 1 0407-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=140 		5-09707-031-1 01 1 0407-
237 CLIP; BAND,ACL
L=180 THA 		1-09707-162-1 01 1 0407-
305 CLIP; ENG HARNESS
(A) L=300 THA 		1-09707-001-1 01 1 0407-
305 CLIP; ENG HARNESS
6SD1 TCN ENG<31L> (B) L=140 THA 		8-97920-656-0 02 1 0407-
çizim 82384
239 516 119 38 38 139 38 139 524 219 294 38 38 210 520 184 38 133 239 239 38 88 173 209
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED4<Q4F> (A) M8X20 FLANGE 		0-28080-820-0 02 1 0407-0611
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED4<Q4F> (A) M8X20 FLANGE THA 		0-28050-820-0 02 1 0612-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 04 1 0407-0611
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE THA 		0-28650-830-0 04 1 0612-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0407-
38 BOLT; CLIP,HARNESS
6SD1 TCS ENG<83L> (F) M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 0407-0701
38 BOLT; CLIP,HARNESS
6SD1 TCS ENG<83L> (F) M8X25 W/LK&PL WASHER 		0-50640-825-0 01 1 0702-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0611
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE THA 		0-28650-820-0 02 1 0612-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0611
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE THA 		0-28650-820-0 03 1 0612-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0611
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0612-
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0407-0701
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0702-
38 BOLT; CLIP,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0611
38 BOLT; CLIP,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0612-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0407-
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0407-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0407-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0407-
139 BOLT; BRKT
ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0512
139 BOLT; BRKT
ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE THA 		0-28650-825-0 01 1 0601-
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0407-0512
139 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0407-
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0407-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0407-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0407-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0407-0602
219 NUT
M8 FLANGE THA 		0-91180-108-0 05 1 0603-
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 03 1 0407-0602
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE THA 		0-91180-108-0 03 1 0603-
239 BOLT; GRAND
(A) M5X8 THA 		0-20800-508-0 01 1 0407-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0407-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0407-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0407-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0407-0605
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 01 1 0606-
çizim 84464
16 217 148 48 148 168 223 470 16 116 171 121 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 01 1 0503-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (K) ID=31 L=35 		1-09700-329-1 01 1 0407-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (J) ID=26 L=27 		1-09701-006-0 01 1 0407-
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
16 CLIP; HARNESS
(G) L=300 THA 		1-09707-001-1 01 1 0407-
16 CLIP; HARNESS
(M) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(L) ID=6-10 & 10-14 		1-09709-201-1 02 1 0407-
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0407-
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (E) ID=25 L=50 		1-09701-019-0 01 1 0407-
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24 L=40 		1-09701-139-0 01 1 0407-
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=55 		8-94432-655-0 06 1 0407-
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=175 		8-97110-167-0 04 1 0407-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (M) L=175 		1-09707-178-0 02 1 0807-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (N) L=350 		1-09707-183-0 01 1 0603-0806
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (N) L=350 		1-09707-183-0 03 1 0807-
48 CLIP; FRAME HARNESS
(O) ID=33 L=83 		1-09701-291-0 01 1 0501-
48 CLIP; FRAME HARNESS
PTO CONTROL<SV6> (A) ID=11 L=61 THA 		1-09700-484-0 01 1 0407-
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> (C) ID=11 L=41 THA 		1-09700-403-0 01 1 0407-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 10 1 0407-0412
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 09 1 0501-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407-
48 CLIP; FRAME HARNESS
(I) L=300 THA 		1-09707-001-1 03 1 0407-
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		9-09525-856-0 01 1 0407-0606
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		9-09525-896-0 01 1 0407-0606
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) ID=35 L=75 		1-09700-608-2 01 1 0407-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 09 1 0407-0412
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 08 1 0501-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0407-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (H) L=250 		5-09707-030-1 01 1 0407-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (L) ID=20 L=50 THA 		8-97916-115-0 09 1 0407-0407
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 THA 		8-97916-115-0 09 1 0408-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 THA 		8-97916-115-0 02 1 0407-
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (L) ID=20 L=50 THA 		8-97916-115-0 08 1 0407-0407
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0407-
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> OD=7 H=1.2 		8-94364-750-0 02 1 0407-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 THA 		8-94232-611-0 01 1 0407-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0407-
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0407-
171 CLIP; STARTER HARNESS
ELECTRONIC GOV RED4<Q4F> (C) L=300 THA 		1-09707-001-1 01 1 0407-
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0407-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0407-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0407-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0407-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
