◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10945 - GXZ(THAI)EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#26097) — 108 parça

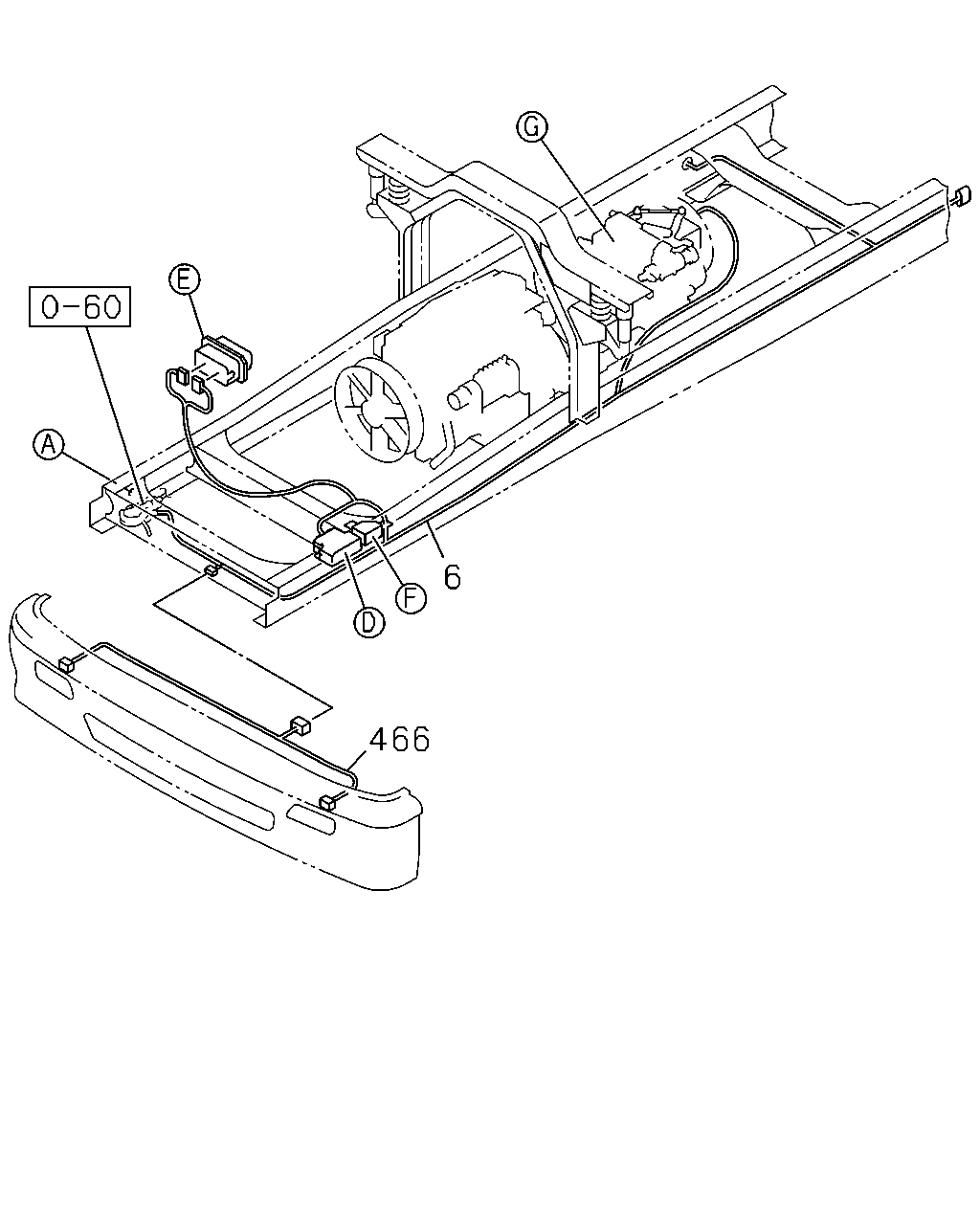

çizim 23123
6 466
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ELECTRONIC GOV RED4<Q4F> THA 		8-97922-156-3 01 1 0407-
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97922-250-1 01 1 0407-
466 HARNESS; BUMPER
THA 		8-97916-311-0 01 1 0407-

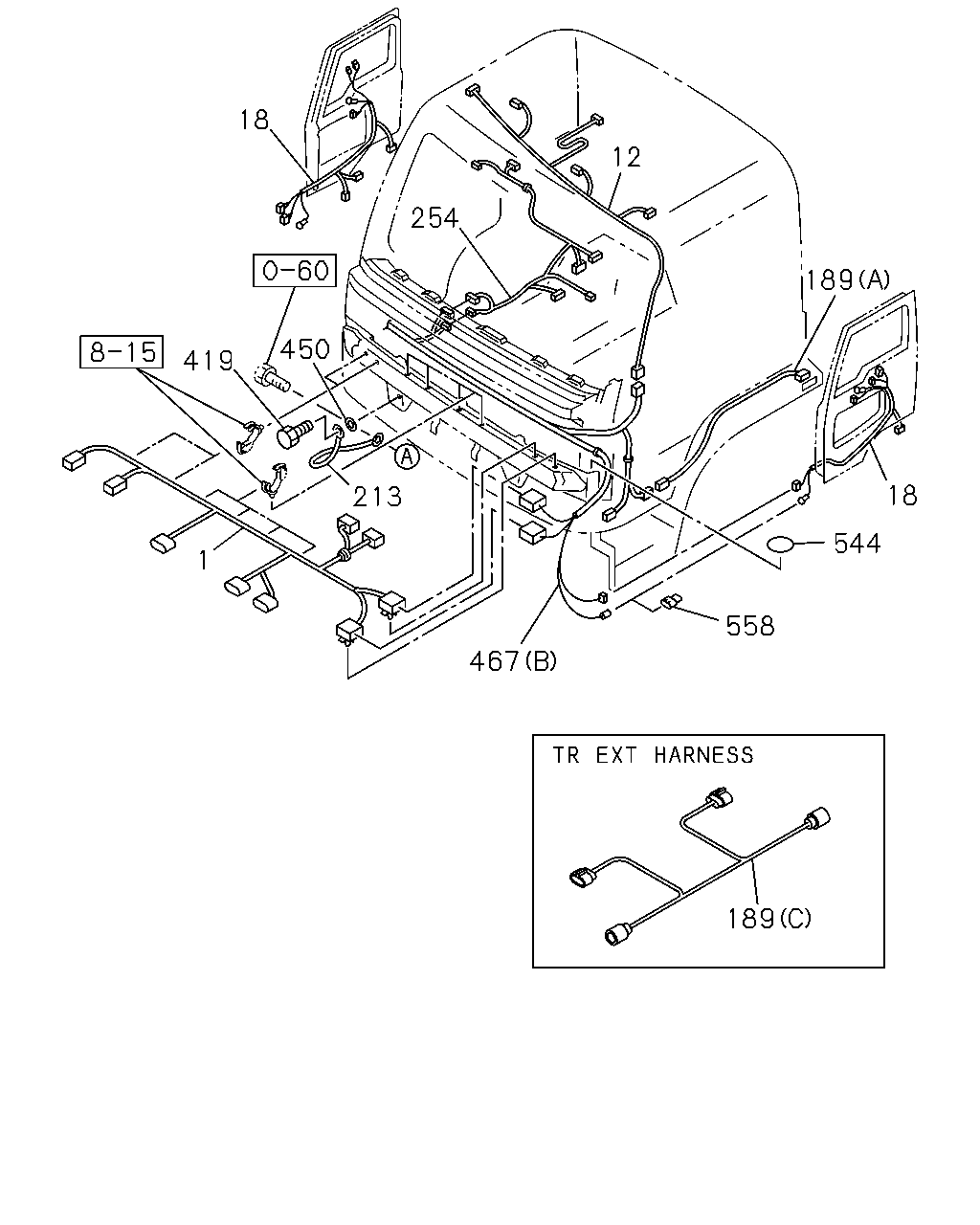

çizim 82106
18 12 254 189 450 419 18 213 544 1 558 467 189
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
THA 		1-82625-717-1 01 1 0407-
12 HARNESS; ROOF
THA 		8-97917-543-0 01 1 0407-
18 HARNESS; DOOR
POWER WINDOW<A30> THA 		8-97922-096-2 01 1 0407-
18 HARNESS; DOOR
POWER WINDOW<A30> THA 		8-97922-097-2 01 1 0407-
189 HARNESS; EXT
EXC. ELECTRONIC GOV RED4<Q4F> (C) THA 		8-97923-648-0 01 1 0702-
189 HARNESS; EXT
6SD1 TCS ENG<83L> (B) 		1-82641-202-0 01 1 0407-
189 HARNESS; EXT
(A) THA 		8-97916-648-0 02 1 0407-
213 CABLE; EARTH,CAB TO FRAME
THA 		8-97916-647-0 01 1 0407-
254 HARNESS; CAB FLOOR
THA 		8-97922-669-0 01 1 0407-
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0407-
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0407-0605
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> POWER WINDOW<A30> (B) THA 		8-97922-666-1 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> EXC. POWER WINDOW<A30> (B) THA 		8-97922-665-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> POWER WINDOW<A30> (B) THA 		8-97922-667-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> EXC. POWER WINDOW<A30> (B) THA 		8-97922-668-1 01 1 0407-
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407-
544 SEAL; FRT MTG RAIL
OD=25 BLACK THA 		1-76798-019-0 01 1 0407-
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 		1-82690-666-0 02 1 0407-

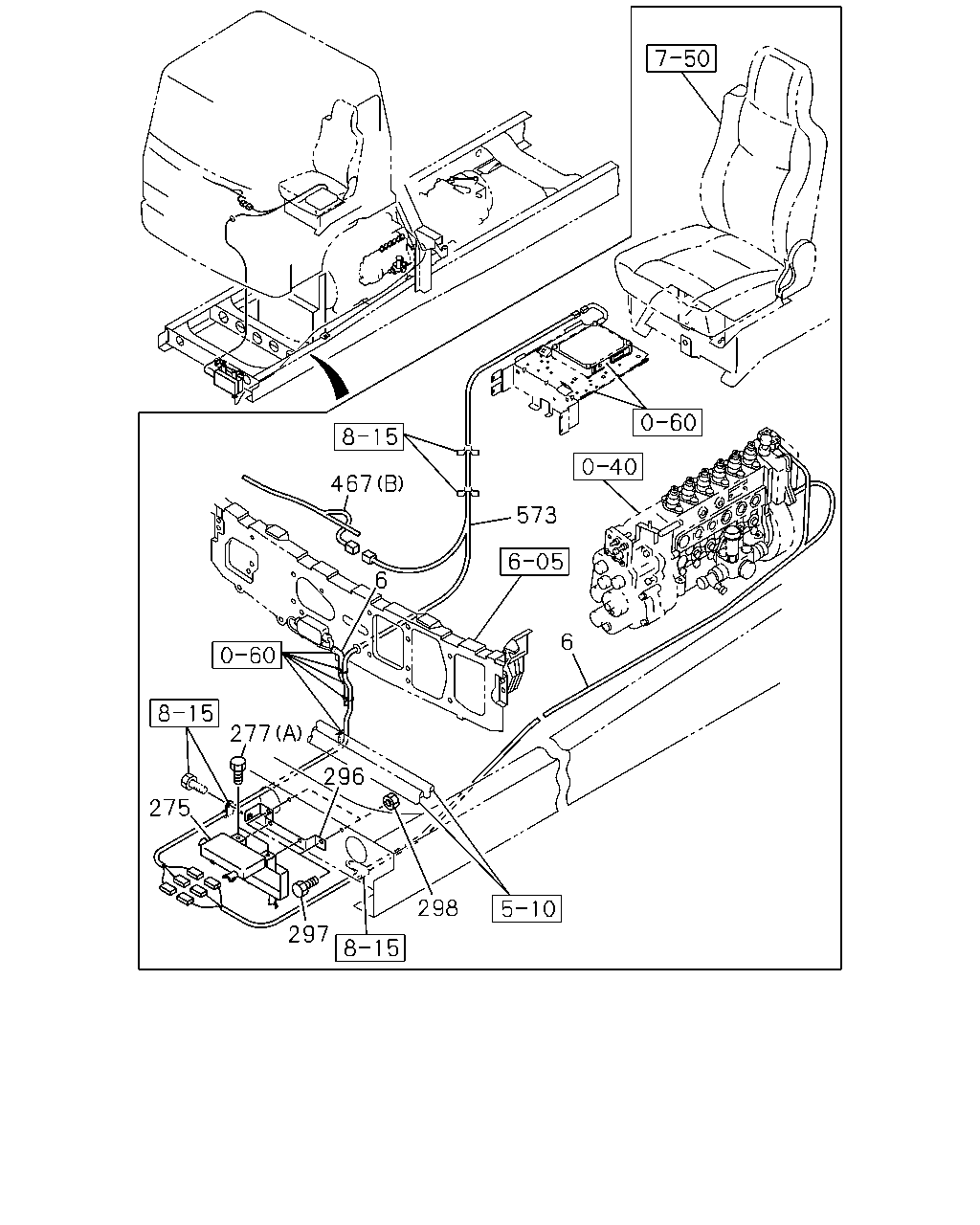

çizim 82385
467 573 6 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ELECTRONIC GOV RED4<Q4F> THA 		8-97922-156-3 01 1 0407-
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97922-250-1 01 1 0407-
275 BOX ASM; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> 		1-82699-378-0 01 1 0407-
277 BOLT; BOX ASM FIX
ELECTRONIC GOV RED4<Q4F> (C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0407-
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0407-0704
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0705-
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
296 BRACKET; HARNESS BOX
EXC. ELECTRONIC GOV RED4<Q4F> 		1-82699-923-0 01 1 0407-
297 BOLT; BOX BRKT
EXC. ELECTRONIC GOV RED4<Q4F> M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
297 BOLT; BOX BRKT
EXC. ELECTRONIC GOV RED4<Q4F> M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
298 NUT; BOX BRKT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 02 1 0407-0602
298 NUT; BOX BRKT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE THA 		0-91180-108-0 02 1 0603-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> POWER WINDOW<A30> (B) THA 		8-97922-666-1 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> EXC. POWER WINDOW<A30> (B) THA 		8-97922-665-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> POWER WINDOW<A30> (B) THA 		8-97922-667-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> EXC. POWER WINDOW<A30> (B) THA 		8-97922-668-1 01 1 0407-
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407-
573 HARNESS; CONTROL UNIT
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97915-004-0 01 1 0407-

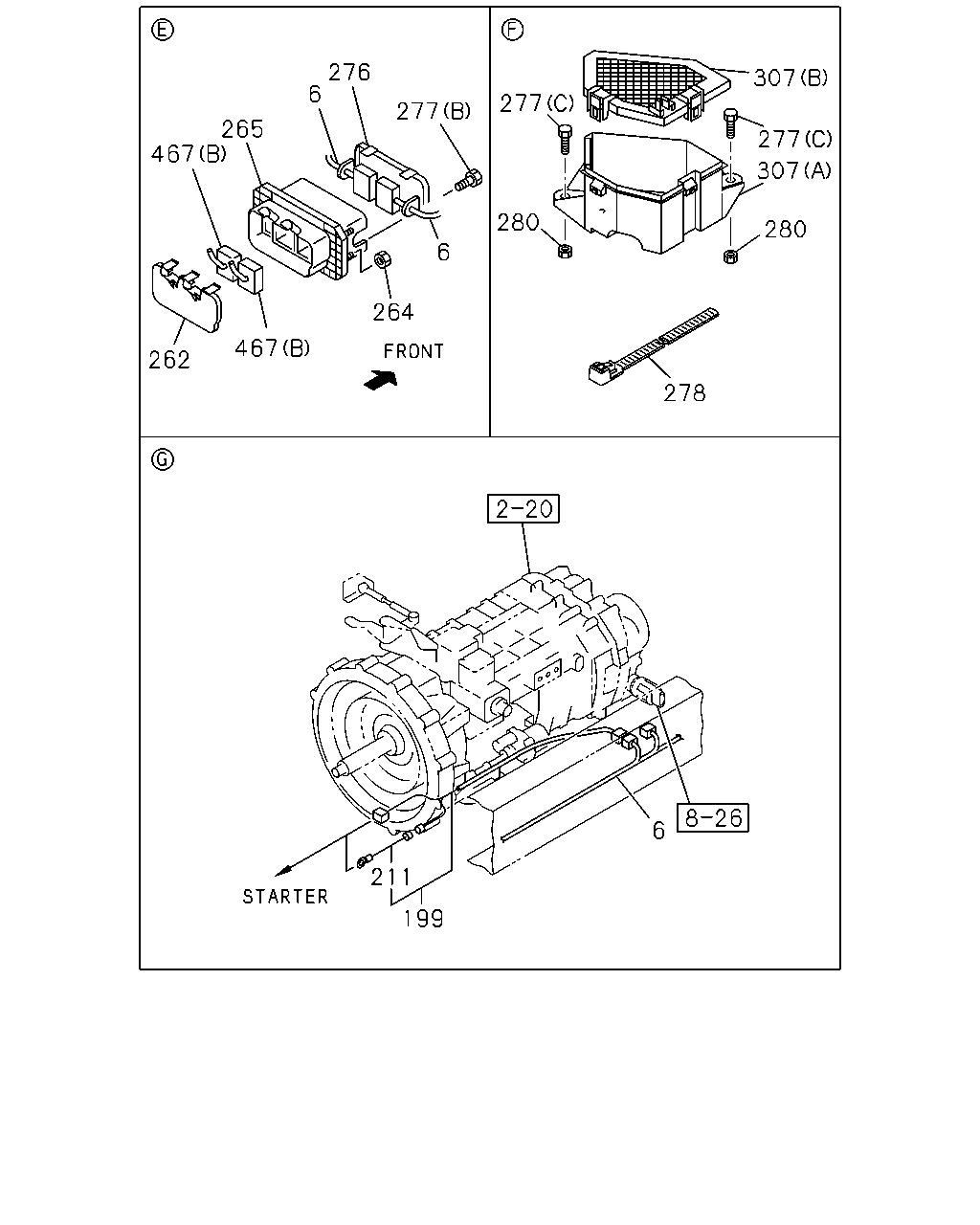

çizim 83899
276 6 307 277 277 265 467 277 307 280 280 6 264 467 262 278 6 211 199
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ELECTRONIC GOV RED4<Q4F> THA 		8-97922-156-3 01 1 0407-
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97922-250-1 01 1 0407-
199 HARNESS; STARTER
THA 		8-97916-313-0 01 1 0407-
211 WIRE; FUSIBLE LINK,STARTER
WHITE THA 		1-82659-124-0 01 1 0407-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0407-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0407-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0407-
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0407-
277 BOLT; BOX ASM FIX
ELECTRONIC GOV RED4<Q4F> (C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0407-
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0407-0704
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0705-
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
278 CLIP; BOX
ELECTRONIC GOV RED4<Q4F> L=140 		5-09707-031-1 02 1 0407-
280 NUT; BOX ASM FIX
ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 02 1 0407-
307 BOX; ENG HARNESS
ELECTRONIC GOV RED4<Q4F> (A) 		1-82698-119-0 01 1 0407-
307 BOX; ENG HARNESS
ELECTRONIC GOV RED4<Q4F> (B) 		1-82698-138-0 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> POWER WINDOW<A30> (B) THA 		8-97922-666-1 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> EXC. POWER WINDOW<A30> (B) THA 		8-97922-665-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> POWER WINDOW<A30> (B) THA 		8-97922-667-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> EXC. POWER WINDOW<A30> (B) THA 		8-97922-668-1 01 1 0407-
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407-

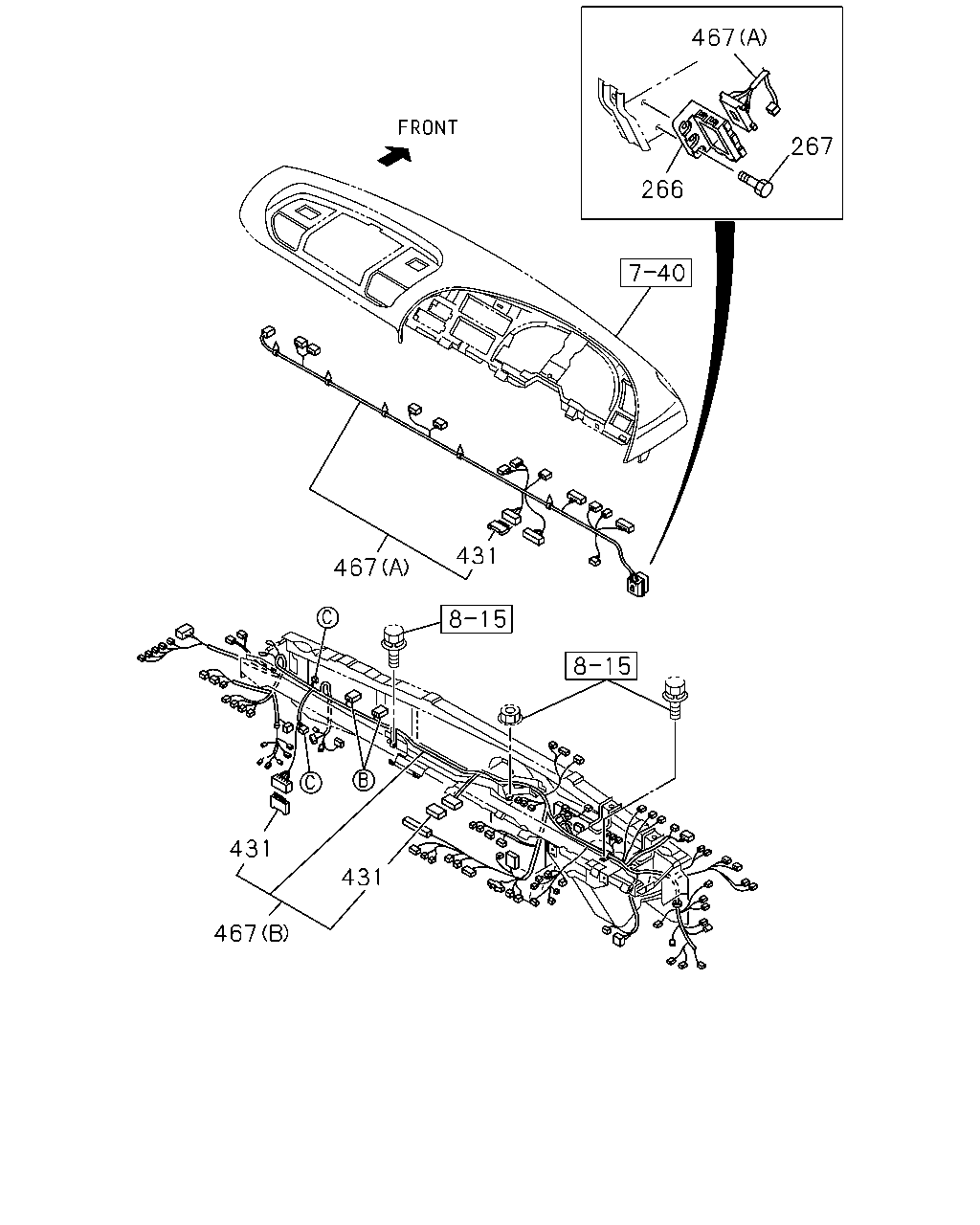

çizim 84232
467 267 266 431 467 431 431 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0407-
267 BOLT; BRKT
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0407-
431 CONNECTOR; JOINT
6SD1 TCN ENG<31L> BROWN 10P THA 		1-82699-601-0 02 1 0407-
431 CONNECTOR; JOINT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> BROWN 10P THA 		1-82699-601-0 03 1 0407-
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> POWER WINDOW<A30> (B) THA 		8-97922-666-1 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> EXC. POWER WINDOW<A30> (B) THA 		8-97922-665-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> POWER WINDOW<A30> (B) THA 		8-97922-667-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> EXC. POWER WINDOW<A30> (B) THA 		8-97922-668-1 01 1 0407-
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407-

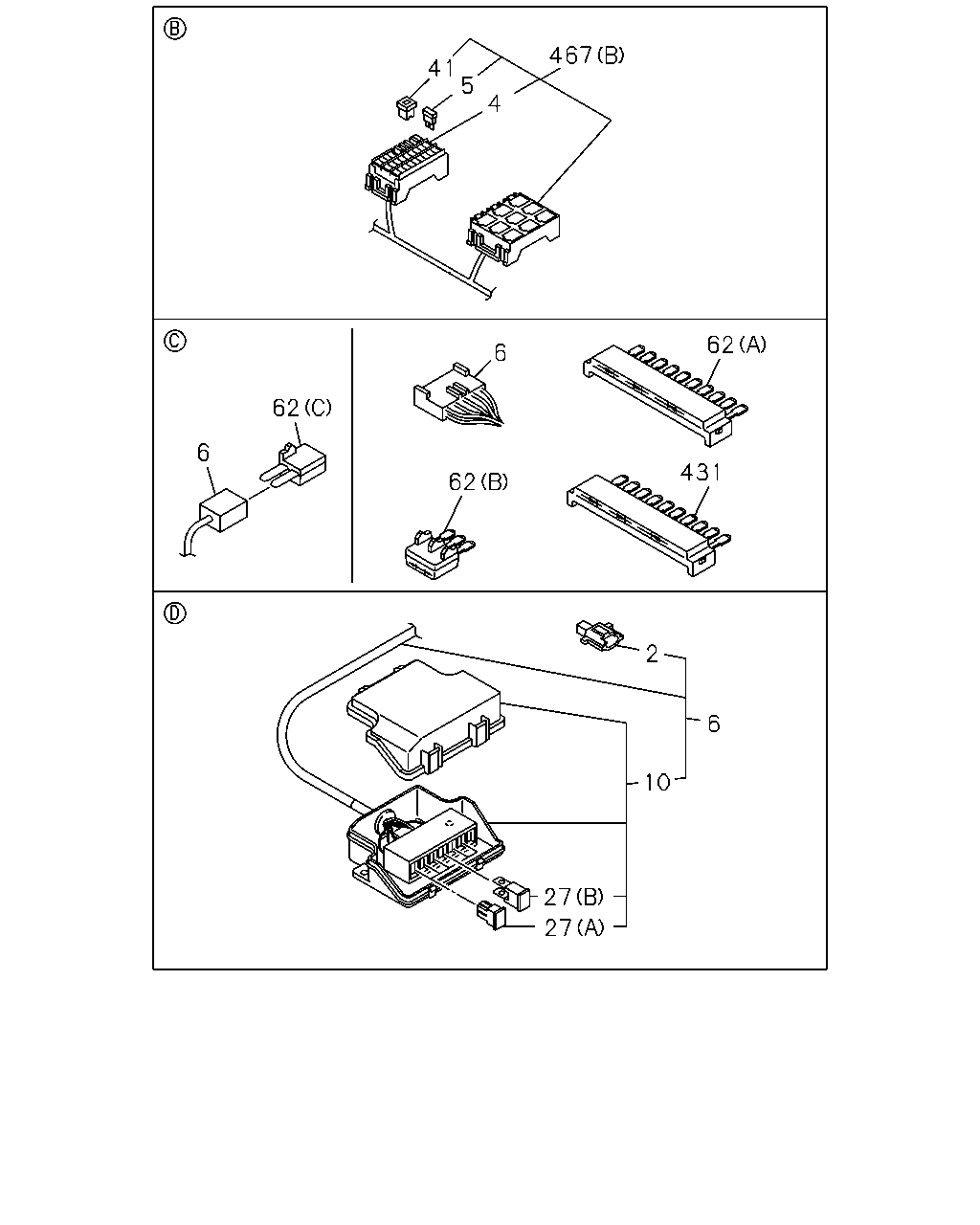

çizim 84816
467 41 5 4 62 6 62 6 431 62 2 6 10 27 27
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A THA 		1-81514-015-0 01 1 0407-
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG<31L> THA 		1-82510-635-0 01 1 0407-
4 BOX ASM; FUSE,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 7.5AX17 THA 		1-82510-393-0 01 1 0407-
4 BOX ASM; FUSE,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 15AX12 THA 		1-82510-432-0 01 1 0407-
5 FUSE; FACIA HARNESS
6SD1 TCN ENG<31L> 		5-82616-004-0 01 1 0503-
5 FUSE; FACIA HARNESS
ELECTRONIC GOV RED4<Q4F> 20A YELLOW THA 		5-82516-004-0 01 1 0503-
5 FUSE; FACIA HARNESS
6SD1 TCN ENG<31L> 7.5A BROWN THA 		8-94159-007-0 14 1 0407-
5 FUSE; FACIA HARNESS
6SD1 TCN ENG<31L> 15A BLUE THA 		5-82516-003-0 12 1 0407-
5 FUSE; FACIA HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 15A BLUE THA 		5-82516-003-0 12 1 0407-
5 FUSE; FACIA HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 7.5A BROWN THA 		8-94159-007-0 17 1 0407-
6 HARNESS; FRAME
ELECTRONIC GOV RED4<Q4F> THA 		8-97922-156-3 01 1 0407-
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97922-250-1 01 1 0407-
10 BOX; FUSE,HARNESS
THA 		1-82510-409-0 01 1 0407-
27 FUSE UNIT
(A) 40A GREEN THA 		8-94468-662-0 03 1 0407-
27 FUSE UNIT
(B) 60A YELLOW THA 		8-94468-669-0 01 1 0407-
41 PULLER; FUSE
6SD1 TCN ENG<31L> L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0407-
41 PULLER; FUSE
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0407-
62 DIODE; HARNESS
6SD1 TCN ENG<31L> (C) BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0407-
62 DIODE; HARNESS
6SD1 TCN ENG<31L> (A) BLACK 10P THA 		1-82699-703-0 02 1 0407-
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) BLACK 10P THA 		1-82699-703-0 02 1 0407-
62 DIODE; HARNESS
6SD1 TCN ENG<31L> (B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0407-
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0407-
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (C) BLACK 2P-1.5A THA 		8-94422-639-1 05 1 0407-
431 CONNECTOR; JOINT
6SD1 TCN ENG<31L> BROWN 10P THA 		1-82699-601-0 02 1 0407-
431 CONNECTOR; JOINT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> BROWN 10P THA 		1-82699-601-0 03 1 0407-
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> POWER WINDOW<A30> (B) THA 		8-97922-666-1 01 1 0407-
467 HARNESS; FACIA
6SD1 TCN ENG<31L> EXC. POWER WINDOW<A30> (B) THA 		8-97922-665-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> POWER WINDOW<A30> (B) THA 		8-97922-667-1 01 1 0407-
467 HARNESS; FACIA
ELECTRONIC GOV RED4<Q4F> EXC. POWER WINDOW<A30> (B) THA 		8-97922-668-1 01 1 0407-
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407-

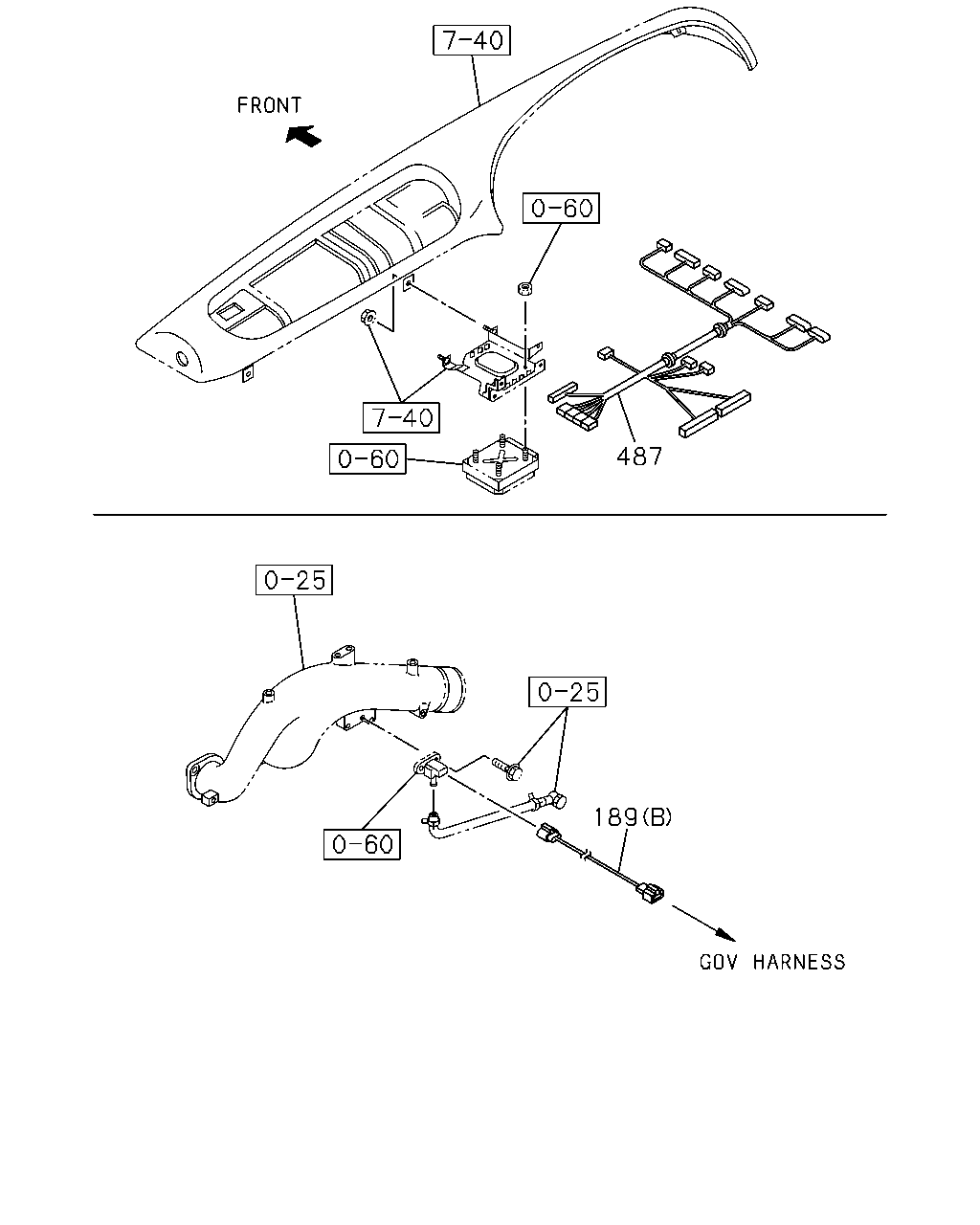

çizim 84817
487 189
BalonParca AdiParca NoAdetTipApplied Date
189 HARNESS; EXT
EXC. ELECTRONIC GOV RED4<Q4F> (C) THA 		8-97923-648-0 01 1 0702-
189 HARNESS; EXT
6SD1 TCS ENG<83L> (B) 		1-82641-202-0 01 1 0407-
189 HARNESS; EXT
(A) THA 		8-97916-648-0 02 1 0407-
487 HARNESS; GOV
ELECTRONIC GOV RED4<Q4F> THA 		8-97922-159-0 01 1 0407-
