7-50 — FRONT SEAT (#26091) — 95 parça

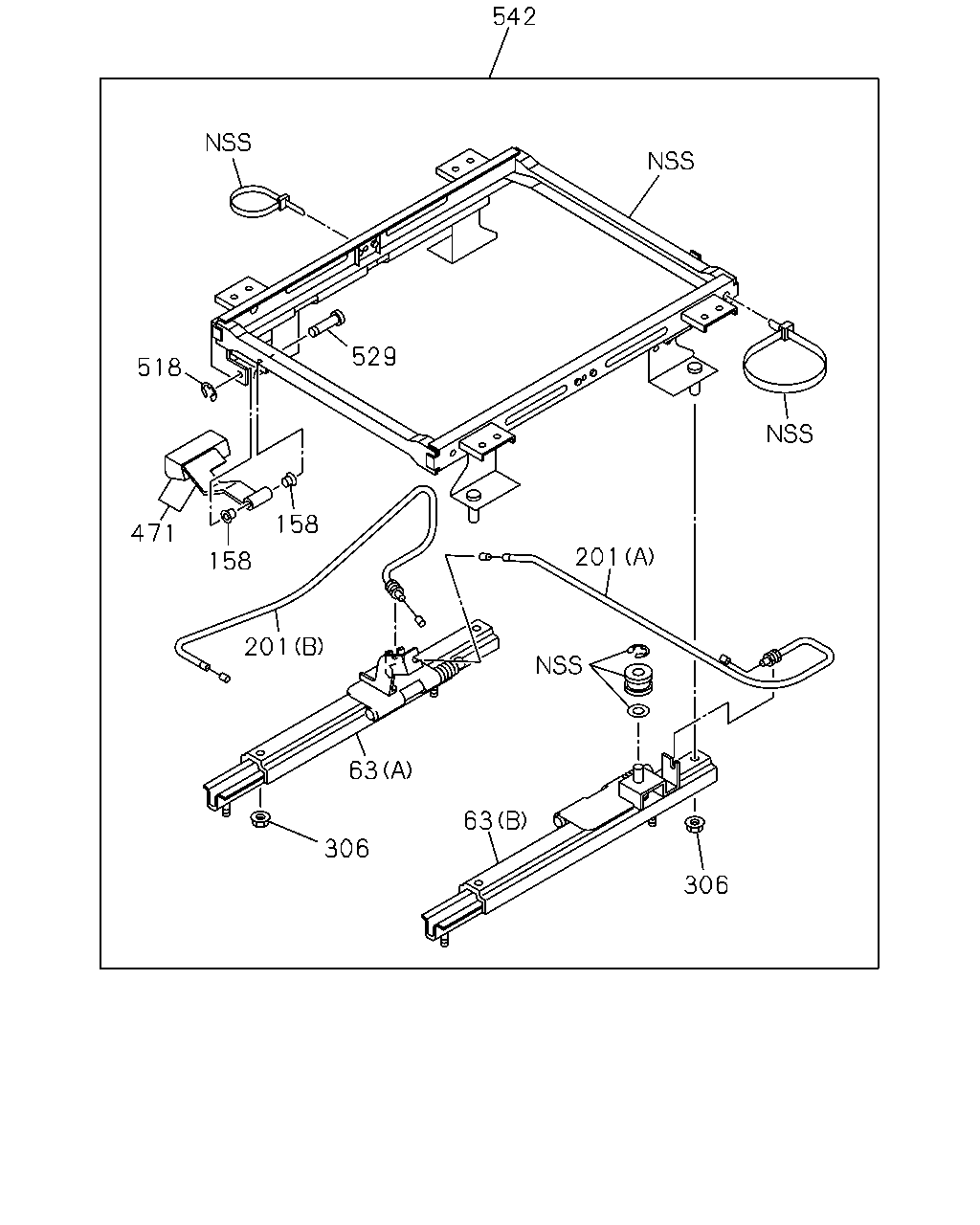

542 529 518 158 471 201 158 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B) THA	1-75518-199-1	01	1	0407-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A) THA	1-75518-294-1	01	1	0407-
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (B) THA	1-75518-199-1	01	1	0407-
63	ADJUSTER; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> (A) THA	1-75518-294-1	01	1	0407-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> THA	1-75518-209-0	02	1	0407-
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ> THA	1-75518-209-0	02	1	0407-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=667 THA	1-75518-288-0	01	1	0407-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=605 THA	1-75518-289-1	01	1	0407-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE THA	1-75538-207-0	04	1	0407-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	0407-
471	LEVER; SEAT ADJ THA	1-75518-291-0	01	1	0407-0710
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	0711-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> THA	1-75518-263-0	01	1	0407-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> THA	1-75518-262-0	01	1	0407-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> THA	1-75518-282-1	01	1	0407-
542	ADJUSTER ASM; SEAT SLIDE THA	1-75518-282-1	01	1	0407-

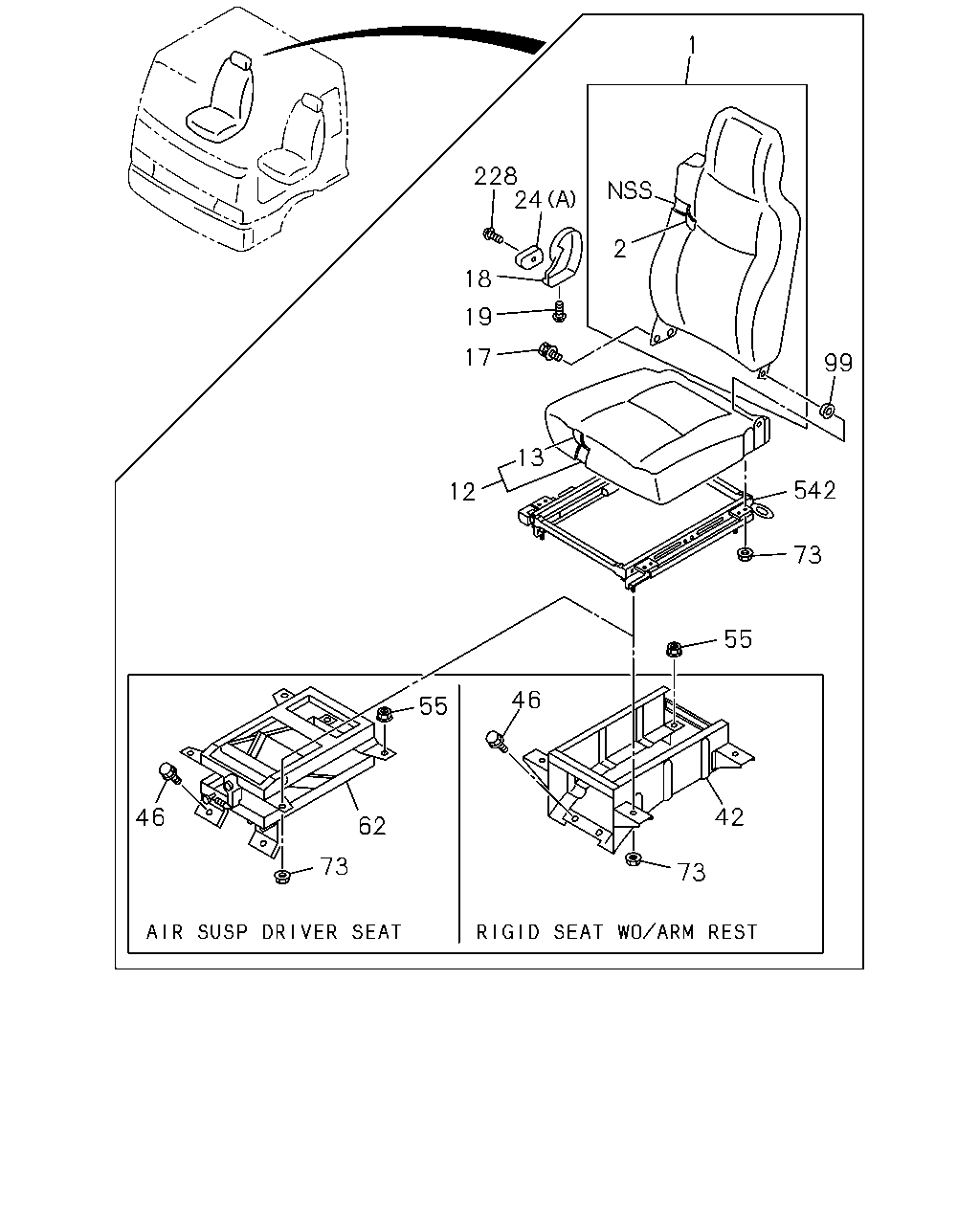

1 228 24 2 18 19 17 99 13 542 12 73 55 55 46 42 46 62 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> THA	8-97922-462-0	01	1	0407-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-049-2	01	1	0407-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> THA	8-97922-464-0	01	1	0407-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75127-036-1	01	1	0407-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> THA	8-97922-458-0	01	1	0407-
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75207-147-2	01	1	0407-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> THA	8-97922-460-0	01	1	0407-
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-712-1	01	1	0407-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> THA	8-97921-465-0	02	1	0407-
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> M8X20 THA	8-97255-906-0	02	1	0407-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> THA	8-97913-525-0	01	1	0407-
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> THA	1-75418-050-0	01	1	0407-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0407-
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0407-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> (A) DRIVER THA	8-97913-535-0	01	1	0407-
24	KNOB; RECLINING,FRT,SEAT (B) PASSENGER THA	8-97913-536-0	01	1	0407-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> (A) DRIVER THA	1-75418-059-0	01	1	0407-0710
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> (A) DRIVER THA	1-75418-068-0	01	1	0711-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-1	01	1	0407-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0407-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE THA	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0407-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE THA	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-183-4	01	1	0407-
73	NUT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> M8 FLANGE THA	1-75538-207-0	08	1	0407-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE THA	1-75538-207-0	04	1	0407-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	08	1	0407-
99	BUSHING; SEAT BACK AIR SUSP DRIVER SEAT<A56> THA	8-97916-793-0	01	1	0407-
99	BUSHING; SEAT BACK RIGID SEAT WO/ARM REST<TAZ> THA	8-97854-087-0	01	1	0407-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> DRIVER M4	8-98062-662-0	01	1	0407-
228	SCREW; KNOB PASSENGER THA	8-97917-784-0	01	1	0407-
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> DRIVER THA	8-97917-784-0	01	1	0407-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> THA	1-75518-282-1	01	1	0407-
542	ADJUSTER ASM; SEAT SLIDE THA	1-75518-282-1	01	1	0407-

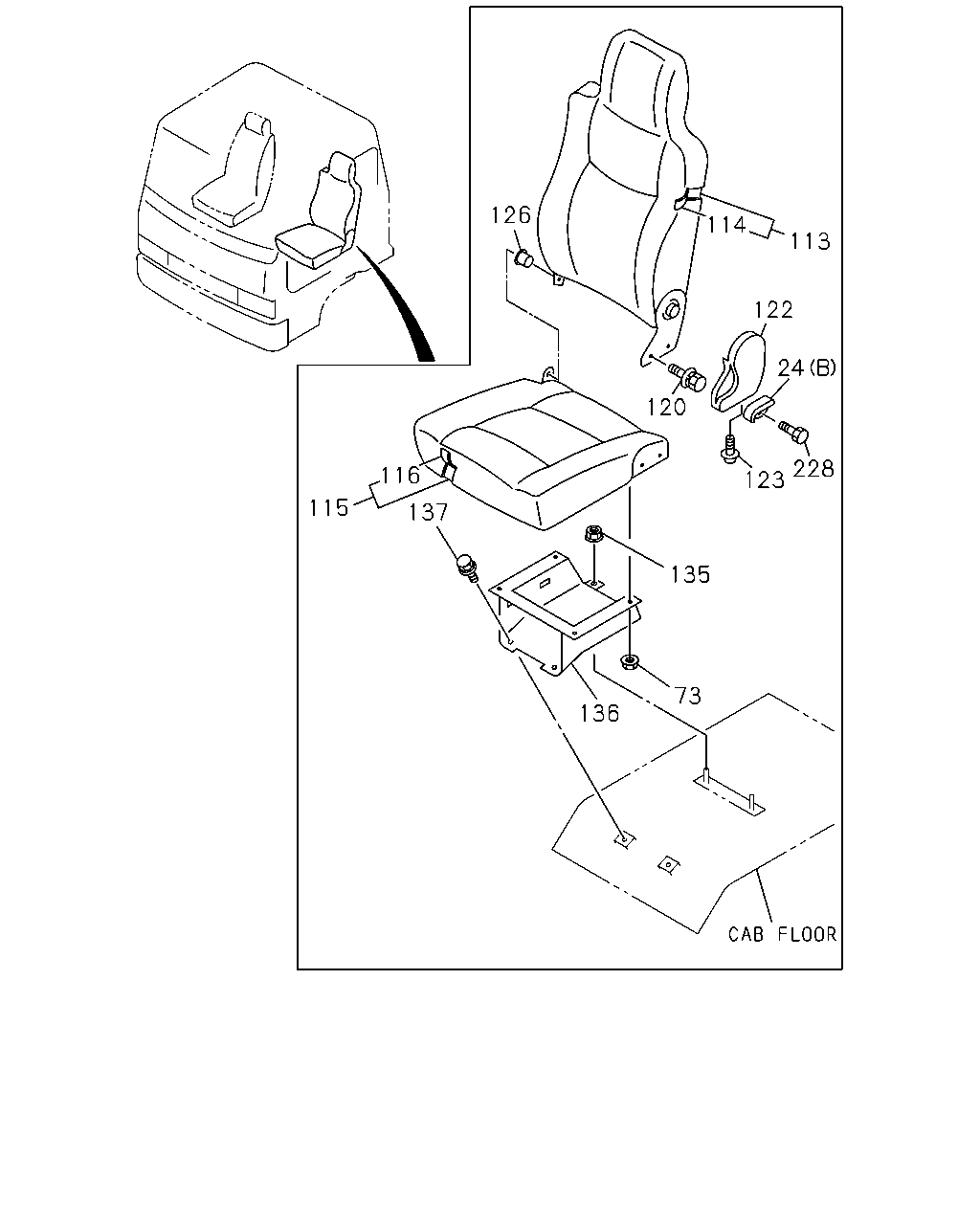

126 114 113 122 24 120 228 123 116 115 137 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> (A) DRIVER THA	8-97913-535-0	01	1	0407-
24	KNOB; RECLINING,FRT,SEAT (B) PASSENGER THA	8-97913-536-0	01	1	0407-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> (A) DRIVER THA	1-75418-059-0	01	1	0407-0710
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> (A) DRIVER THA	1-75418-068-0	01	1	0711-
73	NUT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> M8 FLANGE THA	1-75538-207-0	08	1	0407-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE THA	1-75538-207-0	04	1	0407-
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	08	1	0407-
113	BACK ASM; SEAT THA	8-97922-476-0	01	1	0407-
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97922-477-0	01	1	0407-
115	CUSHION ASM; PASSENGER SEAT THA	8-97922-474-0	01	1	0407-
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97922-475-0	01	1	0407-
120	BOLT; RECLINING ADJ THA	8-97921-465-0	02	1	0407-
122	COVER; ADJ,RECLINING THA	8-97913-526-0	01	1	0407-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0407-
126	BUSHING; HINGE,RECLINING THA	8-97916-793-0	01	1	0407-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0407-0703
135	NUT; SEAT STAND M10 FLANGE THA	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT THA	1-75558-547-6	01	1	0407-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0407-0703
137	BOLT; STAND M10X20 FLANGE THA	0-28451-020-0	02	1	0704-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> DRIVER M4	8-98062-662-0	01	1	0407-
228	SCREW; KNOB PASSENGER THA	8-97917-784-0	01	1	0407-
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> DRIVER THA	8-97917-784-0	01	1	0407-

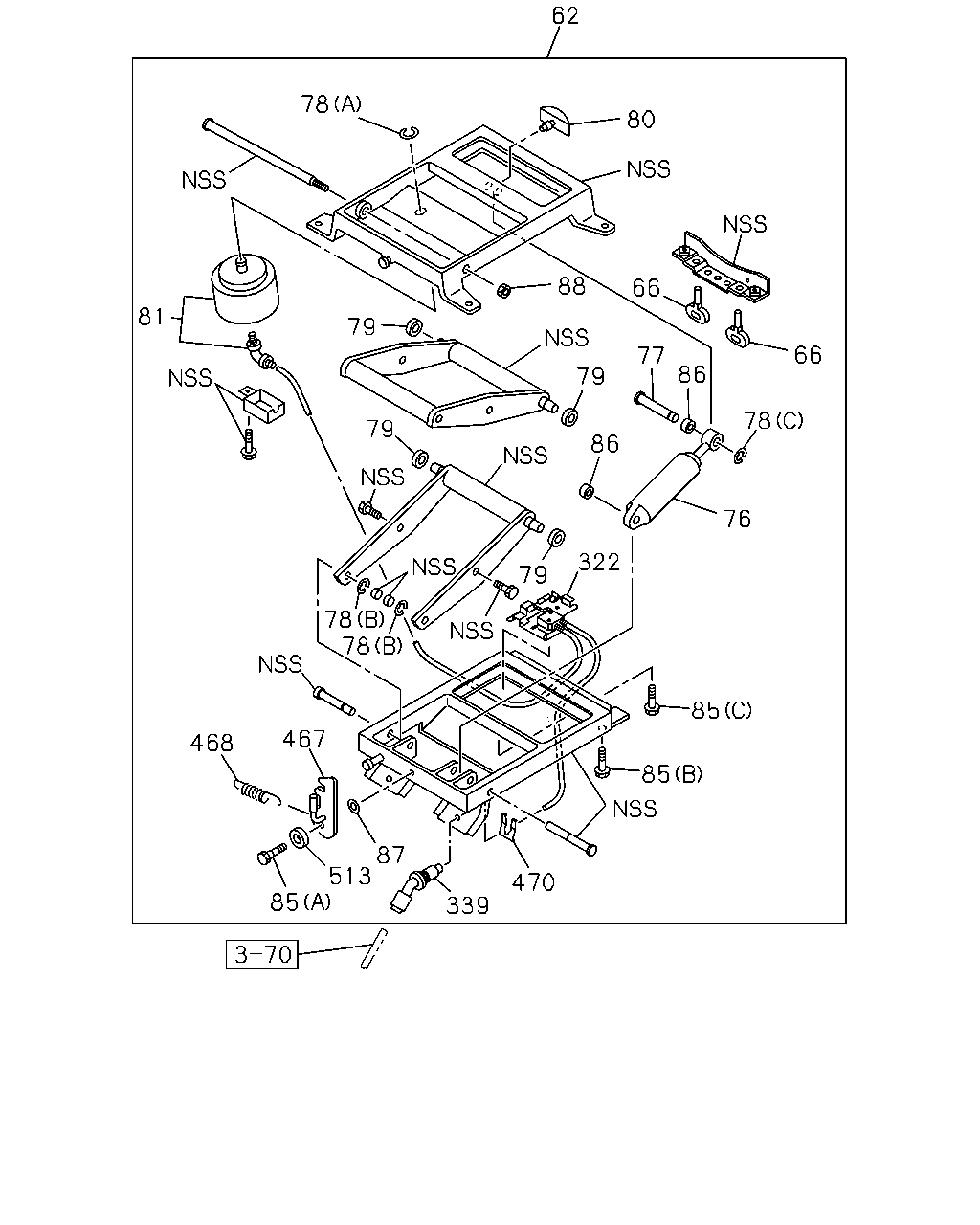

62 78 80 88 66 81 79 66 77 86 79 78 79 86 76 322 79 78 78 85 467 468 85 87 513 470 85 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-183-4	01	1	0407-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> THA	1-75538-145-0	02	1	0407-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-139-0	01	1	0407-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> THA	1-75538-138-2	01	1	0407-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=8	9-09185-408-0	01	1	0407-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	0407-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=15	9-09185-415-0	01	1	0407-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-159-0	04	1	0407-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> THA	1-09987-123-0	01	1	0407-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> THA	1-75538-151-1	01	1	0407-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) THA	1-09980-577-0	01	1	0407-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C) THA	1-75538-208-0	02	1	0407-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	03	1	0407-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	0407-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	0407-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75537-273-1	01	1	0407-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> THA	1-75538-186-2	01	1	0407-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> THA	1-75538-131-1	01	1	0407-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> THA	1-75538-134-0	01	1	0407-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> THA	1-75538-132-0	01	1	0407-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> THA	1-75538-137-0	01	1	0407-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> THA	1-75538-133-0	01	1	0407-
