0-35B — ENGINE CONTROL VALVE AND LEVER (#2609) — 103 parça

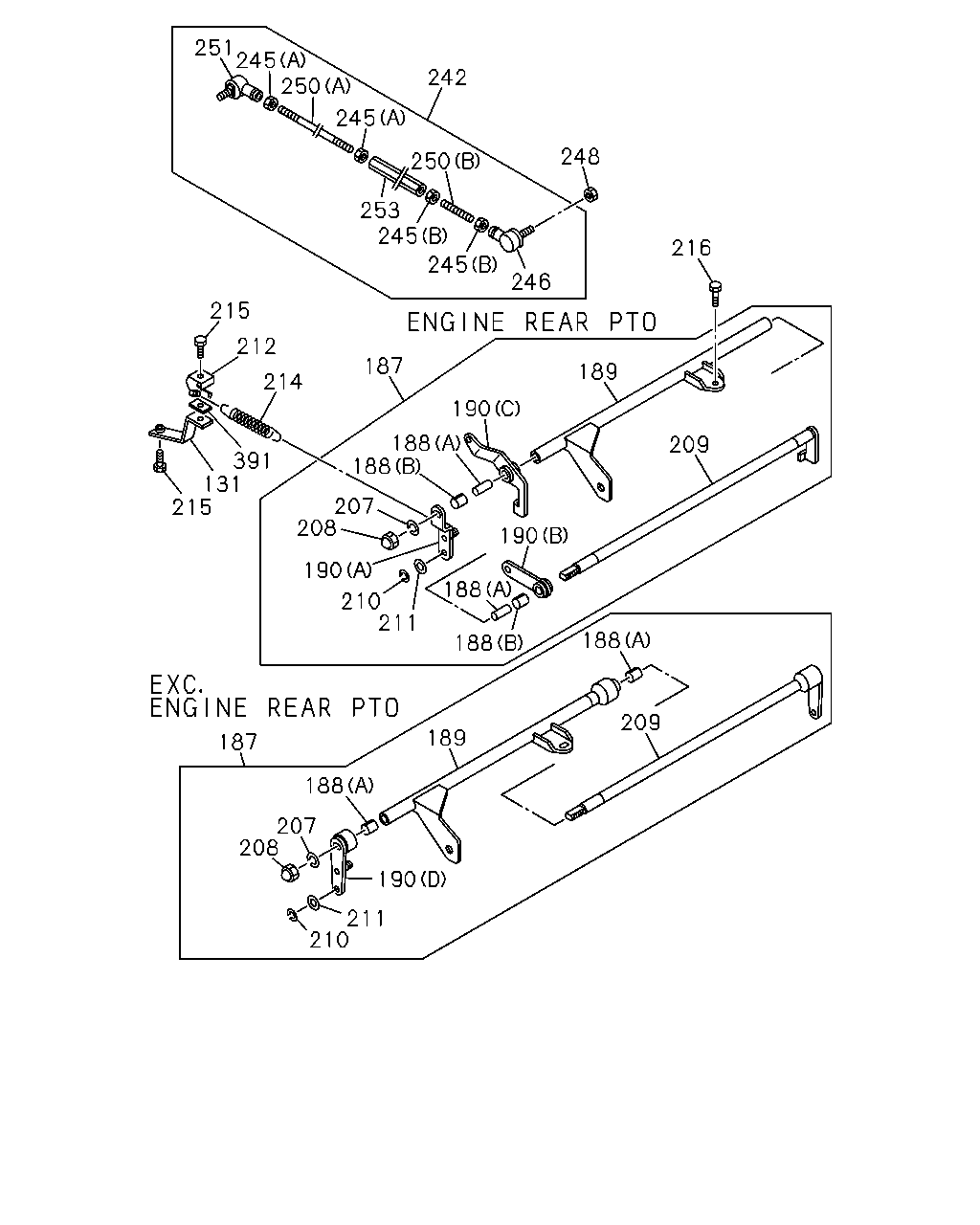

251 245 250 245 242 250 253 245 245 246 248 216 215 212 187 214 391 131 215 189 190 188 188 207 208 190 210 211 188 190 188 188 209 189 188 187 207 208 210 211 190 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
131	BRACKET	1-15419-272-0	01	1	9002-	●
187	CONTROL ASM; ENG ENGINE REAR PTO(SV1)	1-23300-296-2	01	1	9002-	●	●
187	CONTROL ASM; ENG EXC. ENGINE REAR PTO(SV1)	1-23300-285-2	01	1	9002-	●	●
188	BUSHING; CONT SHAFT (A)	1-09330-053-0	02	1	9002-9410	●	●
188	BUSHING; CONT SHAFT EXC. ENGINE REAR PTO(SV1) (A)	1-09330-053-0	02	1	9411-	●	●
188	BUSHING; CONT SHAFT ENGINE REAR PTO(SV1) (B)	1-09330-059-0	02	1	9002-9410	●	●
188	BUSHING; CONT SHAFT ENGINE REAR PTO(SV1) (B)	1-09330-059-0	01	1	9411-	●	●
189	BRACKET; ENG CONT ENGINE REAR PTO(SV1)	1-23335-382-0	01	1	9002-	●	●
189	BRACKET; ENG CONT EXC. ENGINE REAR PTO(SV1)	1-23335-297-0	01	1	9002-	●	●
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (A)	1-23311-270-0	01	1	9002-	●	●
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (B)	1-23311-271-0	01	1	9002-	●	●
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (C)	1-23311-272-0	01	1	9002-	●	●
190	LEVER; ENG CONT EXC. ENGINE REAR PTO(SV1) (D)	1-23311-254-1	01	1	9002-	●	●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	9002-	●	●
208	NUT; LEVER	1-09984-015-0	01	1	9002-	●	●
209	SHAFT; ENG CONT ENGINE REAR PTO(SV1)	1-23331-102-0	01	1	9002-	●	●
209	SHAFT; ENG CONT EXC. ENGINE REAR PTO(SV1)	1-23331-093-0	01	1	9002-	●	●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	01	1	9002-	●	●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	01	1	9002-	●	●
212	BRACKET; SPR EYE	1-23335-058-0	01	1	9002-	●	●
214	SPRING; ENG CONT RETURN	1-09583-207-0	01	1	9002-9405	●	●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	9406-	●	●
215	BOLT; BRKT SPR EYE M6X25	9-01910-625-0	01	1	9002-9005	●
215	BOLT; BRKT SPR EYE M6X25 W/LK WASHER	0-50040-625-0	01	1	9006-	●
215	BOLT; BRKT SPR EYE M10X20 W/LK WASHER	9-01931-020-0	01	1	9002-9002	●
215	BOLT; BRKT SPR EYE M10X20 W/LK WASHER	0-50051-020-0	01	1	9003-9006	●
215	BOLT; BRKT SPR EYE M10X18	8-94399-729-1	01	1	9007-9104	●
215	BOLT; BRKT SPR EYE M10X18 FLANGE	0-28181-018-0	01	1	9105-	●	●
216	BOLT; BRKT ENG CONT CABLE ENGINE REAR PTO(SV1) M10X18	8-94399-729-1	01	1	9002-9104	●
216	BOLT; BRKT ENG CONT CABLE ENGINE REAR PTO(SV1) M10X18	0-28181-018-0	01	1	9105-	●	●
242	LINK ASM	1-23314-159-3	01	1	9002-	●
242	LINK ASM L=143	1-23314-176-0	01	1	9307-		●
245	NUT; LINK (A) M5	9-99110-405-0	02	1	9002-	●
245	NUT; LINK (B) M5 LH THREAD	9-09840-277-0	02	1	9002-	●	●
245	NUT; LINK (A) M5	9-99111-405-0	02	1	9307-		●
246	JOINT; BALL,ENG CONT LINK	1-09760-096-0	01	1	9002-9006	●
246	JOINT; BALL,ENG CONT LINK	1-09760-102-0	01	1	9007-	●
246	JOINT; BALL,ENG CONT LINK	1-09760-104-0	01	1	9307-		●
248	NUT; JOINT BALL M5	9-99110-405-0	03	1	9002-	●
248	NUT; JOINT BALL M5	9-99110-405-0	01	1	9307-		●
250	ROD; ROD TO JOINT (A) M5X120	9-08400-512-0	01	1	9002-	●
250	ROD; ROD TO JOINT (B) M5X50 LH THREAD	1-09765-197-0	01	1	9002-	●	●
250	ROD; ROD TO JOINT (A) M5X50	1-09765-198-0	01	1	9307-		●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-095-0	01	1	9002-9006	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-101-0	01	1	9007-	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-103-0	01	1	9307-		●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	9002-	●	●
391	SPACER; BRKT,ENG CONT CABLE ENGINE REAR PTO(SV1)	1-13719-069-0	01	1	9204-	●	●

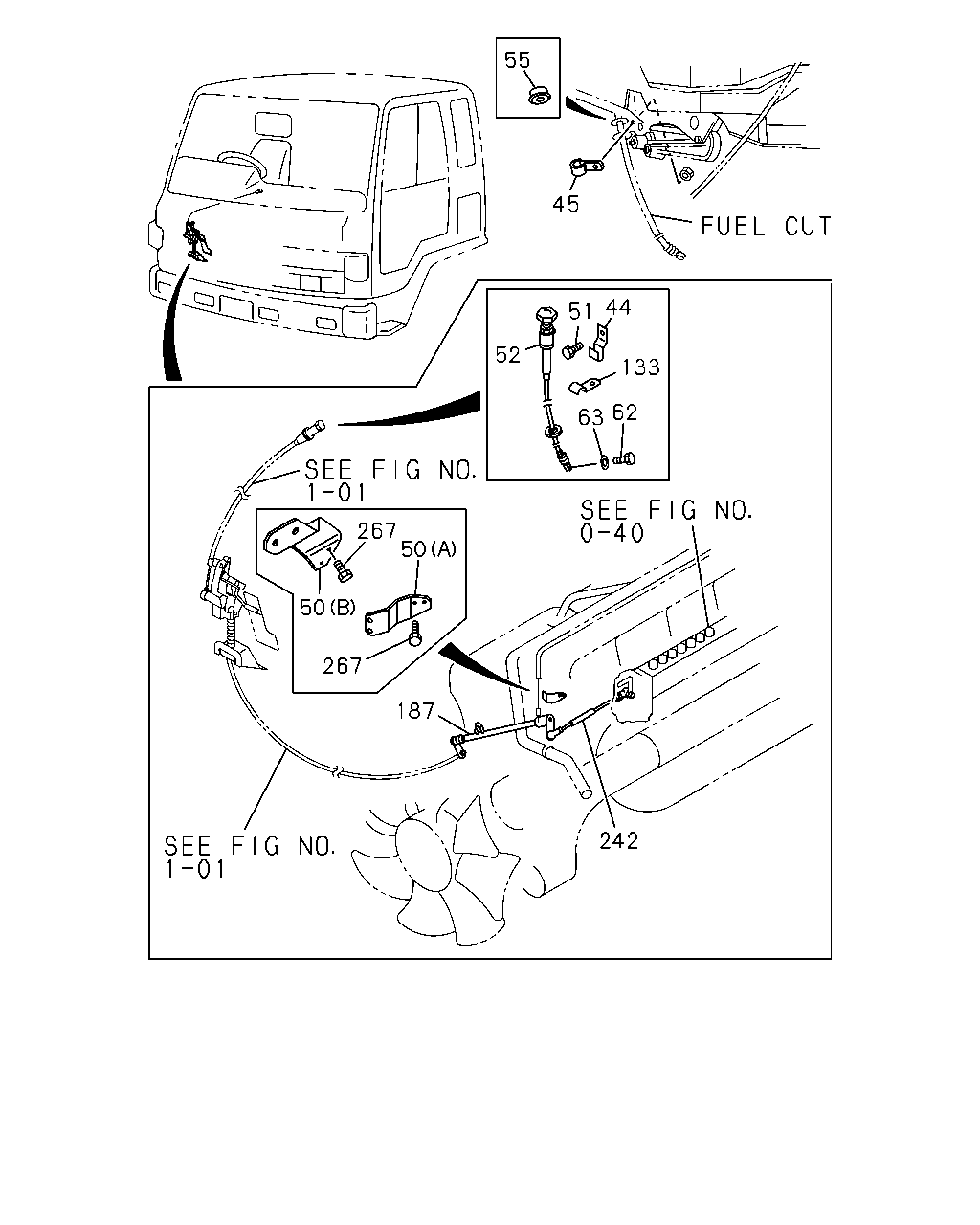

55 45 44 51 52 63 62 133 267 50 50 267 187 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CLIP; CABLE ID=11	1-09700-474-0	01	1	9002-	●
45	CLIP; FUEL CUT CABLE ID=9 L=40	9-09524-875-0	01	1	9006-	●	●
50	BRACKET; ENG CONT CABLE ENGINE REAR PTO(SV1) (A)	1-23335-329-0	01	1	9002-9009	●
50	BRACKET; ENG CONT CABLE ENGINE REAR PTO(SV1) (A)	1-23335-238-0	01	1	9010-	●	●
50	BRACKET; ENG CONT CABLE (B)	1-23335-379-0	01	1	9002-	●	●
51	BOLT; CLIP,FUEL CUT CABLE M6X12	0-50000-612-0	01	1	9002-9204	●	●
51	BOLT; CLIP,FUEL CUT CABLE M6X12	0-50080-612-0	01	1	9205-	●	●
51	BOLT; CLIP,FUEL CUT CABLE M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●
51	BOLT; CLIP,FUEL CUT CABLE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●
52	CABLE; FUEL CUT EXC. AUTO ENG SHUTOFF<KB6> L=2230	1-23210-737-4	01	1	9002-	●
52	CABLE; FUEL CUT L=2230	1-23210-737-4	01	1	9002-		●
55	GROMMET; FUEL CUT CABLE AUTO ENG SHUTOFF<KB6> OD=35	1-09983-066-1	01	1	9307-	●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●
63	WASHER; PL,FUEL CUT CABLE	1-09985-157-0	01	1	9002-9301	●
133	CLIP; FUEL PIPE ID=9.7 L=20	1-09700-878-1	01	1	9002-	●
187	CONTROL ASM; ENG ENGINE REAR PTO(SV1)	1-23300-296-2	01	1	9002-	●	●
187	CONTROL ASM; ENG EXC. ENGINE REAR PTO(SV1)	1-23300-285-2	01	1	9002-	●	●
242	LINK ASM	1-23314-159-3	01	1	9002-	●
242	LINK ASM L=143	1-23314-176-0	01	1	9307-		●
267	BOLT; ENG CONT M10X18	8-94399-729-1	02	1	9002-9104	●
267	BOLT; ENG CONT	0-28181-018-0	02	1	9105-	●	●

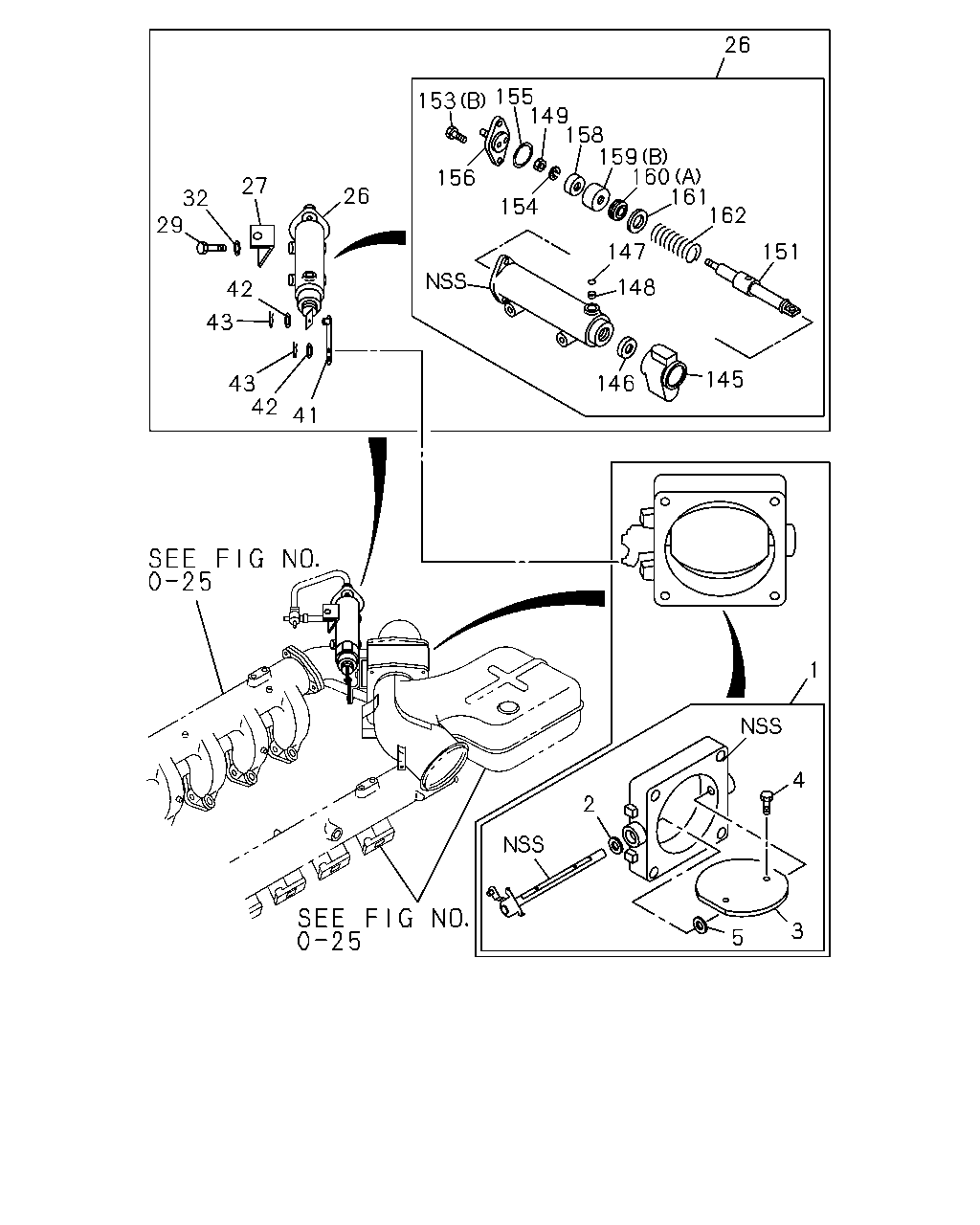

26 153 155 149 158 159 160 161 162 151 147 148 154 156 146 145 26 27 32 29 42 43 43 42 41 2 5 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHUTTER ASM; INT	1-14310-206-2	01	1	9002-9503	●	●
1	SHUTTER ASM; INT	1-14310-219-0	01	1	9504-	●	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	9002-	●	●
3	VALVE; INT SHUTTER	1-14312-037-0	01	1	9002-9306	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	9002-	●	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	9002-	●	●
26	CYLINDER ASM; CONT	1-22190-527-1	01	1	9002-	●	●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	9002-	●	●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	9002-	●	●
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	9002-	●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9002-	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	9002-	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9002-	●	●
145	COVER; BREATHER	1-22199-008-0	01	1	9002-	●	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9002-	●	●
151	SHAFT; CONT CYL	1-22199-082-0	01	1	9002-9306	●
151	SHAFT; CONT CYL	1-22196-256-0	01	1	9307-	●	●
153	BOLT; CONT CYL (B)	9-88510-267-0	02	1	9002-9306	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9307-	●	●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	01	1	9307-9506	●	●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	01	1	9002-	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●
156	COVER; CONT CYL	1-22199-036-0	01	1	9002-9306	●
156	COVER; CONT CYL	1-22189-162-1	01	1	9307-	●	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-	●	●
159	GASKET; CONT CYL (B)	9-88510-373-0	01	1	9002-	●	●
160	PLATE (A)	1-22199-020-0	01	1	9507-	●	●
161	RING; WEAR	1-22199-002-0	01	1	9002-	●	●
162	SPRING; CONT CYL	1-22199-018-0	01	1	9002-	●	●
