Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#26086) — 253 parça

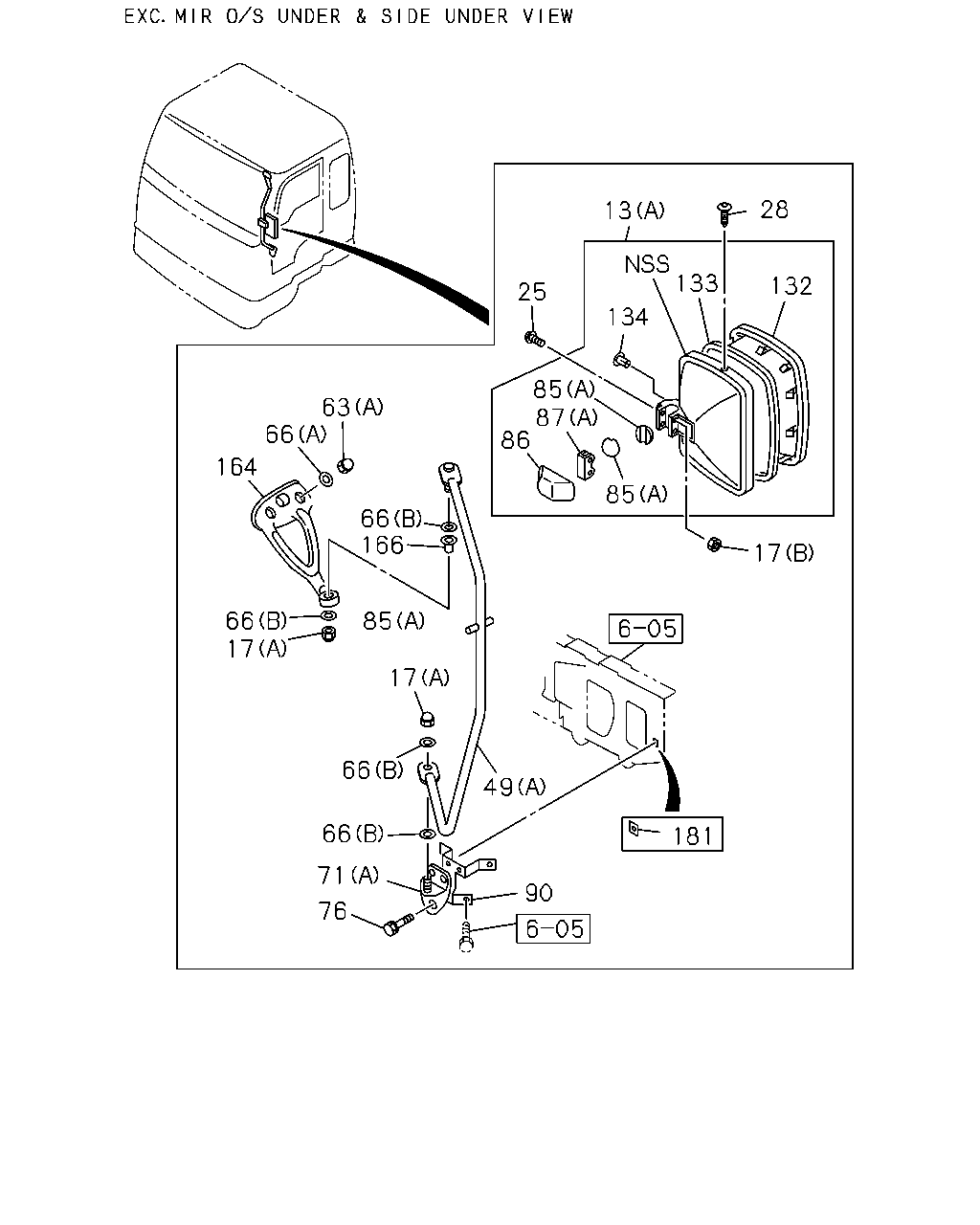

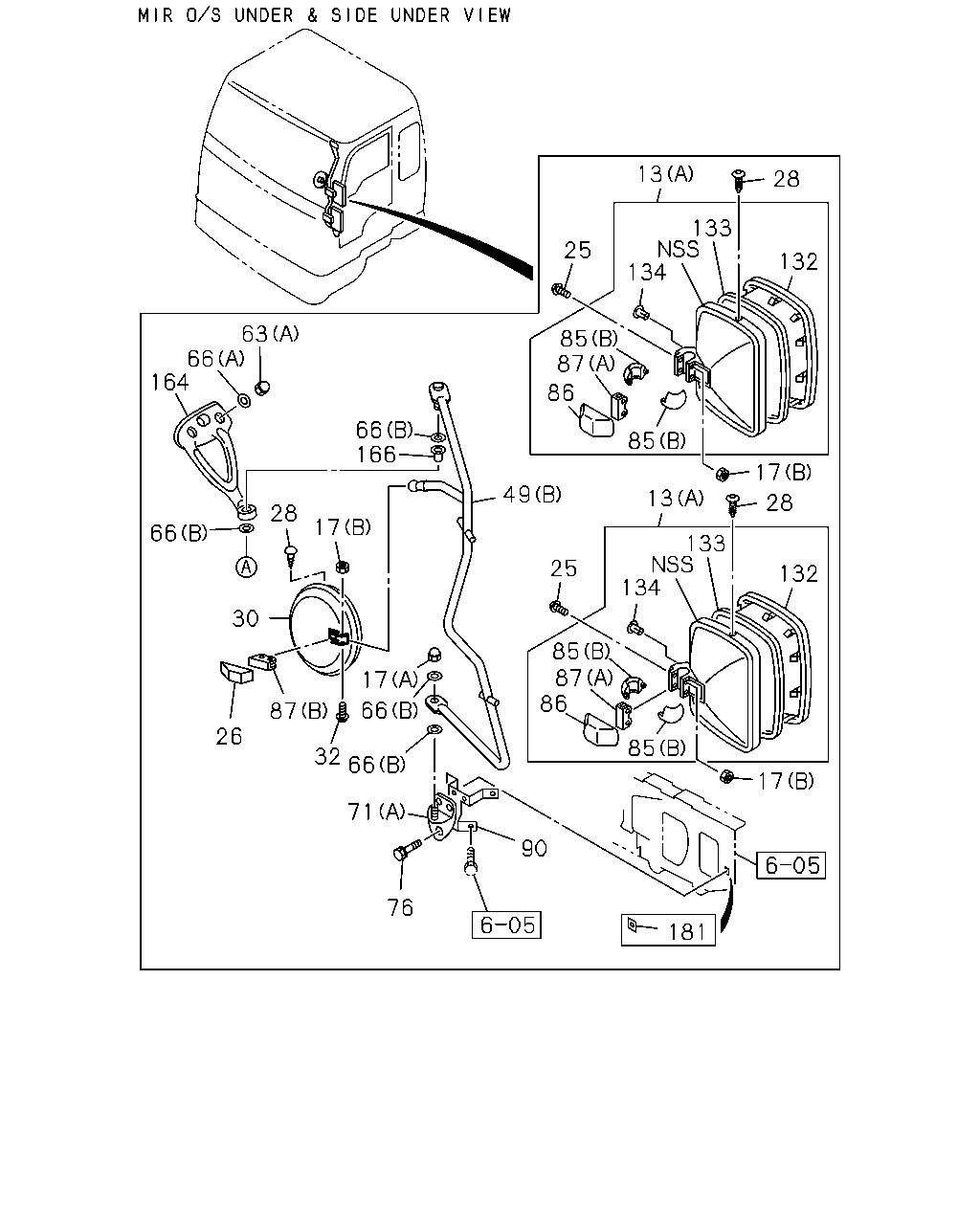

13 28 133 134 25 132 85 87 63 66 164 86 66 166 85 17 49 13 28 28 17 66 133 134 25 132 30 85 87 86 17 66 87 26 85 32 66 17 71 90 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (B) THA	8-97917-754-0	01	1	0407-
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0407-0410
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-731-0	01	1	0407-0410
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0411-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-731-0	01	1	0411-
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-134-0	04	1	0407-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	06	1	0407-
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0411-
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0411-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	04	1	0407-
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0407-0410
25	SCREW; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0407-0410
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0411-
25	SCREW; OUTSIDE MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0411-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-108-0	01	1	0407-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	02	1	0407-
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0407-0410
28	GROMMET; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0407-0410
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0411-
28	GROMMET; UNDER MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0411-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-104-1	01	1	0407-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-106-0	02	1	0407-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-105-2	01	1	0407-
49	STAY; MIRROR SIDE (C) THA	8-97917-762-0	01	1	0407-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0407-0410
49	STAY; MIRROR SIDE EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0411-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0407-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-614-0	01	1	0407-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	13	1	0407-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-882-0	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (C) LOWER THA	1-71798-486-2	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (A) THA	1-71798-581-3	01	1	0407-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0407-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=25.4 THA	1-71737-627-2	04	1	0407-
85	PIVOT; MAIN MIRROR (C) THA	8-97917-756-0	02	1	0407-
85	PIVOT; MAIN MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0407-0410
85	PIVOT; MAIN MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0411-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	02	1	0407-
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0407-0410
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0407-0410
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0411-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0411-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	02	1	0407-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-107-0	01	1	0407-
87	SPACER (A) THA	8-97917-757-0	01	1	0407-0410
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0407-0410
87	SPACER (A) THA	8-97917-757-0	01	1	0411-
87	SPACER EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0411-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	02	1	0407-
132	RING; MIRROR THA	8-97917-752-0	01	1	0407-0410
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0407-0410
132	RING; MIRROR THA	8-97917-752-0	01	1	0411-
132	RING; MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0411-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	02	1	0407-
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0407-0410
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0407-0410
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0411-
133	LENS; MIRROR,OUTSIDE EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0411-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	02	1	0407-
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0407-0410
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0407-0410
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0411-
134	CLIP; MIRROR LENS EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0411-
164	STAY; ROOF	1-71798-299-4	01	1	0407-
166	BUSHING; STAY	1-09983-175-1	01	1	0407-
181	SEAL; BRKT 25X25 THA	8-94272-533-0	02	1	0407-

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM THA	8-97917-692-1	01	1	0407-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0407-

69 66 66 66 66 71 307 72 69 63 66 66 69 17 66 72 71 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-134-0	04	1	0407-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	06	1	0407-
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0411-
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0411-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0407-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-614-0	01	1	0407-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	13	1	0407-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0407-
69	NUT; CAP MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-134-0	02	1	0407-
69	NUT; CAP (A) M8	1-09984-187-0	02	1	0407-
69	NUT; CAP MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8	1-09984-187-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-882-0	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (C) LOWER THA	1-71798-486-2	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (A) THA	1-71798-581-3	01	1	0407-
72	SHEET (B) LOWER THA	1-71798-488-1	01	1	0407-
72	SHEET MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) D=8 2-HOLE	1-71737-444-0	01	1	0407-
72	SHEET (A) UPPER THA	1-71798-487-3	01	1	0407-
72	SHEET MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) UPPER THA	1-71798-487-3	01	1	0407-
89	SCREW; BRKT,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X20	1-09981-494-0	02	1	0407-
307	STAY; MIRROR SUPPORT MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-546-0	01	1	0407-

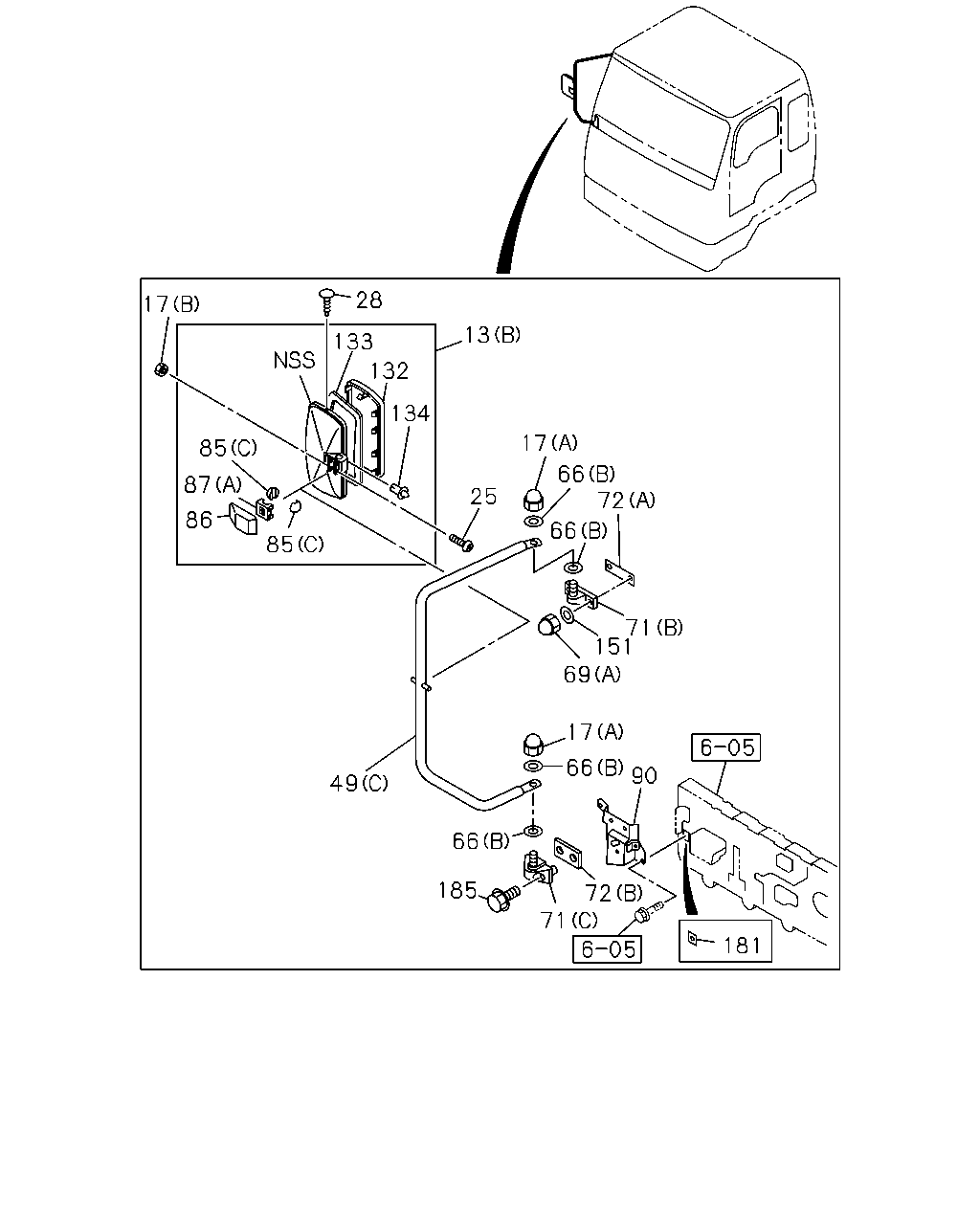

28 17 13 133 132 134 17 85 66 72 87 25 86 66 85 71 151 69 17 66 90 49 66 72 71 185 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (B) THA	8-97917-754-0	01	1	0407-
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0407-0410
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-731-0	01	1	0407-0410
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0411-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-731-0	01	1	0411-
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-134-0	04	1	0407-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	06	1	0407-
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0411-
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0411-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	04	1	0407-
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0407-0410
25	SCREW; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0407-0410
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0411-
25	SCREW; OUTSIDE MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0411-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	02	1	0407-
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0407-0410
28	GROMMET; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0407-0410
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0411-
28	GROMMET; UNDER MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0411-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-105-2	01	1	0407-
49	STAY; MIRROR SIDE (C) THA	8-97917-762-0	01	1	0407-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0407-0410
49	STAY; MIRROR SIDE EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0411-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	13	1	0407-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0407-
69	NUT; CAP MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-134-0	02	1	0407-
69	NUT; CAP (A) M8	1-09984-187-0	02	1	0407-
69	NUT; CAP MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8	1-09984-187-0	02	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-882-0	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (C) LOWER THA	1-71798-486-2	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (A) THA	1-71798-581-3	01	1	0407-
72	SHEET (B) LOWER THA	1-71798-488-1	01	1	0407-
72	SHEET MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) D=8 2-HOLE	1-71737-444-0	01	1	0407-
72	SHEET (A) UPPER THA	1-71798-487-3	01	1	0407-
72	SHEET MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) UPPER THA	1-71798-487-3	01	1	0407-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=25.4 THA	1-71737-627-2	04	1	0407-
85	PIVOT; MAIN MIRROR (C) THA	8-97917-756-0	02	1	0407-
85	PIVOT; MAIN MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0407-0410
85	PIVOT; MAIN MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0411-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	02	1	0407-
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0407-0410
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0407-0410
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0411-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0411-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	02	1	0407-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-107-0	01	1	0407-
87	SPACER (A) THA	8-97917-757-0	01	1	0407-0410
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0407-0410
87	SPACER (A) THA	8-97917-757-0	01	1	0411-
87	SPACER EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0411-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	02	1	0407-
132	RING; MIRROR THA	8-97917-752-0	01	1	0407-0410
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0407-0410
132	RING; MIRROR THA	8-97917-752-0	01	1	0411-
132	RING; MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0411-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	02	1	0407-
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0407-0410
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0407-0410
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0411-
133	LENS; MIRROR,OUTSIDE EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0411-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	02	1	0407-
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0407-0410
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0407-0410
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0411-
134	CLIP; MIRROR LENS EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0411-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
181	SEAL; BRKT 25X25 THA	8-94272-533-0	02	1	0407-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0407-0512
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	02	1	0606-

28 13 133 132 25 134 85 87 86 63 66 164 85 66 166 17 66 17 85 17 66 49 66 181 71 90 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (B) THA	8-97917-754-0	01	1	0407-
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0407-0410
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-731-0	01	1	0407-0410
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0411-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-731-0	01	1	0411-
17	NUT; CAP,MIRROR STAY (A) M10	1-09984-134-0	04	1	0407-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	06	1	0407-
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0407-0410
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0411-
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0411-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	04	1	0407-
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0407-0410
25	SCREW; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0407-0410
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0411-
25	SCREW; OUTSIDE MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0411-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	02	1	0407-
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0407-0410
28	GROMMET; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0407-0410
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0411-
28	GROMMET; UNDER MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0411-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-105-2	01	1	0407-
49	STAY; MIRROR SIDE (C) THA	8-97917-762-0	01	1	0407-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0407-0410
49	STAY; MIRROR SIDE EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0411-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0407-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-614-0	01	1	0407-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	13	1	0407-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0407-
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0407-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71798-882-0	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) UPPER THA	1-71798-484-1	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (C) LOWER THA	1-71798-486-2	01	1	0407-
71	BRACKET; OUTSIDE MIRROR (A) THA	1-71798-581-3	01	1	0407-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0407-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=25.4 THA	1-71737-627-2	04	1	0407-
85	PIVOT; MAIN MIRROR (C) THA	8-97917-756-0	02	1	0407-
85	PIVOT; MAIN MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0407-0410
85	PIVOT; MAIN MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0411-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	02	1	0407-
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0407-0410
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0407-0410
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0411-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0411-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	02	1	0407-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-107-0	01	1	0407-
87	SPACER (A) THA	8-97917-757-0	01	1	0407-0410
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0407-0410
87	SPACER (A) THA	8-97917-757-0	01	1	0411-
87	SPACER EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0411-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0407-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0407-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	02	1	0407-
132	RING; MIRROR THA	8-97917-752-0	01	1	0407-0410
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0407-0410
132	RING; MIRROR THA	8-97917-752-0	01	1	0411-
132	RING; MIRROR EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0411-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	02	1	0407-
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0407-0410
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0407-0410
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0411-
133	LENS; MIRROR,OUTSIDE EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0411-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	02	1	0407-
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0407-0410
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0407-0410
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0411-
134	CLIP; MIRROR LENS EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0411-
164	STAY; ROOF	1-71798-299-4	01	1	0407-
166	BUSHING; STAY	1-09983-175-1	01	1	0407-
181	SEAL; BRKT 25X25 THA	8-94272-533-0	02	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
