0-35A — ENGINE CONTROL VALVE AND LEVER (#2608) — 158 parça

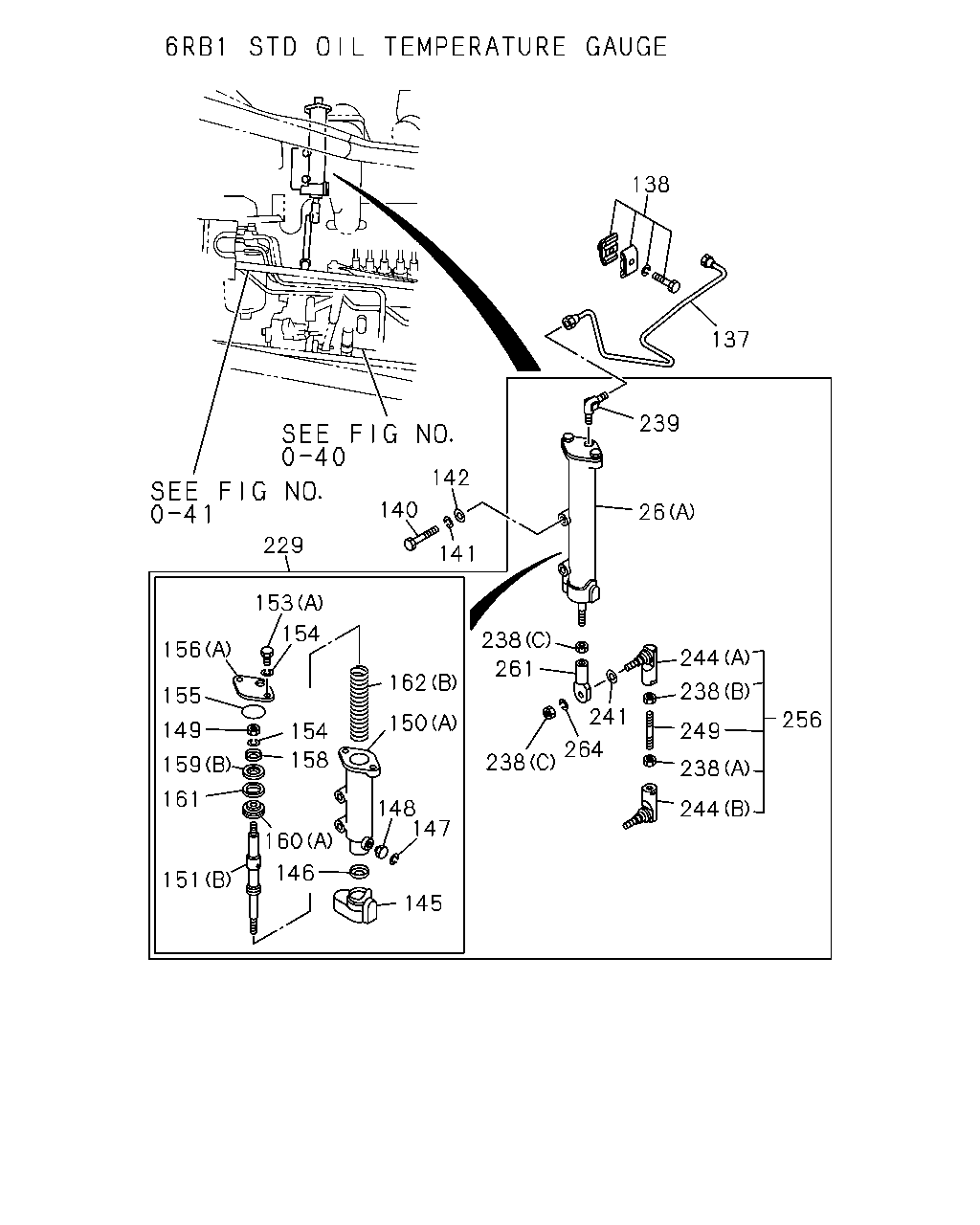

138 137 239 26 238 261 238 264 241 244 238 249 256 238 244 142 141 140 229 153 154 162 150 154 158 156 155 149 159 161 151 160 146 148 147 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	CYLINDER ASM; CONT (B)	1-22190-520-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT (B)	1-22190-302-1	01	1	9002-			●
26	CYLINDER ASM; CONT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22190-491-0	01	1	9002-			●
137	PIPE ASM; AIR ENG SPD LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-19191-869-0	01	1	9002-			●
138	CLIP; AIR PIPE LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=6	9-15419-084-0	01	1	9002-			●
140	BOLT; CONNECTOR CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-01056-085-0	02	1	9002-9004			●
140	BOLT; CONNECTOR CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> M10X85	0-10806-085-0	02	1	9005-			●
141	WASHER; LK,CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=10.2	9-09150-510-0	02	1	9002-			●
142	WASHER; PL,CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=10.5 OD=18	9-09160-510-0	02	1	9002-			●
145	COVER; BREATHER	1-22199-009-0	01	1	9002-	●	●	●
145	COVER; BREATHER LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-22199-009-0	01	1	9002-			●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●	●
146	SEAL; DUST,CONT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-22189-016-0	01	1	9002-			●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●	●
147	RING; RET LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-88510-331-0	01	1	9002-			●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●	●
148	FILTER; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-88510-330-0	01	1	9002-			●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9002-	●	●	●
149	NUT; LOCK,CONT SHAFT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-83315-085-0	01	1	9002-			●
150	CYLINDER; CONT (B)	9-88510-329-0	01	1	9002-9306	●	●	●
150	CYLINDER; CONT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-088-0	01	1	9002-9306			●
151	SHAFT; CONT CYL (A)	1-22199-083-0	01	1	9002-	●	●	●
151	SHAFT; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-22199-084-0	01	1	9002-			●
153	BOLT; CONT CYL (B)	9-02050-816-0	02	1	9002-	●	●
153	BOLT; CONT CYL (B)	9-88510-267-0	02	1	9002-9306			●
153	BOLT; CONT CYL (B)	9-88510-267-0	02	1	9307-			●
153	BOLT; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	9-01000-820-0	02	1	9002-			●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	03	1	9002-	●	●	●
154	WASHER; LK,CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=8.2	9-09150-508-0	03	1	9002-			●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●	●
155	GASKET; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-88510-372-0	01	1	9002-			●
156	COVER; CONT CYL (B)	9-88510-375-0	01	1	9002-	●	●	●
156	COVER; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-086-0	01	1	9002-			●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-			●
159	GASKET; CONT CYL (B)	9-88510-373-0	01	1	9002-	●	●	●
159	GASKET; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	9-88510-373-0	01	1	9002-			●
159	GASKET; CONT CYL (A)	9-88510-324-0	01	1	9002-	●	●
160	PLATE (B)	1-22199-001-0	01	1	9002-	●	●	●
160	PLATE LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-020-0	01	1	9002-9506			●
160	PLATE LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-020-0	01	1	9507-			●
161	RING; WEAR	1-22199-002-0	01	1	9002-	●	●	●
161	RING; WEAR LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-22199-002-0	01	1	9002-			●
162	SPRING; CONT CYL (A)	9-88510-374-0	01	1	9002-	●	●	●
162	SPRING; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-22199-087-0	01	1	9002-			●
229	CONTROL ASM; ENG SPD LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-23300-277-0	01	1	9002-			●
238	NUT; LINK LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A) LH THREAD	1-09409-002-0	01	1	9002-			●
238	NUT; LINK LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) M8	9-09110-408-0	01	1	9002-			●
238	NUT; LINK LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (C) M8	9-09111-408-0	02	1	9002-			●
239	UNION; LINK ROD LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> M12 & PT1/8	9-09224-306-2	01	1	9002-			●
241	WASHER; PL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=8.4	9-09160-508-0	01	1	9002-			●
244	JOINT ASM; BALL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A) RH THREAD	1-09760-009-0	01	1	9002-			●
244	JOINT ASM; BALL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) LH THREAD	1-09760-010-0	01	1	9002-			●
249	ROD; LINK LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09765-224-0	01	1	9002-			●
256	ROD ASM; LINK LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-22190-508-0	01	1	9002-			●
261	JAW; LINK ROD LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-09511-108-0	01	1	9002-			●
264	WASHER; LK,LINK,CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=8.2	9-09150-508-0	01	1	9002-			●

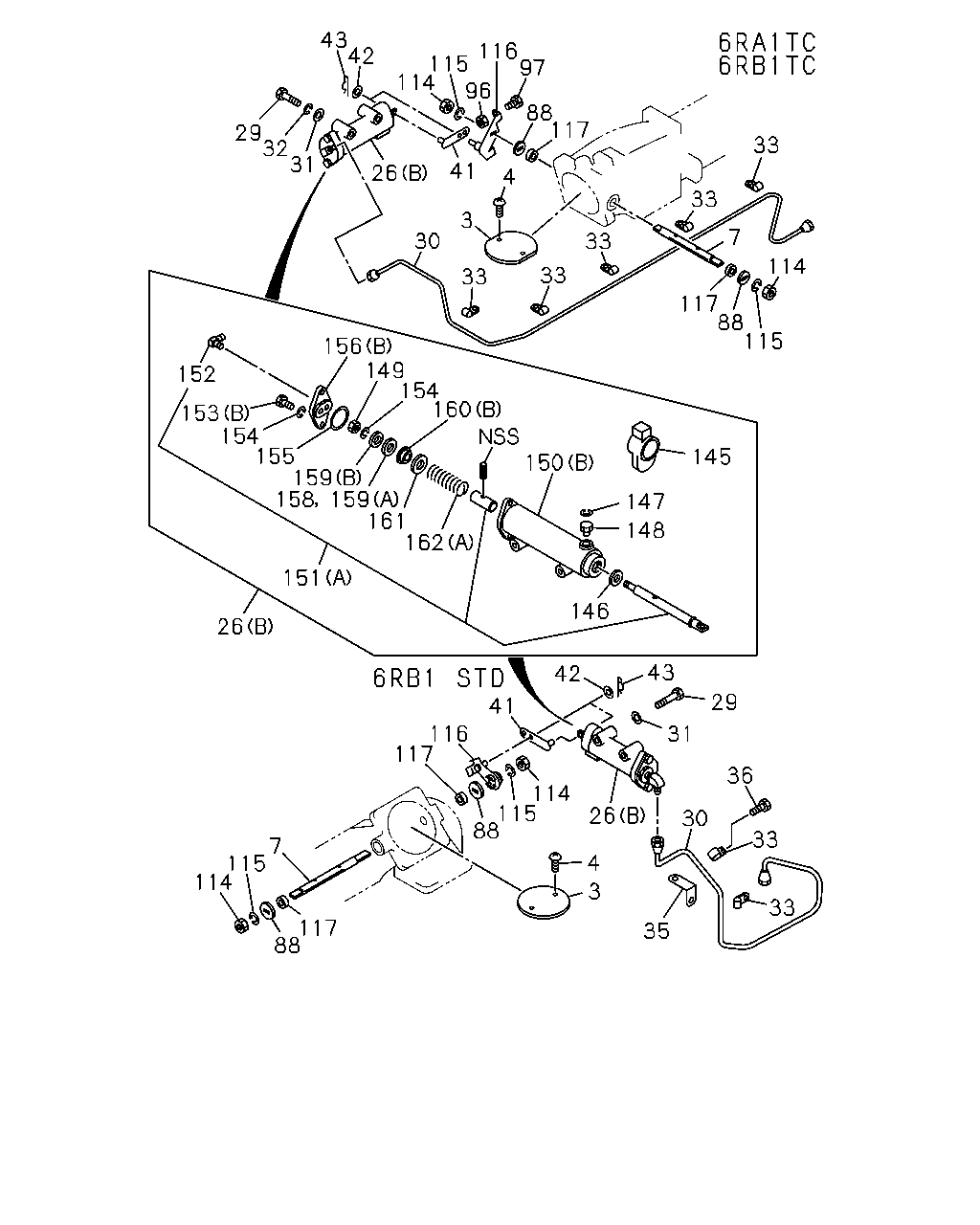

43 42 114 115 116 97 96 88 117 29 32 31 26 41 4 3 30 33 33 33 33 33 7 114 117 88 115 156 149 154 160 150 145 147 148 152 153 154 155 159 158 159 161 162 151 26 146 41 116 117 7 115 114 88 117 88 115 114 3 4 26 42 43 29 31 36 30 35 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	VALVE; INT SHUTTER	1-14312-033-0	01	1	9002-	●	●
3	VALVE; INT SHUTTER	1-14312-012-0	01	1	9002-			●
4	SCREW; VLV FIX	1-09102-002-0	02	1	9002-	●	●	●
7	SHAFT ASM; INT SHUTTER OD=12	1-14313-045-1	01	1	9002-	●	●
7	SHAFT ASM; INT SHUTTER	9-14313-129-0	01	1	9002-			●
26	CYLINDER ASM; CONT (B)	1-22190-520-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT (B)	1-22190-302-1	01	1	9002-			●
26	CYLINDER ASM; CONT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22190-491-0	01	1	9002-			●
29	BOLT; CONT CYL M10X55	9-01056-055-0	02	1	9002-9004	●	●	●
29	BOLT; CONT CYL M10X55	0-10806-055-0	02	1	9005-	●	●	●
30	PIPE ASM; AIR CONT CYL	1-19192-001-1	01	1	9002-	●	●
30	PIPE ASM; AIR CONT CYL	1-19192-126-0	01	1	9002-			●
31	WASHER; PL,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●	●
32	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9002-		●
33	CLIP; AIR PIPE	1-09700-955-0	06	1	9002-	●	●
33	CLIP; AIR PIPE	1-09700-955-0	02	1	9002-			●
35	BRACKET; AIR PIPE CLIP	1-13719-027-0	01	1	9002-			●
36	BOLT; CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002			●
36	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-			●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9002-	●	●	●
42	WASHER; LK,ROD LOCK ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	9002-			●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9002-	●	●	●
88	WASHER; SHAFT	9-09855-383-0	02	1	9002-	●	●	●
96	NUT; ADJ SCREW M5	9-99110-405-0	02	1	9002-	●	●
97	SCREW; ADJ	9-14319-229-0	02	1	9002-	●	●
114	NUT M12	9-09111-412-0	02	1	9002-9206	●	●
114	NUT M12	9-99111-412-0	02	1	9002-9206			●
114	NUT M12	9-99111-412-0	02	1	9207-	●	●	●
115	WASHER; LK ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
116	LEVER	1-14314-121-0	01	1	9002-	●	●
116	LEVER	1-22196-129-1	01	1	9012-			●
117	COVER; VLV	9-14319-316-0	02	1	9002-	●	●	●
145	COVER; BREATHER	1-22199-009-0	01	1	9002-	●	●	●
145	COVER; BREATHER LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-22199-009-0	01	1	9002-			●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●	●
146	SEAL; DUST,CONT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-22189-016-0	01	1	9002-			●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●	●
147	RING; RET LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-88510-331-0	01	1	9002-			●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●	●
148	FILTER; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-88510-330-0	01	1	9002-			●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9002-	●	●	●
149	NUT; LOCK,CONT SHAFT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-83315-085-0	01	1	9002-			●
150	CYLINDER; CONT (B)	9-88510-329-0	01	1	9002-9306	●	●	●
150	CYLINDER; CONT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-088-0	01	1	9002-9306			●
151	SHAFT; CONT CYL (A)	1-22199-083-0	01	1	9002-	●	●	●
151	SHAFT; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-22199-084-0	01	1	9002-			●
152	CONNECTOR PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9601-		●	●
153	BOLT; CONT CYL (B)	9-02050-816-0	02	1	9002-	●	●
153	BOLT; CONT CYL (B)	9-88510-267-0	02	1	9002-9306			●
153	BOLT; CONT CYL (B)	9-88510-267-0	02	1	9307-			●
153	BOLT; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	9-01000-820-0	02	1	9002-			●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	03	1	9002-	●	●	●
154	WASHER; LK,CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=8.2	9-09150-508-0	03	1	9002-			●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●	●
155	GASKET; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	9-88510-372-0	01	1	9002-			●
156	COVER; CONT CYL (B)	9-88510-375-0	01	1	9002-	●	●	●
156	COVER; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-086-0	01	1	9002-			●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-			●
159	GASKET; CONT CYL (B)	9-88510-373-0	01	1	9002-	●	●	●
159	GASKET; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	9-88510-373-0	01	1	9002-			●
159	GASKET; CONT CYL (A)	9-88510-324-0	01	1	9002-	●	●
160	PLATE (B)	1-22199-001-0	01	1	9002-	●	●	●
160	PLATE LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-020-0	01	1	9002-9506			●
160	PLATE LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-22199-020-0	01	1	9507-			●
161	RING; WEAR	1-22199-002-0	01	1	9002-	●	●	●
161	RING; WEAR LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-22199-002-0	01	1	9002-			●
162	SPRING; CONT CYL (A)	9-88510-374-0	01	1	9002-	●	●	●
162	SPRING; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-22199-087-0	01	1	9002-			●

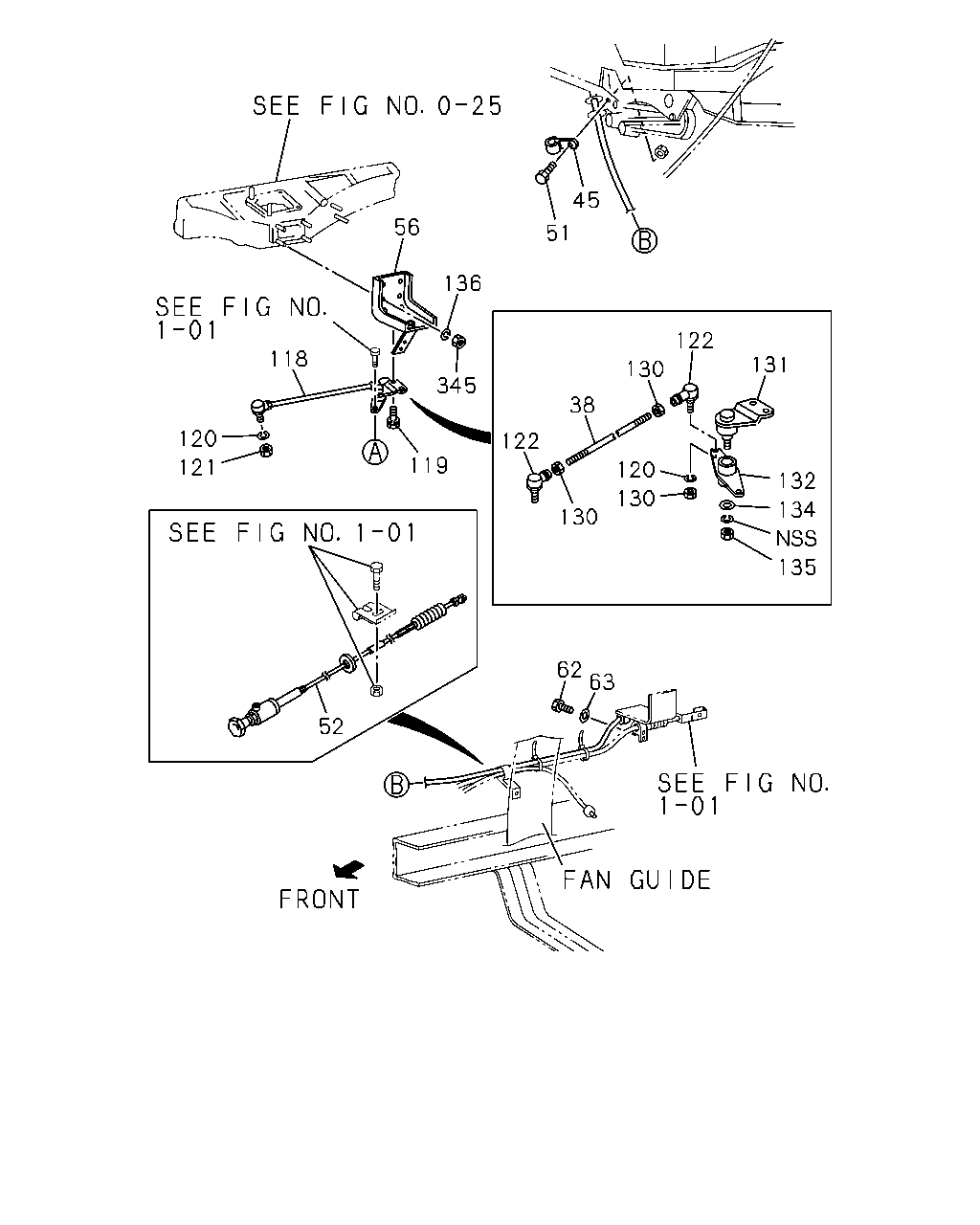

45 51 56 136 345 118 120 121 119 52 122 38 130 122 131 130 130 120 132 134 135 62 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	ROD; LINK SHAFT TO LEVER	9-08400-532-0	01	1	9002-	●	●	●
45	CLIP; FUEL CUT CABLE ID=9 L=40	9-09524-875-0	01	1	9006-	●	●
45	CLIP; FUEL CUT CABLE EXC. CAB SUSPENSION RIGID(W71) ID=9 L=40	9-09524-875-0	01	1	9006-			●
45	CLIP; FUEL CUT CABLE CAB SUSPENSION RIGID(W71) ID=9	9-09524-832-0	01	1	9002-			●
51	BOLT; CLIP,FUEL CUT CABLE M6X12	0-50000-612-0	01	1	9002-9204	●	●	●
51	BOLT; CLIP,FUEL CUT CABLE M6X12	0-50080-612-0	01	1	9205-	●	●	●
51	BOLT; CLIP,FUEL CUT CABLE M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●
51	BOLT; CLIP,FUEL CUT CABLE EXC. CAB SUSPENSION RIGID(W71) M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204			●
51	BOLT; CLIP,FUEL CUT CABLE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●
51	BOLT; CLIP,FUEL CUT CABLE EXC. CAB SUSPENSION RIGID(W71) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-			●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID(W71) M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204			●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID(W71) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302			●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID(W71) M6X20 FLANGE	0-28080-620-0	01	1	9303-			●
52	CABLE; FUEL CUT L=2120	1-23210-739-4	01	1	9002-9306	●	●	●
52	CABLE; FUEL CUT L=2070	1-79997-363-0	01	1	9307-		●	●
56	BRACKET; FUEL CUT LINK	1-23335-261-1	01	1	9002-	●	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●	●	●
63	WASHER; PL,FUEL CUT CABLE	1-09985-157-0	01	1	9002-9301	●	●	●
118	ROD ASM; LINK FUEL CUT	1-23310-465-0	01	1	9002-	●	●	●
119	BOLT; LINK ROD M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●	●	●
119	BOLT; LINK ROD M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-	●	●	●
120	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	02	1	9002-	●	●	●
121	NUT; BALL JOINT M5	9-99110-405-0	01	1	9002-	●	●	●
122	BALL ASM; JOINT RH THREAD	1-09760-002-0	02	1	9002-	●	●	●
130	NUT; BALL JOINT M5	9-99110-405-0	03	1	9002-	●	●	●
131	BRACKET	1-23335-226-0	01	1	9002-	●	●	●
132	LEVER; W/BUSHING	1-23311-267-0	01	1	9002-	●	●	●
134	WASHER; LK,LEVER ID=10.5 OD=22	9-09164-610-0	01	1	9002-	●	●	●
135	NUT; LEVER M10	9-09110-410-0	01	1	9002-	●	●	●
136	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
345	NUT; BRKT M10	9-09110-410-0	04	1	9002-	●	●	●
