Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10945 - GXZ(THAI)EURO2
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

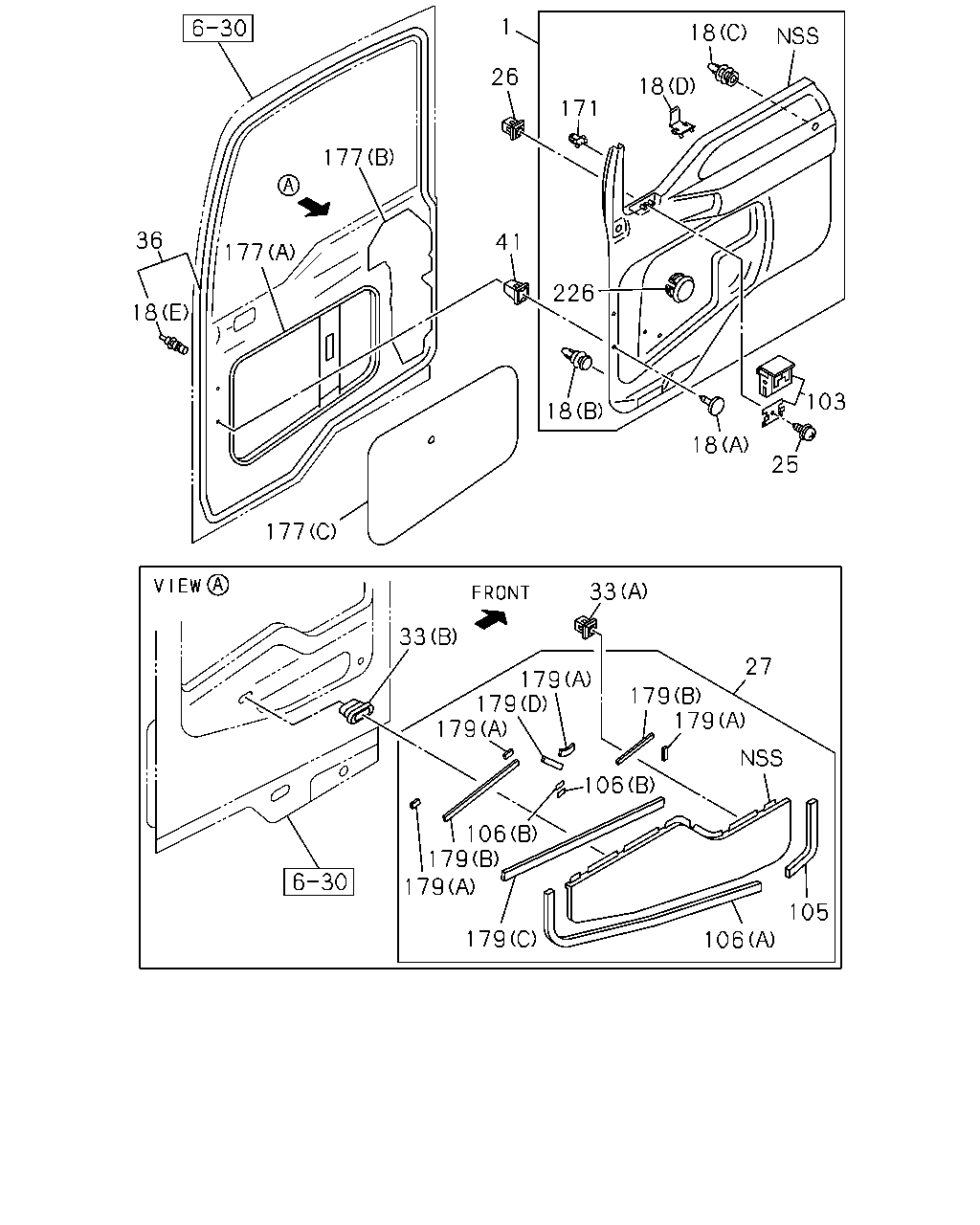

6-35 - FRONT DOOR TRIM
▶
6-35 — FRONT DOOR TRIM
(#26070) — 35 parça
1
18
26
18
171
177
36
41
177
226
18
103
18
18
25
177
33
33
27
179
179
179
179
179
106
106
179
179
105
179
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
POWER WINDOW<A30> THA
8-97922-109-0
01
1
0407-
1
PAD; TRIM,FRT DOOR
POWER WINDOW<A30> THA
8-97922-110-0
01
1
0407-
1
PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> THA
8-97917-710-2
01
1
0407-
1
PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> THA
8-97917-711-2
01
1
0407-
18
CLIP; DOOR PAD
(E) NATURAL THA
1-09987-257-0
23
1
0407-
18
CLIP; DOOR PAD
(E) NATURAL THA
1-09987-257-0
23
1
0407-
18
CLIP; DOOR PAD
(A) D4.2X19.9 GRAY
1-09987-272-0
04
1
0407-
18
CLIP; DOOR PAD
(C) D7.9X8.9 BLACK THA
8-97914-992-0
02
1
0407-
18
CLIP; DOOR PAD
(D) THA
8-97920-636-0
10
1
0407-
18
CLIP; DOOR PAD
(B) D8.5X10 GRAY THA
8-97921-710-0
10
1
0407-
25
SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING
8-94279-123-0
02
1
0407-
26
GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0407-
27
PANEL; ORNAMENT,DOOR
1-76218-095-7
01
1
0407-
27
PANEL; ORNAMENT,DOOR
1-76218-099-7
01
1
0407-
33
GROMMET; DOOR ORNAMENT
(A)
1-09983-149-1
02
1
0407-0802
33
GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
02
1
0803-
33
GROMMET; DOOR ORNAMENT
(B)
1-74998-111-0
02
1
0407-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-176-9
01
1
0407-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-177-9
01
1
0407-
41
GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
04
1
0407-
103
TRAY ASM; ASH,DOOR
1-76458-085-1
01
1
0407-
103
TRAY ASM; ASH,DOOR
1-76458-086-1
01
1
0407-
105
SEAL; DOOR ORNAMENT,FRT
1-76218-082-2
02
1
0407-
106
SEAL; DOOR ORNAMENT
(A)
1-76218-083-2
02
1
0407-
106
SEAL; DOOR ORNAMENT
(B)
1-76218-104-0
02
1
0407-
171
RETAINER; DOOR PAD
THA
8-97920-637-0
02
1
0407-
177
SEAL; WATER,DOOR
POWER WINDOW<A30> (A)
1-76778-035-6
01
1
0407-
177
SEAL; WATER,DOOR
POWER WINDOW<A30> (A)
1-76778-052-2
01
1
0407-
177
SEAL; WATER,DOOR
(C)
1-76778-047-3
02
1
0407-
177
SEAL; WATER,DOOR
(B)
1-76778-055-2
02
1
0407-
179
TAPE; ORNAMENT
(A) L=45
1-76218-063-2
08
1
0407-
179
TAPE; ORNAMENT
(C) L=770
1-76218-091-2
02
1
0407-
179
TAPE; ORNAMENT
(D) L=160
1-76218-094-1
02
1
0407-
179
TAPE; ORNAMENT
(B) L=235
1-76218-127-1
04
1
0407-
226
COVER; HOLE,SIDE TRIM
POWER WINDOW<A30> THA
8-97922-111-0
02
1
0407-
