◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10945 - GXZ(THAI)EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#26068) — 91 parça

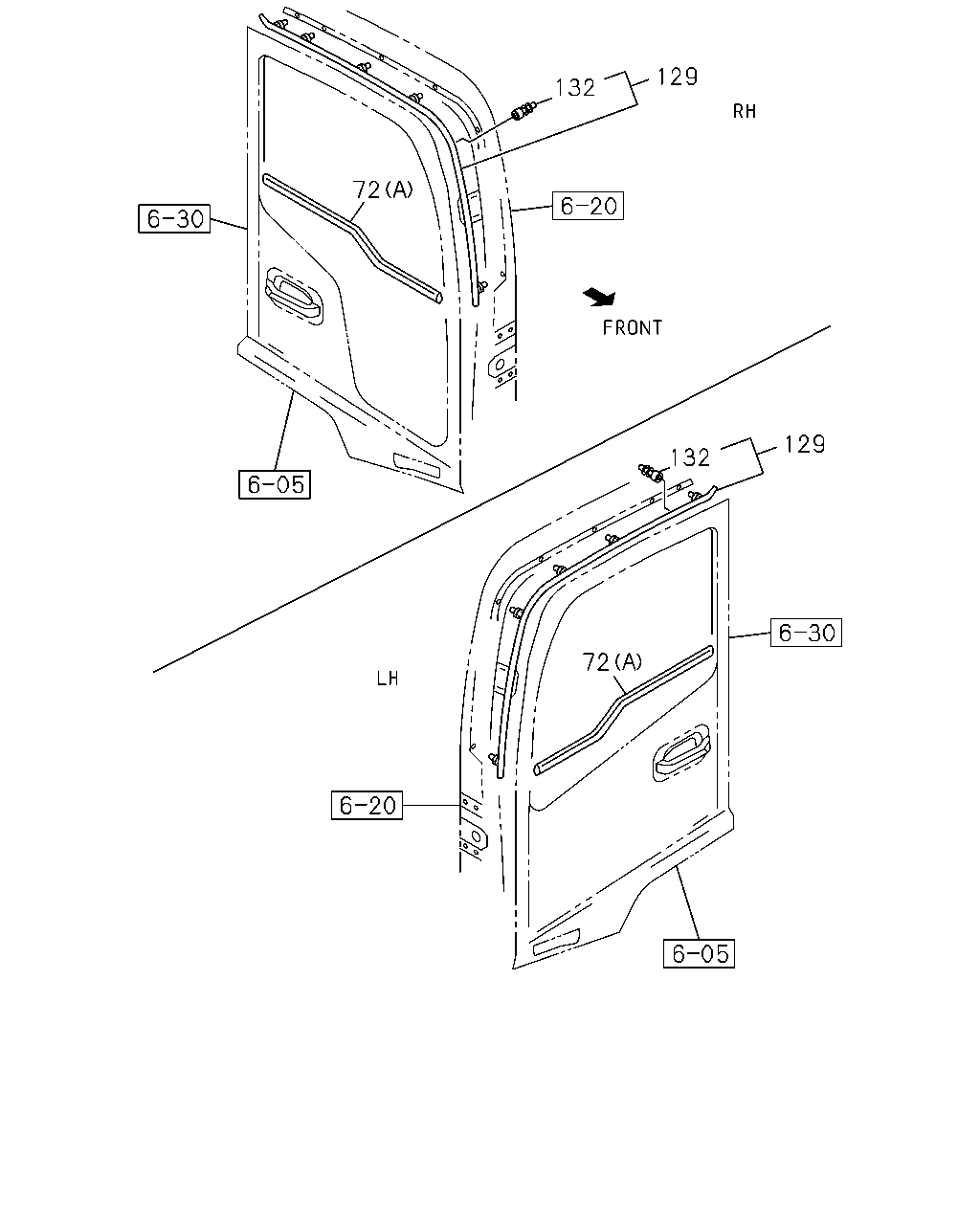

çizim 24631
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0407-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0407-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0407-
132 CLIP; SEAL,DOOR
NATURAL THA 		1-09987-253-1 06 1 0407-
132 CLIP; SEAL,DOOR
YELLOW THA 		1-09987-254-1 06 1 0407-

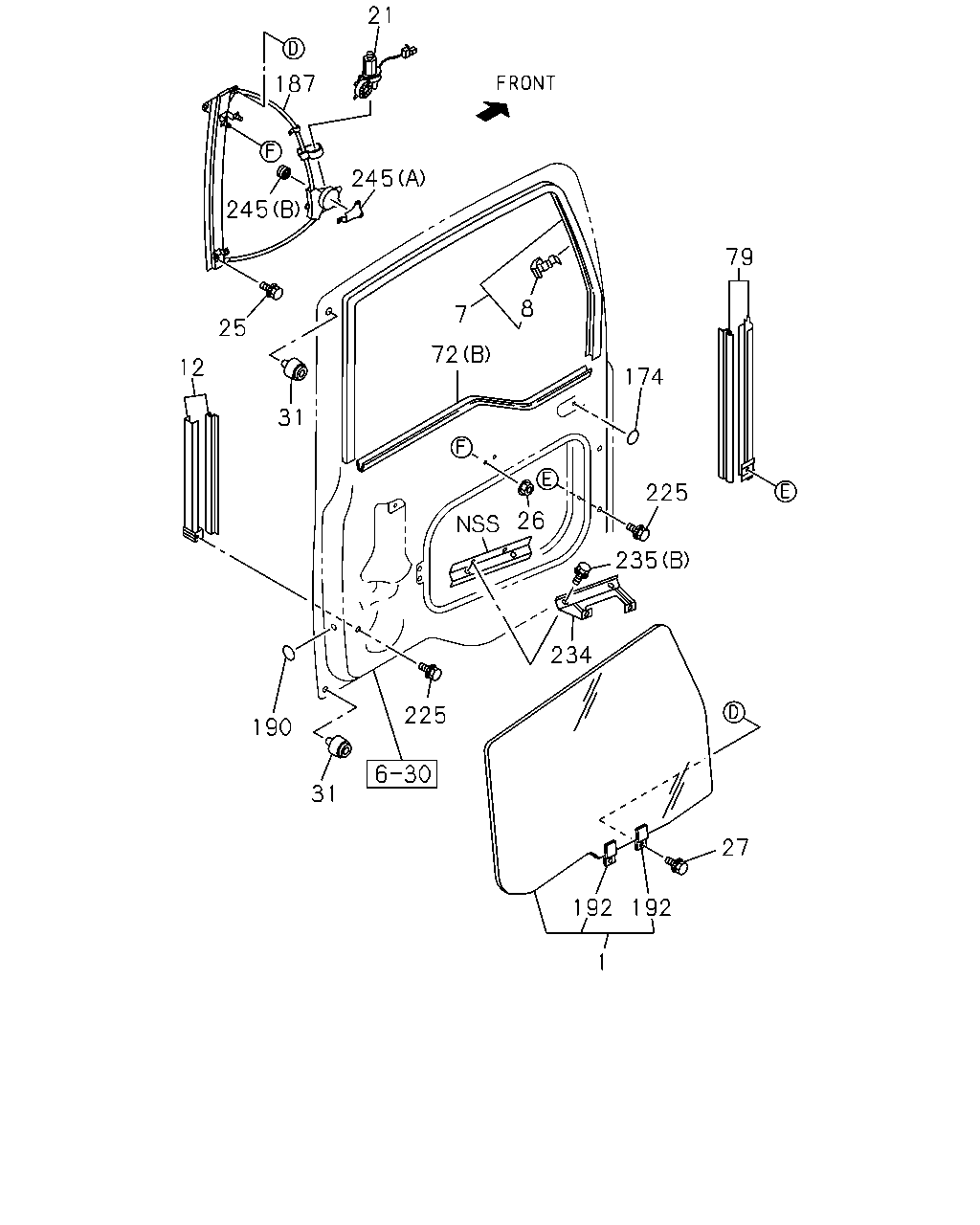

çizim 84842
21 187 245 245 79 8 7 25 72 12 174 31 225 26 235 234 225 190 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> THA 		8-97922-099-0 01 1 0407-
1 GLASS; FRT DOOR
POWER WINDOW<A30> THA 		8-97922-100-0 01 1 0407-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> THA 		8-97917-737-0 01 1 0407-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> THA 		8-97917-738-0 01 1 0407-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0407-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0407-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0407-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0407-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0407-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0407-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0407-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 10 1 0407-0512
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE THA 		0-28050-616-0 10 1 0601-0710
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X10 FLANGE THA 		0-28050-610-0 10 1 0711-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0407-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0407-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0407-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0407-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0407-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0407-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=52 BLACK THA 		1-76798-041-0 02 1 0407-
174 SEAL; LOCATION HOLE
OD=25 BLACK THA 		1-76798-019-0 08 1 0407-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK THA 		1-76798-041-0 06 1 0407-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-3 01 1 0407-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-3 01 1 0407-
190 REFLECTOR; FRT DOOR INNER
THA 		5-76777-060-1 01 1 0407-
192 HOLDER; DOOR GLASS
THA 		1-74427-170-0 04 1 0407-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0407-0512
225 BOLT; FRT CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 0601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0407-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0407-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> (A) M6X16 FLANGE 		0-28080-616-0 08 1 0407-0512
235 BOLT; BRKT
EXC. POWER WINDOW<A30> (A) M6X16 FLANGE THA 		0-28050-616-0 08 1 0601-0710
235 BOLT; BRKT
EXC. POWER WINDOW<A30> (A) M6X10 FLANGE THA 		0-28050-610-0 08 1 0711-
235 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 08 1 0407-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 02 1 0407-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0407-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0407-

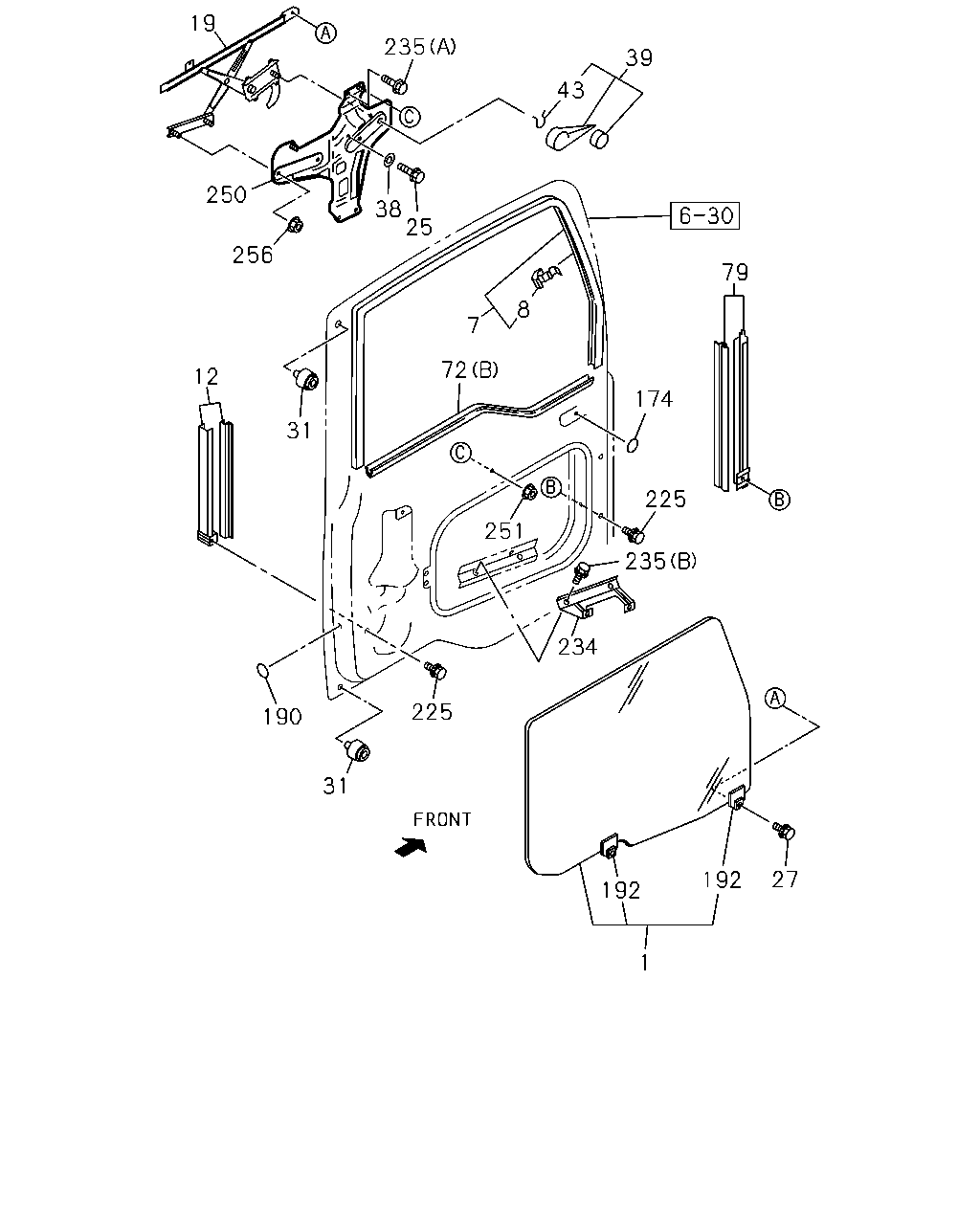

çizim 86701
19 235 39 43 250 38 25 256 79 8 7 72 12 174 31 225 251 235 234 225 190 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> THA 		8-97922-099-0 01 1 0407-
1 GLASS; FRT DOOR
POWER WINDOW<A30> THA 		8-97922-100-0 01 1 0407-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> THA 		8-97917-737-0 01 1 0407-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> THA 		8-97917-738-0 01 1 0407-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0407-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0407-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0407-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0407-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0407-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 0407-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 0407-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 10 1 0407-0512
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE THA 		0-28050-616-0 10 1 0601-0710
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X10 FLANGE THA 		0-28050-610-0 10 1 0711-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0407-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0407-
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0407-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> THA 		8-97915-729-0 02 1 0407-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> THA 		8-97915-807-0 02 1 0407-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0407-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0407-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0407-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0407-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=52 BLACK THA 		1-76798-041-0 02 1 0407-
174 SEAL; LOCATION HOLE
OD=25 BLACK THA 		1-76798-019-0 08 1 0407-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK THA 		1-76798-041-0 06 1 0407-
190 REFLECTOR; FRT DOOR INNER
THA 		5-76777-060-1 01 1 0407-
192 HOLDER; DOOR GLASS
THA 		1-74427-170-0 04 1 0407-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0407-0512
225 BOLT; FRT CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 0601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0407-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0407-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> (A) M6X16 FLANGE 		0-28080-616-0 08 1 0407-0512
235 BOLT; BRKT
EXC. POWER WINDOW<A30> (A) M6X16 FLANGE THA 		0-28050-616-0 08 1 0601-0710
235 BOLT; BRKT
EXC. POWER WINDOW<A30> (A) M6X10 FLANGE THA 		0-28050-610-0 08 1 0711-
235 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 08 1 0407-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> THA 		1-74418-148-0 01 1 0407-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> THA 		1-74418-149-0 01 1 0407-
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 0407-
256 NUT
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0407-
