◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#26060) — 155 parça

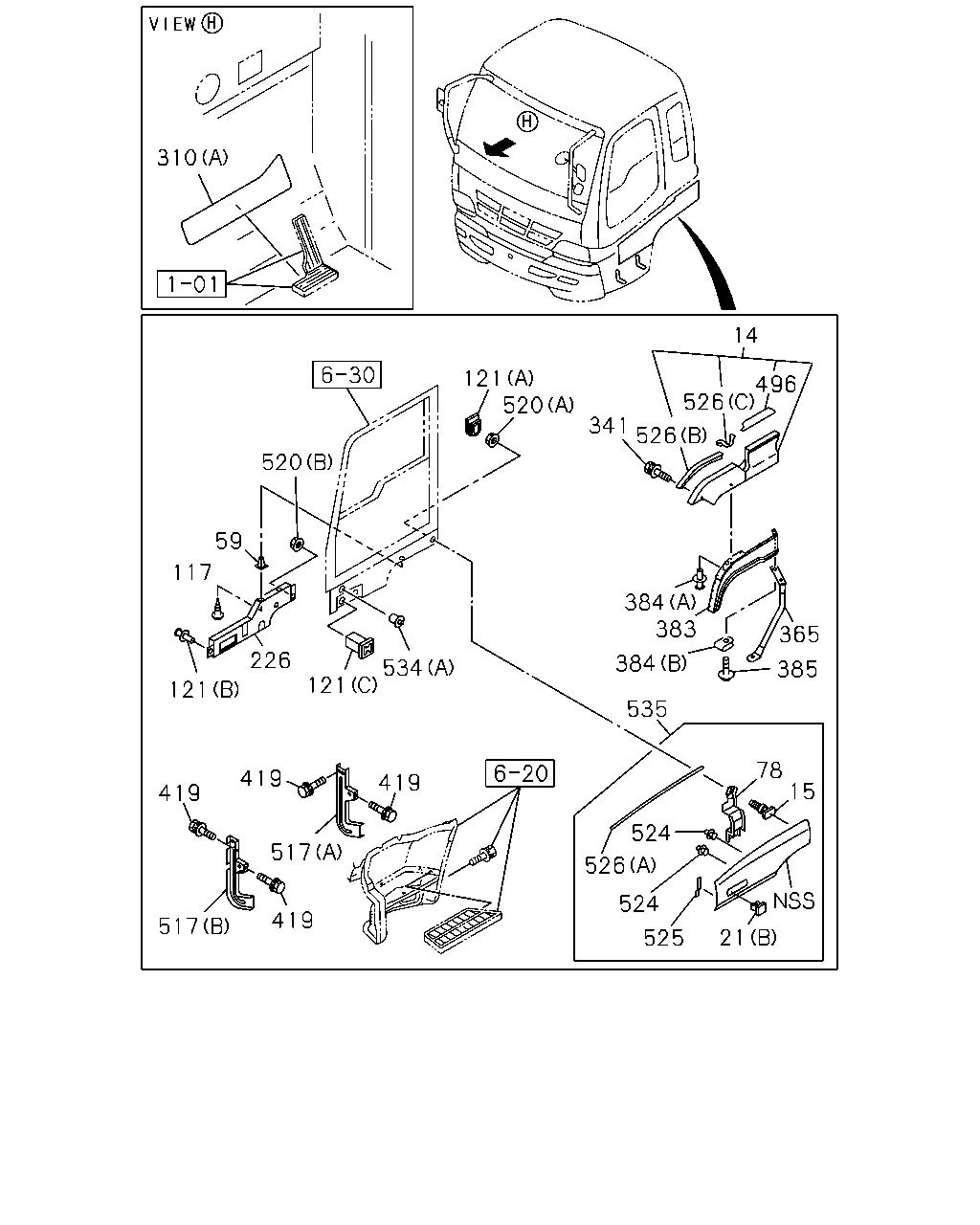

çizim 23740
310 14 121 520 496 526 341 526 520 59 117 384 383 365 226 384 534 121 385 121 535 78 15 419 419 419 524 517 526 524 419 517 21 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
WHITE 		1-65472-452-3 01 1 0309-
14 FENDER; FRT
WHITE 		1-65472-453-3 01 1 0309-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0309-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0309-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0309-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0309-
78 BRACKET; FENDER 1-71267-214-0 01 1 0309-
78 BRACKET; FENDER 1-71267-215-0 01 1 0309-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0309-
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 0309-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0309-
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0309-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0309-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0309-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0309-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0309-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0309-
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 0309-
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 0309-
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 0309-
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 0309-
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-442-2 01 1 0309-
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-443-2 01 1 0309-
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 09 1 0309-
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 0309-
384 CLIP; FENDER LWR
EXC. CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 11 1 0309-
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> M6X25 		1-65481-736-0 04 1 0309-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0309-
496 RUBBER; STEP 1-71998-861-2 01 1 0309-
496 RUBBER; STEP 1-71998-862-2 01 1 0309-
517 SUPPORT; STEP PANEL
(A) 		1-65671-530-1 01 1 0309-
517 SUPPORT; STEP PANEL
(A) 		1-65671-531-1 01 1 0309-
517 SUPPORT; STEP PANEL
(B) 		1-65671-766-1 01 1 0309-
517 SUPPORT; STEP PANEL
(B) 		1-65671-774-0 01 1 0309-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0309-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0309-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0309-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0309-
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0309-
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0309-
526 FINISHER; FENDER
(C) 		1-71907-642-0 01 1 0309-
526 FINISHER; FENDER
(C) 		1-71907-643-0 01 1 0309-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0309-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0309-
535 FENDER; BLISTER 1-71267-293-1 01 1 0309-
535 FENDER; BLISTER 1-71267-294-1 01 1 0309-

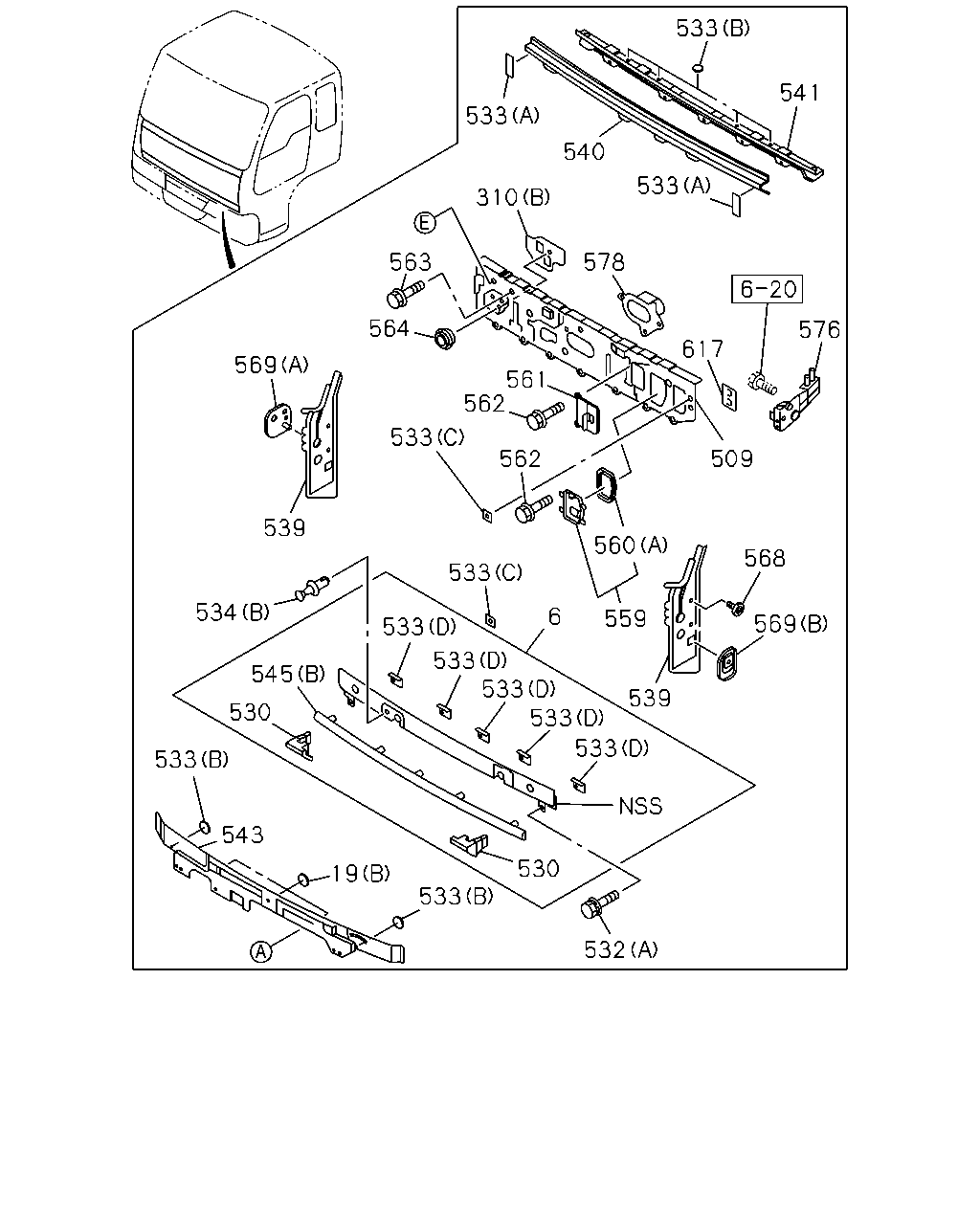

çizim 25515
533 541 533 540 533 310 563 578 564 576 617 569 561 562 533 509 562 539 560 568 533 534 6 559 569 533 533 533 533 545 539 530 533 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65472-549-4 01 1 0309-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-159-5 01 1 0309-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-160-5 01 1 0309-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0309-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0309-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0309-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0309-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0309-
509 PANEL; DASH 1-62270-478-6 01 1 0309-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0309-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0309-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0309-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0309-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0309-
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-2 02 1 0309-
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0309-
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0309-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0309-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0309-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0309-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0309-
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 0309-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0309-
543 CLOSING; FRT MTG RAIL 1-61470-716-1 01 1 0309-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0309-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0309-
545 SEAL; FRT LID
(C) L=63 		1-71998-963-2 01 1 0309-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0309-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0309-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0309-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0309-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0309-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0309-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0309-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0309-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0309-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0309-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0309-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0309-
568 PATCH; INST REINF 1-61480-675-2 02 1 0309-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0309-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0309-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0309-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0309-
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0309-
617 SEAL; DASH 1-61281-497-0 02 1 0309-

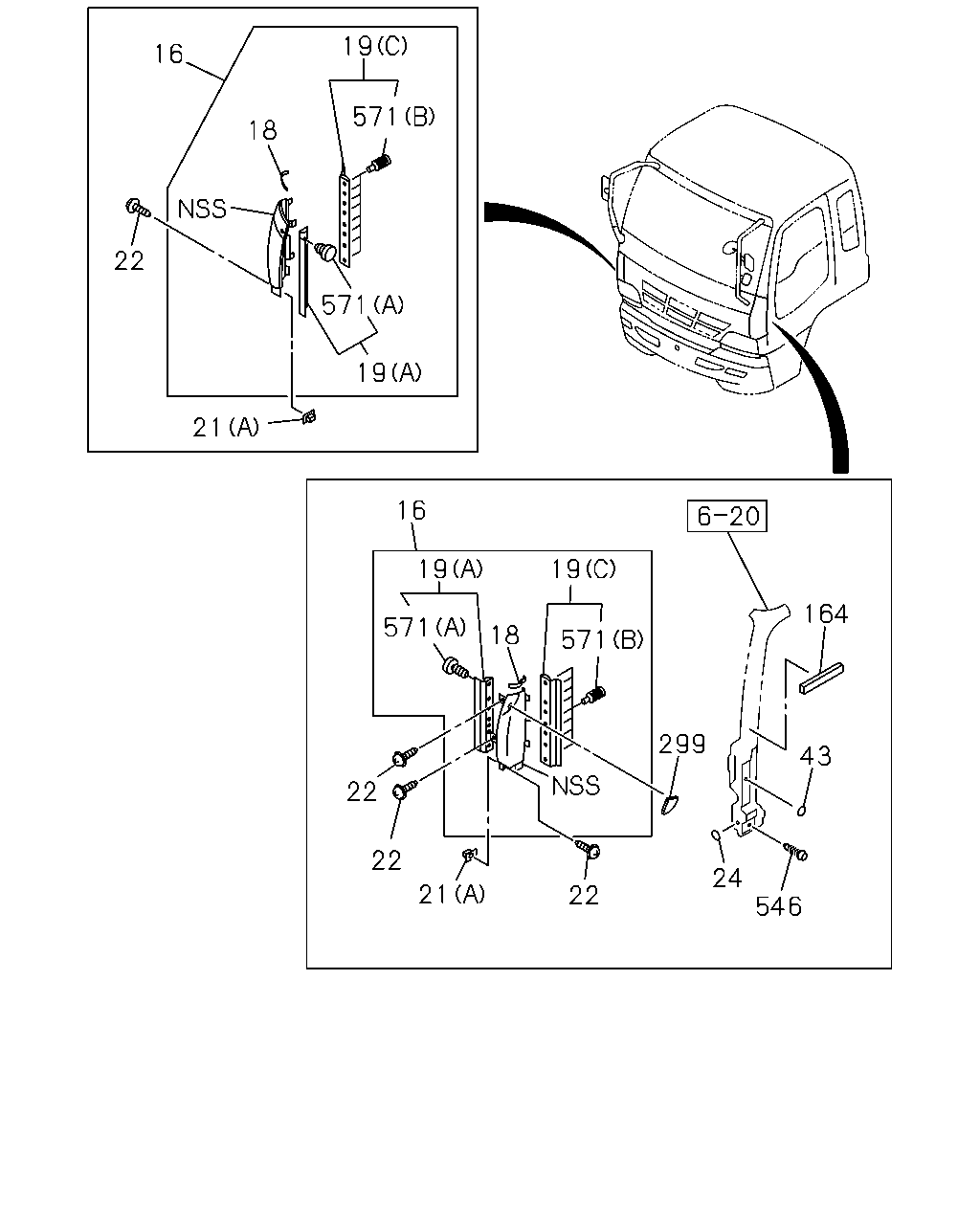

çizim 79583
19 16 571 18 22 571 19 21 16 19 19 164 571 18 571 299 43 22 22 24 21 22 546
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE 1-65471-896-1 01 1 0309-
16 PANEL; FRONT,SIDE 1-65471-897-1 01 1 0309-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0309-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0309-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-159-5 01 1 0309-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-160-5 01 1 0309-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0309-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0309-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0309-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0309-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0309-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0309-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 0309-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0309-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0309-
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0309-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0309-
571 CLIP; SEAL
(A) 		1-09987-228-0 14 1 0309-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0309-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0309-

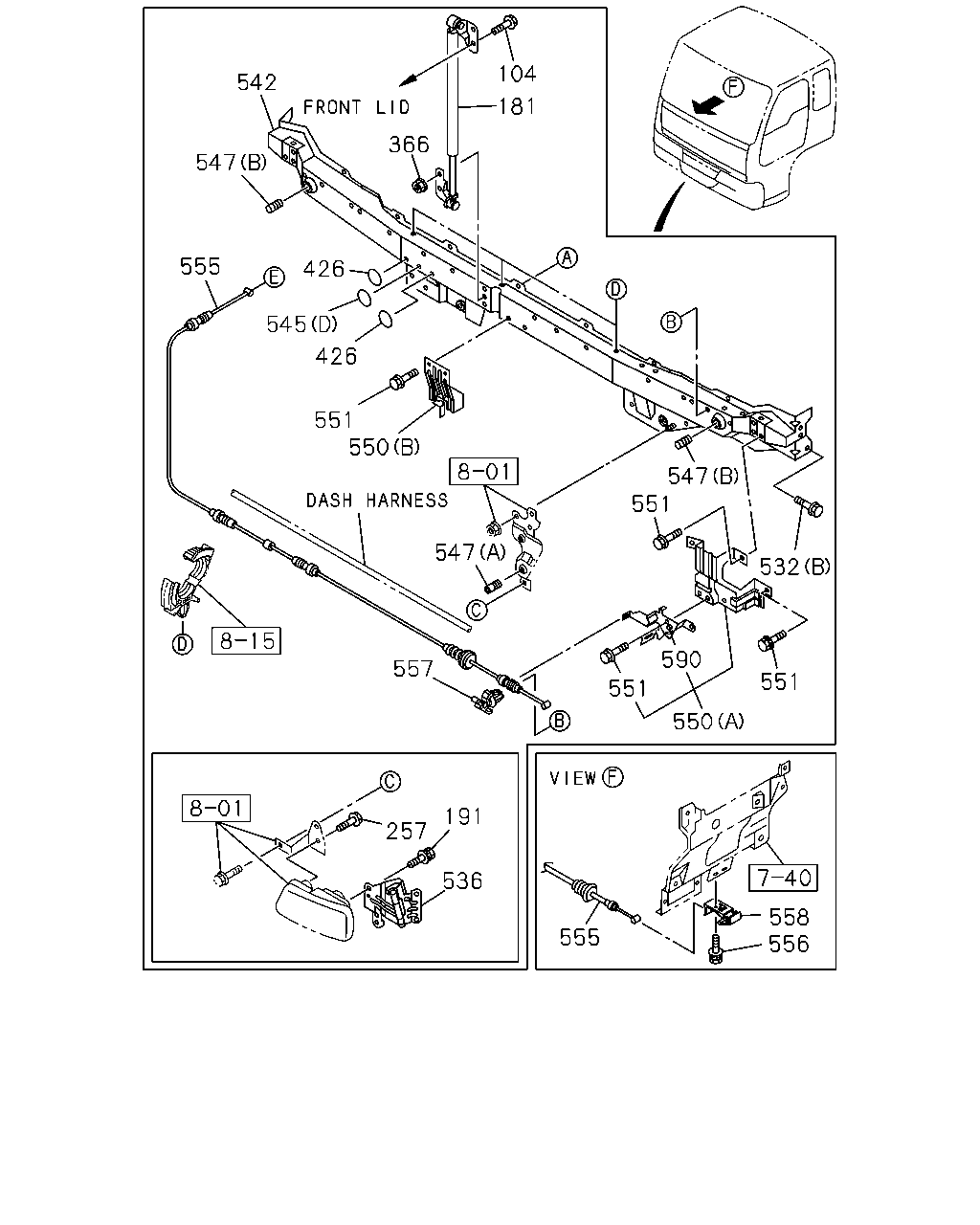

çizim 83518
104 542 181 366 547 555 426 545 426 551 550 547 551 547 532 590 557 551 551 550 191 257 536 558 556 555
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0309-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0309-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309-
257 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0309-
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0309-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0309-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0309-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0309-
536 HINGE 1-86830-031-5 01 1 0309-
536 HINGE 1-86830-032-5 01 1 0309-
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 0309-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0309-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0309-
545 SEAL; FRT LID
(C) L=63 		1-71998-963-2 01 1 0309-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0309-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0309-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0309-
550 LOCK ASM; FRT LID
(B) 		1-79317-006-2 01 1 0309-
550 LOCK ASM; FRT LID
(A) 		1-79317-007-2 01 1 0309-
550 LOCK ASM; FRT LID
(A) 		1-79317-008-1 01 1 0309-
551 BOLT; LOCK
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0309-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0309-
555 CABLE; FRT LID
L=2682 		1-79347-005-2 01 1 0309-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0309-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0309-
558 LEVER; FRT LID 1-79338-007-0 01 1 0309-
590 LOCK; FRT LID 1-79318-009-4 01 1 0309-
590 LOCK; FRT LID 1-79318-010-2 01 1 0309-
çizim 83688
544 544 560 548 545 545 198 545 548 548
BalonParca AdiParca NoAdetTipApplied Date
198 NUT; PANEL
M6 FLANGE 		8-94197-199-0 02 1 0309-
544 LID; FRT 1-71107-293-0 01 1 0309-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0309-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0309-
545 SEAL; FRT LID
(C) L=63 		1-71998-963-2 01 1 0309-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0309-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 0309-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0309-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0309-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0309-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0309-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0309-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0309-
