6-01 — FRONT BUMPER (#26058) — 65 parça

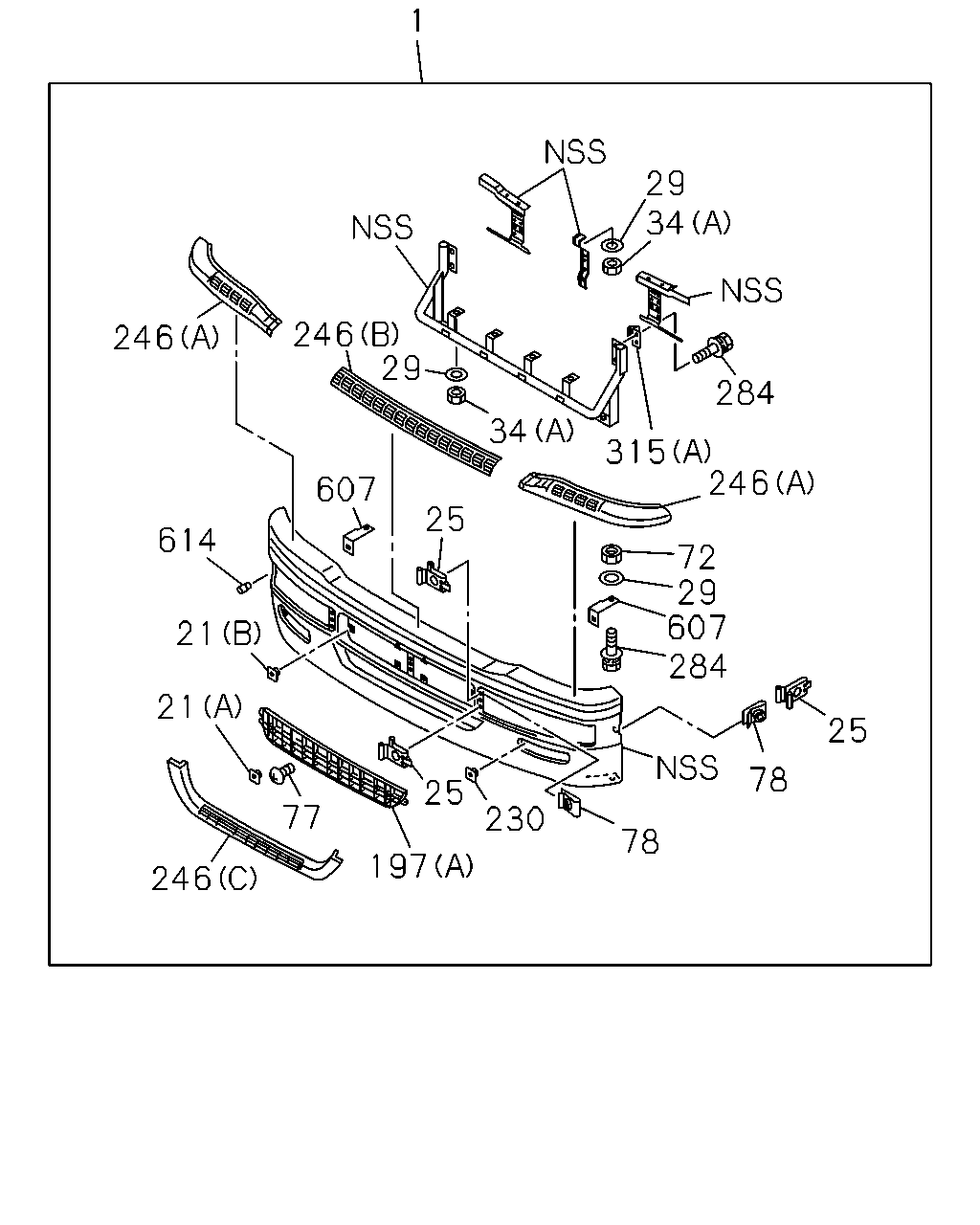

çizim 79582
1 29 34 246 29 34 246 284 315 246 607 25 614 72 29 607 284 21 21 25 78 25 77 230 78 197 246
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71210-746-6 01 1 0309-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9X9 L=7 M5 		8-94163-979-0 14 1 0309-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9.7X9.7 L=8 		8-94222-314-0 10 1 0309-
25 SPACER; PLATFORM 1-71260-162-0 06 1 0309-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0309-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 03 1 0309-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0309-
72 NUT; BRKT
M8 		9-09110-508-0 02 1 0309-
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 14 1 0309-
78 NUT; SPIRE 1-71260-174-0 06 1 0309-
197 GRILLE; BUMPER
(B) 		1-71260-117-0 01 1 0309-
197 GRILLE; BUMPER
(A) 		1-71260-157-2 01 1 0309-
230 NUT; BRK,HD LAMP,LWR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0309-
246 PROTECTOR; BUMPER
(A) 		1-71260-094-1 01 1 0309-
246 PROTECTOR; BUMPER
(A) 		1-71260-095-1 01 1 0309-
246 PROTECTOR; BUMPER
(B) 		1-71260-155-0 01 1 0309-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0309-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0309-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0309-
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-579-1 01 1 0309-
315 STAY; BUMPER
(C) 		1-71230-578-1 01 1 0309-
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 01 1 0309-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0309-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0309-
315 STAY; BUMPER
(C) 		1-71230-549-0 01 1 0309-
607 BRACKET 1-71230-454-0 02 1 0309-
614 STOPPER; LID 1-71260-163-0 12 1 0309-
çizim 85193
43 609 615 96 42 84 30 93 97 98 301 42 30 603 1 315 228 34 315 228 43 42 608 256 256 609 164 197 228
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71210-746-6 01 1 0309-
30 BRACKET; FRT BUMPER
(B) 		1-71230-430-0 01 1 0309-
30 BRACKET; FRT BUMPER
(B) 		1-71230-431-0 01 1 0309-
30 BRACKET; FRT BUMPER
(A) 		1-71230-506-0 02 1 0309-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 03 1 0309-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0309-
42 BOLT; BUMPER
(A) M10X25 FLANGE 		0-28681-025-0 07 1 0309-
42 BOLT; BUMPER
(B) M10X30 FLANGE 		0-28681-030-0 08 1 0309-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 03 1 0309-
84 HOOK 1-57181-027-1 01 1 0309-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0309-
96 PLATE; DIST,HOOK
CAB UP +110MM<TGG> 		1-53497-560-0 01 1 0309-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0309-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0309-
164 SCREW; AIR INT GRILLE
M6X20 		1-71260-141-0 06 1 0309-
197 GRILLE; BUMPER
(B) 		1-71260-117-0 01 1 0309-
197 GRILLE; BUMPER
(A) 		1-71260-157-2 01 1 0309-
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0309-
256 WASHER; PL
(A) 		1-71260-153-0 03 1 0309-
256 WASHER; PL
(B) 		1-71260-165-0 03 1 0309-
256 WASHER; PL
(A) 		1-71260-173-0 03 1 0309-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 03 1 0309-
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X70 		0-10811-670-0 01 1 0309-
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X80 		0-10811-680-0 01 1 0309-
301 BOLT; HOOK TO FRAME
M16X90 		0-10811-690-0 01 1 0309-0310
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-579-1 01 1 0309-
315 STAY; BUMPER
(C) 		1-71230-578-1 01 1 0309-
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 01 1 0309-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0309-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0309-
315 STAY; BUMPER
(C) 		1-71230-549-0 01 1 0309-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0309-
608 LID; BUMPER 1-71210-896-0 01 1 0309-
608 LID; BUMPER 1-71210-897-0 01 1 0309-
609 STUD; BUMPER
(A) 		1-71260-164-0 03 1 0309-
609 STUD; BUMPER
(A) 		1-71260-175-0 03 1 0309-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0309-
615 BRACKET; BUMPER CENTER
CAB UP +110MM<TGG> 		1-71230-407-0 01 1 0309-
