5-30 — SPARE TIRE CARRIER AND COVER
(#26057) — 17 parça
◀

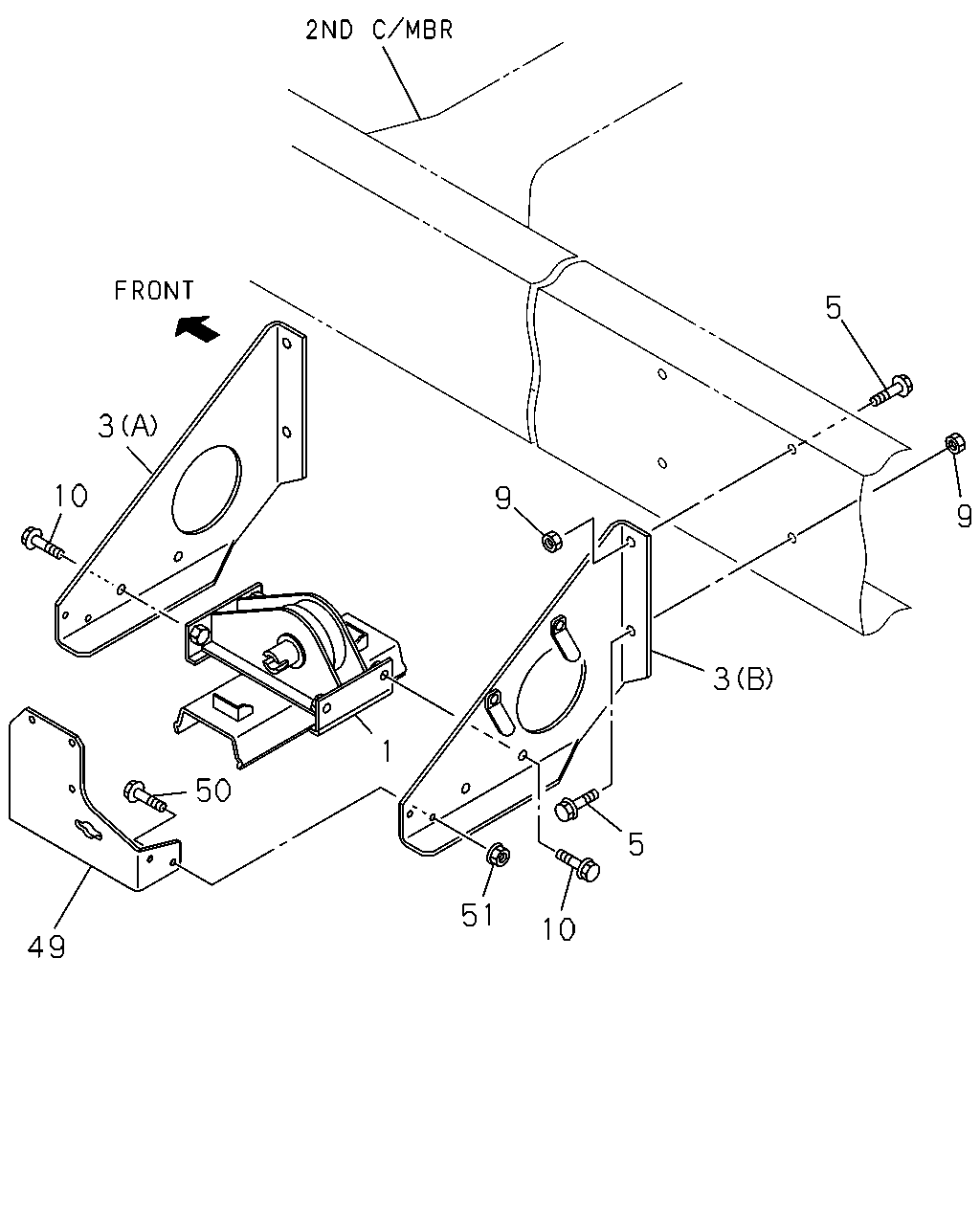

[530A] SPARE WHEEL CARRIER FRAME SIDE (11 parça)
[530A] SPARE WHEEL CARRIER FRAME REAR (6 parça)
▶
5
3
10
9
9
3
1
50
5
51
10
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-1
01
1
0309-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-323-1
01
1
0309-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-324-0
01
1
0309-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE
0-28681-240-0
04
1
0309-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
9-99110-512-0
04
1
0309-0309
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
9-99110-512-0
02
1
0310-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X40 FLANGE
0-28681-240-0
04
1
0309-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
04
1
0309-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-428-0
01
1
0309-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE
0-28680-825-0
04
1
0309-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91150-108-0
04
1
0309-
19
15
19
10
20
19
20
19
1
10
20
15
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-1
01
1
0309-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X40 FLANGE
0-28681-240-0
04
1
0309-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
04
1
0309-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-395-1
02
1
0309-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE
0-28081-030-0
08
1
0309-
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91150-210-0
08
1
0309-
