◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#26049) — 10 parça

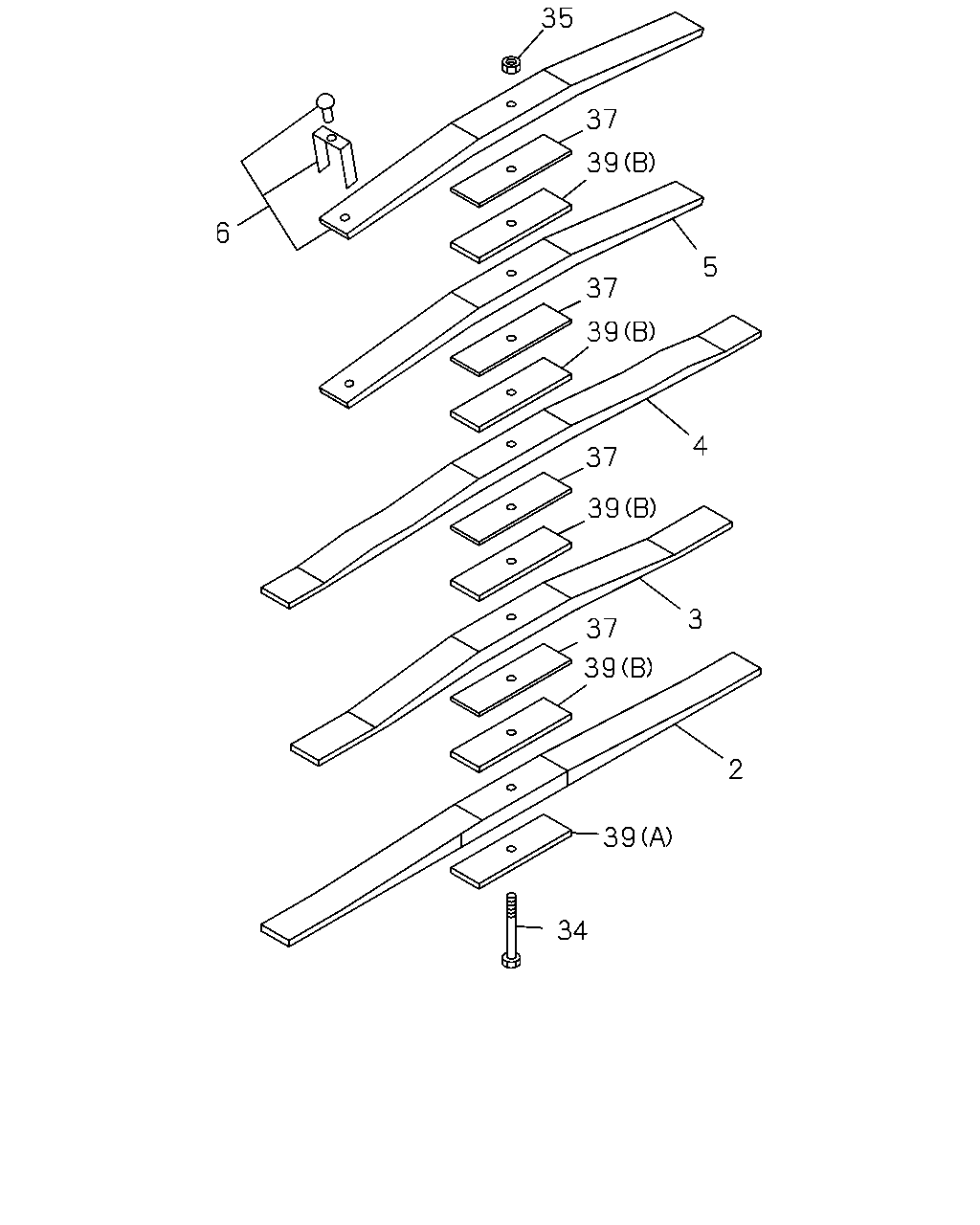

çizim 80088
35 37 39 6 5 37 39 4 37 39 3 37 39 2 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51410-301-0 		1-51411-301-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51410-301-0 		1-51412-301-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51410-301-0 		1-51413-301-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51410-301-0 		1-51414-275-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: A = 1-51410-301-0 		1-51415-275-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51410-301-0 		1-51356-364-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51410-301-0 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1.2 ASM PART: A = 1-51410-301-0 		1-51359-037-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=2 ASM PART: A = 1-51410-301-0 		1-51377-398-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: A = 1-51410-301-0 		1-51377-399-0 04 1 -
