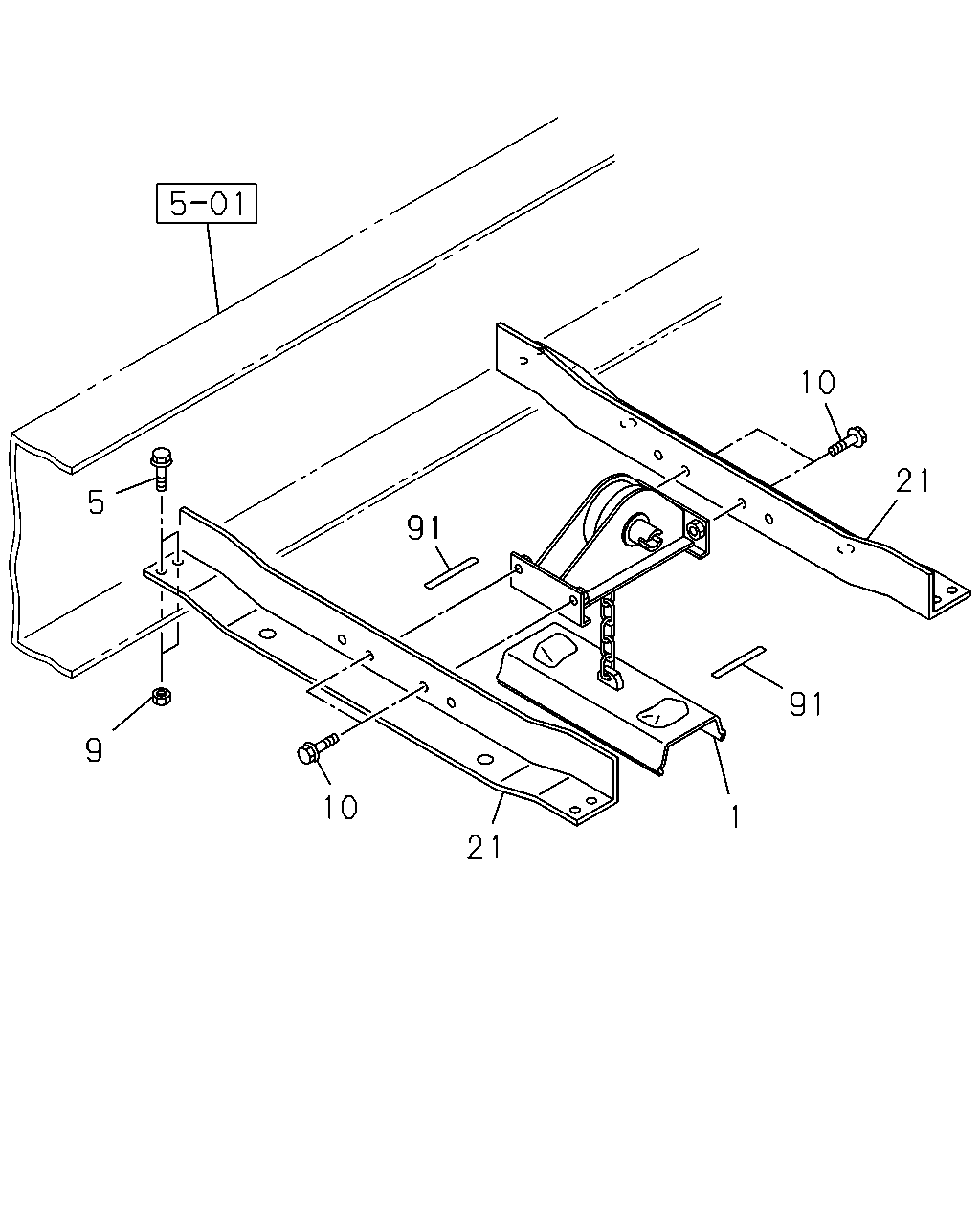

5-30 — SPARE TIRE CARRIER AND COVER (#26046) — 15 parça

10 21 5 91 91 9 10 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10> THA	1-53630-208-1	01	1	0407-0701	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10> THA	1-53630-208-1	01	1	0702-	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0407-0512	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0601-0701	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0702-	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10	9-09110-410-0	08	1	0407-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 THA	0-91110-510-0	08	1	0601-0701	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 THA	0-91110-510-0	08	1	0702-	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0407-0701	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0702-	●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> THA	8-97913-545-1	02	1	0407-0701	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> THA	8-97913-545-1	02	1	0702-	●	●
91	PAD; TIRE CARRIER WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA	8-97923-389-0	02	1	0605-0606	●	●
91	PAD; TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA	8-97923-389-0	02	1	0607-0701	●
91	PAD; TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA	8-97923-389-0	02	1	0702-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
